Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Force 22, SRAM -
Suspension Rigid -
Drivetrain 2 × 11 -
Brakes Rim
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
600 Series OCLV Carbon, KVF (Kammtail Virtual Foil) tube shape, BB90 w/Speed Fin, DuoTrap compatible, Speed Box II compatible, includes Draft Box II
Suspension Fork
SC full foil carbon, integrated brake & stem
Drivetrain
Rear Derailleur
SRAM Force 22
Front Derailleur
SRAM Force 22 Yaw, braze-on
Shift Levers
SRAM 1190 R2C, bar end, 11 speed
Cassette
SRAM PG-1170 11-28, 11 speed
Crank
SRAM Force, 52/36 (semi-compact)
Bottom Bracket
BB90, 90.5mm, press-fit
Wheels
Rims
Bontrager Race Lite Tubeless Ready
Tires
Bontrager R3 Hard-Case Lite, 120tpi, aramid bead, 700x23c
Brakes
Brakes
Bontrager Speed Limit integrated brakes, Bontrager Race Lite aero levers
Cockpit
Stem
Bontrager Speed Concept, direct mount
Handlebar
Bontrager Speed Concept full foil aero bar, carbon, direct mount
Headset
Integrated, sealed bearings
Seat
Saddle
Bontrager Hilo RXL, hollow titanium rails
Seatpost
Bontrager Speed Concept Race X Lite, OCLV carbon, +/-15mm offset
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |

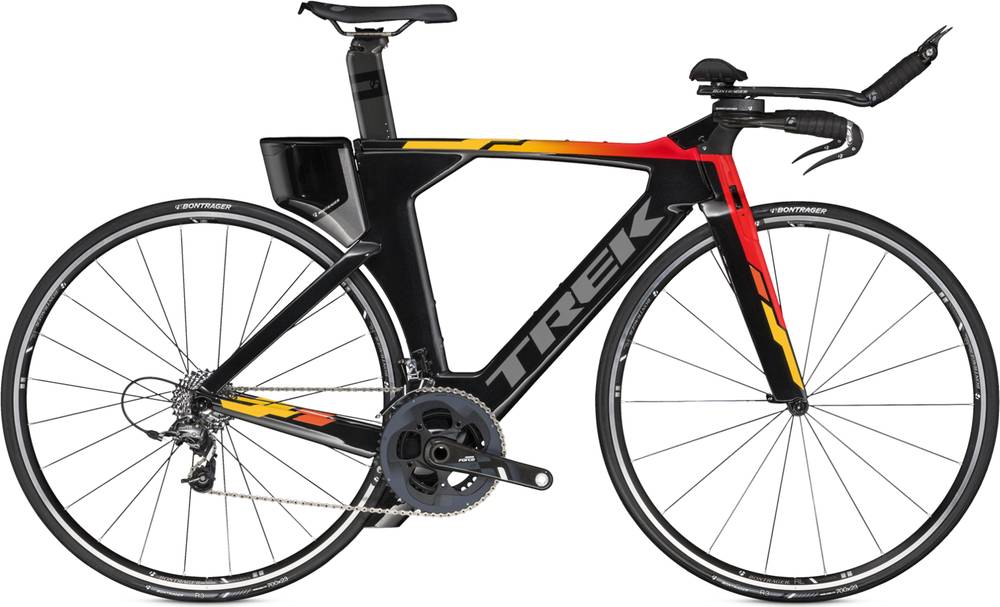

Model Overview
Speed Concept 9.5 is part of the Trek Speed model. 112 bikes variations carry this model name so far. You can easily view all of the Trek Speed bikes models from 2016, here.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Triathlon bikes
If you want to purchase a solid Triathlon bike, it is important to know that the average cost is 4177$. However, you could also get a good Triathlon bike even if you pay a lower amount than the average price. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Overview of components
Fork material
The fork on this bike is made out of carbon, so, it’s a great addition to the bike’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
Wheels size
The wheels on Speed Concept 9.5 are the 700c aluminum type. These wheels are the most used kind for road bikes in general. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Rim brakes. Rim brakes deliver an average performance overall. However, they have problems in wet conditions.
Sizes
Trek Speed Concept 9.5 bike has 4 sizes, in the range of 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, you can easily find one that suits you.
