Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Force 22, SRAM -
Suspension Rigid -
Drivetrain 2 × 11 -
Brakes Rim
Sizing
Recommended size guide.
XS
151cm - 164cm
SM
160cm - 172cm
MD
166cm - 179cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
600 Series OCLV Carbon, KVF (Kammtail Virtual Foil) tube shape, Speed Fin, BB90, DuoTrap compatible, SC Speed Box 2 compatible, includes SC Draft Box 2
Suspension Fork
SC full foil carbon, carbon dropout, integrated brake & stem
Drivetrain
Rear Derailleur
SRAM Force 22
Front Derailleur
SRAM Force 22 Yaw, braze-on, integrated chain spotter
Shift Levers
SRAM 1190 R2C, bar end, 11 speed
Cassette
SRAM PG-1170 11-28, 11 speed
Crank
SRAM Force, 52/36 (semi-compact)
Bottom Bracket
BB90, 90.5mm, press-fit
Wheels
Rims
Bontrager Race Lite Tubeless Ready (XS: Xero XR-210 650c)
Tires
Bontrager R3 Hard-Case Lite, 120tpi, aramid bead, 700x23c (XS: 650x23c)
Brakes
Brakes
Bontrager Speed Limit integrated brakes, Bontrager Race Lite aero levers
Cockpit
Stem
Bontrager Speed Concept, direct mount
Handlebar
Bontrager Speed Concept full foil aero bar, carbon, direct mount
Headset
Integrated, sealed bearings
Seat
Saddle
Bontrager Hilo RXL, hollow titanium rails
Seatpost
Bontrager Speed Concept Race X Lite, OCLV carbon, +/-15mm offset
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD |
|---|---|---|---|
| Wheels | 700 | 700 | 700 |
| Rider Min Height | 151 cm | 160 cm | 166 cm |
| Rider Max Height | 164 cm | 172 cm | 179 cm |
Model Overview

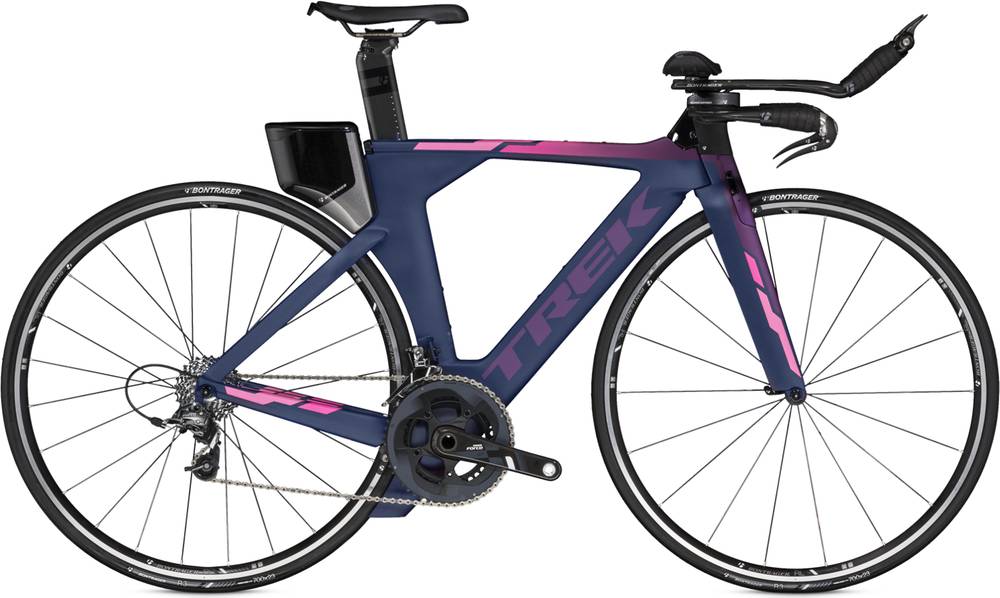

Speed Concept 9.5 Women’s completes the Trek Speed model. There are 112 bikes that carry this model name. You can easily view all of the Trek Speed bikes models from 2016, here.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Triathlon bikes
If you want to purchase a solid Triathlon bike, it is important to know that the average cost is 4177$. However, even though the average price of a Triathlon bike is lower, you might still be able to get a top-quality bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Overview of components
Fork material
The fork on this bike is made out of carbon, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Wheels
When leaving the production line, the Speed Concept 9.5 Women’s model has 700c aluminum wheels. There is no doubt, that 700c wheels are very popular on all road bike models. However, these wheels don’t perform so well when passing over obstacles.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Speed Concept 9.5 Women’s comes with Rim brakes. Rim brakes deliver an average performance overall. However, you could spend a little extra and get a bike that has hydraulic brakes.
Sizes
There are 3 sizes available for this model. Rider height can be anywhere between 151 cm – 179 cm (4.95 ft – 5.87 ft). In conclusion, it won’t take much to find one that’s right for you.
