Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Force, SRAM -
Suspension Rigid -
Drivetrain 2 × 10 -
Brakes Rim
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
600 Series OCLV Carbon, made in the USA, KVF (Kammtail Virtual Foil) tube shape, DuoTrap compatible, SC Speed Box compatible, includes SC Draft Box
Suspension Fork
SC KVF full carbon, integrated brake & stem
Drivetrain
Rear Derailleur
SRAM Force
Front Derailleur
SRAM Force, braze-on
Shift Levers
SRAM 900 TT, bar end control, 10 speed
Cassette
SRAM PG-1070 11-23, 10 speed
Crank
SRAM Force, 53/39 (double)
Wheels
Rims
Bontrager Aura 5 (XS: 650c HED Jet 60)
Tires
Bontrager 700x23c (XS: 650x23c)
Brakes
Brakes
Bontrager Speed Concept integrated brakes w/Bontrager Race Lite aero levers
Cockpit
Stem
Bontrager Speed Concept, direct mount
Handlebar
Bontrager Speed Concept aero bar w/ski bend extension, carbon, direct mount
Headset
Integrated, sealed bearings
Seat
Saddle
Fizik Airone Tri2, manganese rails
Seatpost
Bontrager Speed Concept Race X Lite, carbon, +/-10mm offset
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |

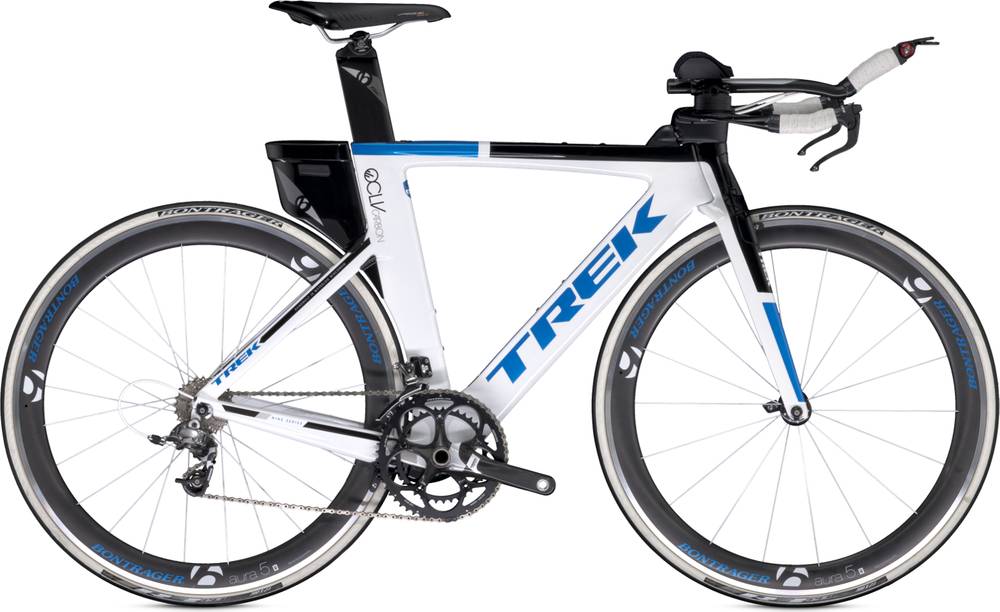

Model Overview
Speed Concept 9.8 completes the Trek Speed model. Trek released 112 bikes variations of this model so far. You can easily view all of the Trek Speed bikes models from 2013, here.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Triathlon bikes
According to our math, the average price for a trustworthy Triathlon bike is 4177$. However, this doesn’t mean that if you spend less money on a Triathlon bike, you couldn’t get a decent one. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Overview of components
Fork material
When it comes to the fork, this bike has a carbon one, so, it’s a great addition to the bike’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
Wheels
The Speed Concept 9.8 2013 bike is equipped with 700c aluminum wheels when leaving the factory. There is no doubt, that 700c wheels are very popular on all road bike models. However, these wheels don’t perform so well when passing over obstacles.
Brakes
When you want to stop the bike in time, the brakes are vital. The Speed Concept 9.8 has Rim brakes. Rim brakes are cheaper than hydraulic brakes, and also easier to maintain. However, they have problems in wet conditions.
Sizes
There are 5 sizes available for this model. Rider height can be anywhere between 156 cm – 195 cm (5.12 ft – 6.4 ft). In conclusion, it won’t take much to find one that’s right for you.
