Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Force, SRAM -
Suspension Rigid -
Drivetrain 2 × 10 -
Brakes Rim
Sizing
Recommended size guide.
XS
151cm - 164cm
SM
160cm - 172cm
MD
166cm - 179cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
OCLV2 Carbon, KVF (Kammtail Virtual Foil) tube design, SC Speed Box and DuoTrap compatible, includes SC Draft Box
Suspension Fork
Bontrager SC, OCLV2 Carbon, KVF leg design, integrated brake and stem
Drivetrain
Rear Derailleur
SRAM Force
Front Derailleur
SRAM Force
Shift Levers
SRAM 900 TT, bar end control, 10 speed
Cassette
SRAM OG-1070 11-23, 10 speed
Crank
SRAM Force, 53/39 (XS: Rival, 53/39)
Pedals
n/a
Wheels
Rims
Bontrager Aeolus 5.0 ACC (XS: 650c HED Jet 60)
Tires
Bontrager R4 Aero, 700x22c (XS: R3, 650x22c)
Brakes
Brakes
Bontrager Speed Concept integrated brakes w/Bontrager Race XXX Lite aero levers
Cockpit
Stem
Bontrager Speed Concept, direct mount
Handlebar
Bontrager Speed Concept aero bar w/ski bend extension, carbon, direct mount
Headset
Integrated, sealed bearings, proprietary top, 1" bottom
Seat
Saddle
Fizik Vitesse Tri, manganese rails
Seatpost
Bontrager Speed Concept Race X Lite, carbon, +/-10mm offset
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD |
|---|---|---|---|
| Wheels | 700 | 700 | 700 |
| Rider Min Height | 151 cm | 160 cm | 166 cm |
| Rider Max Height | 164 cm | 172 cm | 179 cm |
About this model

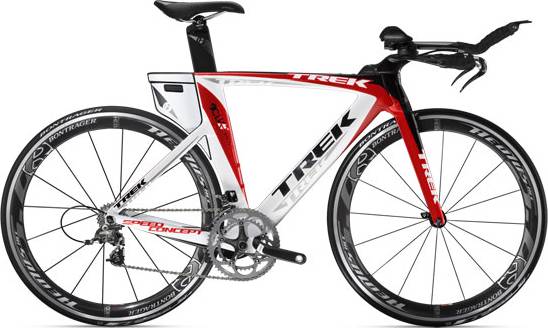

Speed Concept 9.8 WSD is part of the Trek Speed model. Trek released 112 bikes variations of this model so far. Take a sneak peek at all Trek Speed bikes models from 2010, by clicking here.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Triathlon bikes average price
According to our calculations, the average cost of a Triathlon bike that is reliable is 4177$. However, this doesn’t mean that if you spend less money on a Triathlon bike, you couldn’t get a decent one. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Speed Concept 9.8 WSD components
Fork material
When it comes to the fork, this bike has a carbon one, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels size
As for the wheels, Trek Speed Concept 9.8 WSD 2010, has a 700c carbon model. These wheels are the most used kind for road bikes in general. However, these wheels don’t perform so well when passing over obstacles.
Brakes
When you want to stop the bike in time, the brakes are vital. The Speed Concept 9.8 WSD has Rim brakes. Rim brakes are cheaper than hydraulic brakes, and also easier to maintain. However, they are not nearly as effective as hydraulic brakes are.
Sizes
This bike is available in 3 sizes. They vary from 151 cm – 179 cm (4.95 ft – 5.87 ft). In conclusion, you won’t have a problem finding one that suits you.
