Bike details
Overview
Key information split into simple groups.

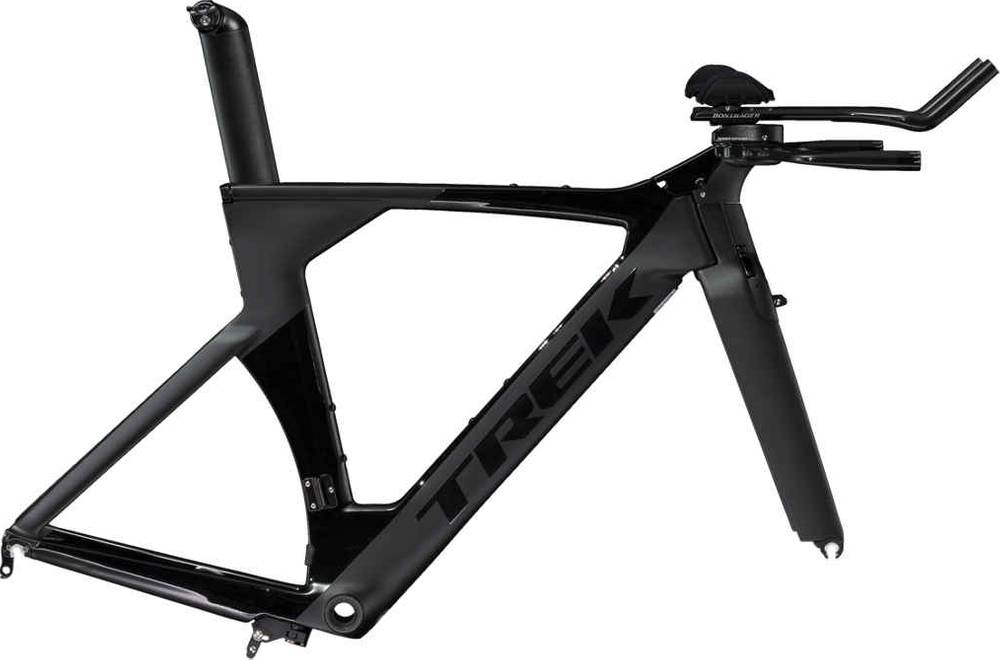

Frame summary
-
-
Frame Carbon -
Wheels 700c -
Suspension Rigid -
Brakes Rim
Sizing
Recommended size guide.
LG
174cm - 187cm
MD
164cm - 177cm
SM
154cm - 170cm
XL
185cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
500 Series OCLV Carbon, KVF (Kammtail Virtual Foil) tube shape, BB90, Speed Fin compatible, DuoTrap compatible, SC Draft Box 2 & SC Speed Box compatible
Suspension Fork
SC full foil carbon, integrated brake & stem
Drivetrain
Bottom Bracket
BB90, 90.5mm, press-fit
Brakes
Brakes
Bontrager Speed Concept integrated
Cockpit
Stem
Bontrager Speed Concept, direct mount
Handlebar
Bontrager Speed Concept KVF aero bar, carbon, direct mount, UCI legal
Headset
Integrated, sealed bearings
Seat
Seatpost
Bontrager Speed Concept Race Lite, alloy, +/-20mm offset
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | LG | MD | SM | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.26 mm | 1.27 mm | 1.27 mm | 1.27 mm |
| Bottom Bracket Height | 256 mm | 256 mm | 256 mm | 256 mm |
| Front Center | 575 mm | 598 mm | 623 mm | 650 |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 61 mm | 60 mm | 60 mm | 60 mm |
| Stack | 493 mm | 518 mm | 542 mm | 566 mm |
| Reach | 391 mm | 409 mm | 427 mm | 446 mm |
| Top Tube Length | 496 mm | 519 mm | 542 mm | 566 mm |
| Seat Tube Angle | 78 ° | 78 ° | 78 ° | 78 ° |
| Seat Tube Length | 503 mm | 529 mm | 553 mm | 578 mm |
| Head Tube Angle | 72.2 ° | 72.5 ° | 72.5 ° | 72.5 ° |
| Head Tube Length | 65 mm | 90 mm | 115 mm | 140 mm |
| Chainstay Length | 401 mm | 401 mm | 401 mm | 401 mm |
| Wheelbase | 962 mm | 986 mm | 1011 mm | 1038 mm |
| Bottom Bracket Drop | 80 mm | 80 mm | 80 mm | 80 mm |
| Standover Height | 751 mm | 776 mm | 800 mm | 824 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 174 cm | 164 cm | 154 cm | 185 cm |
| Rider Max Height | 187 cm | 177 cm | 170 cm | 198 cm |
Model Overview
Speed Concept Frameset belongs to the Trek Speed model. There are 112 frames that carry this model name. You can easily view all of the Trek Speed frames models from 2019, here.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Triathlon frames
If you want to purchase a solid Triathlon frame, it is important to know that the average cost is 3089$. However, even though the average price of a Triathlon frame is lower, you might still be able to get a top-quality frame. As a general rule of thumb, you should always read reviews about the frame and its components before buying it to ensure you don’t pay too much.
Furthermore, this bike was made available in 2019 for 3299$. Comparing the average cost of a Triathlon frame to this one, you will see that Speed Concept Frameset price is 6.8% higher.
Overview of components
Fork material
Speed Concept Frameset has a carbon fork, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Brakes
For your safety, it is important to have quality breaks on your bike. Trek Speed Concept Frameset has Rim brakes installed. Rim brakes deliver an average performance overall. However, they have problems in wet conditions.
Sizes
Speed Concept Frameset comes in 4 sizes, that range from 174 cm – 198 cm (5.71 ft – 6.5 ft). In conclusion, finding one for you shouldn’t be a problem.
