Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Frame Carbon -
Wheels 700c -
Suspension Rigid -
Brakes Rim
Sizing
Recommended size guide.
SM
154cm - 168cm
MD
166cm - 176cm
LG
174cm - 187cm
XL
185cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components

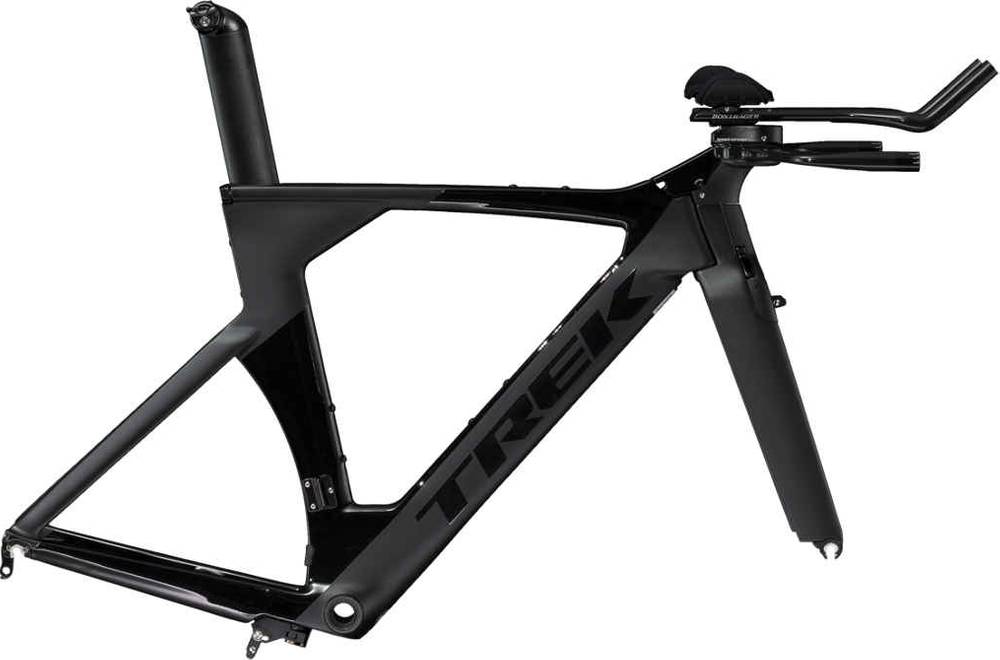

Frame
Frame
500 Series OCLV Carbon, KVF (Kammtail Virtual Foil) tube shape, BB90, Speed Fin compatible, DuoTrap compatible, SC Draft Box 2 & SC Speed Box 2 compatible
Suspension Fork
SC full foil carbon, integrated brake & stem
Drivetrain
Bottom Bracket
BB90, 90.5mm, press-fit
Brakes
Brakes
Bontrager Speed Limit integrated, Bontrager Race Lite aero levers
Cockpit
Stem
Size: S, Bontrager Speed Concept, direct mount, 69mm rise, 67mm reach; Size: S, Bontrager Speed Concept, direct mount [p]; Size: M, L, XL, Bontrager Speed Concept, direct mount, 61mm rise, 110mm reach
Handlebar
Bontrager Speed Concept KVF aero bar, carbon, direct mount, UCI legal
Seat
Seatpost
Size: S, Bontrager Speed Concept Race Lite, alloy, +/-20mm offset, 275mm length; Size: M, L, XL, Bontrager Speed Concept Race Lite, alloy, +/-20mm offset, 335mm length
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.26 mm | 1.27 mm | 1.27 mm | 1.27 mm |
| Bottom Bracket Height | 256 mm | 256 mm | 256 mm | 256 mm |
| Front Center | 575 mm | 598 mm | 623 mm | 650 |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 61 mm | 60 mm | 60 mm | 60 mm |
| Stack | 493 mm | 518 mm | 542 mm | 566 mm |
| Reach | 391 mm | 409 mm | 427 mm | 446 mm |
| Top Tube Length | 496 mm | 519 mm | 542 mm | 566 mm |
| Seat Tube Angle | 78 ° | 78 ° | 78 ° | 78 ° |
| Seat Tube Length | 503 mm | 529 mm | 553 mm | 578 mm |
| Head Tube Angle | 72.2 ° | 72.5 ° | 72.5 ° | 72.5 ° |
| Head Tube Length | 65 mm | 90 mm | 115 mm | 140 mm |
| Chainstay Length | 401 mm | 401 mm | 401 mm | 401 mm |
| Wheelbase | 962 mm | 986 mm | 1011 mm | 1038 mm |
| Bottom Bracket Drop | 80 mm | 80 mm | 80 mm | 80 mm |
| Standover Height | 751 mm | 776 mm | 800 mm | 824 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 154 cm | 166 cm | 174 cm | 185 cm |
| Rider Max Height | 168 cm | 176 cm | 187 cm | 198 cm |
About this model
Speed Concept Frameset belongs to the Trek Speed model. Trek released 112 frames variations of this model so far. You can get a glimpse at all models from 2020, by clicking on this link.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Triathlon frames
Our math shows that the average cost of a dependable Triathlon frame is 3089$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Triathlon frame. To sum up, when you purchase your frame, make sure to check if it has reviews, and also do some components research.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 3299$. Comparing this to the average Triathlon frame price, we see that the price is 6.8% more expensive.
Overview of components
Fork material
Speed Concept Frameset has a carbon fork, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Speed Concept Frameset comes with Rim brakes. Slightly lighter than hydraulic brakes, rim brakes are a budget choice. However, they have problems in wet conditions.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 154 cm – 198 cm (5.05 ft – 6.5 ft). In conclusion, it won’t take much to find one that’s right for you.
