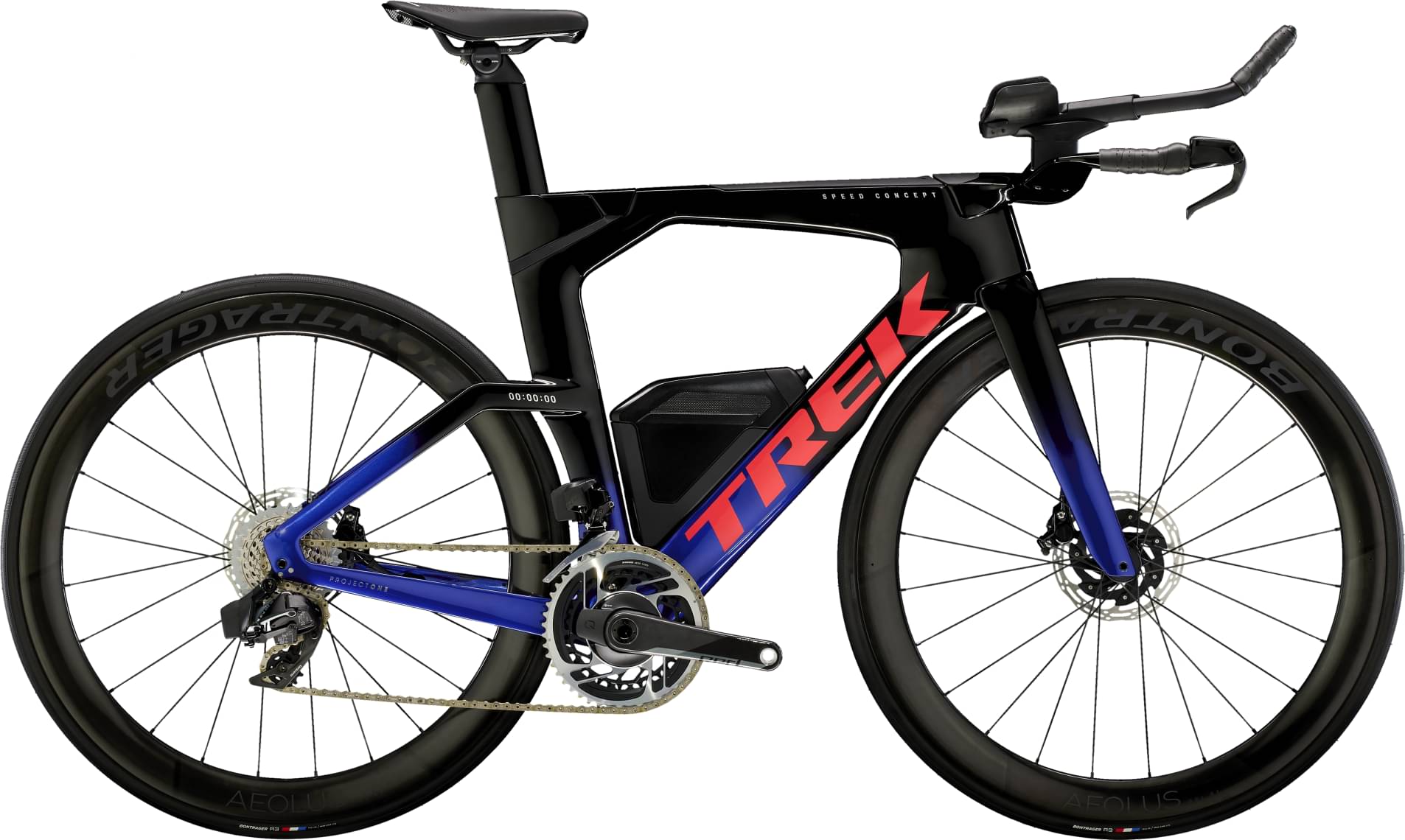

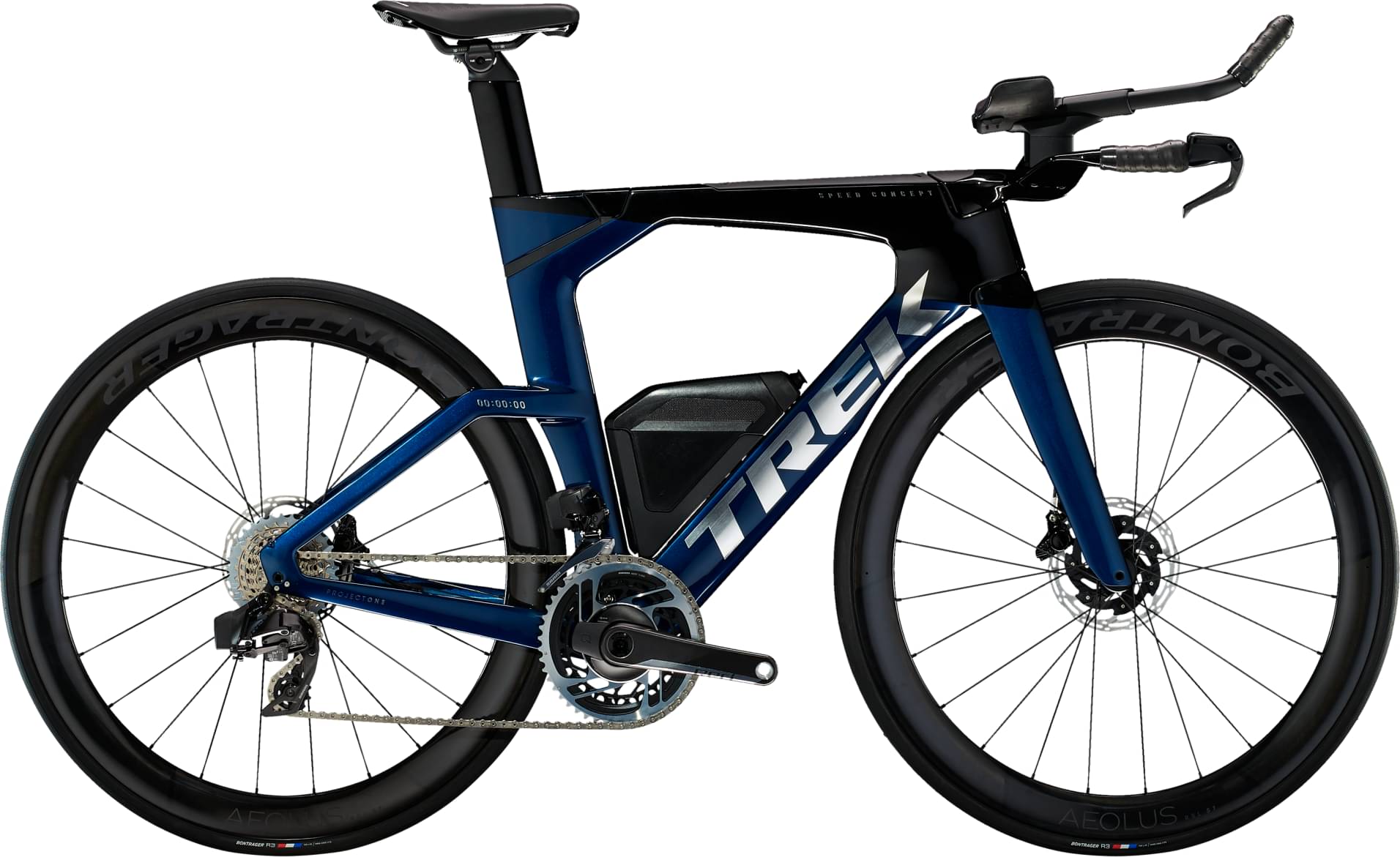

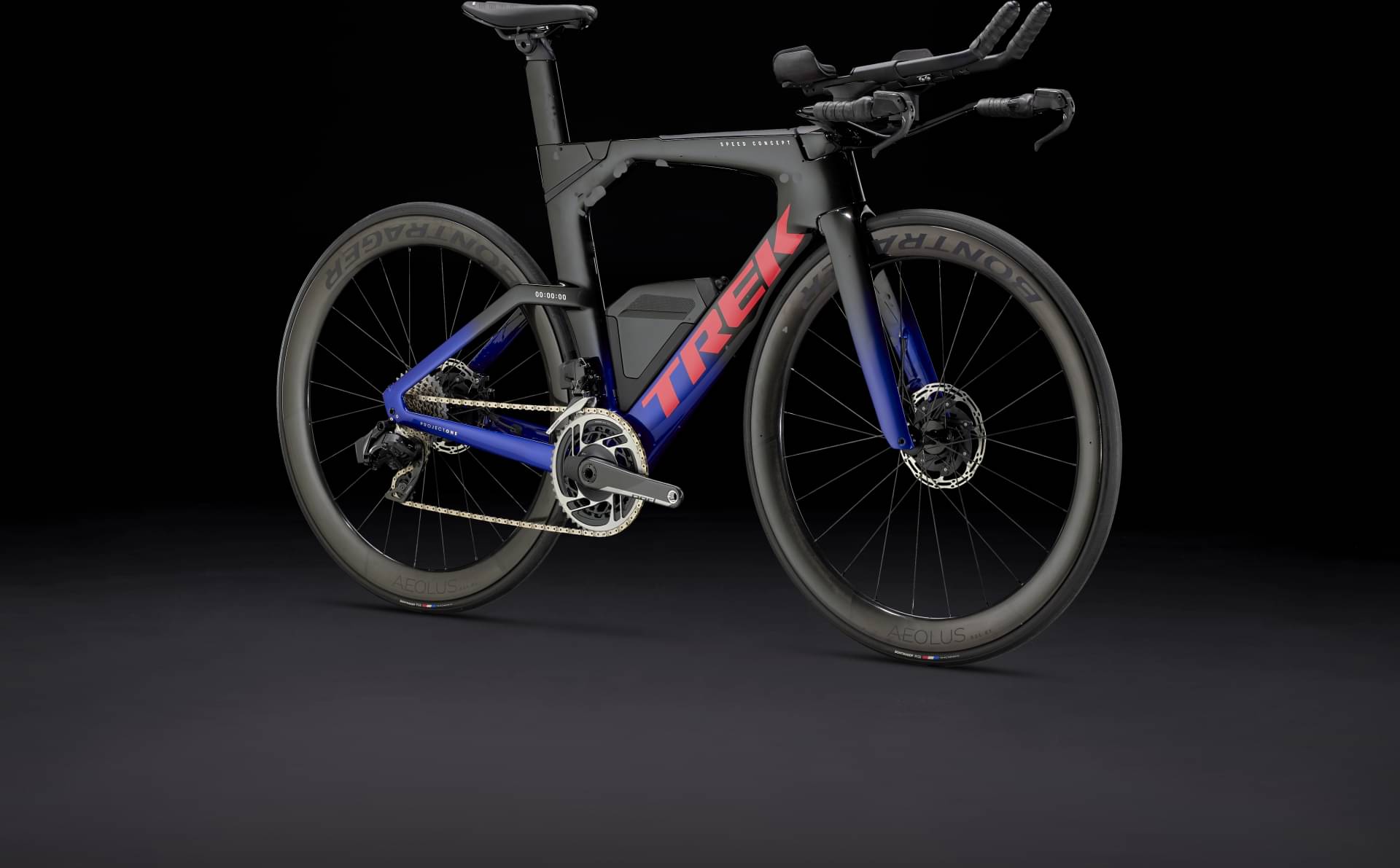

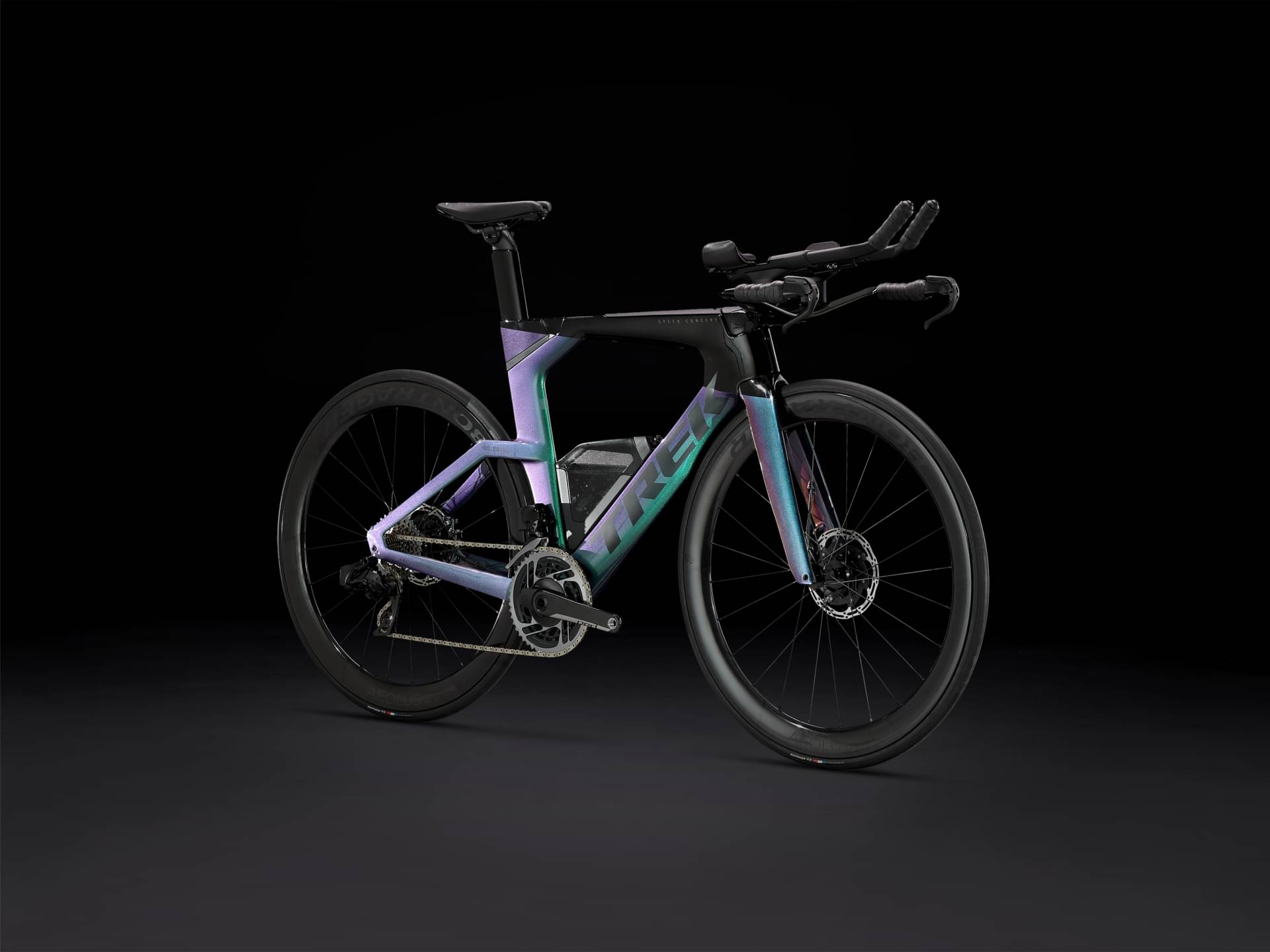

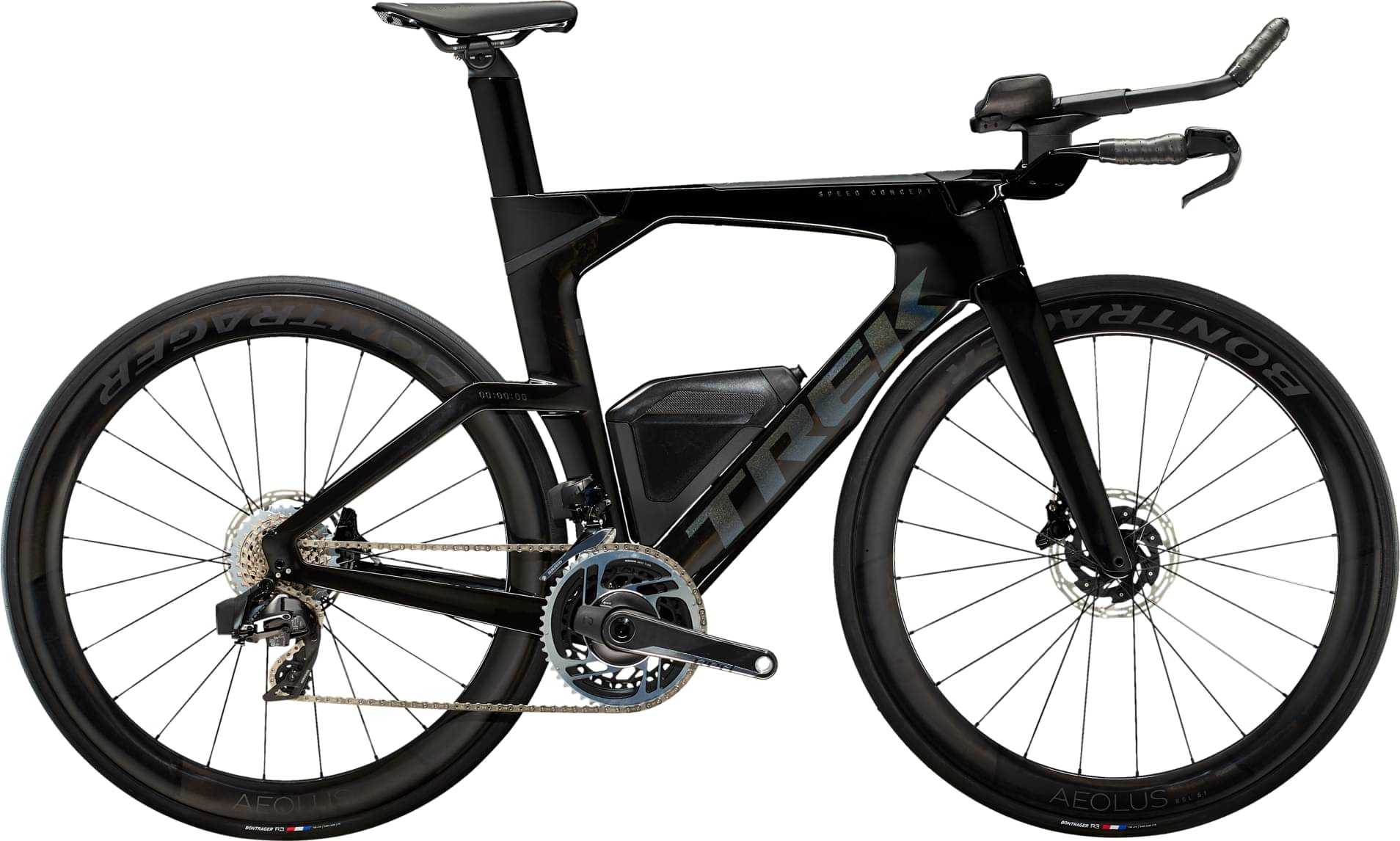

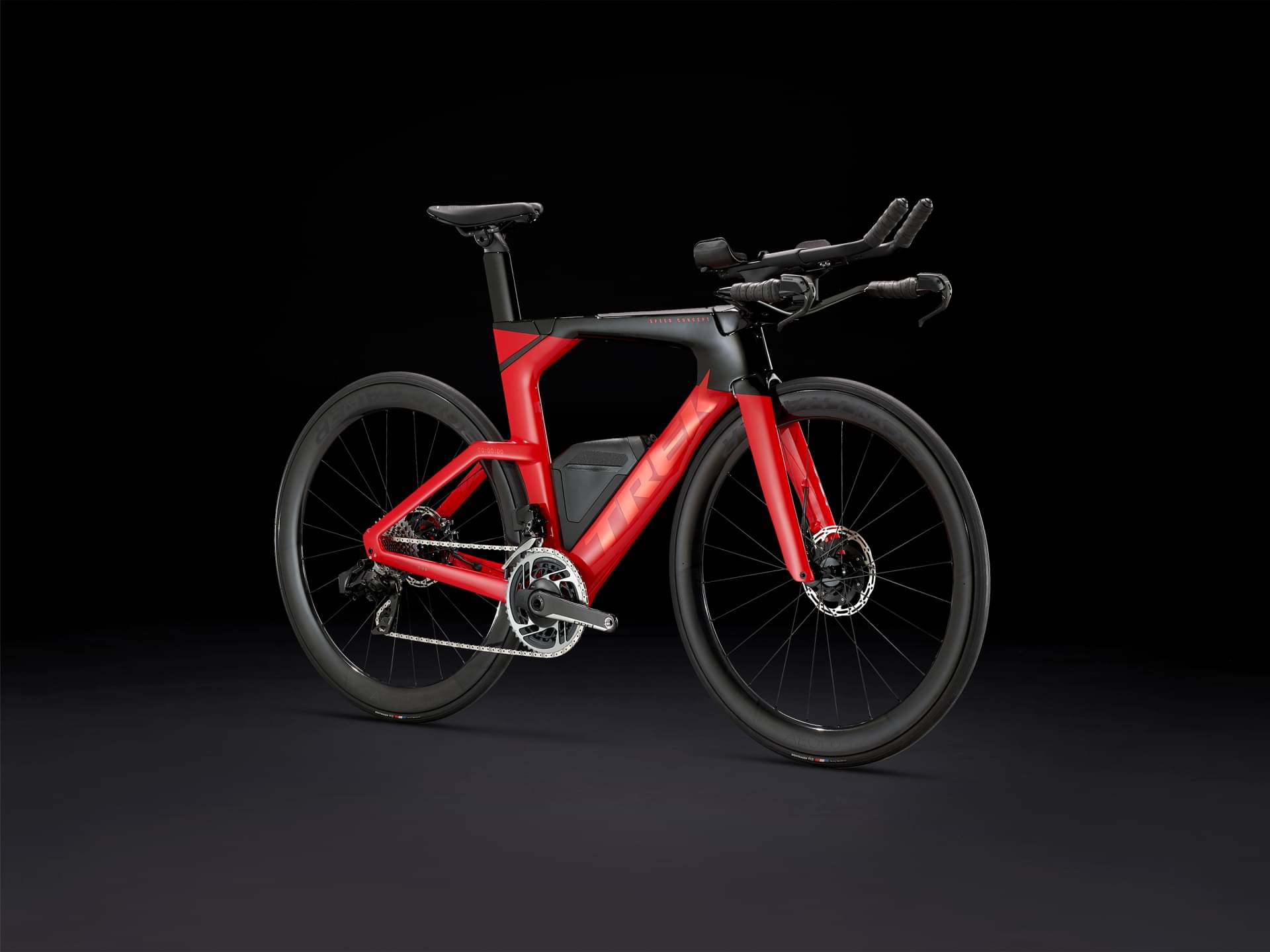

Trek Speed Concept SLR 9 AXS 2024
2024 Road
Estimate price |
14,199$
Weight | 8.6 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset RED AXS -
Suspension Rigid -
Drivetrain 2 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
154cm - 168cm
MD
166cm - 176cm
LG
174cm - 187cm
XL
185cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame

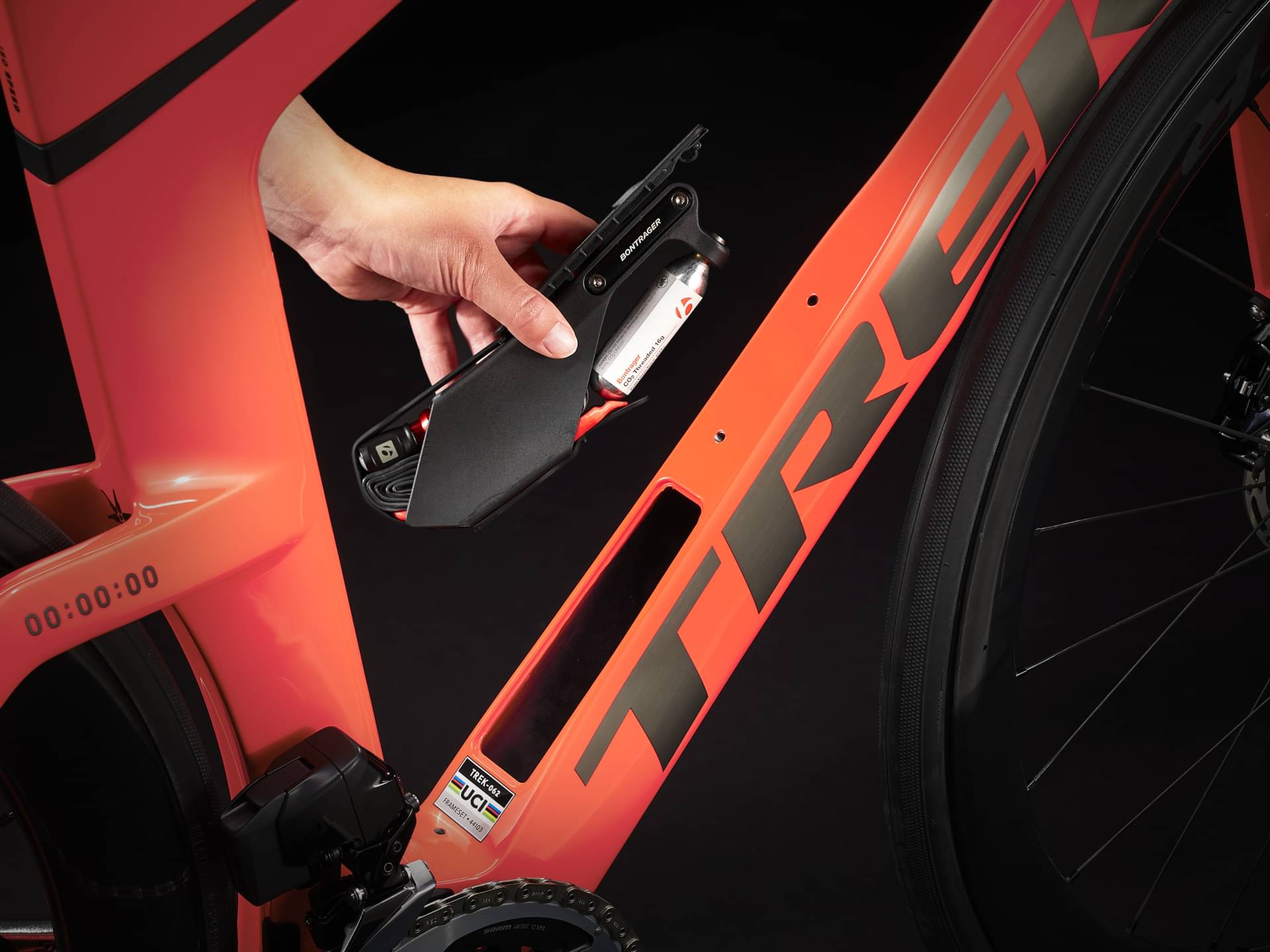

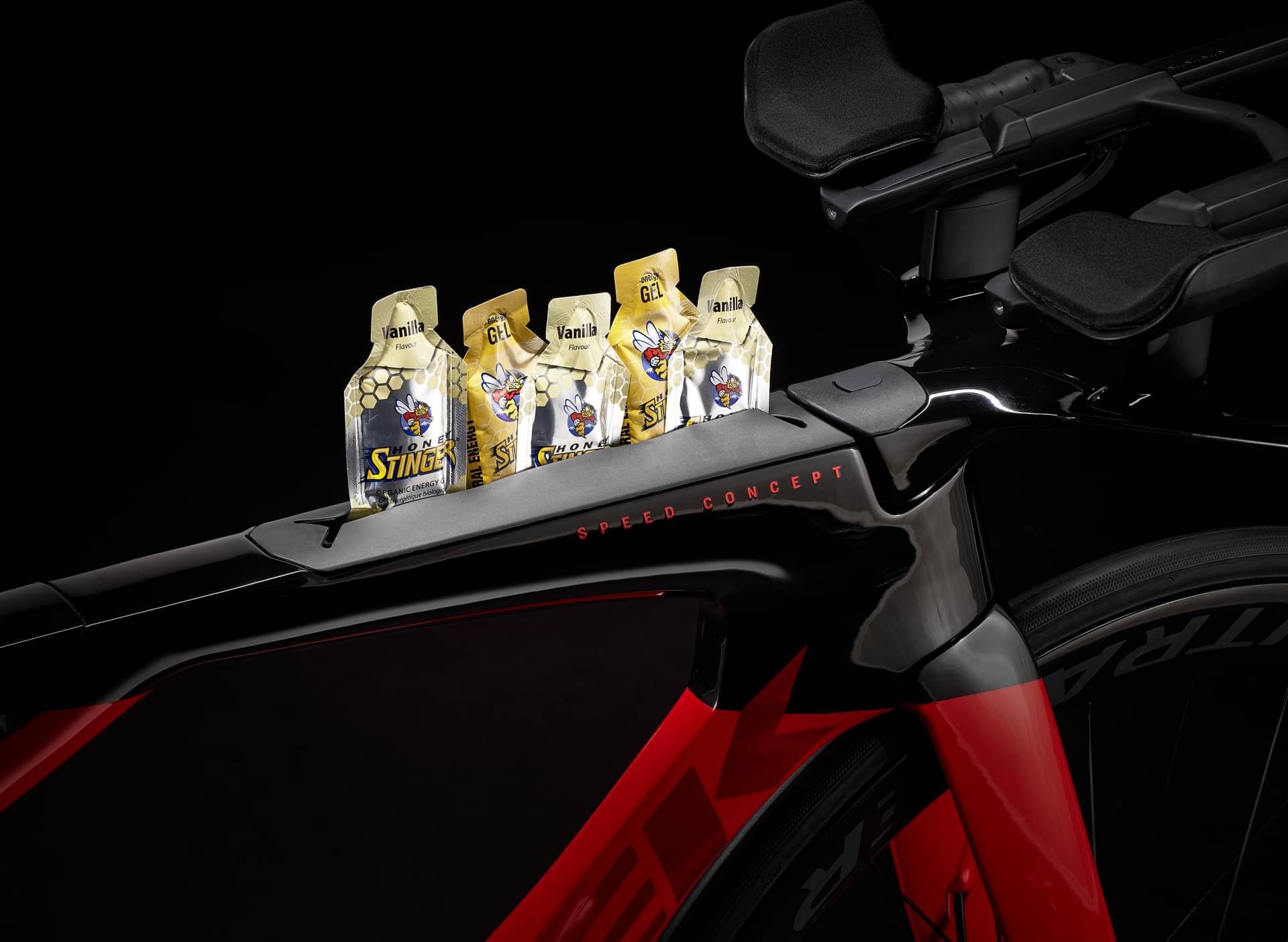

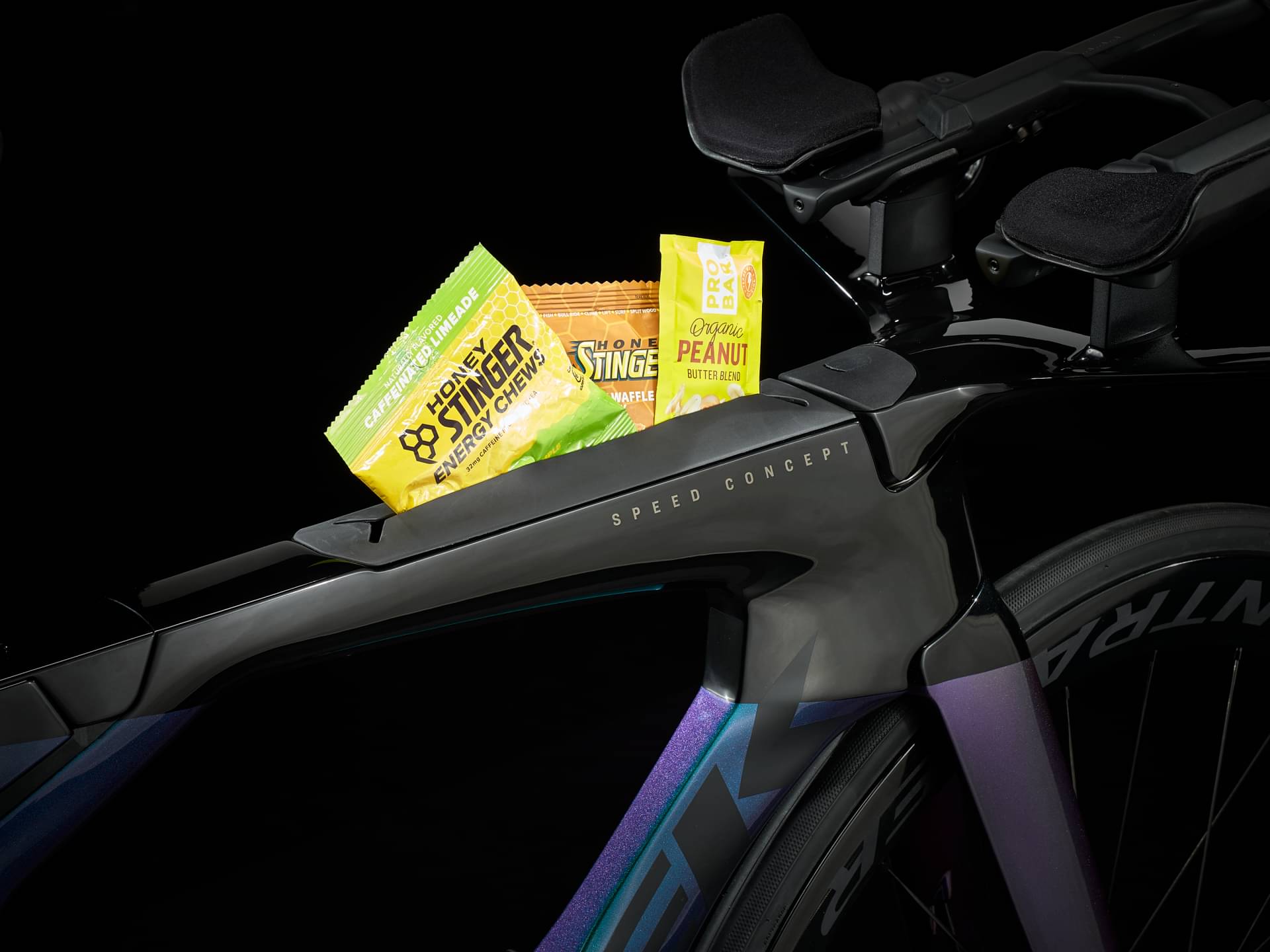

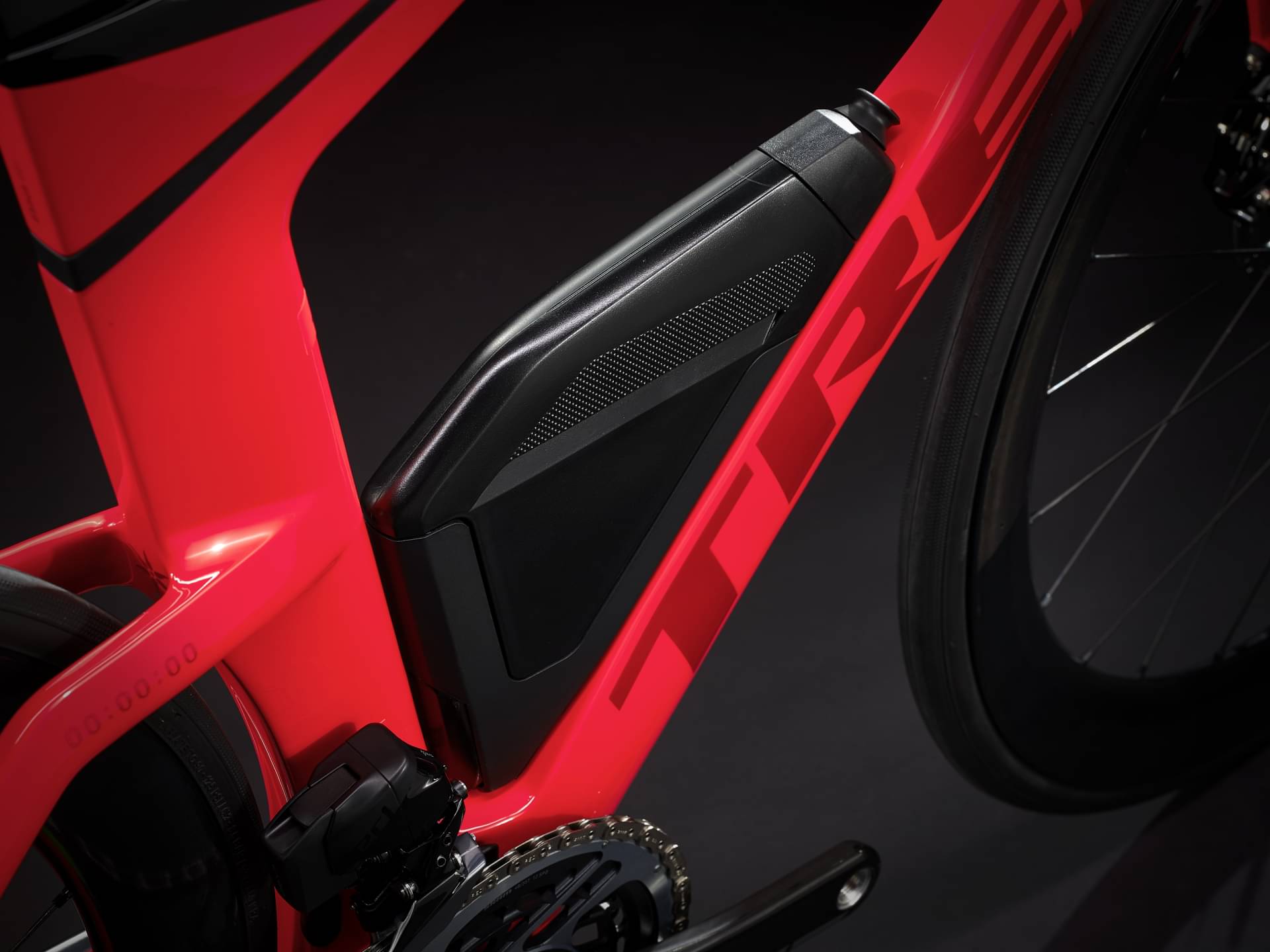

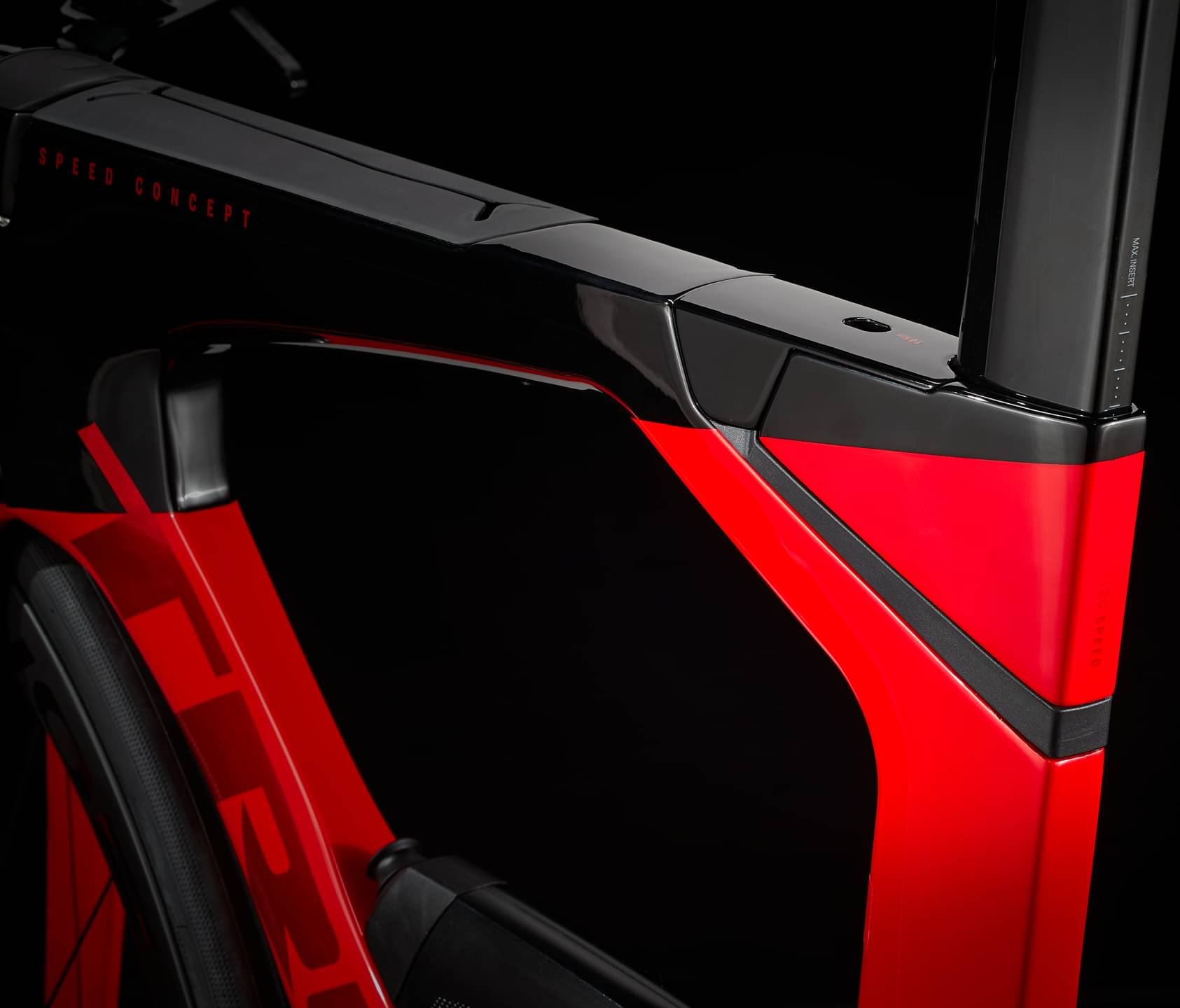

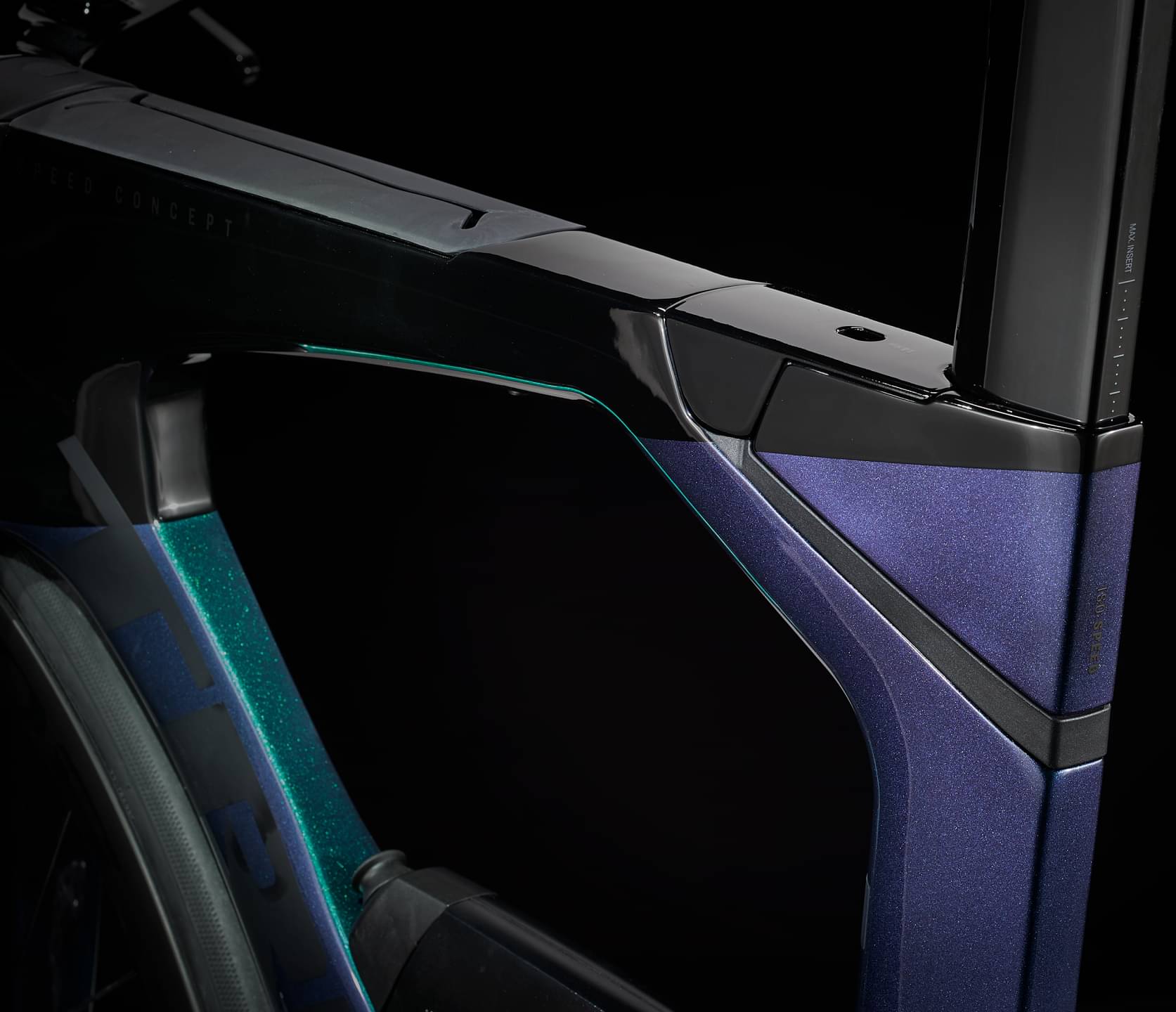

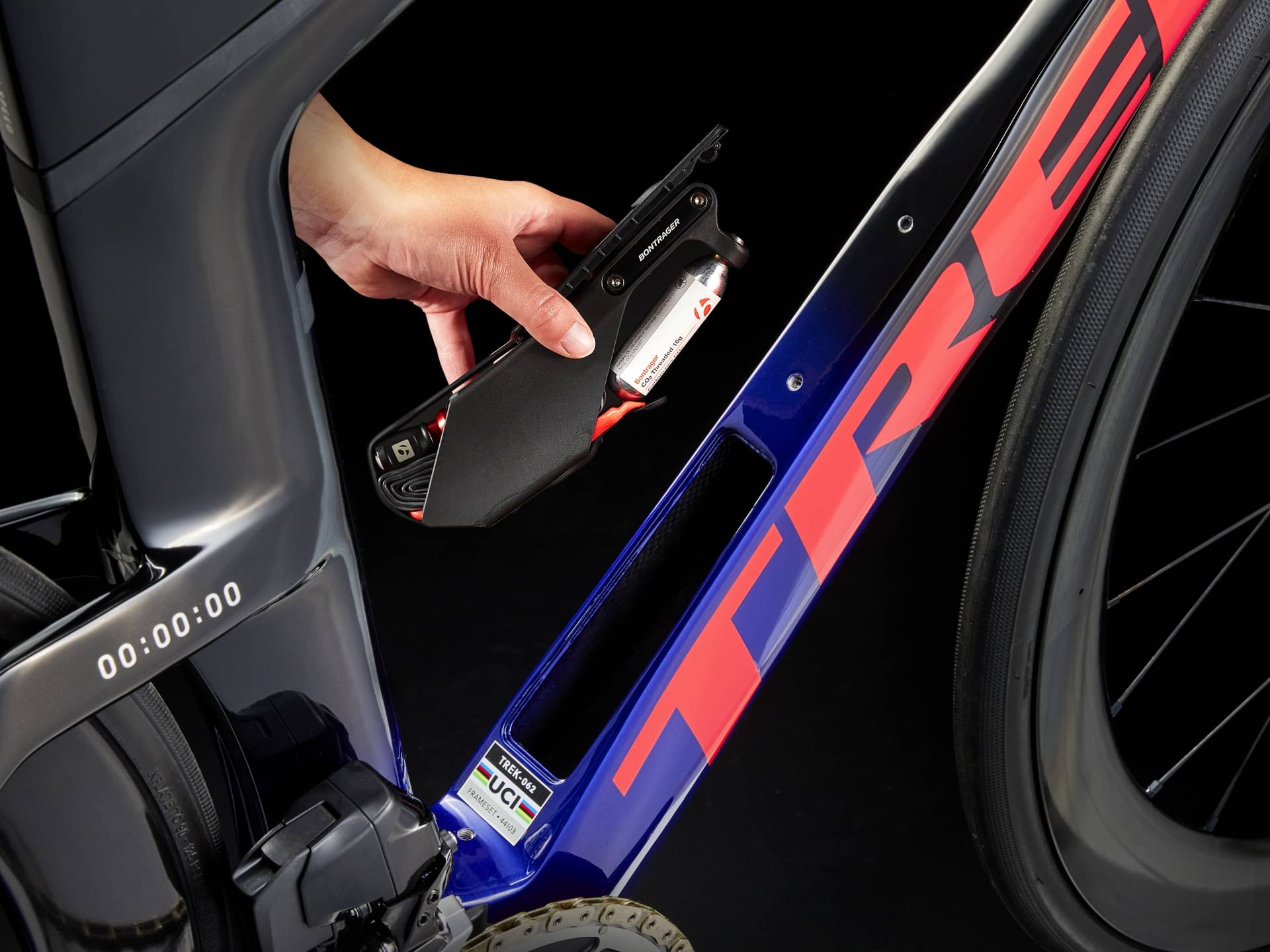

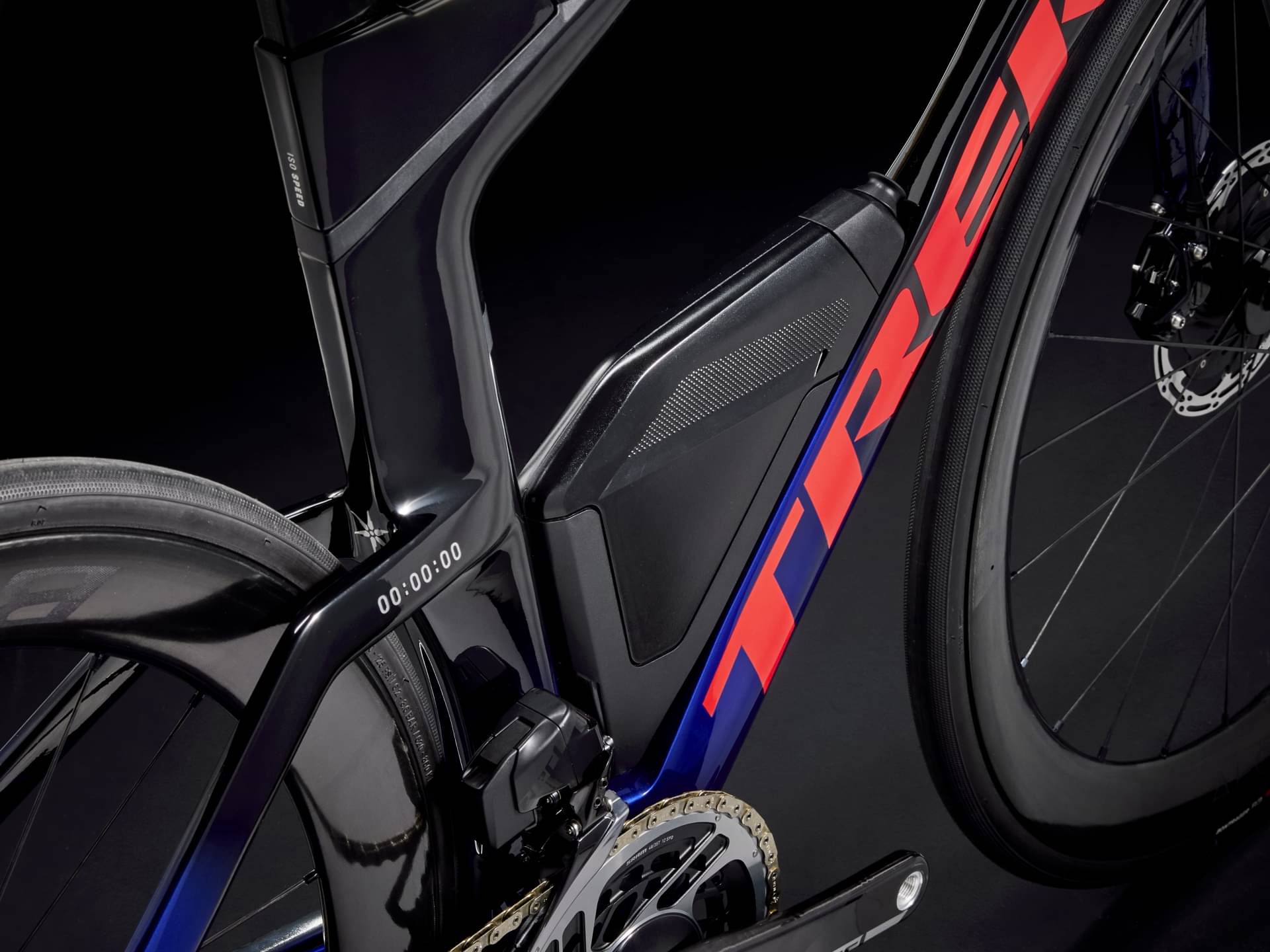

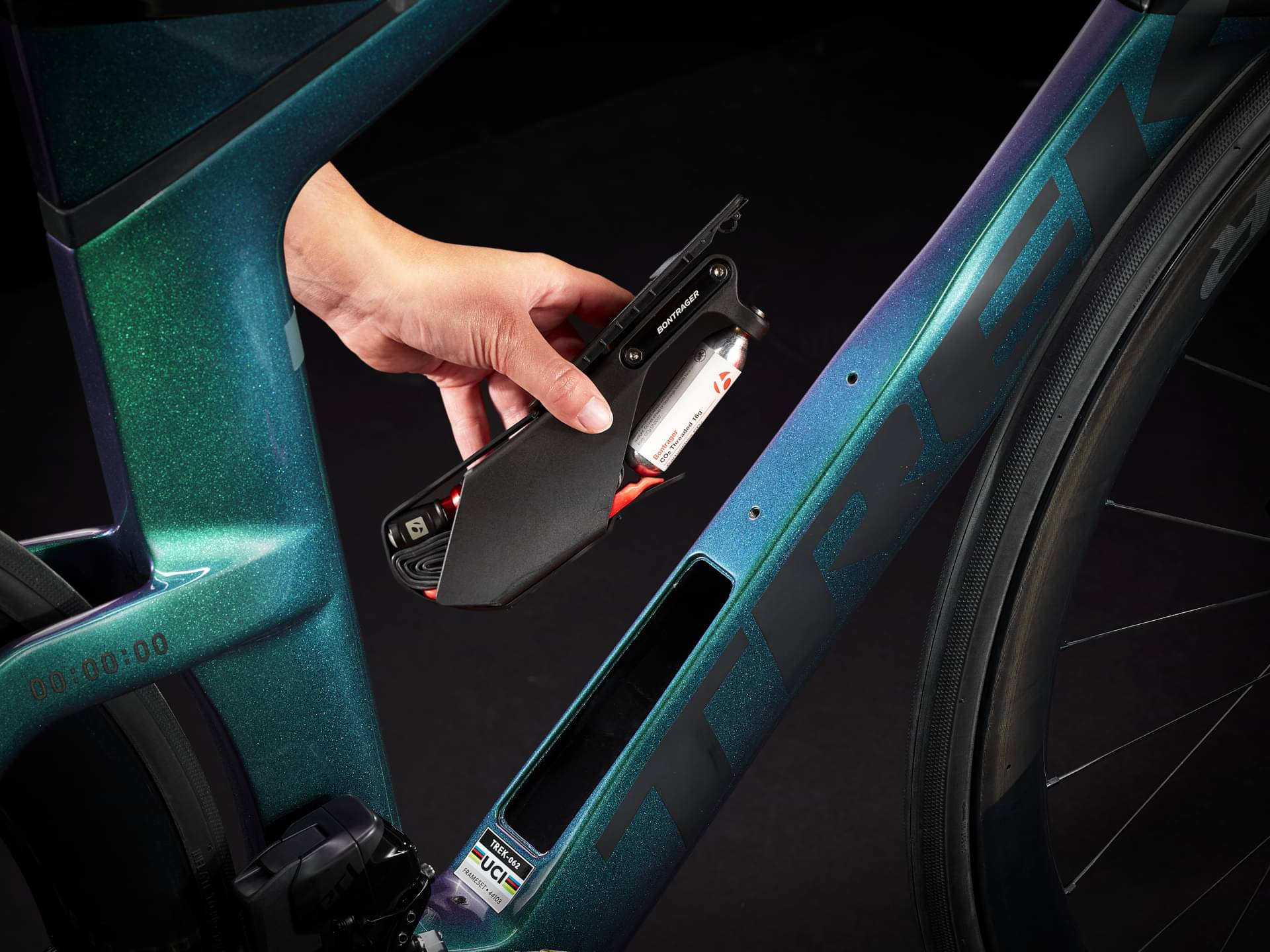

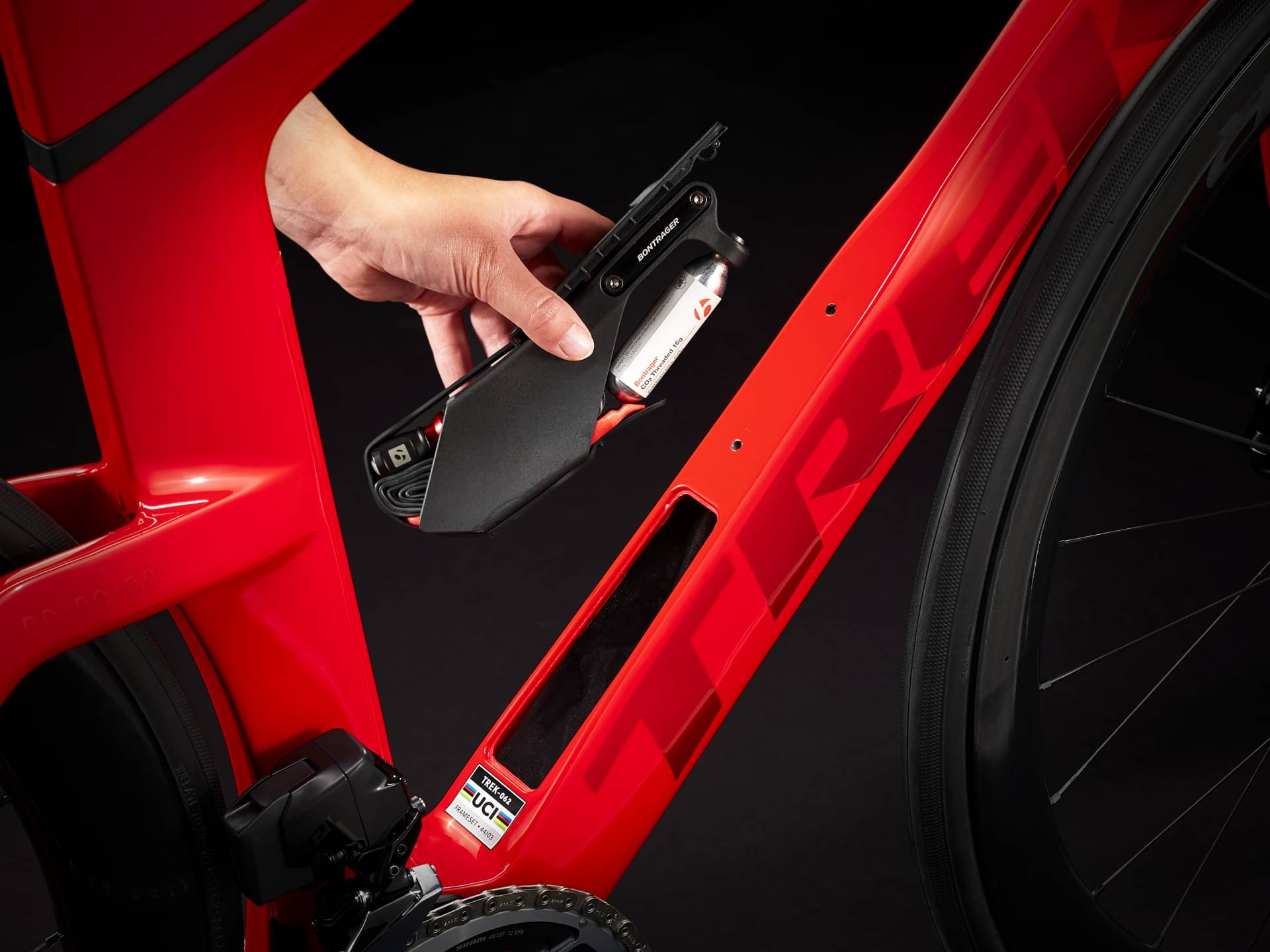

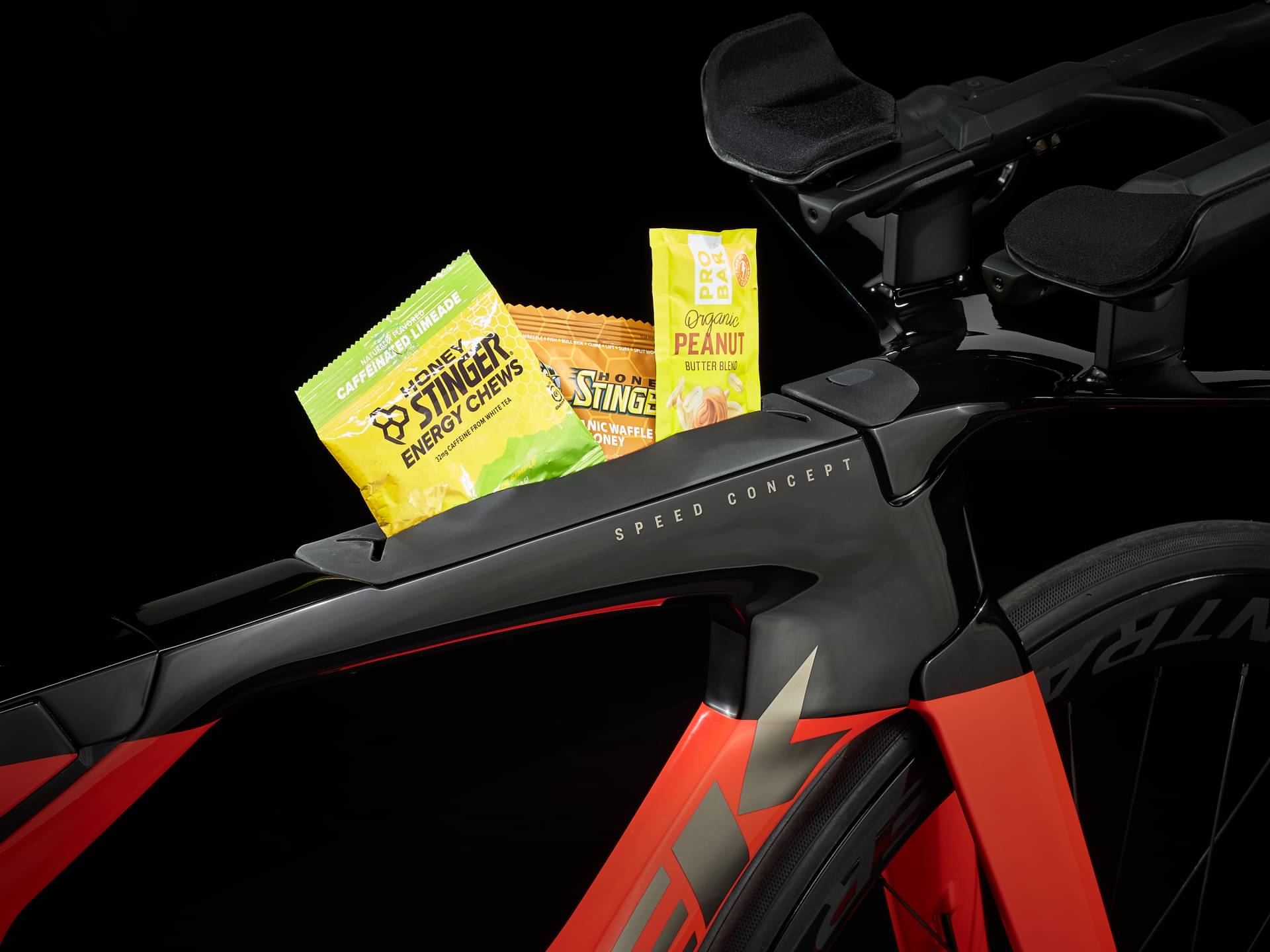

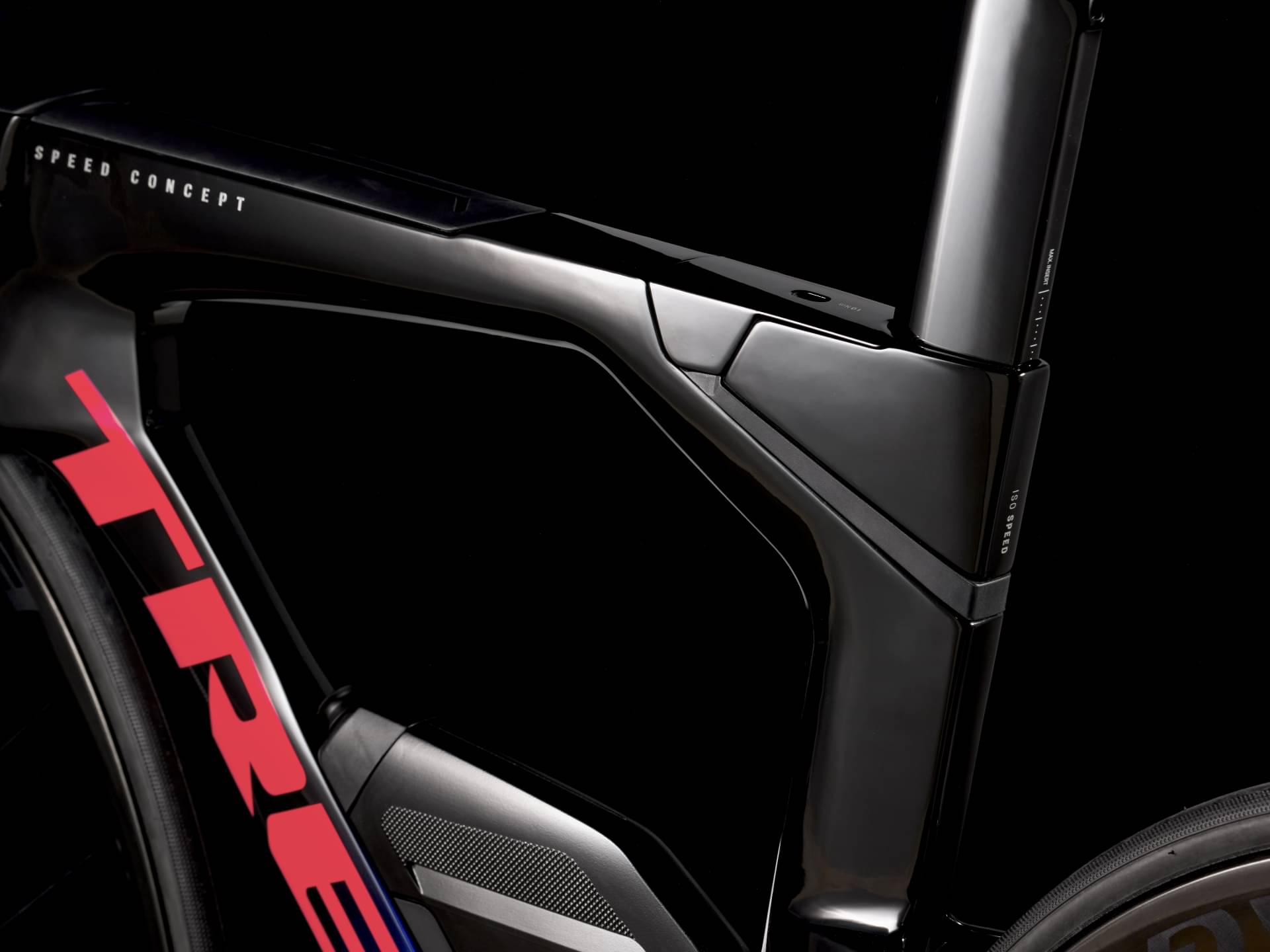

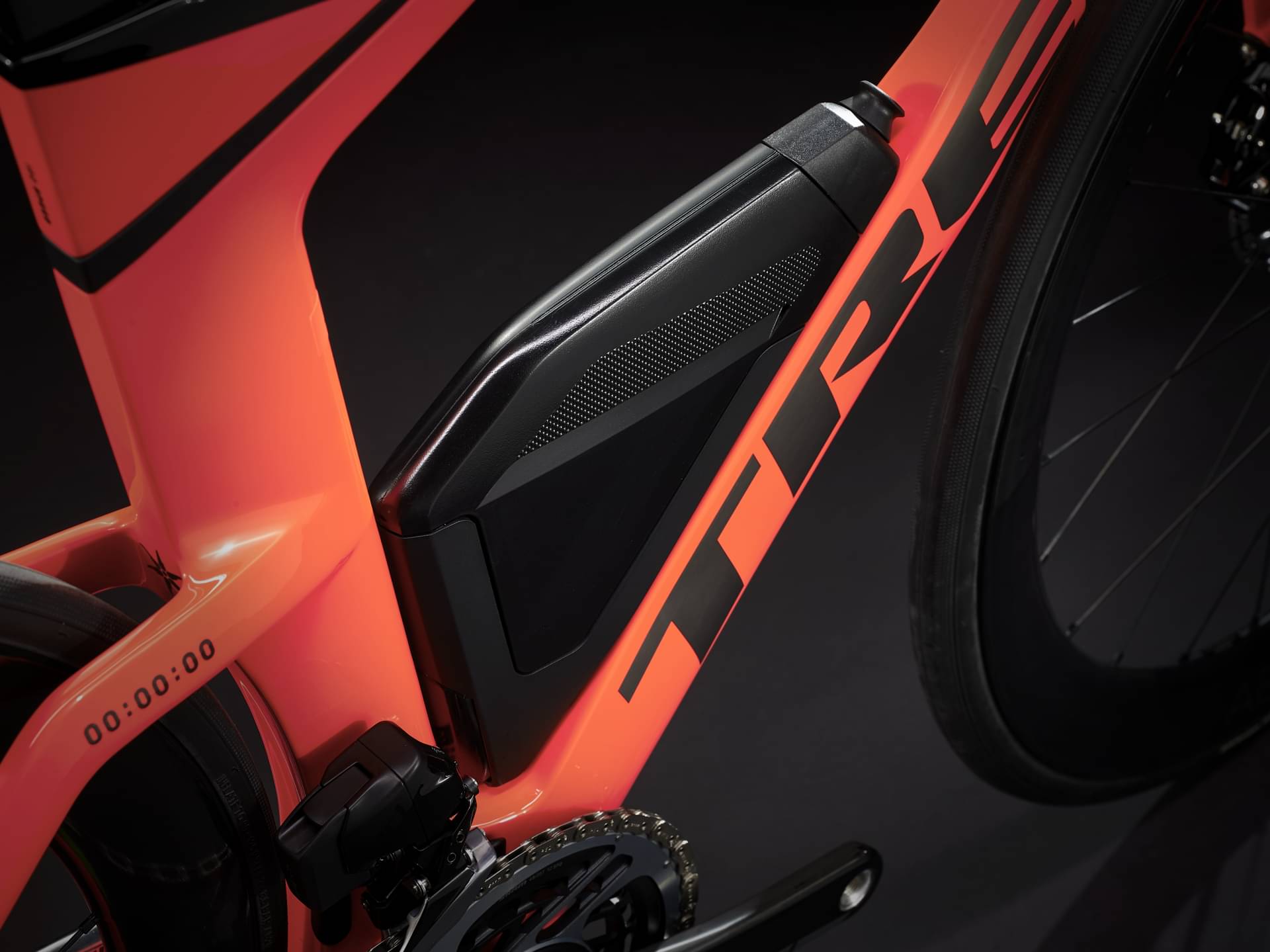

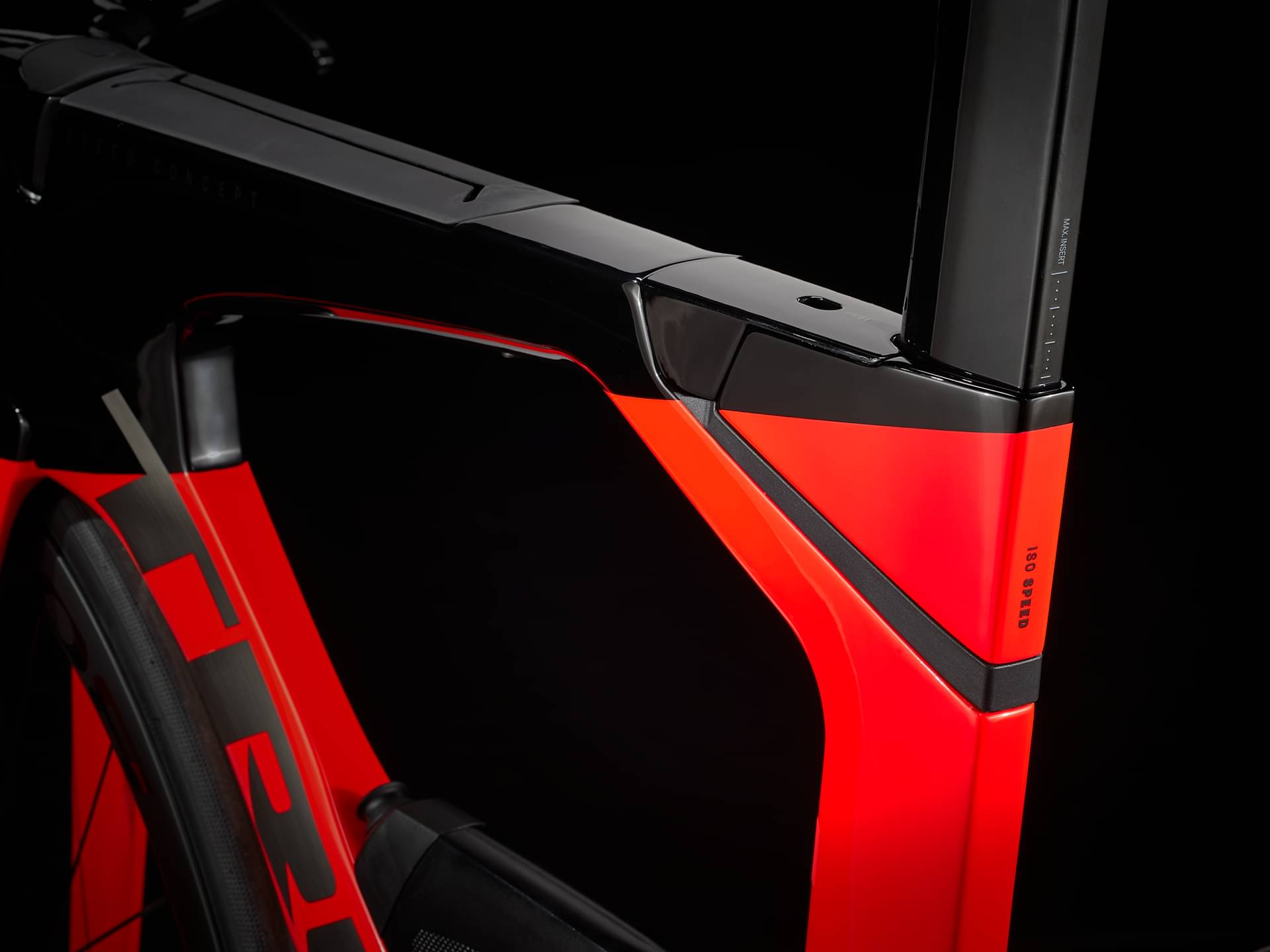

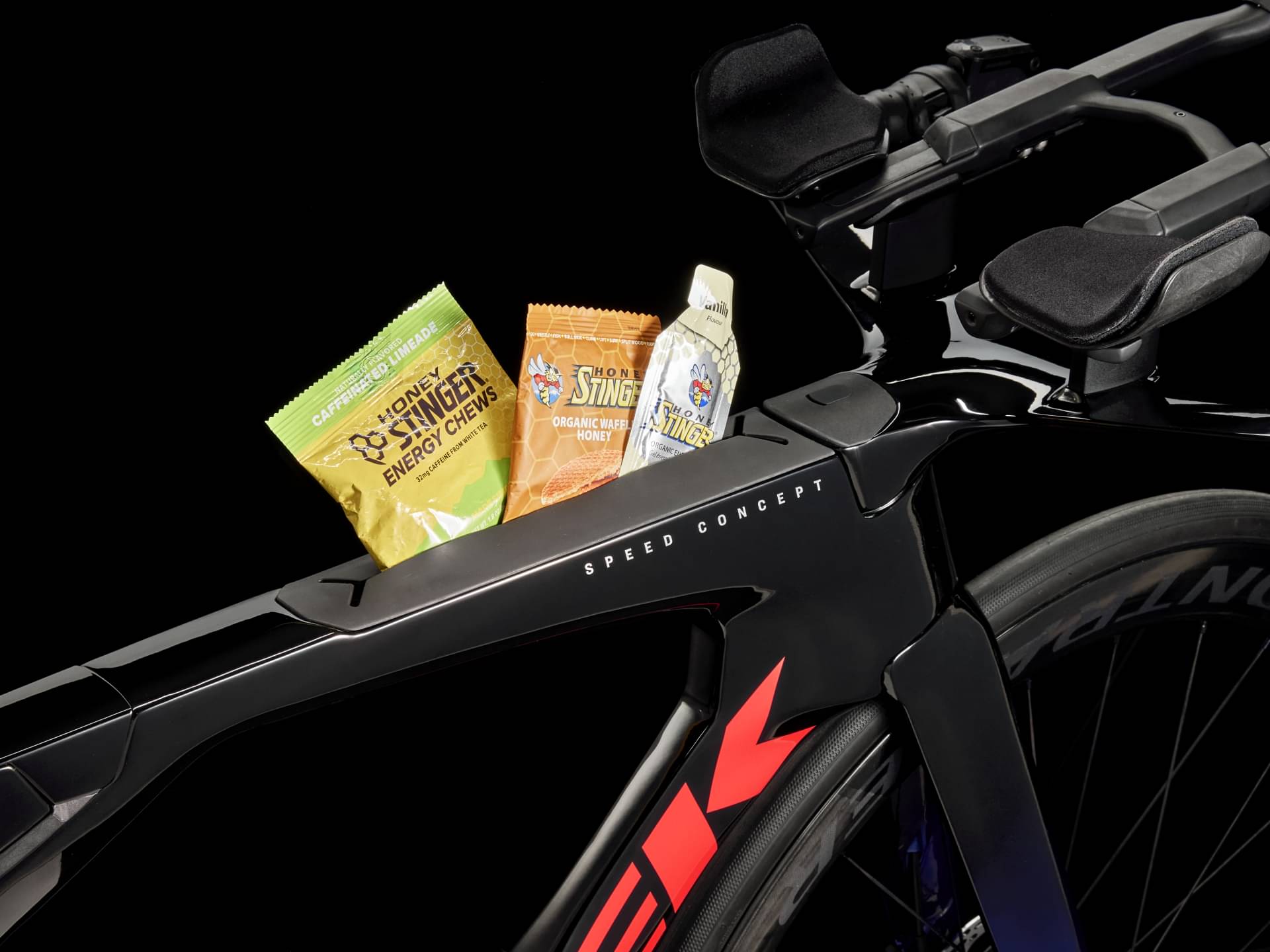

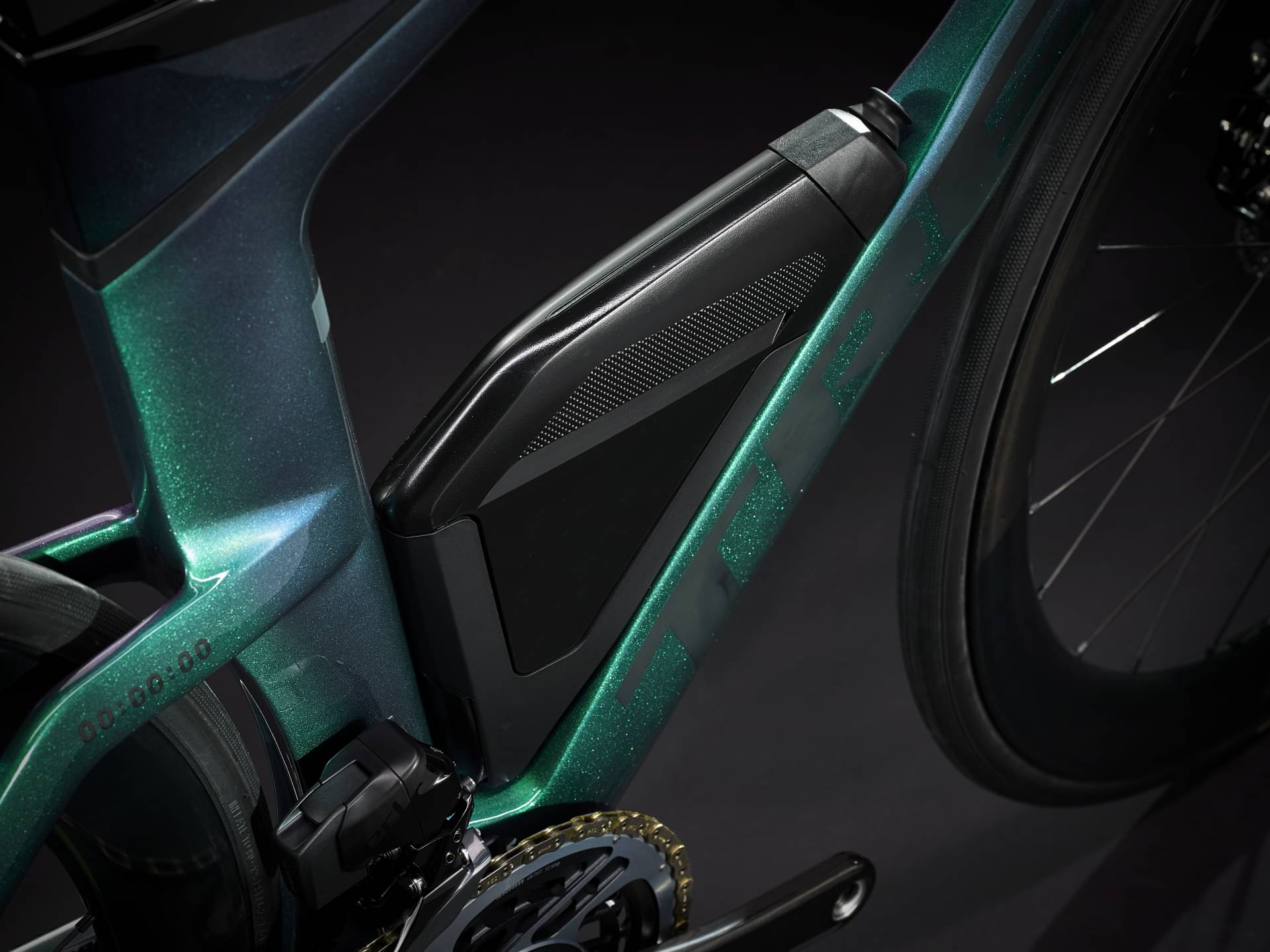

800 Series OCLV Carbon, KVF (Kammtail Virtual Foil) tube shape, T47 BB, integrated Bento box, integrated downtube storage
Suspension Fork
SC full foil carbon, integrated brake & stem

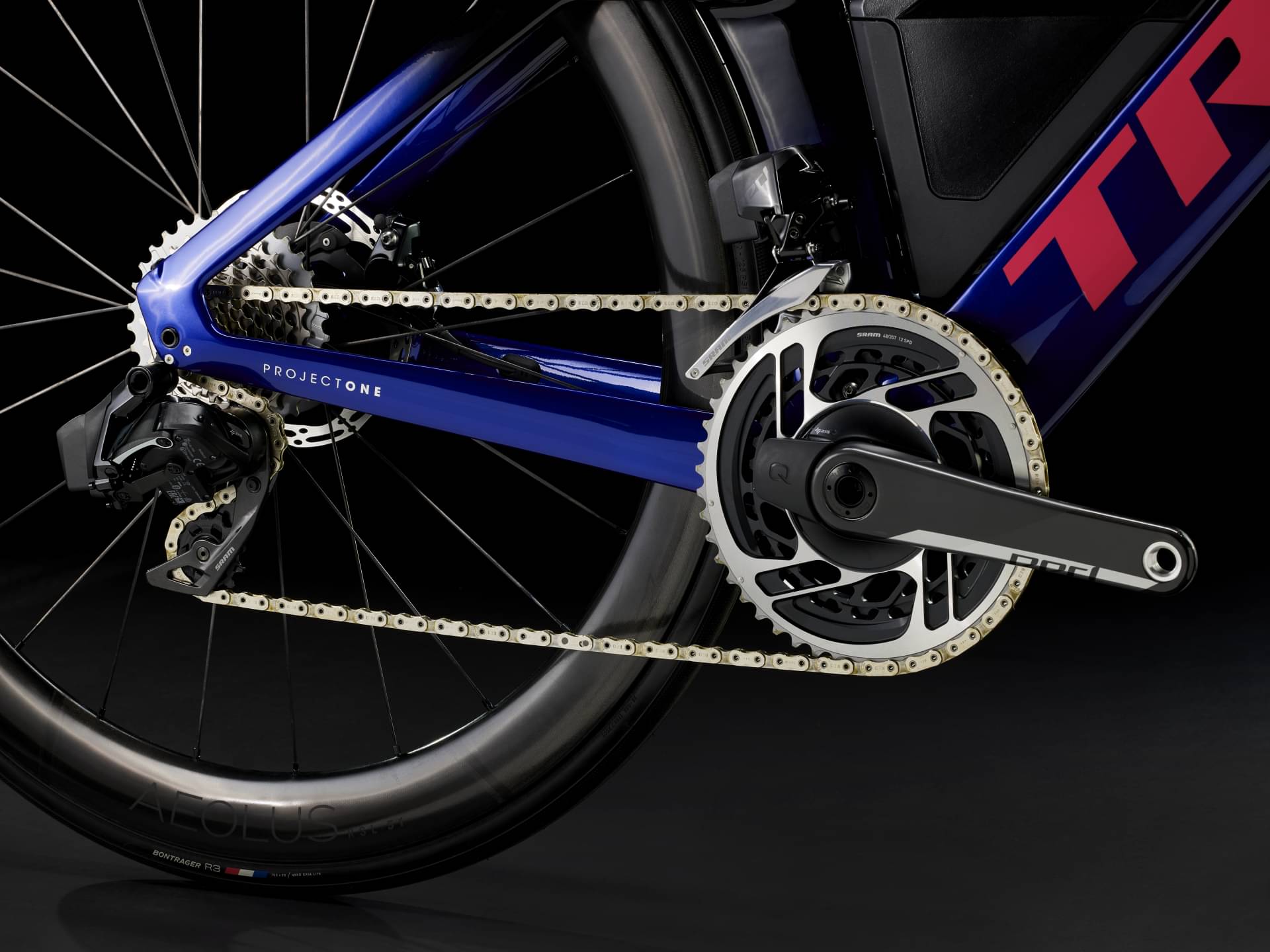

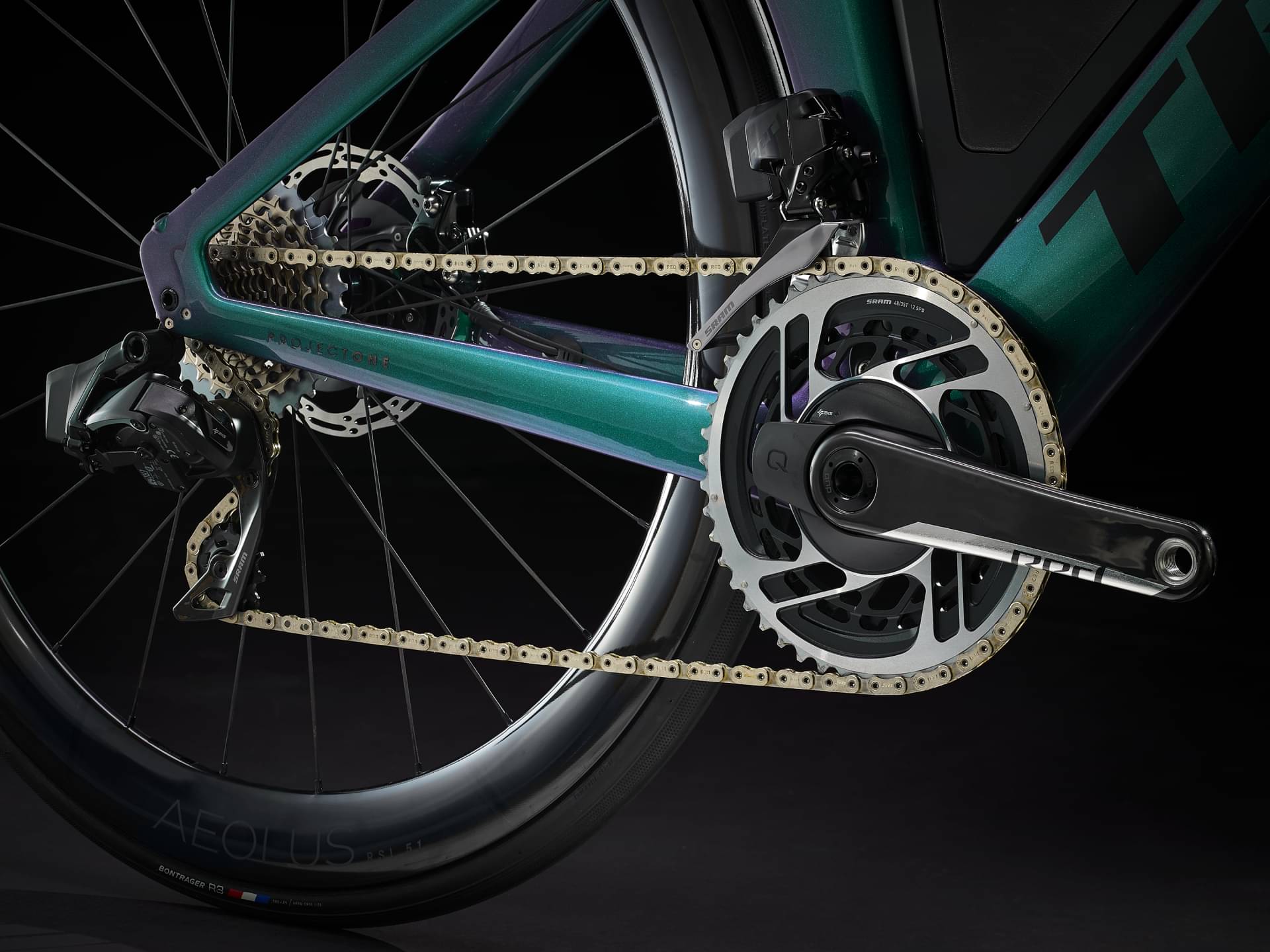

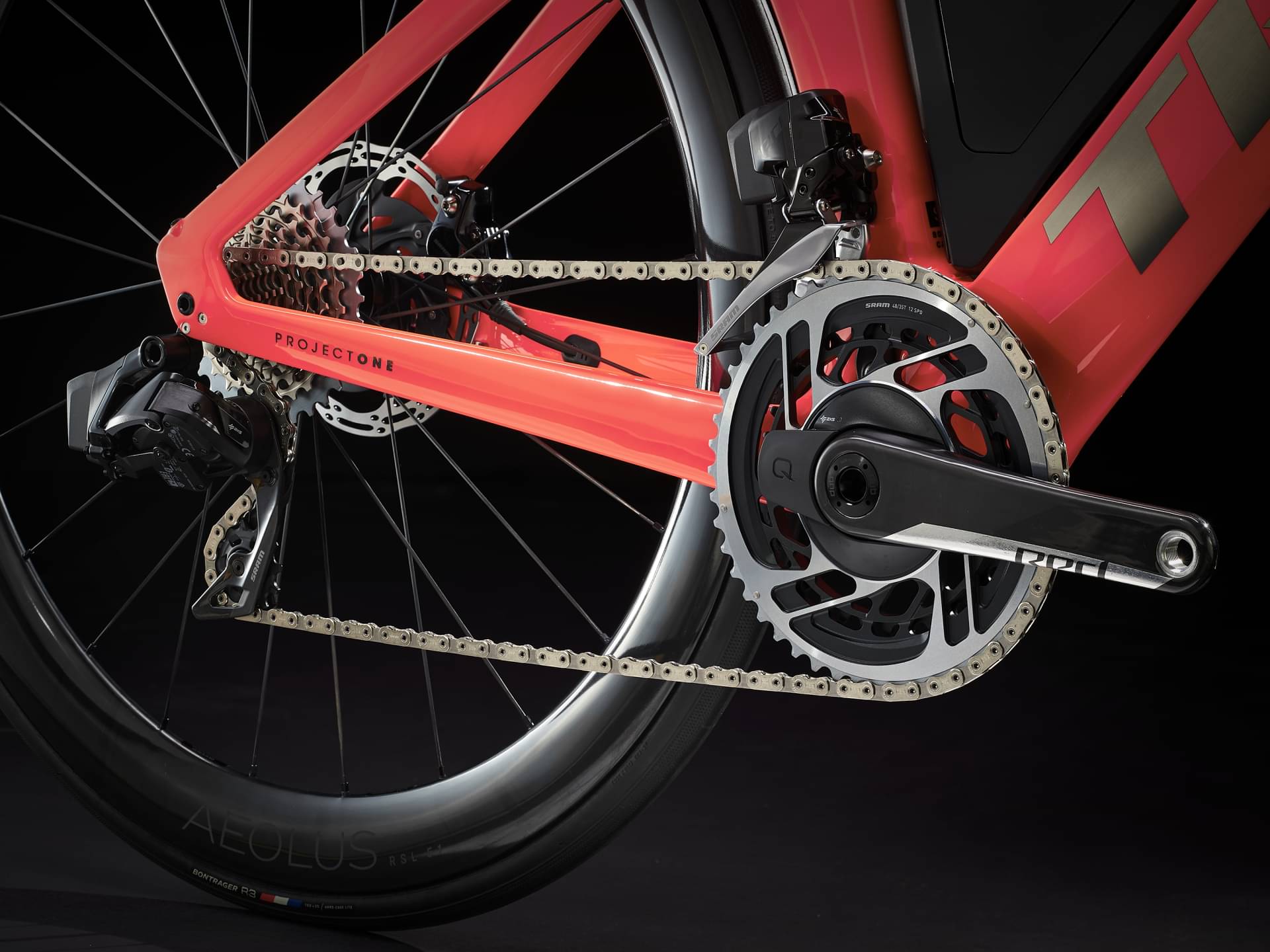

Drivetrain
Rear Derailleur
SRAM RED eTap AXS, 36T max cog
Front Derailleur
SRAM RED eTap AXS, braze-on

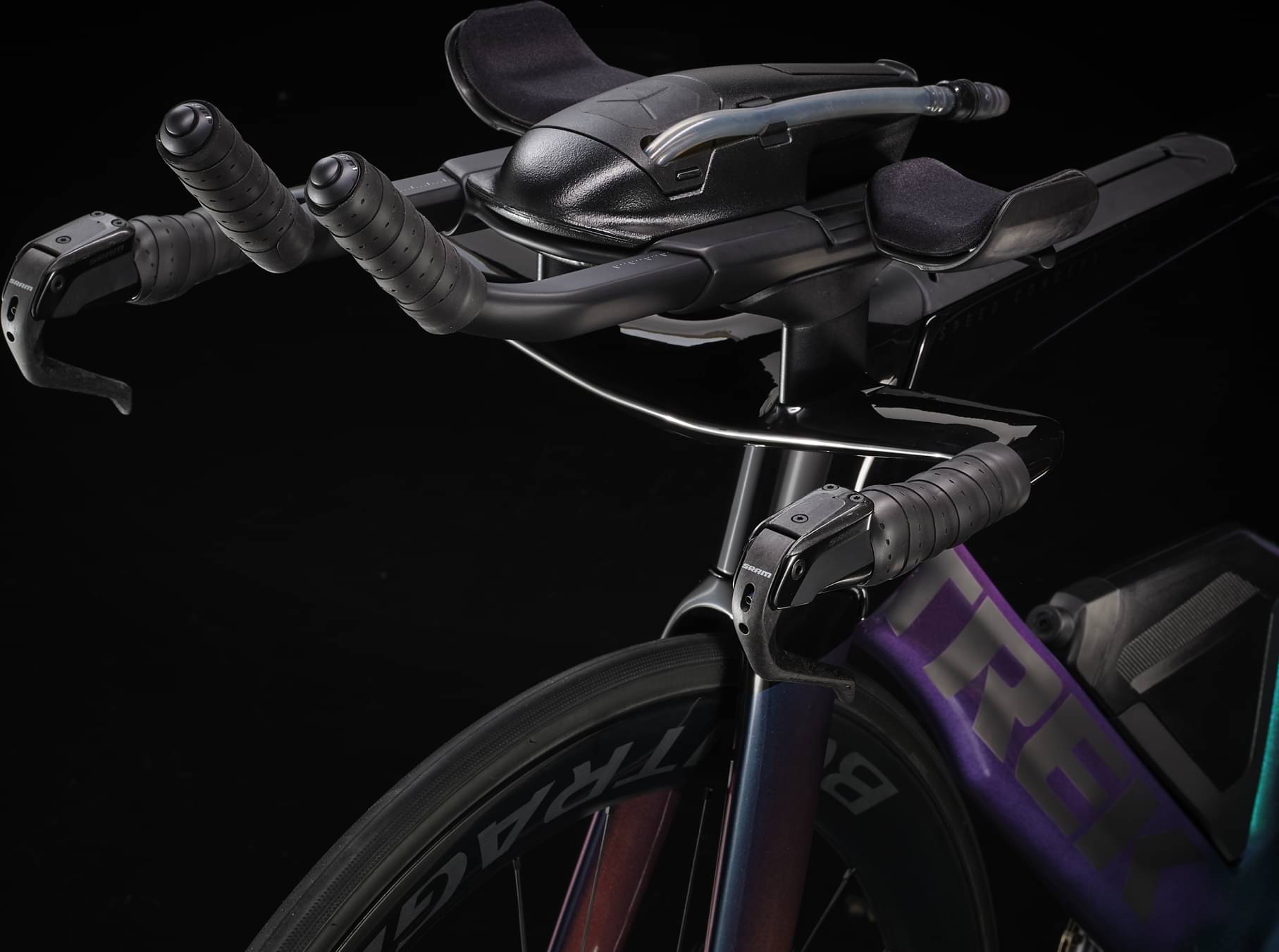

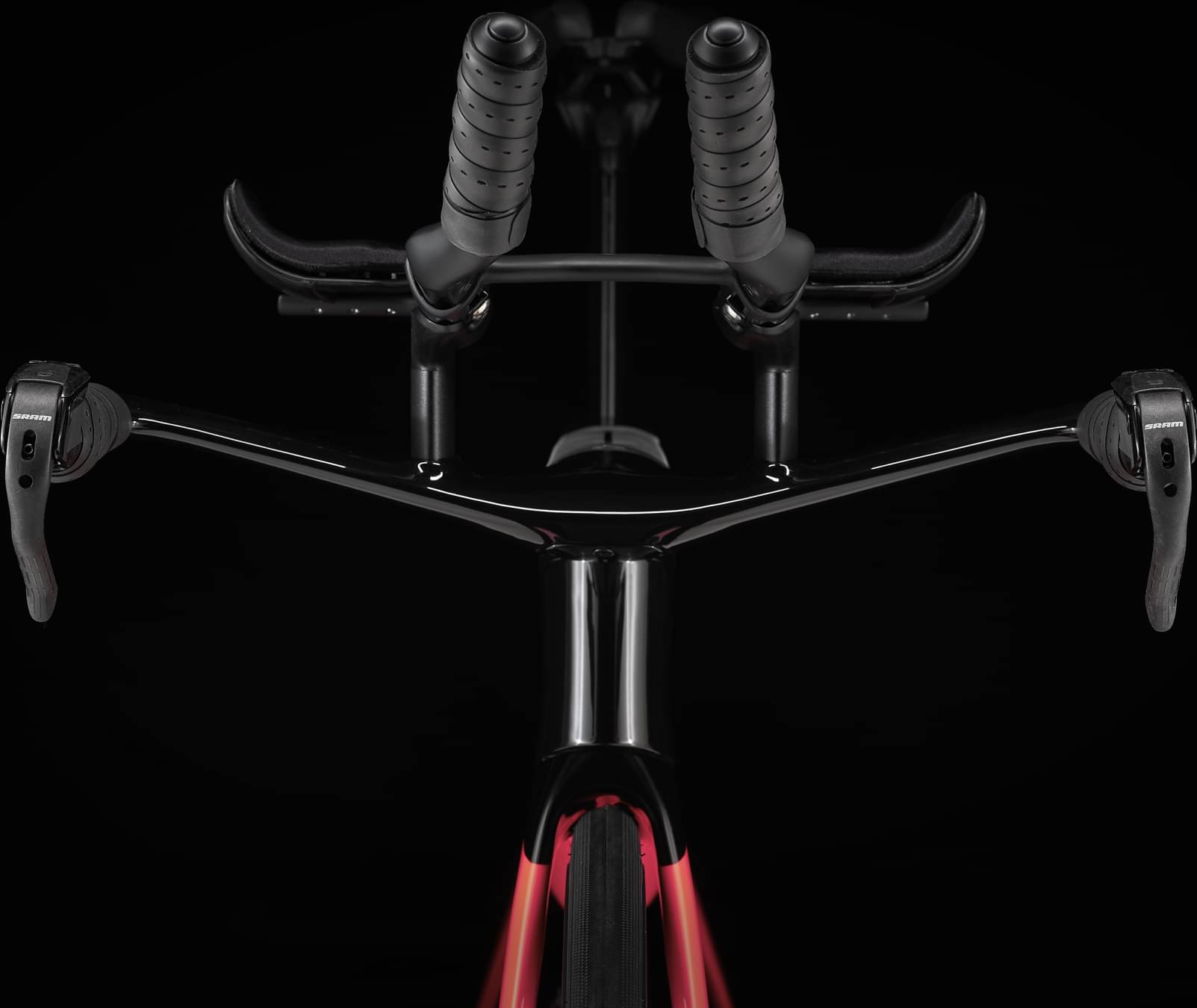

Shift Levers

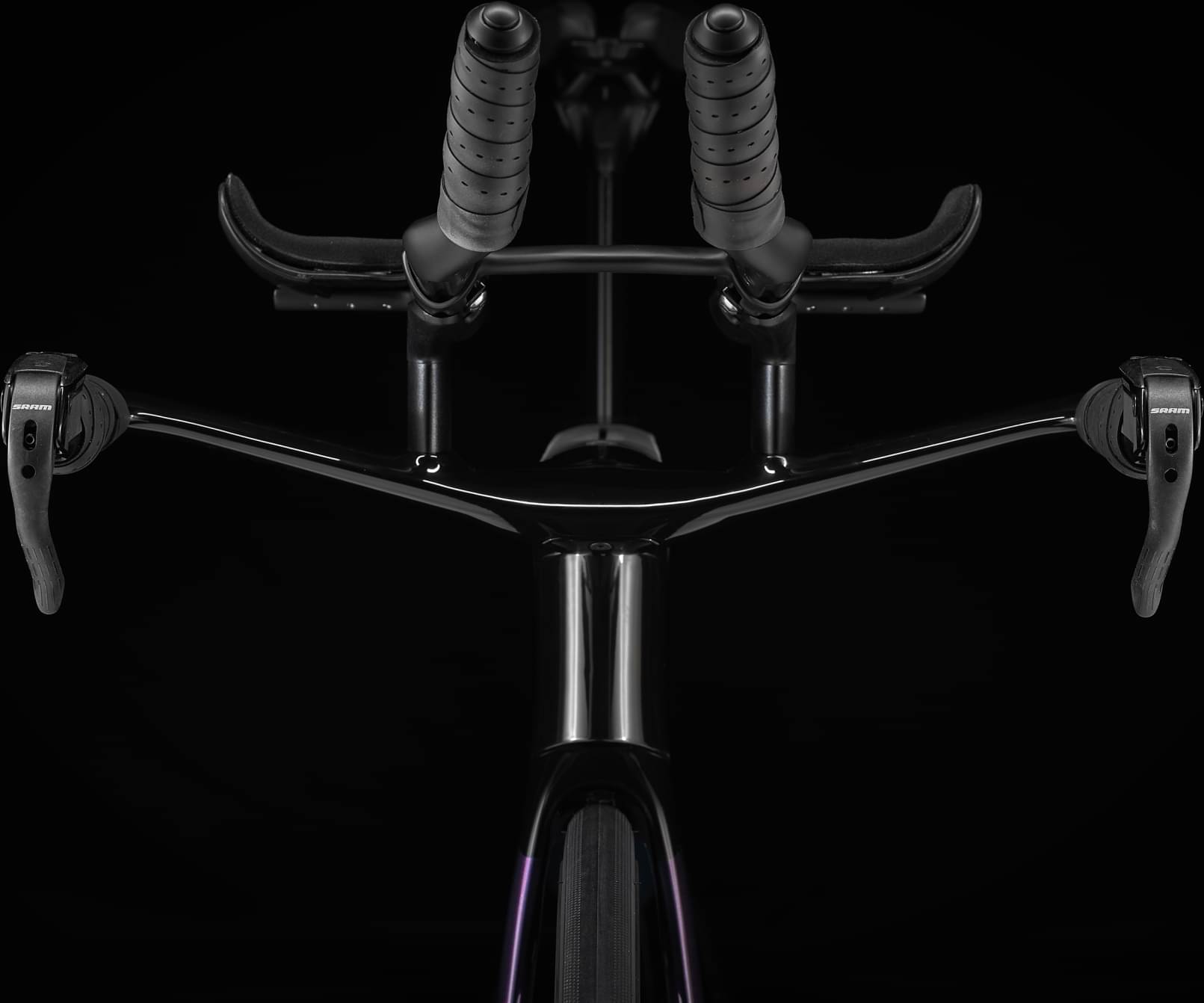

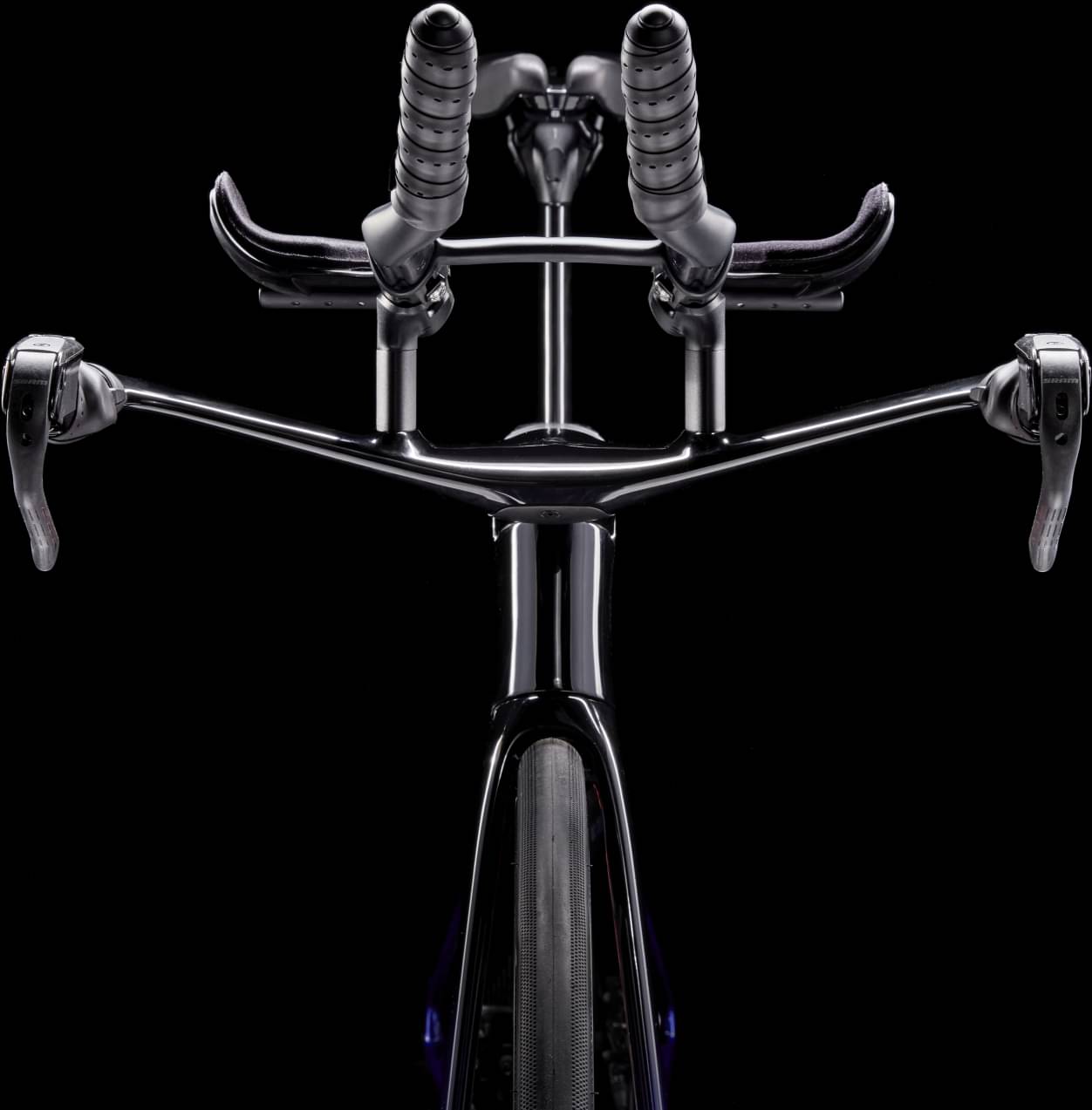

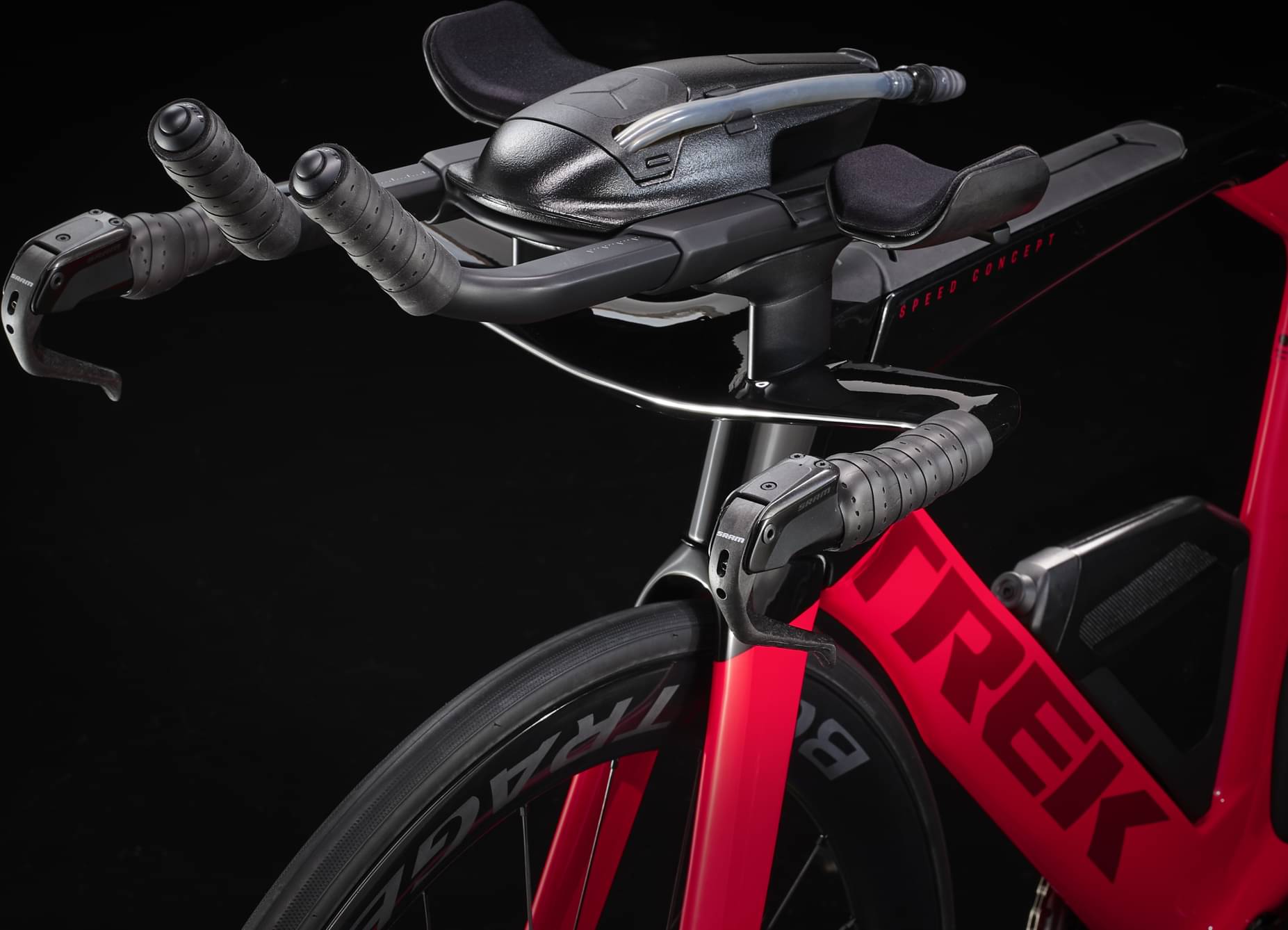

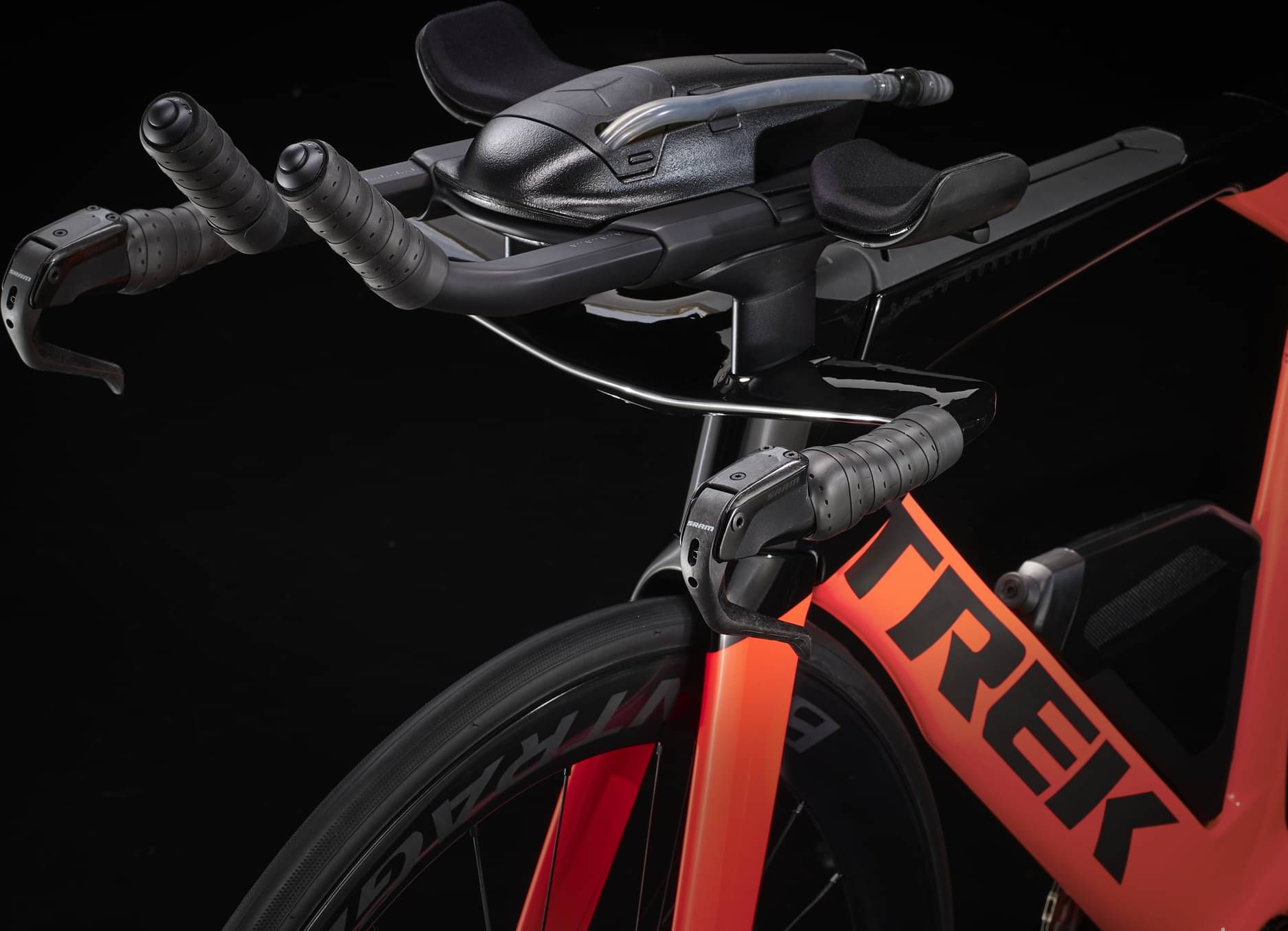

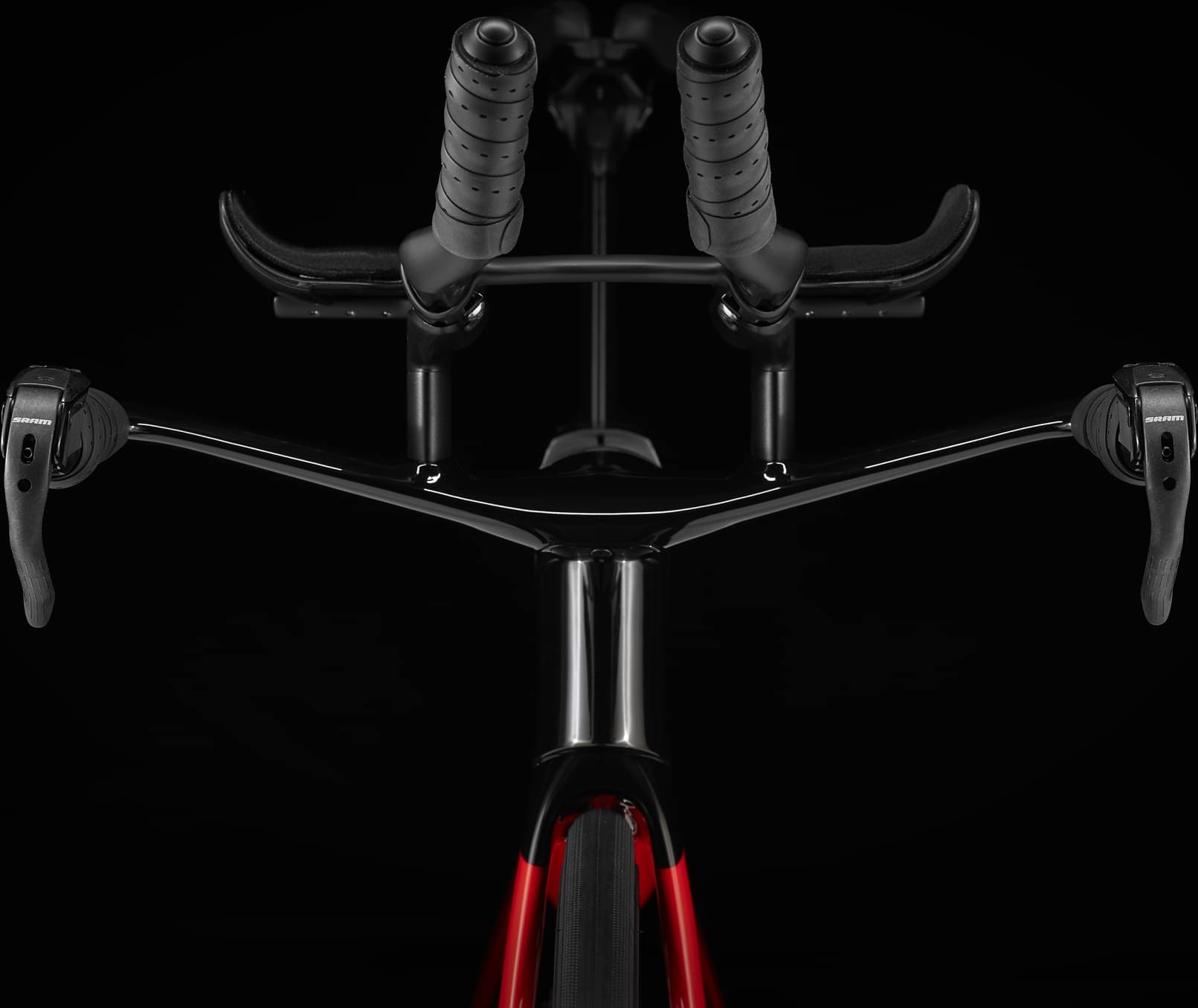

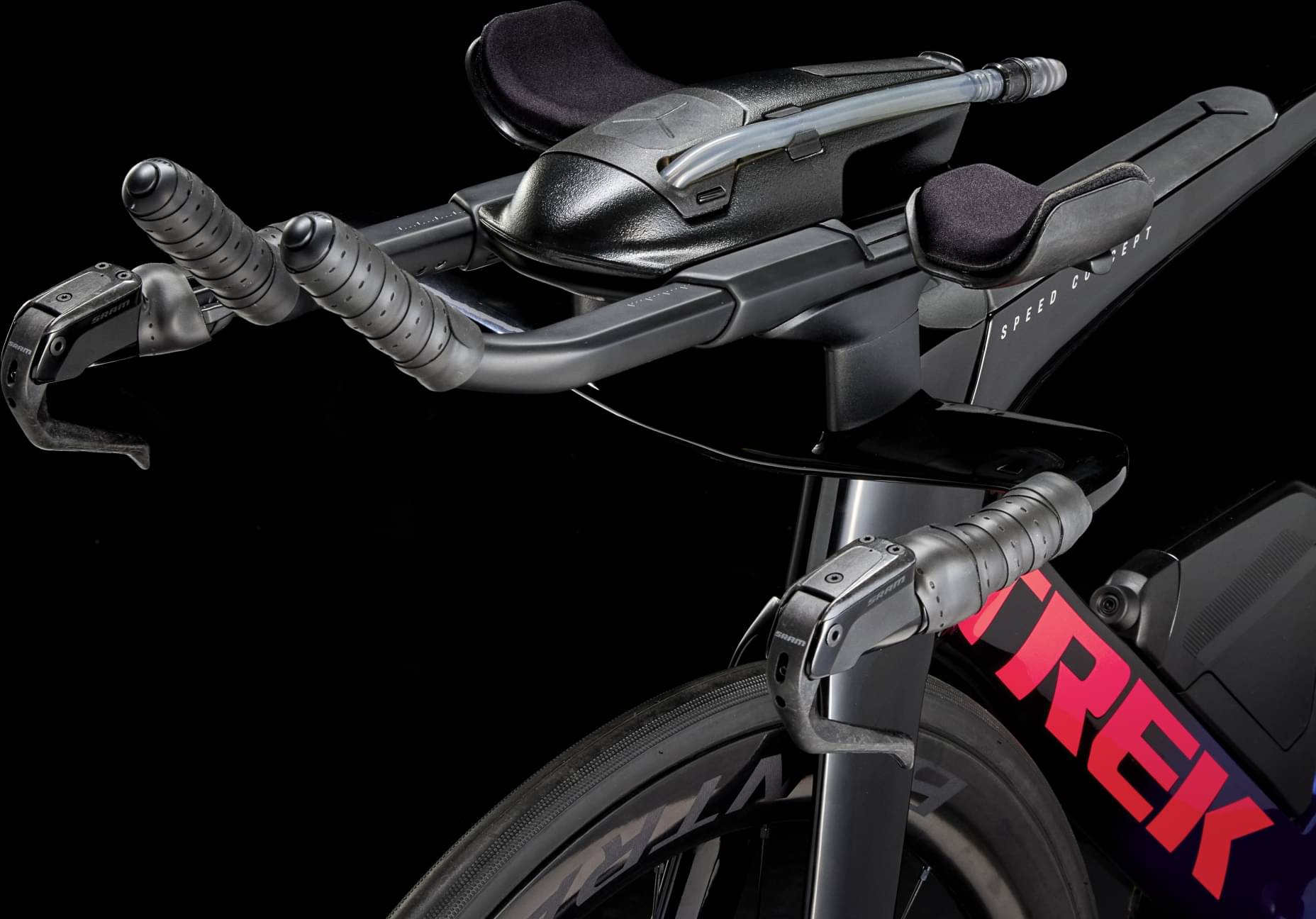

Size: S, M, L, XL, SRAM eTap AXS BlipBox; Size: S, M, L, XL, SRAM eTap Clics, extension-mounted; Size: S, M, L, XL, SRAM eTap AXS Wireless Blips, basebar-mounted
Cassette
SRAM XG-1290, 10-33, 12 speed

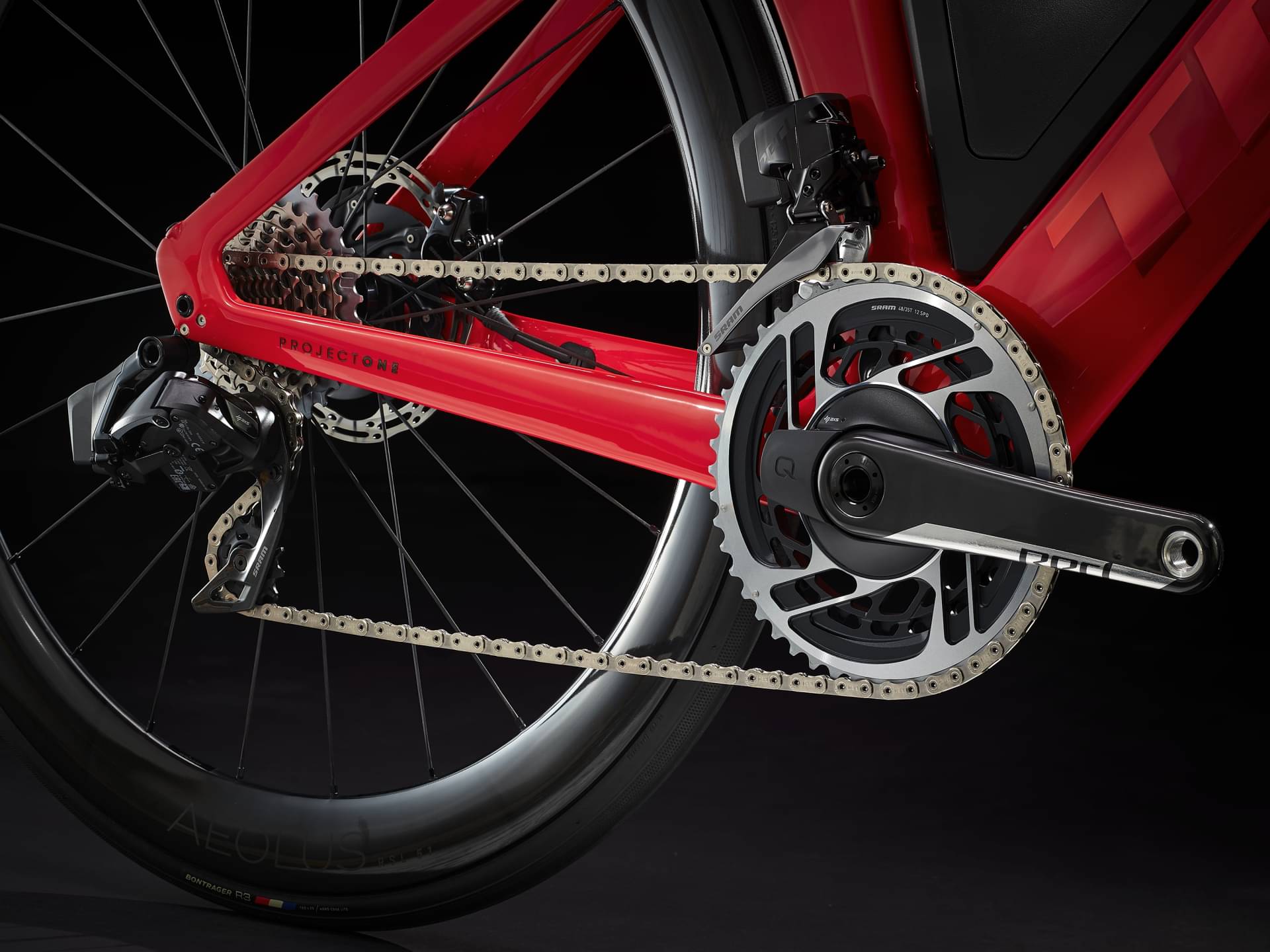

Crank
Size: S, SRAM RED AXS w/ power meter, 48/35, DUB, 170mm length; Size: M, L, SRAM RED AXS w/ power meter, 48/35, DUB, 172.5mm length; Size: XL, SRAM RED AXS w/ power meter, 48/35, DUB, 175mm length
Bottom Bracket
SRAM DUB, T47 threaded, internal bearing
Chain
SRAM RED D1, 12 speed
Wheels
Rims
Front: Bontrager Aeolus RSL 51, OCLV Carbon, Tubeless Ready, 51mm rim depth, 100x12mm thru axle, Rear: Bontrager Aeolus RSL 51, OCLV Carbon, Tubeless Ready, 51mm rim depth, SRAM XD-R driver, 142x12mm thru axle
Tires
Size: S, M, L, XL, Bontrager R3 Hard-Case Lite, aramid bead, 120 tpi, 700x25mm; Size: S, M, L, XL, Bontrager R4 320, 700x25mm
Brakes
Brakes

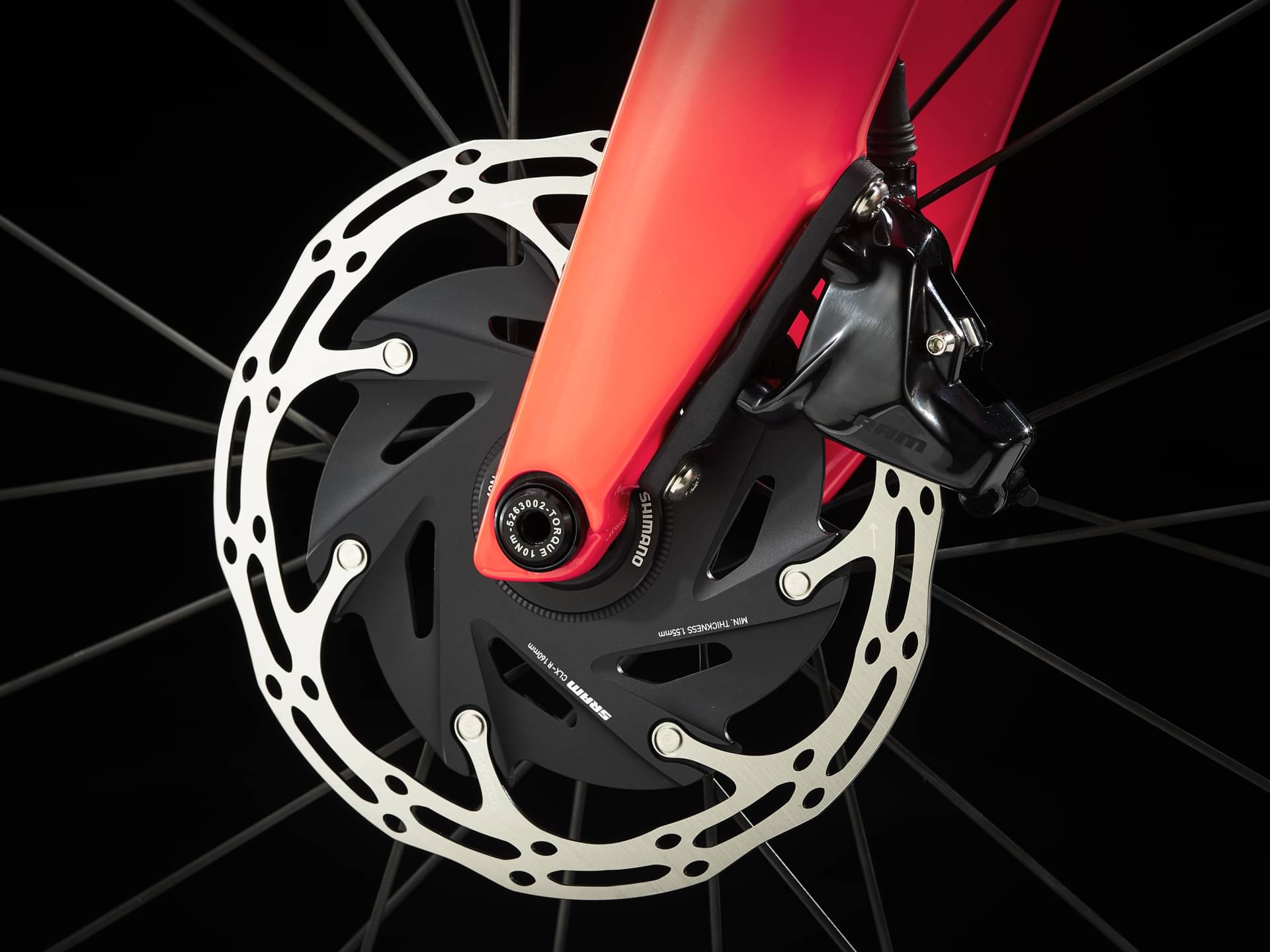

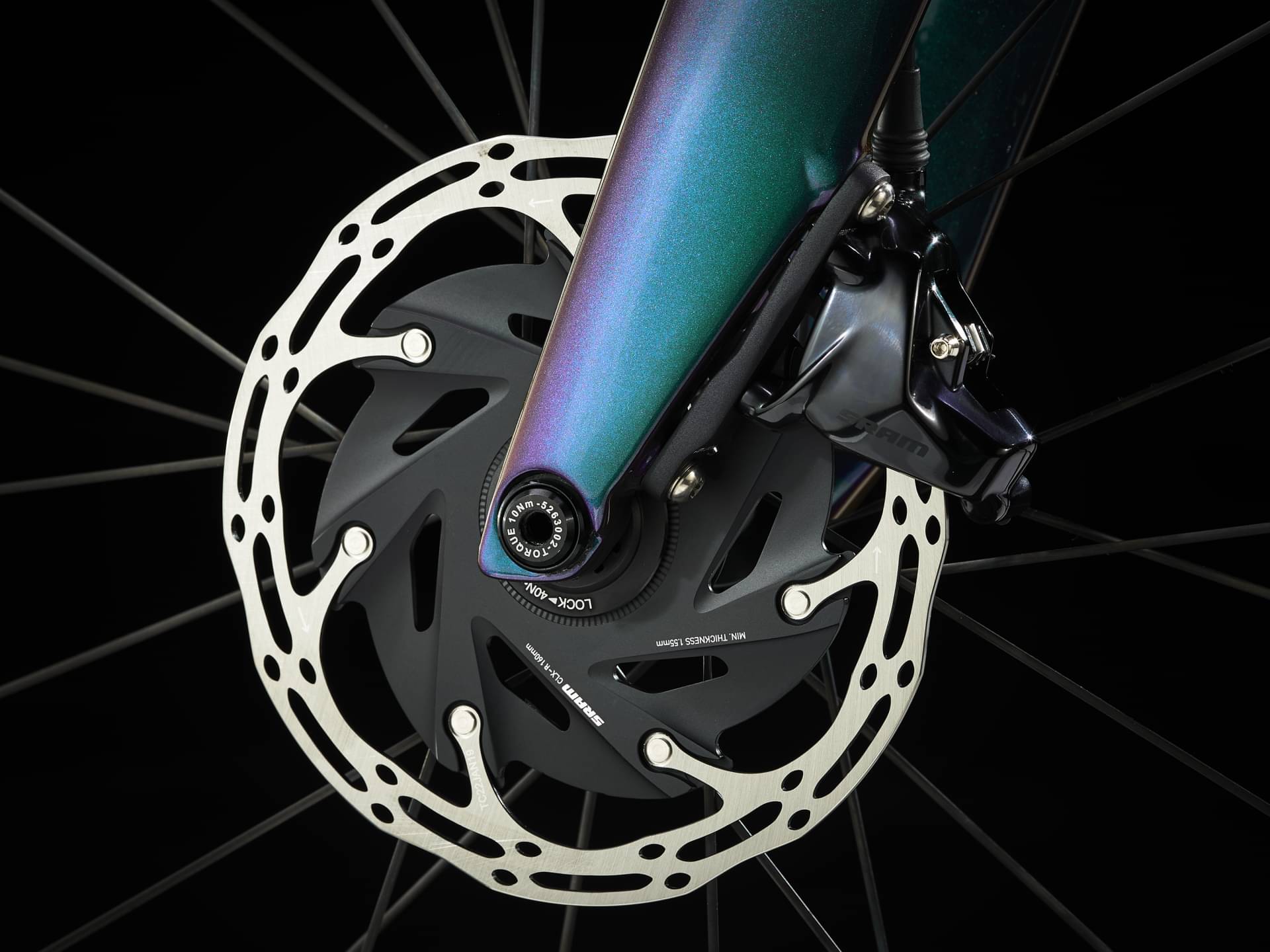

Hydraulic Disc
Brake Levers
SRAM S-900 Aero
Seat
Saddle
Bontrager Hilo Pro Carbon
Seatpost
Size: S, Speed Concept SLR, 11.5mm or -20mm offset, short length; Size: M, L, XL, Speed Concept SLR, 11.5mm or -20mm offset, tall length
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.26 mm | 1.24 mm | 1.27 mm | 1.27 mm |
| Bottom Bracket Height | 256 mm | 256 mm | 256 mm | 256 mm |
| Front Center | 571 mm | 598 mm | 623 mm | 650 |
| Rake | 41 mm | 37 mm | 44 mm | 45 mm |
| Trail | 61 mm | 60 mm | 60 mm | 60 mm |
| Stack | 489 mm | 514 mm | 538 mm | 562 mm |
| Reach | 387 mm | 413 mm | 423 mm | 442 mm |
| Top Tube Length | 492 mm | 515 mm | 538 mm | 562 mm |
| Seat Tube Angle | 78 ° | 78 ° | 78 ° | 78 ° |
| Seat Tube Length | 499 mm | 525 mm | 549 mm | 574 mm |
| Head Tube Angle | 72.2 ° | 72.5 ° | 72.5 ° | 72.5 ° |
| Head Tube Length | 65 mm | 90 mm | 115 mm | 140 mm |
| Chainstay Length | 407 mm | 407 mm | 407 mm | 407 mm |
| Wheelbase | 964 mm | 992 mm | 1017 mm | 1044 mm |
| Bottom Bracket Drop | 80 mm | 80 mm | 80 mm | 80 mm |
| Standover Height | 757 mm | 782 mm | 805 mm | 828 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 154 cm | 166 cm | 174 cm | 185 cm |
| Rider Max Height | 168 cm | 176 cm | 187 cm | 198 cm |
About this model
Speed Concept SLR 9 AXS is part of the Trek Speed model. Trek released 112 bikes variations of this model so far. You can easily view all of the Trek Speed bikes models from 2024, here.
Model range prices
Trek Speed Concept SLR 6 AXS 2024 is the most affordable bike of this model and has a price of 8999$. On the other hand, Trek Speed Concept SLR 9 AXS 2024, is the most expensive and costs 14199$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Triathlon bikes
According to our math, the average price for a trustworthy Triathlon bike is 4177$. However, even though the average price of a Triathlon bike is lower, you might still be able to get a top-quality bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
This bike was released in 2024 and its price was 14199$. Comparing this to the average Triathlon bike price, we see that the price is 239.93% more expensive.
Average weight for Triathlon bikes
If we make a quick analysis of the average weight of a Triathlon bike, we get 8.56 kg (18.87 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
slightly heavier than average, Speed Concept SLR 9 AXS has a weight of 8.6 kg (18.96 lbs). In short, the average Triathlon bike weight is 0.47% lower than this one.
Speed Concept SLR 9 AXS components
Fork material
Speed Concept SLR 9 AXS has a carbon fork, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels size
The wheels on Speed Concept SLR 9 AXS are the 700c carbon type. There is no doubt, that 700c wheels are very popular on all road bike models. However, while they give you great speed and control, these wheels are not so bump-friendly.

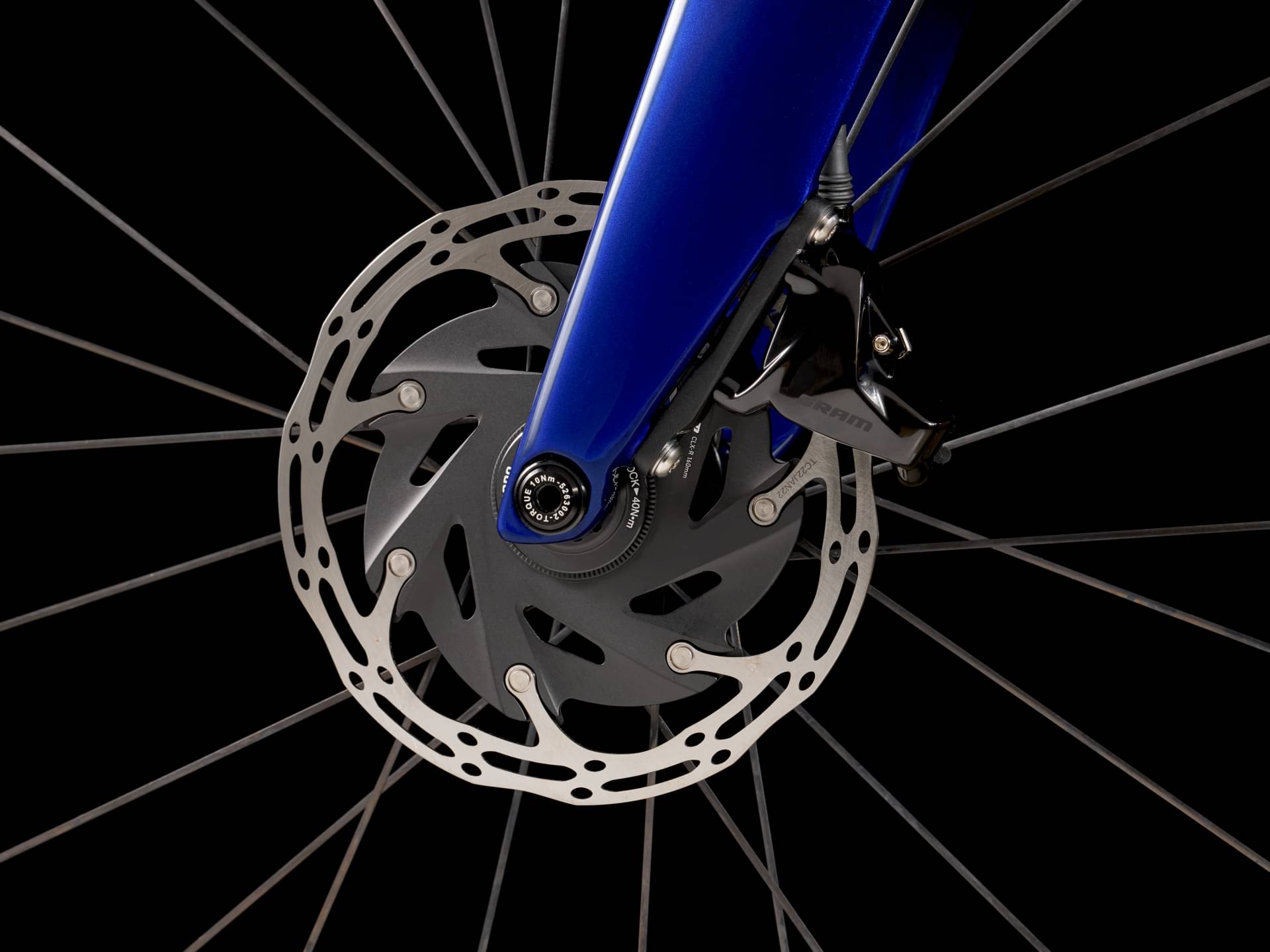

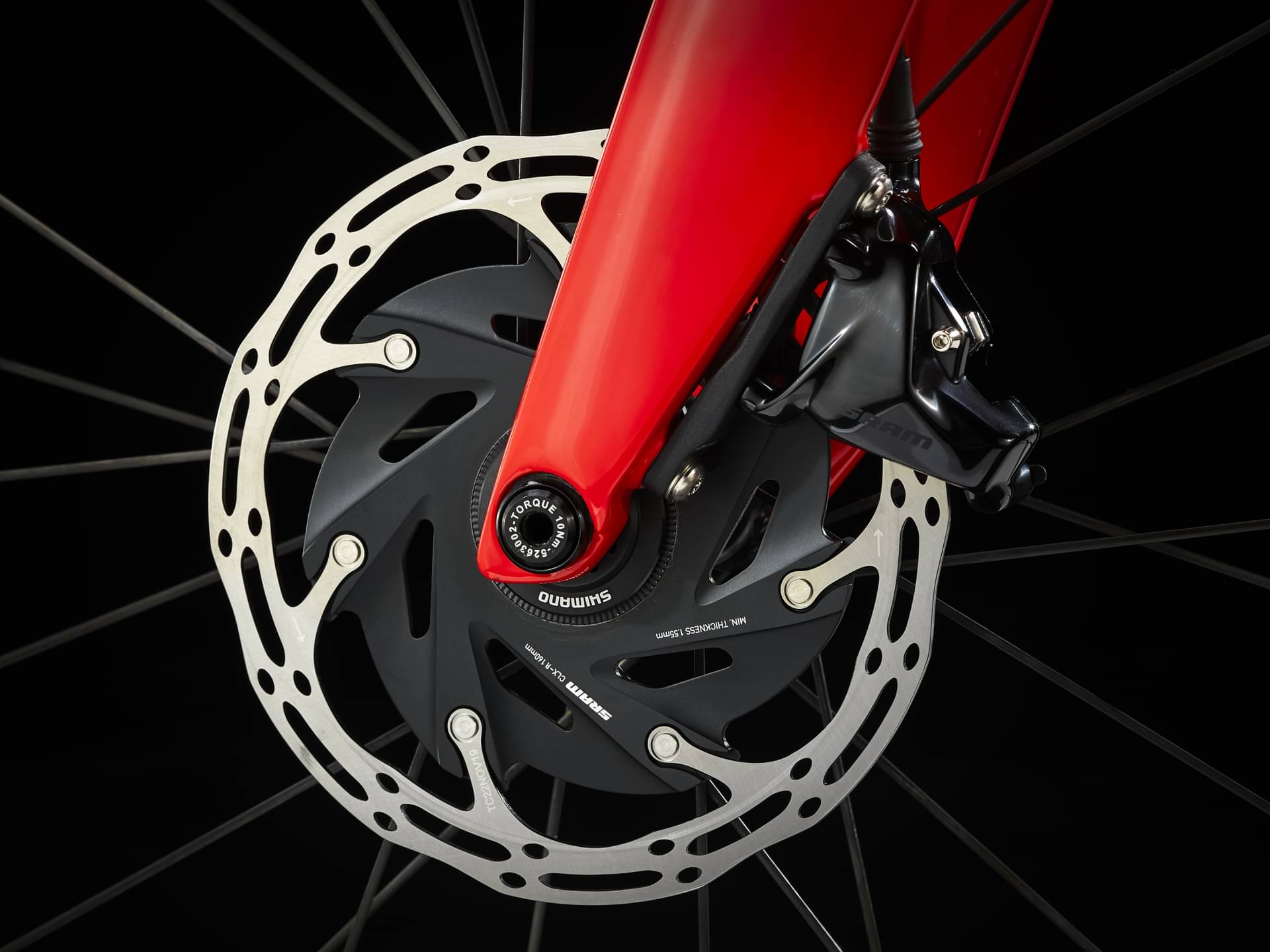

Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Speed Concept SLR 9 AXS comes with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 154 cm – 198 cm (5.05 ft – 6.5 ft). In short, you can easily find one that suits you.
