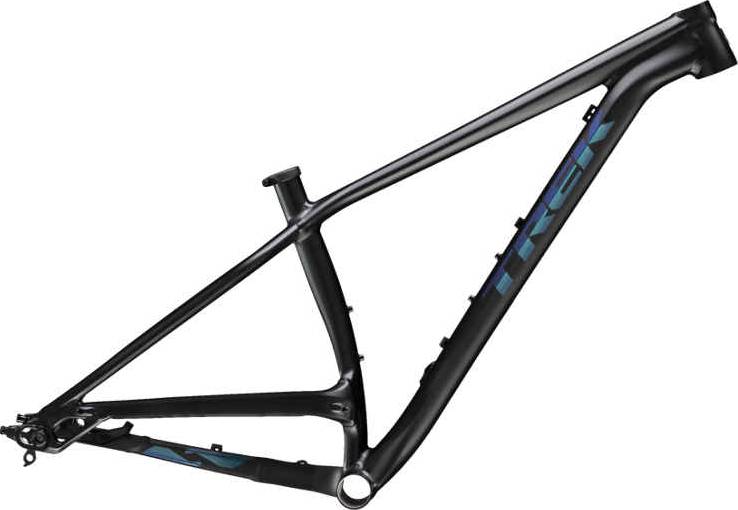

Trek Stache AL Frameset 2020
2020 Mountain
Estimate price |
999$
Weight | 1.99 kg
Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Frame Aluminum -
Wheels 29" -
Suspension Rigid
Sizing
Recommended size guide.
SM
153cm - 166cm
MD
161cm - 172cm
MD/LG
165cm - 179cm
LG
177cm - 188cm
XL
186cm - 196cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Alpha Platinum Aluminum, tapered head tube, internal derailleur & dropper post routing, elevated midstay, horizontal sliding dropouts, Boost148
Cockpit
Headset
FSA IS-2, 1-1/8" top, 1.5" bottom
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | MD/LG | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.65 mm | 1.54 mm | 1.51 mm | 1.46 mm | 1.42 mm |
| Bottom Bracket Height | 317 mm | 318 mm | 317 mm | 317 mm | 317 mm |
| Front Center | 678 mm | 706 mm | 724 mm | 738 mm | 761 mm |
| Rake | 50 mm | 51 mm | 51 mm | 51 mm | 51 mm |
| Trail | 101 mm | 102 mm | 102 mm | 102 mm | 102 mm |
| Stack | 631 mm | 629 mm | 639 mm | 639 mm | 648 mm |
| Reach | 383 mm | 409 mm | 424 mm | 438 mm | 457 mm |
| Top Tube Length | 584 mm | 612 mm | 630 mm | 644 mm | 666 mm |
| Seat Tube Angle | 72.4 ° | 72.3 ° | 72.3 ° | 72.3 ° | 72.3 ° |
| Seat Tube Length | 394 mm | 419 mm | 445 mm | 470 mm | 521 mm |
| Head Tube Angle | 67.9 ° | 67.8 ° | 67.8 ° | 67.8 ° | 67.8 ° |
| Head Tube Length | 90 mm | 90 mm | 100 mm | 100 mm | 110 mm |
| Chainstay Length | 414 mm | 414 mm | 414 mm | 414 mm | 414 mm |
| Wheelbase | 1083 mm | 1111 mm | 1129 mm | 1143 mm | 1166 mm |
| Bottom Bracket Drop | 68 mm | 67 mm | 68 mm | 68 mm | 68 mm |
| Standover Height | 756 mm | 769 mm | 787 mm | 783 mm | 789 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
| Rider Min Height | 153 cm | 161 cm | 165 cm | 177 cm | 186 cm |
| Rider Max Height | 166 cm | 172 cm | 179 cm | 188 cm | 196 cm |
Model Overview
Stache AL Frameset is part of the Trek Stache model. Trek launched 39 frames of this model so far. You can get a glimpse at all models from 2020, by clicking on this link.
Model range prices
The most economical model, the Trek Stache AL Frameset 2020 has a starting price of 999$. Trek Stache C Frameset 2020 on the other hand is the most expensive at 1699$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Trail frames average price
According to our math, the average price for a trustworthy Trail frame is 1736$. However, even if your budget is less than the average, you might still be able to get a top-quality Trail frame. In conclusion, always check frame reviews and their components before making a purchase to make sure you don’t overpay.
When Trek released this model in 2020, its price was 999$. In conclusion, this frame price is 73.77% lower than the price of the average Trail frame.
Average weight for Trail frames
On a deeper look, we notice that the average weight of a Trail frame is 2.93 kg (6.46 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
Trek Stache AL Frameset it’s weighing 1.99 kg (4.39 lbs). At this weight, is much lighter than average. In conclusion, the average Trail frame weighs 47.24% more than Stache AL Frameset.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
Overview of components
Sizes
Trek Stache AL Frameset frame has 5 sizes, in the range of 153 cm – 196 cm (5.02 ft – 6.43 ft). In conclusion, you won’t have a problem finding one that suits you.
