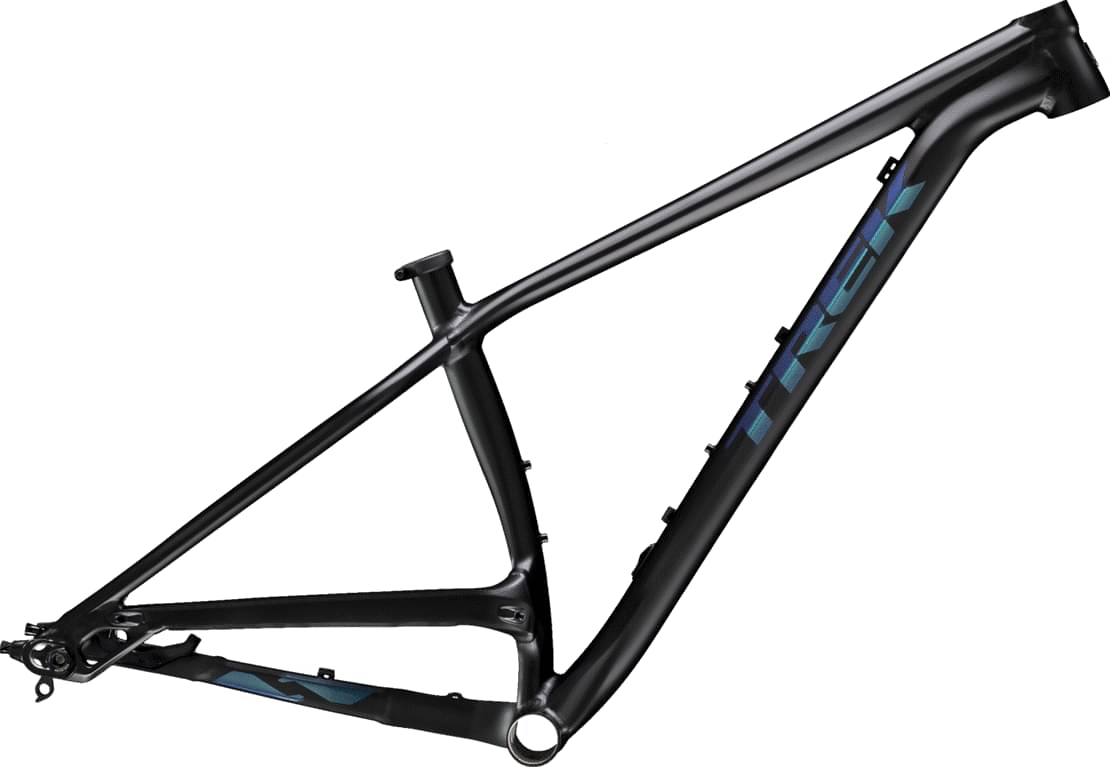

Trek Stache AL Frameset 2022
2022 Mountain
Estimate price |
1,119$
Weight | 1.99 kg
Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Frame aluminium -
Wheels 29" -
Suspension Rigid
Sizing
Recommended size guide.
SM
153cm - 166cm
MD
161cm - 172cm
MD/LG
165cm - 179cm
LG
177cm - 188cm
XL
186cm - 196cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminum frame
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | MD/LG | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.65 mm | 1.54 mm | 1.51 mm | 1.46 mm | 1.42 mm |
| Bottom Bracket Height | 317 mm | 318 mm | 317 mm | 317 mm | 317 mm |
| Front Center | 678 mm | 706 mm | 724 mm | 738 mm | 761 mm |
| Rake | 50 mm | 51 mm | 51 mm | 51 mm | 51 mm |
| Trail | 101 mm | 102 mm | 102 mm | 102 mm | 102 mm |
| Stack | 631 mm | 629 mm | 639 mm | 639 mm | 648 mm |
| Reach | 383 mm | 409 mm | 424 mm | 438 mm | 457 mm |
| Top Tube Length | 584 mm | 612 mm | 630 mm | 644 mm | 666 mm |
| Seat Tube Angle | 72.4 ° | 72.3 ° | 72.3 ° | 72.3 ° | 72.3 ° |
| Seat Tube Length | 394 mm | 419 mm | 445 mm | 470 mm | 521 mm |
| Head Tube Angle | 67.9 ° | 67.8 ° | 67.8 ° | 67.8 ° | 67.8 ° |
| Head Tube Length | 90 mm | 90 mm | 100 mm | 100 mm | 110 mm |
| Chainstay Length | 414 mm | 414 mm | 414 mm | 414 mm | 414 mm |
| Wheelbase | 1083 mm | 1111 mm | 1129 mm | 1143 mm | 1166 mm |
| Bottom Bracket Drop | 68 mm | 67 mm | 68 mm | 68 mm | 68 mm |
| Standover Height | 769 mm | 769 mm | 787 mm | 783 mm | 789 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
| Rider Min Height | 153 cm | 161 cm | 165 cm | 177 cm | 186 cm |
| Rider Max Height | 166 cm | 172 cm | 179 cm | 188 cm | 196 cm |
About this model
Stache AL Frameset is a Trek Stache model. 39 frames variations carry this model name so far. Check out the entire range from 2022 of this model, by clicking this link.
Model range prices
Trek Stache AL Frameset 2022 is the cheapest frame model and costs 1119$. Trek Stache C Frame Set 2022 is the most expensive one and costs 2372$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Trail frames average price
According to our math, the average price for a trustworthy Trail frame is 1736$. However, you could also get a good Trail frame even if you pay a lower amount than the average price. To make sure you don’t pay a higher amount than normal for your frame, always do some components analysis and read reviews.
When Trek released this model in 2022, its price was 1119$. Doing a quick comparison, we notice that Stache AL Frameset price is 55.14% lower than the average cost of a Trail frame.
Average weight for Trail frames
Trail frames weigh an average of 2.93 kg (6.46 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
Weighing 1.99 kg (4.39 lbs), the Stache AL Frameset model is much lighter than average. In other words, this model is 47.24% lighter than the average Trail frame.
Overview of components
Sizes
Stache AL Frameset comes in 5 sizes, that range from 153 cm – 196 cm (5.02 ft – 6.43 ft). In conclusion, finding one for you shouldn’t be a problem.
