Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 29" -
Travel Front 100mm -
Fork RockShox Reba
-
Groupset X9, Deore -
Suspension Hardtail -
Drivetrain 3 × 9 -
Brakes Mechanical Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Platinum Series ZR9000 double-butted aluminum | Genesis 29" Geometry
Suspension Fork
RockShox Reba Race 29" | 100mm travel
Drivetrain
Rear Derailleur
SRAM X.9, 9spd
Front Derailleur
Shimano Deore
Shift Levers
SRAM X-7 Trigger 1:1
Cassette
SRAM PG970 11-34T, 9SPD
Crank
Bontrager Race 44/32/22
Pedals
Shimano M520, clipless
Wheels
Tires
Bontrager ACX 29x2.2, folding
Brakes
Brakes
Avid BB7, Mechanical Disc w/ Avid FR5
Cockpit
Stem
Bontrager Select OS, 31.8mm clamp, 7 degree rise
Handlebar
Bontrager Select OS, 31.8mm clamp, 630mm width, 25mm rise
Headset
Alloy aheadset, semi-cartridge, sealed
Seat
Saddle
Bontrager Race Luxe, Hollow Cromoly Rails
Seatpost
Bontrager Select
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview

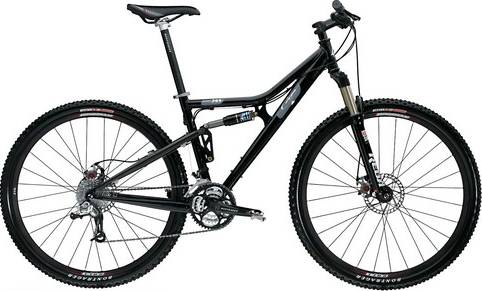

Sugar 293 completes the Trek Sugar model. There are 12 bikes that carry this model name. Check out the entire range from 2005 of this model, by clicking this link.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Crosscountry bikes average price
According to our math, the average price for a trustworthy Crosscountry bike is 1905$. However, this doesn’t mean that if you spend less money on a Crosscountry bike, you couldn’t get a decent one. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Sugar 293 components
Fork
The fork installed on this bike is the RockShox Reba model. The travel on this model is 100mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels
The Sugar 293 2005 bike is equipped with 29″ wheels when leaving the factory. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, 29″ wheels will make your bike react slower to obstacles you may encounter.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Mechanical Disc brakes. These brakes are also very popular, and a lot cheaper than hydraulic disk brakes. However, performance-wise there is room for improvement.
Sizes
This bike is available in 4 sizes. They vary from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, it won’t take much to find one that’s right for you.
