Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 29" -
Travel Front 80mm -
Fork RockShox Reba
-
Groupset X9, Deore -
Suspension Hardtail -
Brakes Mechanical Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Platinum Series ZR9000 double-butted aluminum | Genesis 29" Geometry
Suspension Fork
RockShox Reba Race Dual Air 29 | External rebound, external floodgate, external compression and lockout, Butted aluminum steerer | 80mm travel
Drivetrain
Rear Derailleur
SRAM X.9, 9spd
Front Derailleur
Shimano Deore
Shift Levers
SRAM X-7 Trigger 1:1
Cassette
SRAM PG970 11-34T, 9SPD
Crank
Shimano LX
Pedals
Shimano M520, clipless
Wheels
Tires
Bontrager ACX 29x2.2, folding
Brakes
Brakes
Avid BB7, Mechanical Disc w/ Avid FR5
Cockpit
Stem
Bontrager Select OS, 31.8mm clamp, 7 degree rise
Handlebar
Bontrager Select OS, 31.8mm clamp, 630mm width, 25mm rise
Headset
Alloy aheadset, semi-cartridge, sealed
Seat
Saddle
Bontrager Race Luxe, Hollow Cromoly Rails
Seatpost
Bontrager Select
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview

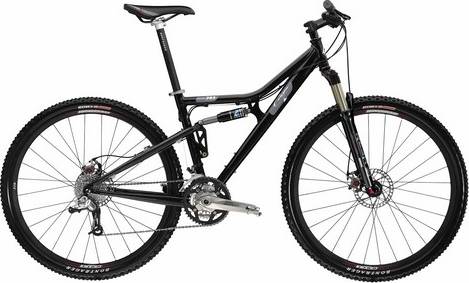

Sugar 293 completes the Trek Sugar model. Trek launched 12 bikes of this model so far. You can easily view all of the Trek Sugar bikes models from 2006, here.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Crosscountry bikes average price
According to our math, the average price for a trustworthy Crosscountry bike is 1905$. However, this doesn’t mean that if you spend less money on a Crosscountry bike, you couldn’t get a decent one. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Overview of components
Fork
The RockShox Reba is included from the factory. It has a travel distance of 80mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In conclusion, always look for a fork with decent travel when you buy a bike.
Fork material
When it comes to the fork, this bike has an aluminum one, which is a lighter material. However, it is not as tough, nor durable as steel is.
Wheels size
When leaving the production line, the Sugar 293 model has 29″ wheels. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
Nothing is more important on a bike than its ability to brake properly. Trek Sugar 293 is equipped with Mechanical Disc brakes. These brakes are also very popular, and a lot cheaper than hydraulic disk brakes. However, performance-wise there is room for improvement.
Sizes
This bike is available in 4 sizes. They vary from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, it won’t take much to find one that’s right for you.
