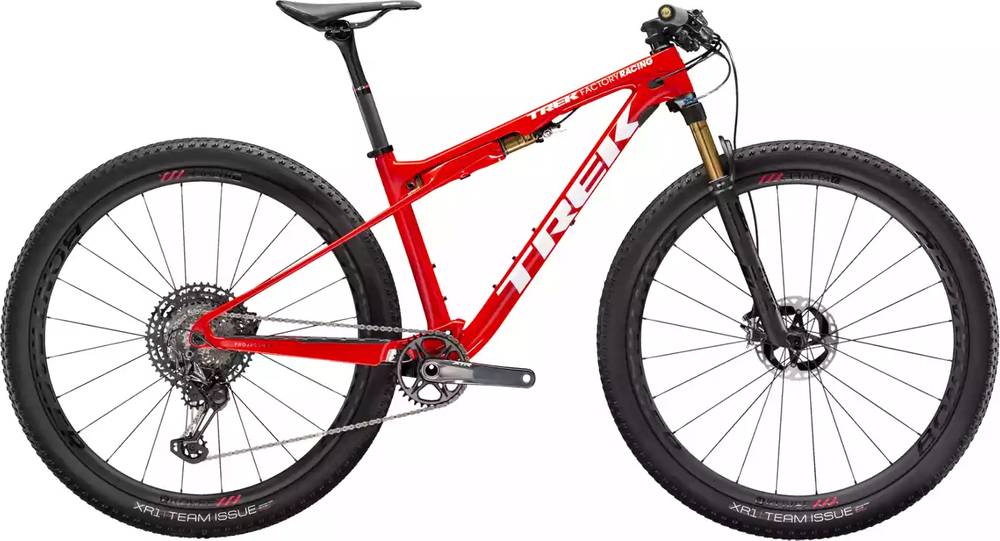

Trek Supercaliber 9.9 XTR 2020
2020 Mountain
Estimate price |
9,999$
Weight | 9.51 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 29" -
Travel Front 100mm -
Travel Rear 60mm -
Fork Fox Factory Float 32
-
Groupset XTR -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
153cm - 166cm
MD
161cm - 172cm
MD/LG
165cm - 179cm
LG
177cm - 188cm
XL
186cm - 197cm
XXL
194cm - 203cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
OCLV Mountain Carbon main frame & stays, IsoStrut, tapered head tube, Knock Block, Control Freak internal routing, Boost148, 60mm travel
Suspension Fork
Fox Factory 32 Step-Cast, Float EVOL air spring, FIT4 2-position damper, dual remote, tapered steerer, 44mm offset, Kashima Coat, Boost110, 15mm bolt-on axle, 100mm travel
Rear Shock
Trek IsoStrut, Fox Factory shock, air spring, DPS 2-position remote damper, Kashima Coat, 235x32.5mm
Drivetrain
Rear Derailleur
Shimano XTR M9100, Shadow Plus, long cage, 51T max cog
Shift Levers
Shimano XTR M9100, 12 speed
Cassette
Shimano XTR M9100, 10-51, 12 speed
Crank
Size: S, Shimano XTR M9120, 34T alloy ring, Boost (52mm chainline), 170mm length; Size: M, M/L, L, XL, Shimano XTR M9120, 34T alloy ring, Boost (52mm chainline), 175mm length
Bottom Bracket
e*thirteen BB20-92
Chain
Shimano XTR M9100, 12 speed
Wheels
Rims
Bontrager Kovee XXX 30, OCLV Mountain Carbon, Tubeless Ready, centerlock, Boost110, 15mm thru axle
Tires
Bontrager XR1 Team Issue, Tubeless Ready, Inner Strength sidewall, aramid bead, 120 tpi, 29x2.20''
Brakes
Brakes
Shimano XTR M9100 hydraulic disc
Disk Rotors
Shimano MT900, 160mm, centerlock
Cockpit
Stem
Size: S, Bontrager Kovee Pro, 35mm, Knock Block, Blendr compatible, 13 degree, 60mm length; Size: M, M/L, Bontrager Kovee Pro, 35mm, Knock Block, Blendr compatible, 13 degree, 70mm length; Size: L, XL, Bontrager Kovee Pro, 35mm, Knock Block, Blendr compatible, 13 degree, 80mm length
Handlebar
Bontrager Kovee XXX, OCLV Carbon, 35mm, 0mm rise, 720mm width
Grips
ESI Chunky
Headset
Knock Block Integrated, super light sealed cartridge bearing, 1-1/8'' top, 1.5'' bottom
Seat
Saddle
Bontrager Montrose Pro, 7x10mm carbon rails, 138mm width
Seatpost
Size: S, Bontrager XXX, OCLV Carbon, 31.6mm, 0mm offset, 330mm length; Size: M, M/L, L, XL, Bontrager XXX, OCLV Carbon, 31.6mm, 0mm offset, 400mm length
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | MD/LG | LG | XL | XXL |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.51 mm | 1.4 mm | 1.35 mm | 1.31 mm | 1.26 mm | 1.23 mm |
| Bottom Bracket Height | 320 mm | 320 mm | 320 mm | 320 mm | 320 mm | 320 mm |
| Front Center | 654 mm | 681 mm | 696 mm | 711 mm | 747 mm | 772 mm |
| Rake | 46 mm | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 96 mm | 96 mm | 96 mm | 96 mm | 96 mm | 96 mm |
| Stack | 588 mm | 588 mm | 588 mm | 588 mm | 602 mm | 616 mm |
| Reach | 389 mm | 419 mm | 434 mm | 449 mm | 479 mm | 499 mm |
| Top Tube Length | 559 mm | 589 mm | 604 mm | 619 mm | 653 mm | 677 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 394 mm | 419 mm | 445 mm | 470 mm | 508 mm | 546 mm |
| Head Tube Angle | 69 ° | 69 ° | 69 ° | 69 ° | 69 ° | 69 ° |
| Head Tube Length | 90 mm | 90 mm | 90 mm | 90 mm | 105 mm | 120 mm |
| Chainstay Length | 424 mm | 424 mm | 424 mm | 424 mm | 424 mm | 424 mm |
| Wheelbase | 1073 mm | 1100 mm | 1115 mm | 1130 mm | 1166 mm | 1191 mm |
| Bottom Bracket Drop | 53 mm | 53 mm | 53 mm | 53 mm | 53 mm | 53 mm |
| Standover Height | 744 mm | 754 mm | 754 mm | 781 mm | 781 mm | 781 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" | 29" |
| Rider Min Height | 153 cm | 161 cm | 165 cm | 177 cm | 186 cm | 194 cm |
| Rider Max Height | 166 cm | 172 cm | 179 cm | 188 cm | 197 cm | 203 cm |
About this model
Supercaliber 9.9 XTR belongs to the Trek Supercaliber model. There are 68 bikes that carry this model name. Take a sneak peek at all Trek Supercaliber bikes models from 2020, by clicking here.
Model range prices
Trek Supercaliber 9.7 2020 is the cheapest bike model and costs 4799$. Trek Supercaliber 9.9 AXS 2020 is the most expensive one and costs 11499$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Crosscountry bikes
Our math shows that the average cost of a dependable Crosscountry bike is 1905$. However, you could also get a good Crosscountry bike even if you pay a lower amount than the average price. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Furthermore, this bike was made available in 2020 for 9999$. Doing a quick comparison, we notice that Supercaliber 9.9 XTR price is 424.88% higher than the average cost of a Crosscountry bike.
Average weight for Crosscountry bikes
Crosscountry bikes have an average weight of 12.4 kg (27.34 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
much lighter than average, Supercaliber 9.9 XTR has a weight of 9.51 kg (20.97 lbs). In conclusion, the average Crosscountry bike weighs 30.39% more than Supercaliber 9.9 XTR.
Internal Cable Routing
Another thing to mention, is the internal cable routing of this bike. In conclusion, this helps you too, keep the bike cables in mint condition, and also it looks better. No more cables, surrounding the bike.
Supercaliber 9.9 XTR components
Fork
The Supercaliber 9.9 XTR comes factory-installed with the Fox Factory Float 32 fork. This has a travel range of 100mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In conclusion, always look for a fork with decent travel when you buy a bike.
Rear Shock
From the factory, it comes with the Trek IsoStrut rear shock model, which has a travel of 60mm. Rear shocks give you increased comfort, control, and traction, which is important when cornering or braking. This allows you to ride faster on bumpy roads. In short, if you want smooth rides, get a full-suspension bicycle.
Wheels
The Supercaliber 9.9 XTR 2020 bike is equipped with 29″ carbon wheels when leaving the factory. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, the 29″ wheels will add a little more weight to the bike itself.
Brakes
When you want to stop the bike in time, the brakes are vital. The Supercaliber 9.9 XTR has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
Sizes
Trek Supercaliber 9.9 XTR bike has 6 sizes, in the range of 153 cm – 203 cm (5.02 ft – 6.66 ft). In short, you can easily find one that suits you.
