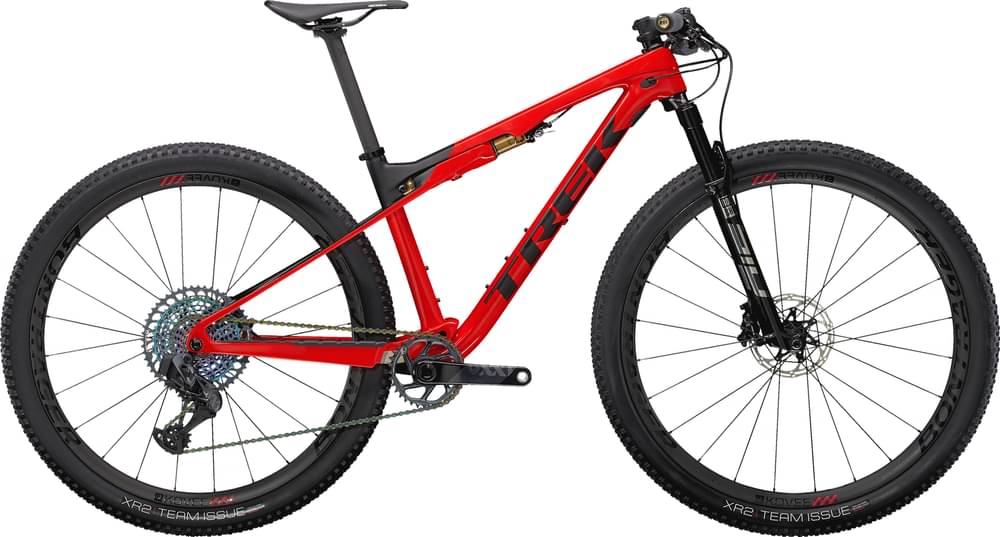

Trek Supercaliber 9.9 XX1 AXS 2021
2021 Mountain
Estimate price |
10,999$
Weight | 9.34 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 29" -
Travel Front 100mm -
Travel Rear 60mm -
Fork RockShox SID SL Ultimate
-
Groupset XX1 Eagle AXS, X01 Eagle AXS -
Suspension Full -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
162cm - 173cm
MD
169cm - 180cm
MD/LG
175cm - 186cm
LG
180cm - 192cm
XL
188cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
OCLV Mountain Carbon main frame & stays, IsoStrut, tapered head tube, Knock Block, Control Freak internal routing, Boost148, 60mm travel
Suspension Fork
RockShox SID SL Ultimate, DebonAir spring, Charger Race Day, damper, 44mm offset, Boost110, 15mm Maxle Stealth, 100mm travel
Rear Shock
Trek IsoStrut, Fox Factory shock, air spring, DPS 2-position remote damper, Kashima Coat, 235x32.5mm
Drivetrain
Rear Derailleur
SRAM XX1 Eagle AXS
Shift Levers
SRAM Eagle AXS, wireless, 12-speed
Cassette
SRAM Eagle XG-1299, 10-52, 12 speed
Crank
Size: S, SRAM XX1 Eagle AXS Carbon, DUB, 34T alloy ring, Boost (52mm chainline), 170mm length; Size: M, M/L, L, XL, SRAM XX1 Eagle AXS Carbon, DUB, 34T alloy ring, Boost (52mm chainline), 175mm length
Bottom Bracket
SRAM DUB, 92mm, PressFit
Chain
SRAM XX1 Eagle, 12 speed
Wheels
Rims
Bontrager Kovee XXX, OCLV Mountain Carbon, Tubeless Ready, centerlock, Boost110, 15mm thru axle
Tires
Bontrager XR2 Team Issue, Tubeless Ready, Inner Strength sidewall, aramid bead, 120 tpi, 29x2.20''
Brakes
Brakes
Size: S, M, M/L, L, XL, SRAM Level Ultimate hydraulic disc, carbon levers; Size: S, M, M/L, L, XL, SRAM Level Ultimate 4-piston hydraulic disc, carbon levers
Cockpit
Stem
Size: S, Bontrager Kovee Pro, 35mm, Knock Block, Blendr compatible, 13 degree, 60mm length; Size: M, M/L, Bontrager Kovee Pro, 35mm, Knock Block, Blendr compatible, 13 degree, 70mm length; Size: L, XL, Bontrager Kovee Pro, 35mm, Knock Block, Blendr compatible, 13 degree, 80mm length
Handlebar
Bontrager Kovee XXX, OCLV Carbon, 35mm, 0mm rise, 720mm width
Headset
Knock Block Integrated, 62-degree radius, cartridge bearing, 1-1/8'' top, 1.5'' bottom
Seat
Saddle
Bontrager Montrose Pro, 7x10mm carbon rails, 138mm width
Seatpost
Size: S, Bontrager XXX, OCLV Carbon, 31.6mm, 0mm offset, 330mm length; Size: M, M/L, L, XL, Bontrager XXX, OCLV Carbon, 31.6mm, 0mm offset, 400mm length
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | MD/LG | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.51 mm | 1.4 mm | 1.35 mm | 1.31 mm | 1.26 mm |
| Bottom Bracket Height | 320 mm | 320 mm | 320 mm | 320 mm | 320 mm |
| Front Center | 654 mm | 681 mm | 696 mm | 711 mm | 747 mm |
| Rake | 46 mm | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 96 mm | 96 mm | 96 mm | 96 mm | 96 mm |
| Stack | 588 mm | 588 mm | 588 mm | 588 mm | 602 mm |
| Reach | 389 mm | 419 mm | 434 mm | 449 mm | 479 mm |
| Top Tube Length | 559 mm | 589 mm | 604 mm | 619 mm | 653 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 394 mm | 419 mm | 445 mm | 470 mm | 508 mm |
| Head Tube Angle | 69 ° | 69 ° | 69 ° | 69 ° | 69 ° |
| Head Tube Length | 90 mm | 90 mm | 90 mm | 90 mm | 105 mm |
| Chainstay Length | 424 mm | 424 mm | 424 mm | 424 mm | 424 mm |
| Wheelbase | 1073 mm | 1100 mm | 1115 mm | 1130 mm | 1166 mm |
| Bottom Bracket Drop | 53 mm | 53 mm | 53 mm | 53 mm | 53 mm |
| Standover Height | 744 mm | 754 mm | 754 mm | 781 mm | 781 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
| Rider Min Height | 162 cm | 169 cm | 175 cm | 180 cm | 188 cm |
| Rider Max Height | 173 cm | 180 cm | 186 cm | 192 cm | 199 cm |
About this model
Supercaliber 9.9 XX1 AXS is part of the Trek Supercaliber model. There are 68 bikes that carry this model name. You can get a glimpse at all models from 2021, by clicking on this link.
Model range prices
Trek Supercaliber 9.7 2021 is the cheapest bike model and costs 4799$. Trek Supercaliber 9.9 XX1 AXS 2021 is the most expensive one and costs 10999$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Crosscountry bikes
Our math shows that the average cost of a dependable Crosscountry bike is 1905$. However, even though the average price of a Crosscountry bike is lower, you might still be able to get a top-quality bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
This bike was released in 2021 and its price was 10999$. Comparing this to the average Crosscountry bike price, we see that the price is 477.38% more expensive.
Crosscountry bikes average weight
The average weight for Crosscountry bikes is 12.4 kg (27.34 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
Supercaliber 9.9 XX1 AXS weighs 9.34 kg (20.59 lbs) and is much lighter than the average. In other words, this model is 32.76% lighter than the average Crosscountry bike.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
Supercaliber 9.9 XX1 AXS components
Fork
Trek Supercaliber 9.9 XX1 AXS 2021 bike is equipped with the RockShox SID SL Ultimate fork, and has 100mm travel. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, you should always ensure you have a good fork when purchasing a bike.
Rear Shock
The Supercaliber 9.9 XX1 AXS has a rear shock with a travel of 60mm. The model Trek IsoStrut is the one installed in this bike. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. To sum up, get a full-suspension bike if you want the smoothest rides.
Wheels
The wheels on Supercaliber 9.9 XX1 AXS are the 29″ carbon type. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, 29″ wheels will make your bike react slower to obstacles you may encounter.
Brakes
When you want to stop the bike in time, the brakes are vital. The Supercaliber 9.9 XX1 AXS has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
Sizes
There are 5 sizes available for this model. Rider height can be anywhere between 162 cm – 199 cm (5.31 ft – 6.53 ft). In short, you can easily find one that suits you.
