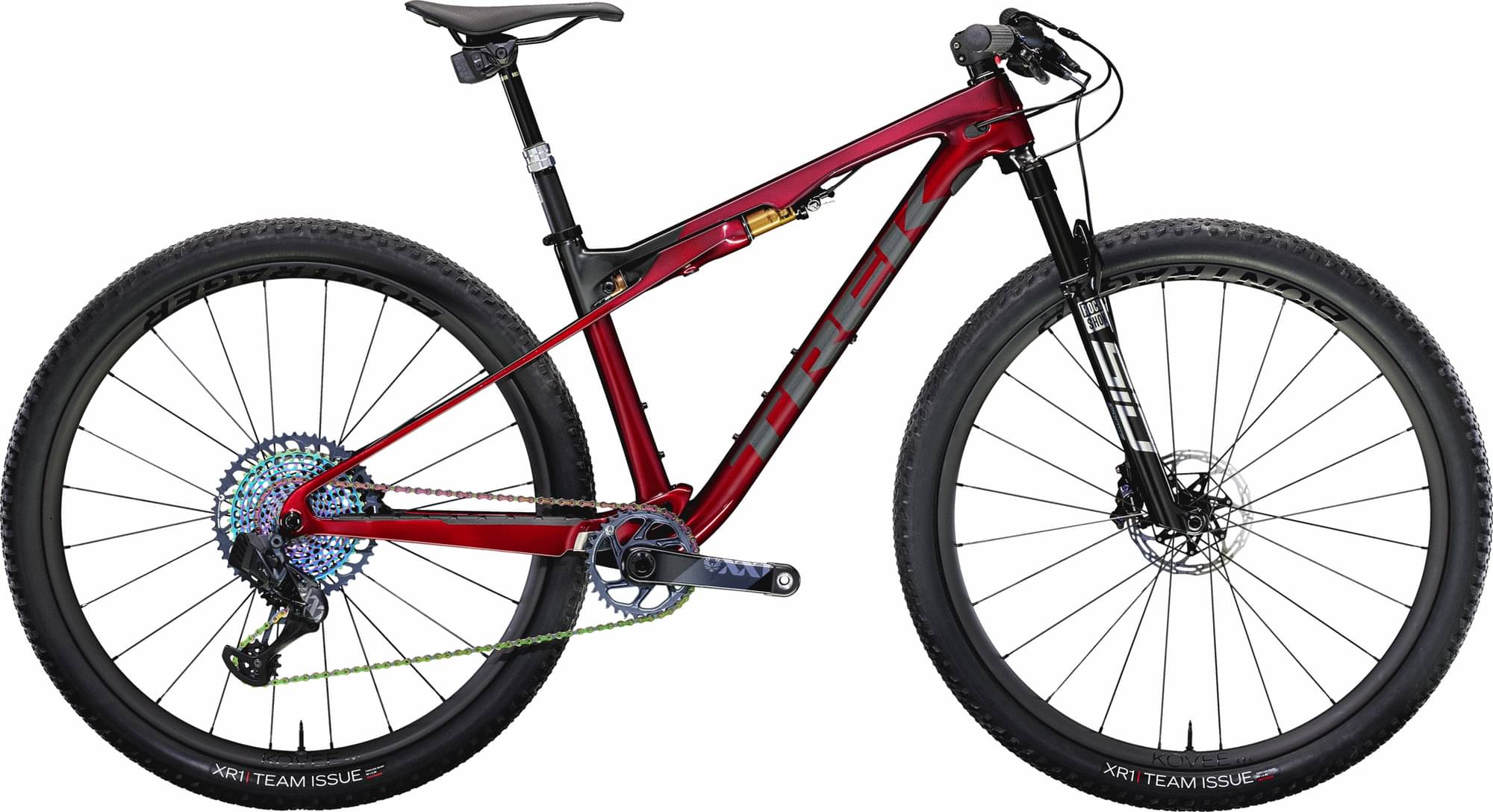

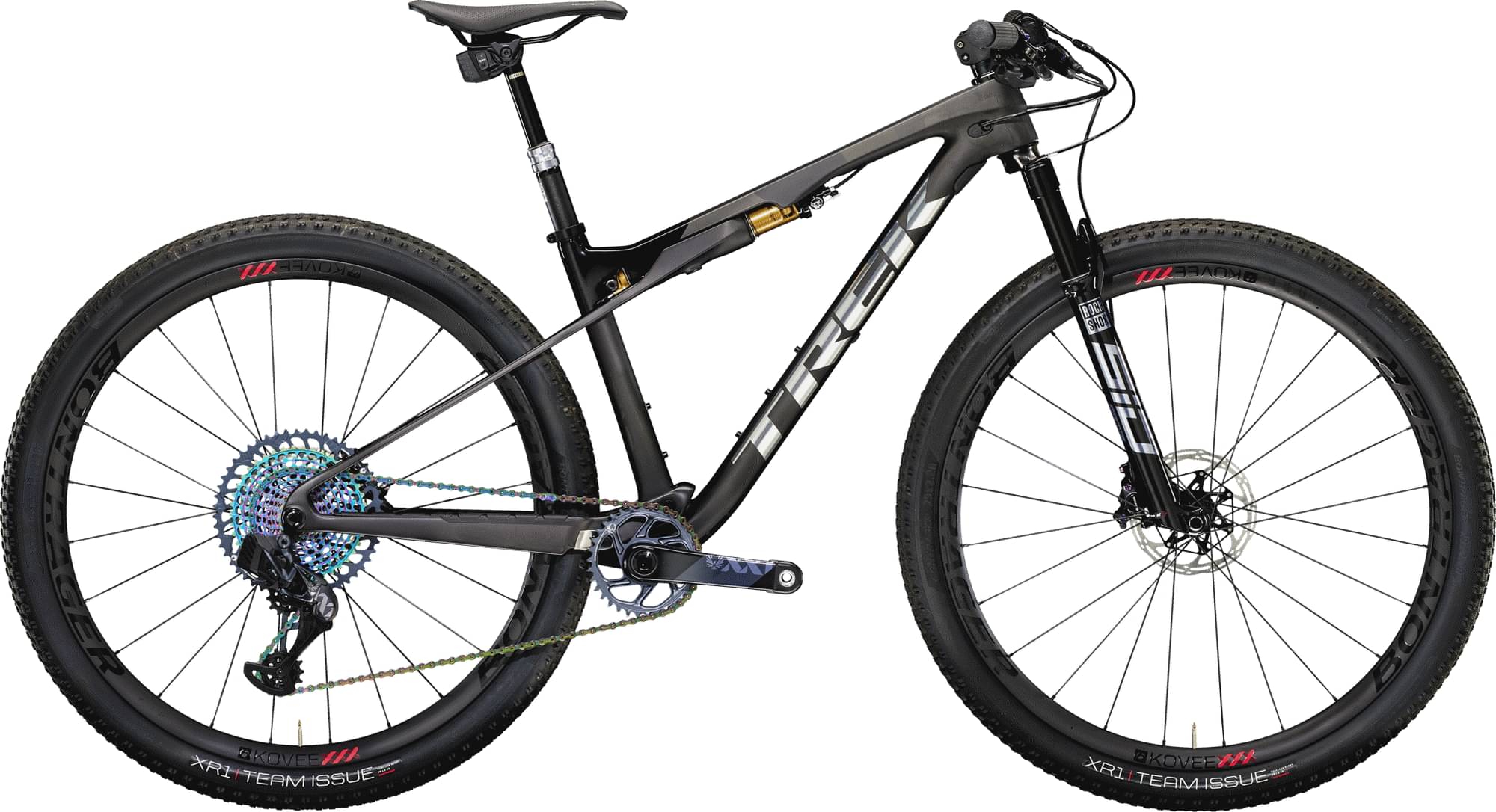

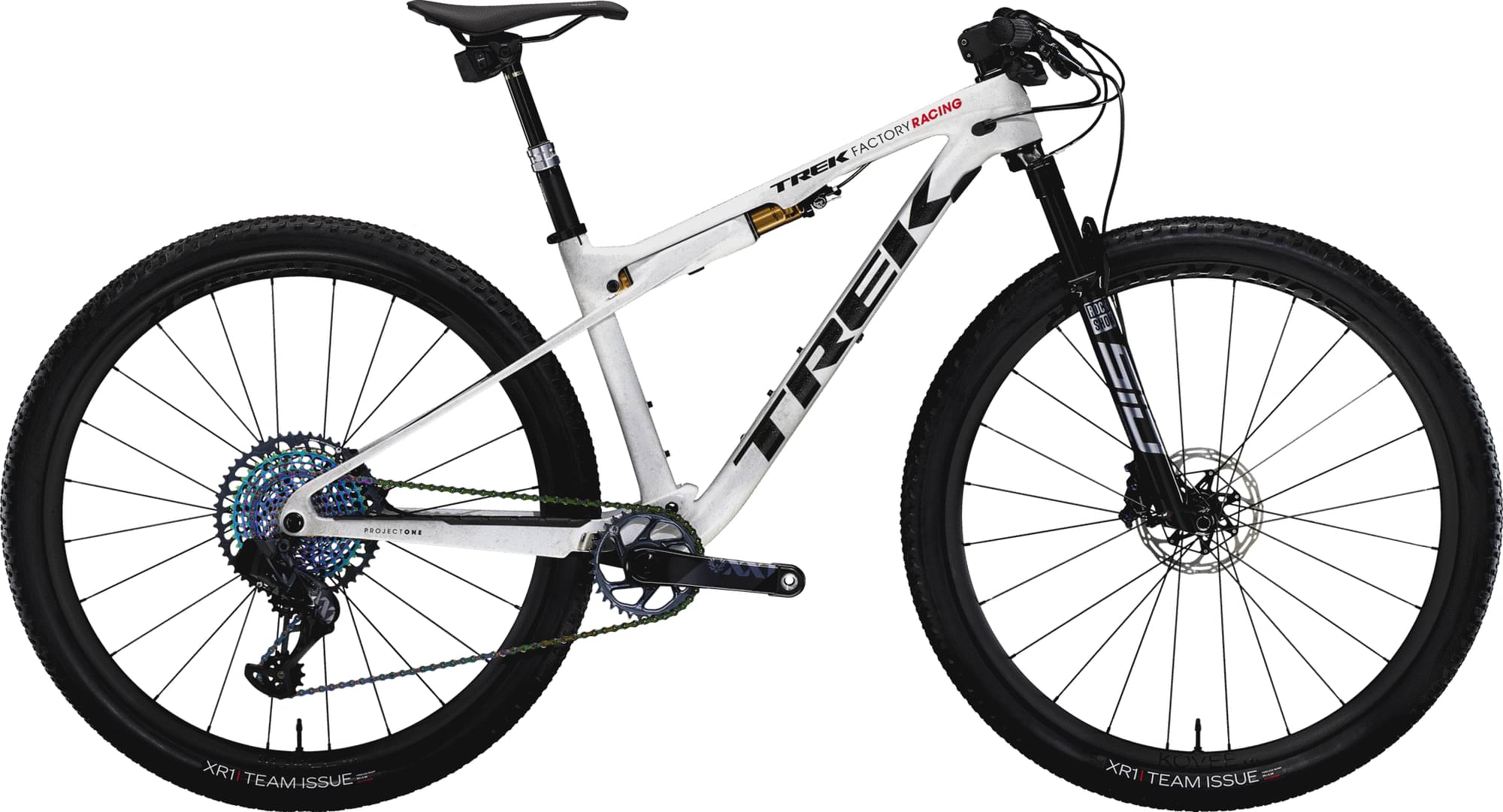

Trek Supercaliber 9.9 XX1 AXS 2023
2023 Mountain
Estimate price |
11,699$
Weight | 9.9 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 29" -
Travel Front 100mm -
Travel Rear 60mm -
Fork RockShox SID SL Ultimate
-
Groupset XX1 Eagle AXS, X01 Eagle AXS -
Suspension Full -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
15.5"
154cm - 169cm
17.5"
166cm - 180cm
18.5"
176cm - 188cm
19.5"
177cm - 189cm
21.5"
186cm - 196cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
OCLV Mountain Carbon main frame & stays, IsoStrut, tapered head tube, Knock Block, Control Freak internal routing, Boost148, 60mm travel
Suspension Fork
RockShox SID SL Ultimate, DebonAir spring, Charger Race Day, damper, 44mm offset, Boost110, 15mm Maxle Stealth, 100mm travel
Rear Shock
Trek IsoStrut, Fox Factory shock, air spring, DPS 2-position remote damper, Kashima Coat, 235mm x 32.5mm
Drivetrain
Rear Derailleur
SRAM XX1 Eagle AXS
Shift Levers
Size: S, M, M/L, L, XL, SRAM Eagle AXS, wireless, 12 speed; Size: S, M, M/L, L, XL, SRAM AXS POD Ultimate
Cassette
SRAM Eagle XG-1299, 10-52, 12 speed
Crank
Size: S, M, SRAM XX1 Eagle AXS Carbon, DUB, 34T alloy ring, Boost, 52mm chainline, 170mm length; Size: M/L, L, XL, SRAM XX1 Eagle AXS Carbon, DUB, 34T alloy ring, Boost, 52mm chainline, 175mm length
Bottom Bracket
SRAM DUB, 92mm, PressFit
Chain
SRAM XX1 Eagle, 12 speed
Wheels
Rims
Front: Bontrager Kovee RSL, OCLV Mountain Carbon, Tubeless Ready, CenterLock, Boost110, 15mm thru axle, Rear: Bontrager Kovee RSL, OCLV Mountain Carbon, Tubeless Ready, Centerlock, Boost148, 12mm thru axle
Tires
Bontrager XR1 Team Issue, Tubeless Ready, Inner Strength sidewall, aramid bead, 120 tpi, 29x2.20''
Brakes
Brakes
Size: S, M, M/L, L, XL, SRAM Level Ultimate hydraulic disc, carbon levers; Size: S, M, M/L, L, XL, SRAM Level Ultimate 4-piston hydraulic disc, carbon levers
Cockpit
Headset
Knock Block Integrated, 62-degree radius, cartridge bearing, 1-1/8'' top, 1.5'' bottom
Seat
Saddle
Bontrager Verse Pro, carbon rails, 145mm width
Seatpost
Size: S, M, RockShox Reverb AXS, 100mm travel, wireless, 31.6mm, 340mm length; Size: M/L, L, XL, RockShox Reverb AXS, 150mm travel, wireless, 31.6mm, 440mm length
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 15.5" | 17.5" | 18.5" | 19.5" | 21.5" |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.51 mm | 1.4 mm | 1.35 mm | 1.31 mm | 1.26 mm |
| Bottom Bracket Height | 320 mm | 320 mm | 320 mm | 320 mm | 320 mm |
| Front Center | 654 mm | 681 mm | 696 mm | 711 mm | 747 mm |
| Rake | 46 mm | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 96 mm | 96 mm | 96 mm | 96 mm | 96 mm |
| Stack | 588 mm | 588 mm | 588 mm | 588 mm | 602 mm |
| Reach | 389 mm | 419 mm | 434 mm | 449 mm | 479 mm |
| Top Tube Length | 559 mm | 589 mm | 604 mm | 619 mm | 653 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 394 mm | 419 mm | 445 mm | 470 mm | 508 mm |
| Head Tube Angle | 69 ° | 69 ° | 69 ° | 69 ° | 69 ° |
| Head Tube Length | 90 mm | 90 mm | 90 mm | 90 mm | 105 mm |
| Chainstay Length | 424 mm | 424 mm | 424 mm | 424 mm | 424 mm |
| Wheelbase | 1073 mm | 1100 mm | 1115 mm | 1130 mm | 1166 mm |
| Bottom Bracket Drop | 53 mm | 53 mm | 53 mm | 53 mm | 53 mm |
| Standover Height | 744 mm | 754 mm | 754 mm | 781 mm | 781 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
| Rider Min Height | 154 cm | 166 cm | 176 cm | 177 cm | 186 cm |
| Rider Max Height | 169 cm | 180 cm | 188 cm | 189 cm | 196 cm |
Model Overview
Supercaliber 9.9 XX1 AXS is a Trek Supercaliber model. Trek released 68 bikes variations of this model so far. You can get a glimpse at all models from 2023, by clicking on this link.
Model range prices
Trek Supercaliber 9.6 Gen 1 2023 is the most affordable bike of this model and has a price of 3299$. On the other hand, Trek Supercaliber 9.9 XX1 AXS 2023, is the most expensive and costs 11699$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Crosscountry bikes
According to our calculations, the average cost of a Crosscountry bike that is reliable is 1905$. However, even though the average price of a Crosscountry bike is lower, you might still be able to get a top-quality bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
This bike was released in 2023 and its price was 11699$. In conclusion, this bike price is 514.12% more expensive than the price of the average Crosscountry bike.
Crosscountry bikes average weight
If we make a quick analysis of the average weight of a Crosscountry bike, we get 12.31 kg (27.14 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
Trek Supercaliber 9.9 XX1 AXS it’s weighing 9.9 kg (21.83 lbs). At this weight, is much lighter than average. In short, the average Crosscountry bike weight is 24.34% higher than this one.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
Supercaliber 9.9 XX1 AXS components
Fork
This bike has the RockShox SID SL Ultimate fork installed. The fork’s travel is 100mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In conclusion, always look for a fork with decent travel when you buy a bike.
Rear Shock
Trek Supercaliber 9.9 XX1 AXS bike has the Trek IsoStrut model installed, and has a travel of 60mm. Rear shocks improve riding comfort and give you greater control over all terrains. In conclusion, to increase your riding experience, get a bike with a rear shock if possible.
Wheels size
When leaving the production line, the Supercaliber 9.9 XX1 AXS model has 29″ carbon wheels. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, the 29″ wheels will add a little more weight to the bike itself.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
Sizes
Trek Supercaliber 9.9 XX1 AXS bike has 5 sizes, in the range of 154 cm – 196 cm (5.05 ft – 6.43 ft). In conclusion, it won’t take much to find one that’s right for you.
Dropper post
Trek Supercaliber 9.9 XX1 AXS includes a dropper post. If you are a technical rider, a dropper post is essential. A dropper post provides increased safety while riding. The lever system, allows you to move your saddle up and down, which is very useful on climbs and descends.
