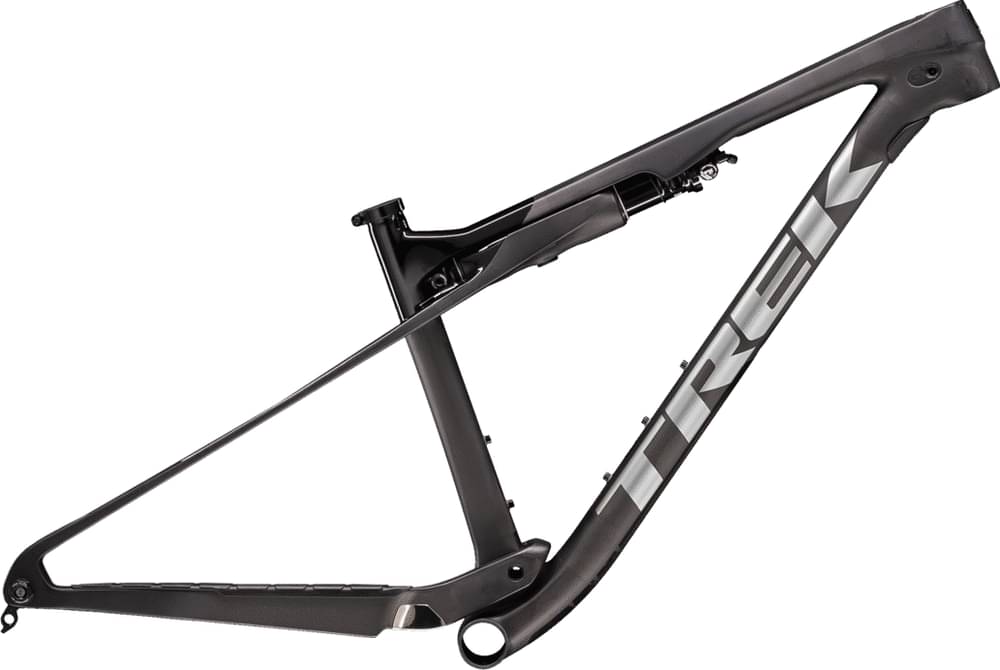

Trek Supercaliber Frameset 2020
2020 Mountain
Estimate price |
3,699$
Weight | 1.96 kg
Bike details
Overview
Key information split into simple groups.
Frame summary
-
Category -
Frame Carbon -
Wheels 29" -
Travel Rear 60mm -
Suspension Full
Sizing
Recommended size guide.
XXL
194cm - 203cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
OCLV Mountain Carbon main frame & stays, IsoStrut, tapered head tube, Knock Block, Control Freak internal routing, Boost148, 60mm travel
Rear Shock
Trek IsoStrut, Fox Performance shock, air spring, DPS 2-position remote damper, 235x32.5mm
Cockpit
Headset
Knock Block Integrated, 58-degree radius, cartridge bearing, 1-1/8'' top, 1.5'' bottom
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XXL |
|---|---|
| Stack Reach Ratio | 1.23 mm |
| Bottom Bracket Height | 320 mm |
| Front Center | 772 mm |
| Rake | 44 mm |
| Trail | 96 mm |
| Stack | 615 mm |
| Reach | 498 mm |
| Top Tube Length | 676 mm |
| Seat Tube Angle | 74 ° |
| Seat Tube Length | 546 mm |
| Head Tube Angle | 69 ° |
| Head Tube Length | 120 mm |
| Chainstay Length | 423 mm |
| Wheelbase | 1190 mm |
| Bottom Bracket Drop | 53 mm |
| Standover Height | 780 mm |
| Wheels | 29" |
| Rider Min Height | 194 cm |
| Rider Max Height | 203 cm |
Model Overview
Supercaliber Frameset completes the Trek Supercaliber model. 68 frames variations carry this model name so far. You can get a glimpse at all models from 2020, by clicking on this link.
Model range prices
Trek Supercaliber Frameset 2020 is the most affordable frame of this model and has a price of 3699$. On the other hand, Trek Supercaliber Frame Set 2020, is the most expensive and costs 4034$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Crosscountry frames average price
If you want an acceptable Crosscountry frame you should know that the average price is 1689$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Crosscountry frame. In conclusion, always check frame reviews and their components before making a purchase to make sure you don’t overpay.
At the moment of the release date, Trek Supercaliber Frameset price was 3699$. In conclusion, this frame price is 119.01% higher than the price of the average Crosscountry frame.
Average weight for Crosscountry frames
The average weight for Crosscountry frames is 2.04 kg (4.5 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
Weighing 1.96 kg (4.32 lbs), the Supercaliber Frameset model is slightly lighter than average. To sum up, it’s 4.08% lighter than the average weight of Crosscountry frames.
Internal Cable Routing
It’s also important to mention the internal cable routing that this frame has. In short, this will allow you to keep your bike cables in great condition. Say goodbye to hanging cables.
Supercaliber Frameset components
Rear Shock
From the factory, it comes with the Trek IsoStrut rear shock model, which has a travel of 60mm. Rear shocks improve riding comfort and give you greater control over all terrains. In short, a full-suspension bike will give you the smoothest ride possible.
Sizes
This frame has one size only, so it might not fit you. In conclusion, double-check its size to make sure it’s a good fit for you.
