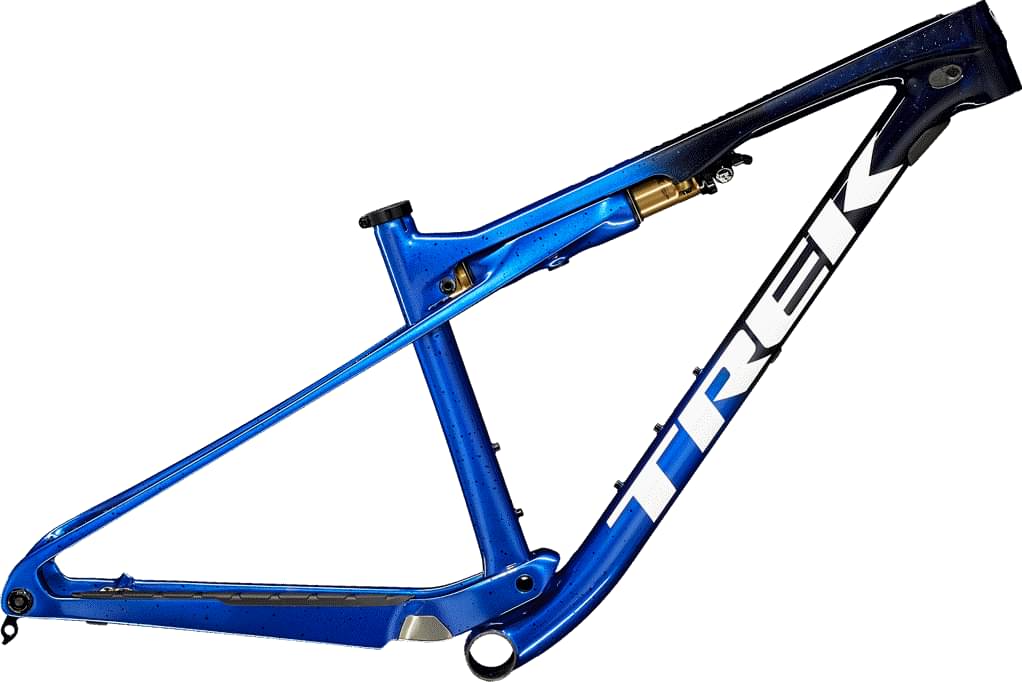

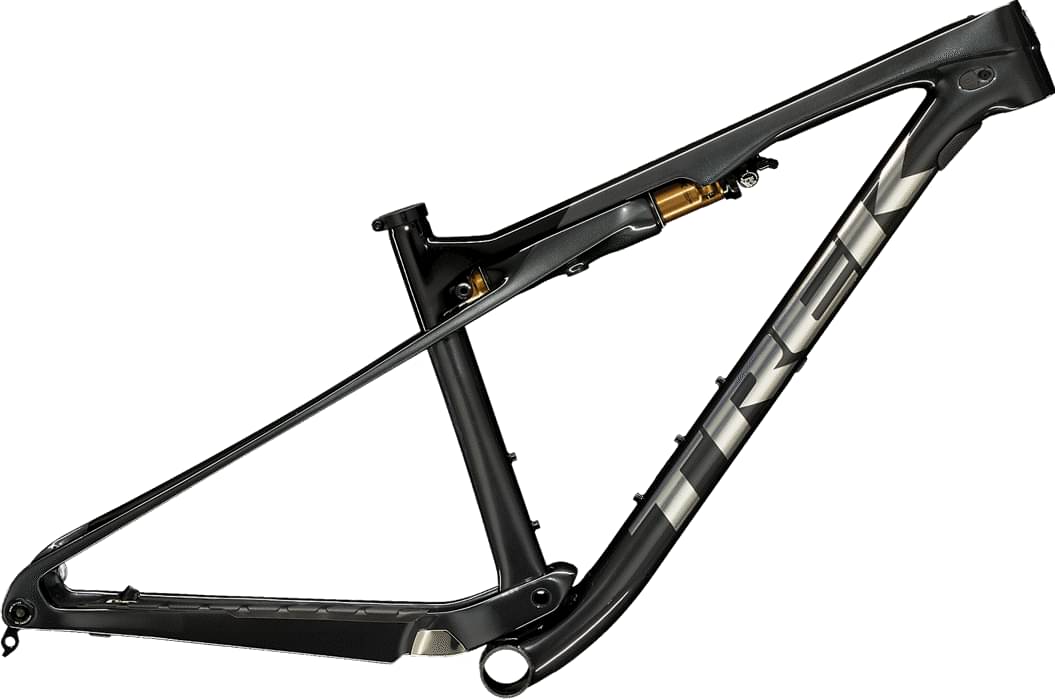

Trek Supercaliber Frameset 2023
2023 Mountain
Estimate price |
4,219$
Weight | 2.15 kg
Bike details
Overview
Key information split into simple groups.
Frame summary
-
Category -
Frame Carbon -
Wheels 29" -
Travel Rear 60mm -
Suspension Full
Sizing
Recommended size guide.
15.5"
155cm - 166cm
17.5"
164cm - 176cm
18.5"
173cm - 180cm
19.5"
177cm - 189cm
21.5"
187cm - 196cm
23"
194cm - 203cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
OCLV Mountain Carbon main frame & stays, IsoStrut, tapered head tube, Knock Block, Control Freak internal routing, Boost148, 60mm travel
Rear Shock
Trek IsoStrut, Fox Factory shock, air spring, DPS 2-position remote damper, Kashima Coat, 235mm x 32.5mm
Cockpit
Headset
Knock Block Integrated, 62-degree radius, cartridge bearing, 1-1/8'' top, 1.5'' bottom
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 15.5" | 17.5" | 18.5" | 19.5" | 21.5" | 23" |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.51 mm | 1.4 mm | 1.35 mm | 1.31 mm | 1.26 mm | 1.23 mm |
| Bottom Bracket Height | 320 mm | 320 mm | 320 mm | 320 mm | 320 mm | 320 mm |
| Front Center | 654 mm | 681 mm | 696 mm | 711 mm | 747 mm | 772 mm |
| Rake | 46 mm | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 96 mm | 96 mm | 96 mm | 96 mm | 96 mm | 96 mm |
| Stack | 588 mm | 588 mm | 588 mm | 588 mm | 602 mm | 616 mm |
| Reach | 389 mm | 419 mm | 434 mm | 449 mm | 479 mm | 499 mm |
| Top Tube Length | 559 mm | 589 mm | 604 mm | 619 mm | 653 mm | 677 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 394 mm | 419 mm | 445 mm | 470 mm | 508 mm | 546 mm |
| Head Tube Angle | 69 ° | 69 ° | 69 ° | 69 ° | 69 ° | 69 ° |
| Head Tube Length | 90 mm | 90 mm | 90 mm | 90 mm | 105 mm | 120 mm |
| Chainstay Length | 424 mm | 424 mm | 424 mm | 424 mm | 424 mm | 424 mm |
| Wheelbase | 1073 mm | 1100 mm | 1115 mm | 1130 mm | 1166 mm | 1191 mm |
| Bottom Bracket Drop | 53 mm | 53 mm | 53 mm | 53 mm | 53 mm | 53 mm |
| Standover Height | 744 mm | 754 mm | 754 mm | 781 mm | 781 mm | 781 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" | 29" |
| Rider Min Height | 155 cm | 164 cm | 173 cm | 177 cm | 187 cm | 194 cm |
| Rider Max Height | 166 cm | 176 cm | 180 cm | 189 cm | 196 cm | 203 cm |
About this model
Supercaliber Frameset completes the Trek Supercaliber model. Trek released 68 frames variations of this model so far. Take a sneak peek at all Trek Supercaliber frames models from 2023, by clicking here.
Model range prices
The most economical model, the Trek Supercaliber Gen 1 Frameset 2023 has a starting price of 4219$. Trek Supercaliber Frameset 2023 on the other hand is the most expensive at 4219$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Crosscountry frames
According to our calculations, the average cost of a Crosscountry frame that is reliable is 1689$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Crosscountry frame. To sum up, when you purchase your frame, make sure to check if it has reviews, and also do some components research.
At the moment of the release date, Trek Supercaliber Frameset price was 4219$. Comparing this to the average Crosscountry frame price, we see that the price is 149.79% more expensive.
Average weight for Crosscountry frames
If we make a quick analysis of the average weight of a Crosscountry frame, we get 1.98 kg (4.37 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
a bit heavier than average, Supercaliber Frameset has a weight of 2.15 kg (4.74 lbs). To sum up, it’s 8.59% heavier than the average weight of Crosscountry frames.
Internal Cable Routing
It’s also important to mention the internal cable routing that this frame has. In short, this will allow you to keep your bike cables in great condition. Say goodbye to hanging cables.
Overview of components
Rear Shock
The shock that’s installed on this frame is Trek IsoStrut, with a travel distance of 60mm. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. To sum up, always consider getting a bike that has a rear shock as well.
Sizes
This frame is available in 6 sizes. They vary from 155 cm – 203 cm (5.09 ft – 6.66 ft). In conclusion, finding one for you shouldn’t be a problem.
