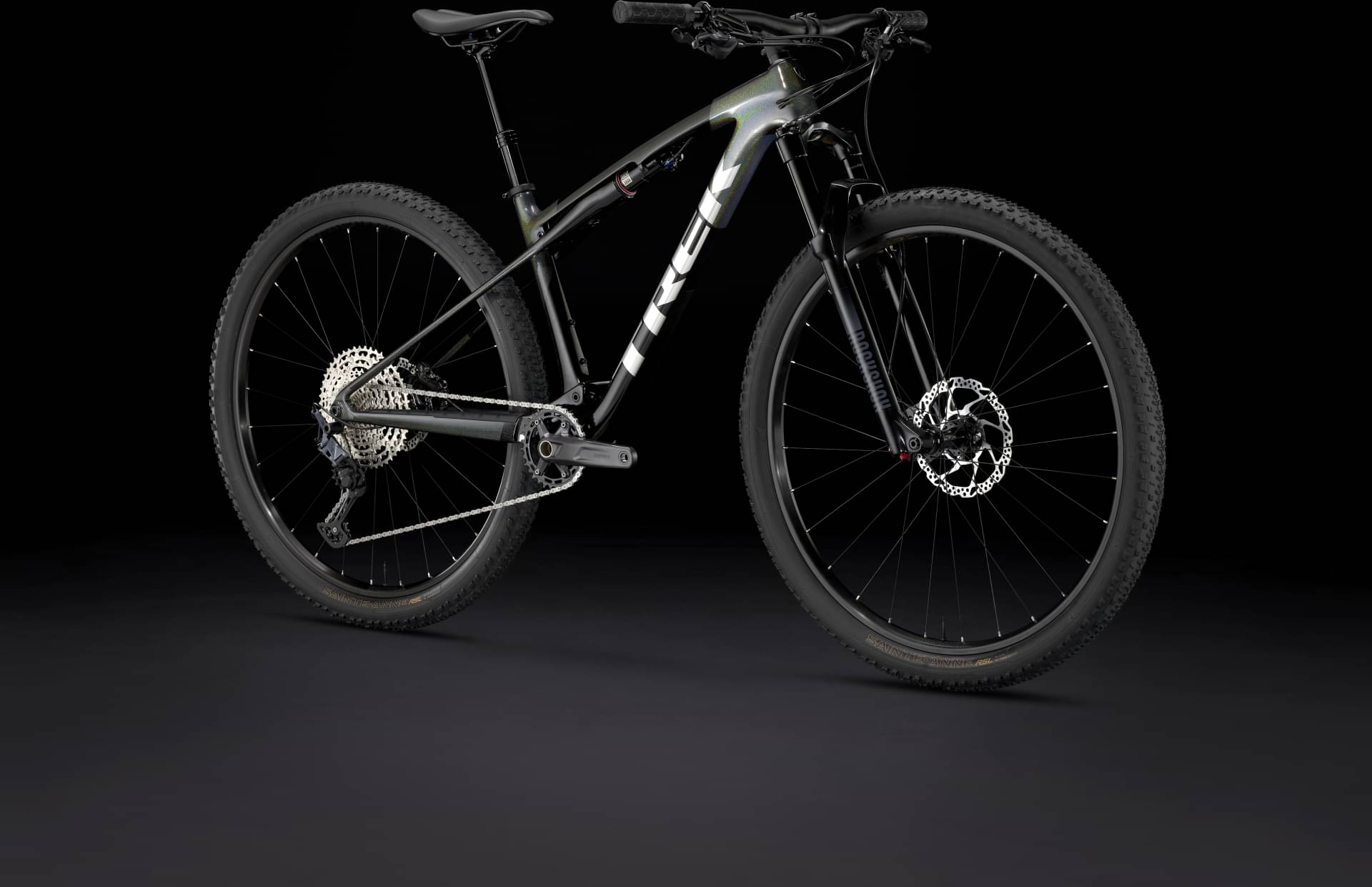

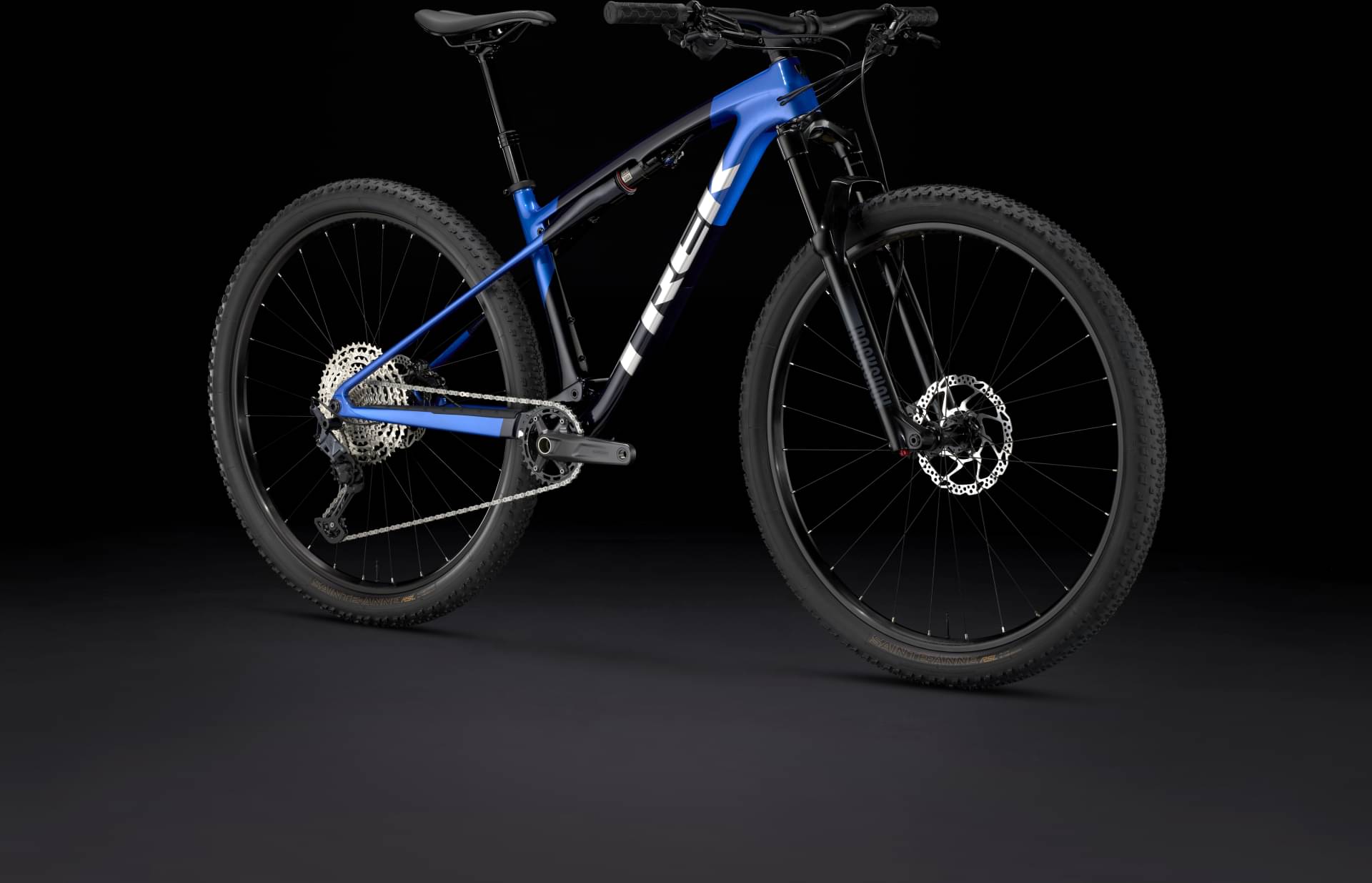

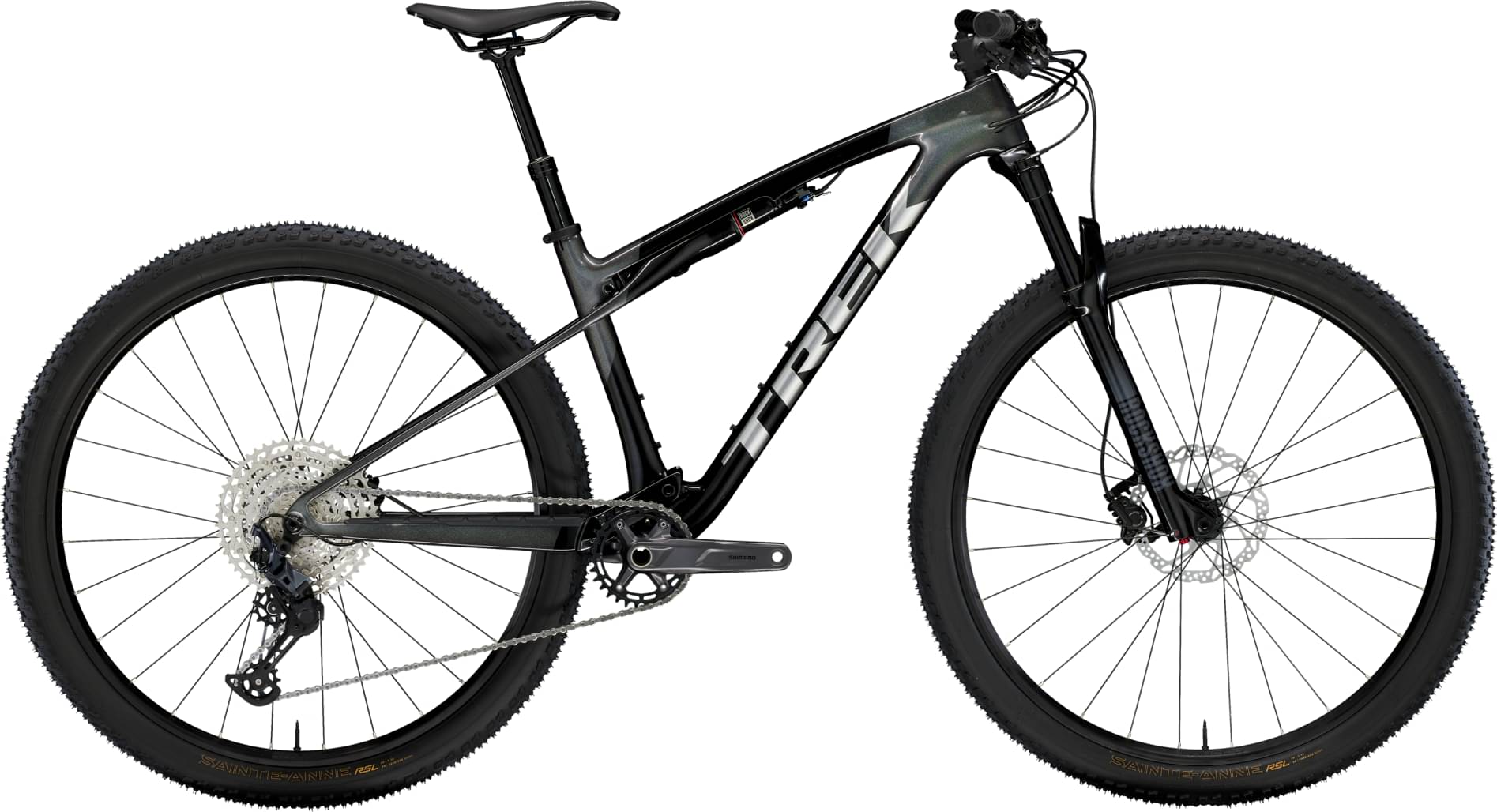

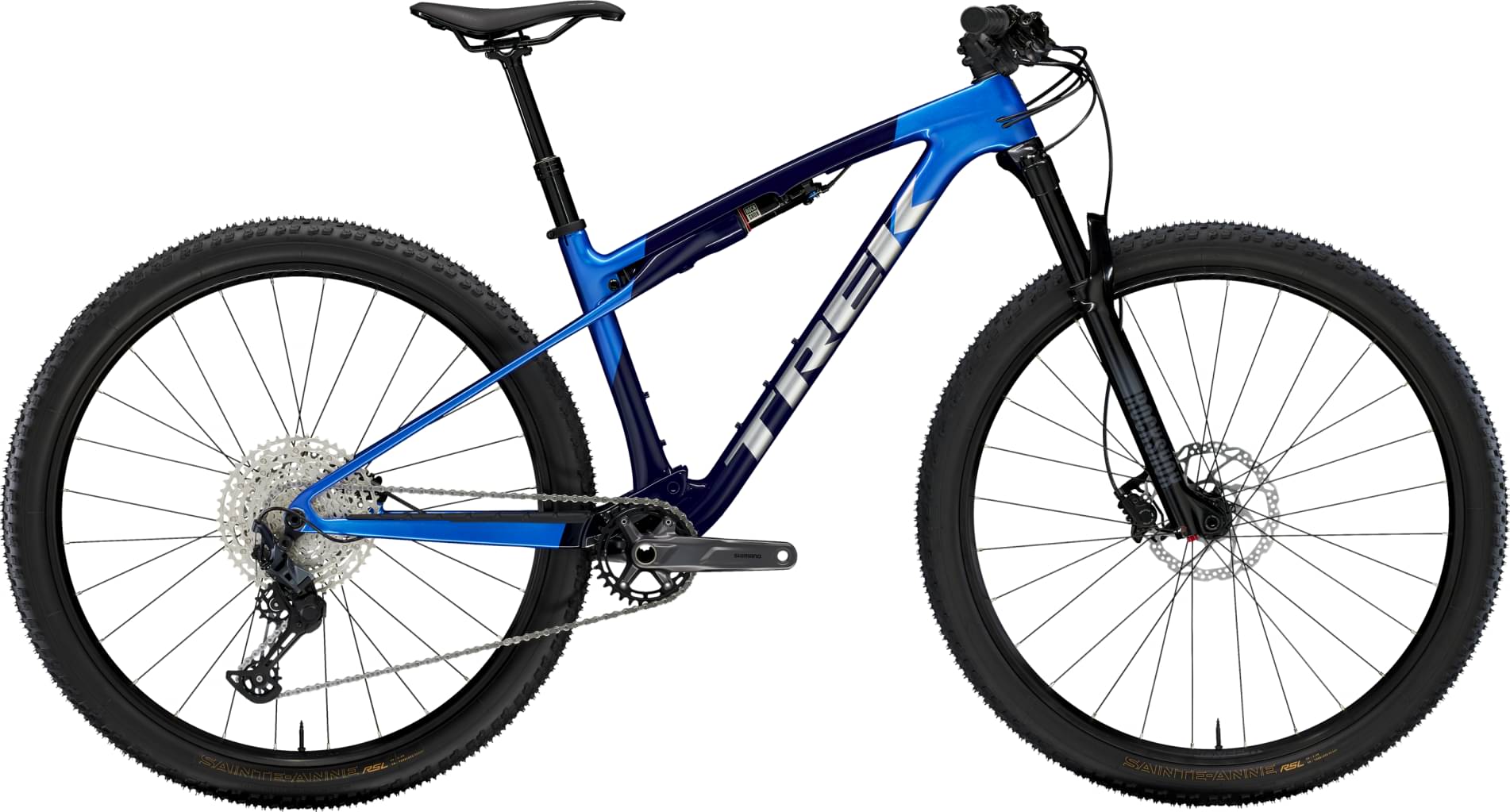

Trek Supercaliber SL 9.6 Gen 2 2024
2024 Mountain
Estimate price |
4,199$
Weight | 13.1 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 29" -
Travel Front 110mm -
Travel Rear 80mm -
Fork RockShox Recon Gold RL
-
Groupset SLX, Deore -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
155cm - 166cm
MD
164cm - 176cm
MD/LG
173cm - 180cm
LG
177cm - 189cm
XL
187cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components

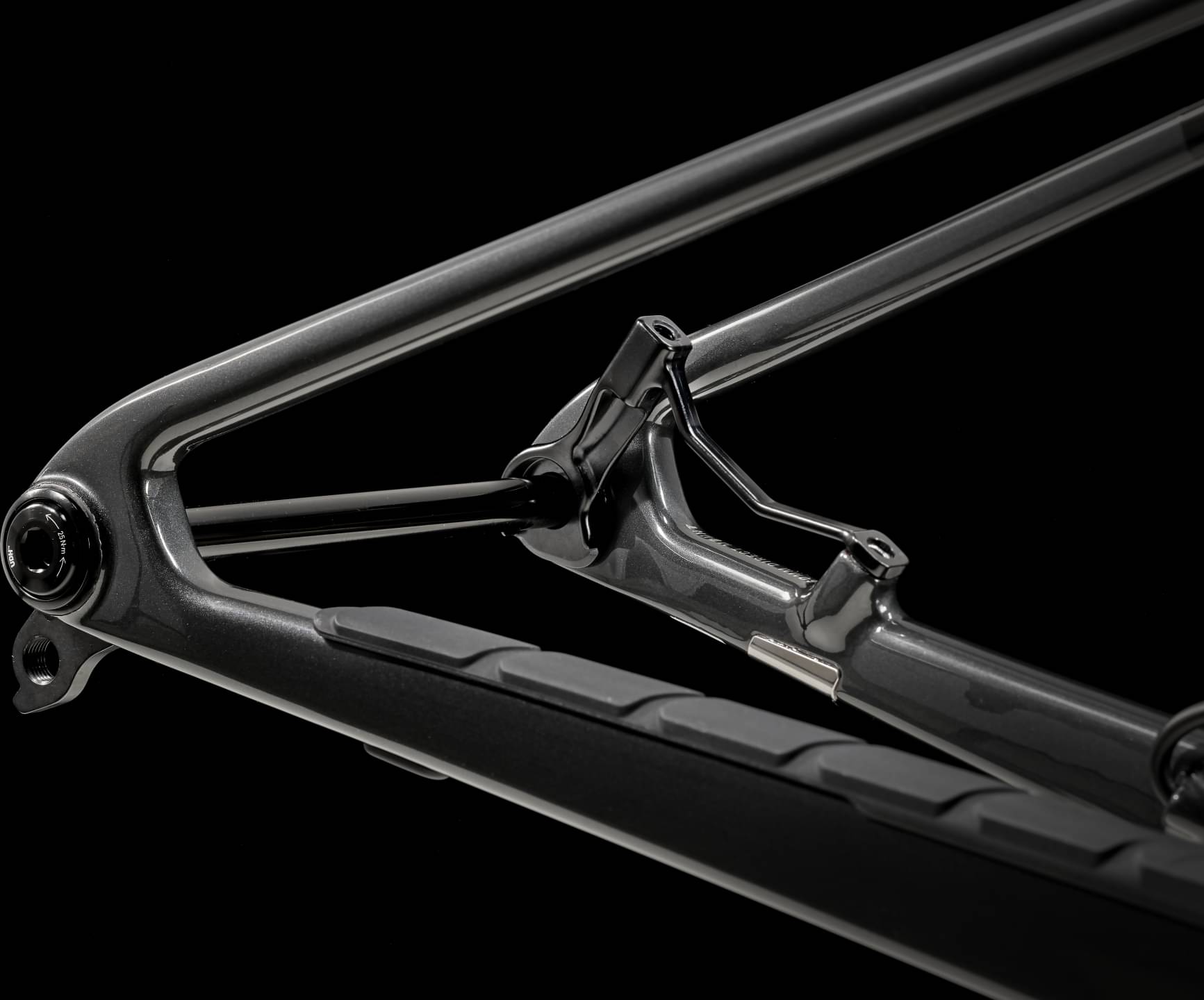

Frame
Frame
SL OCLV Mountain Carbon, IsoStrut, UDH, 80mm travel
Suspension Fork
RockShox Recon Gold RL, DebonAir spring, Motion Control damper, lockout, tapered steerer, 42mm offset, Boost110, 15mm Maxle Stealth, 110mm travel

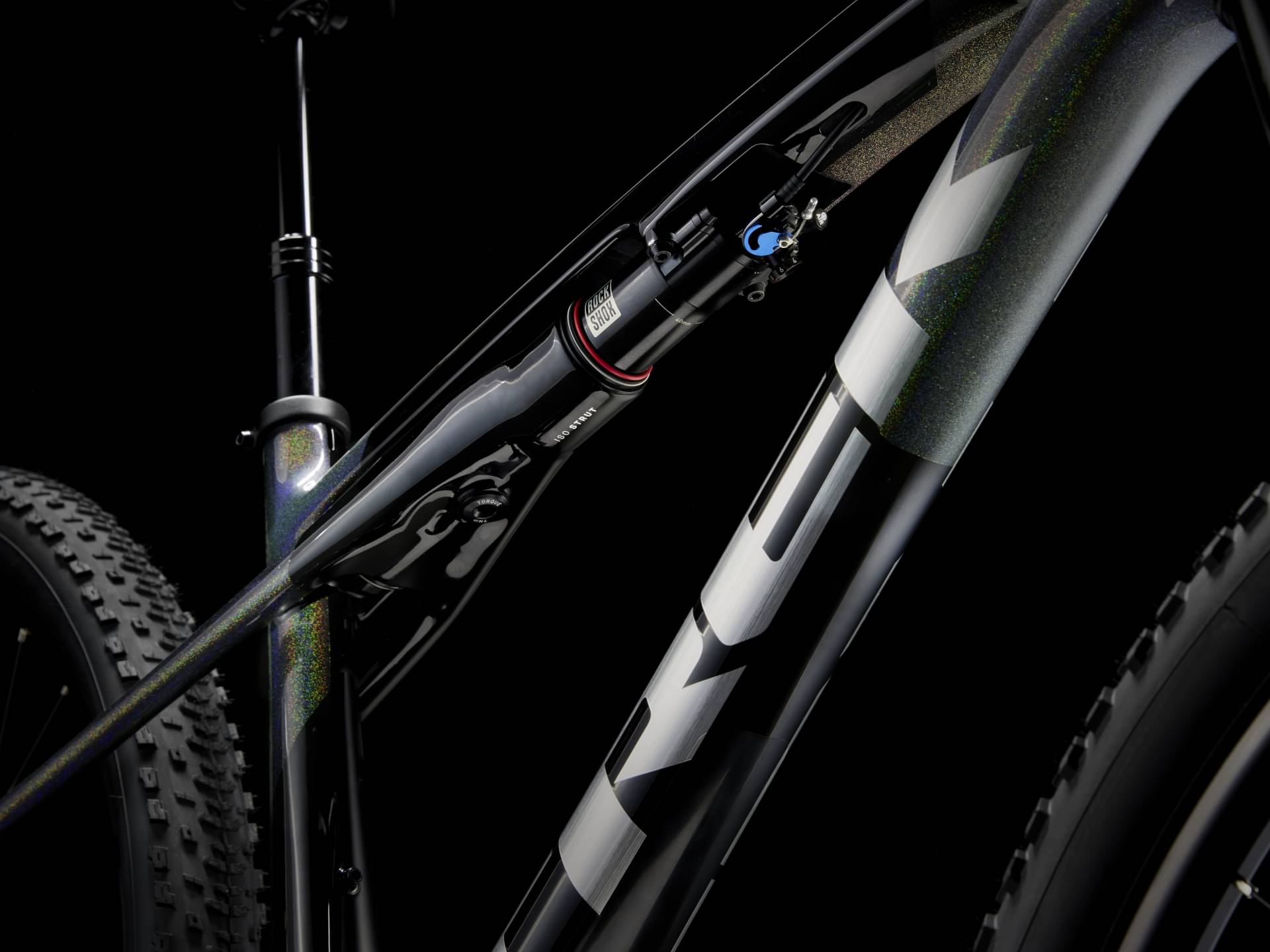

Rear Shock

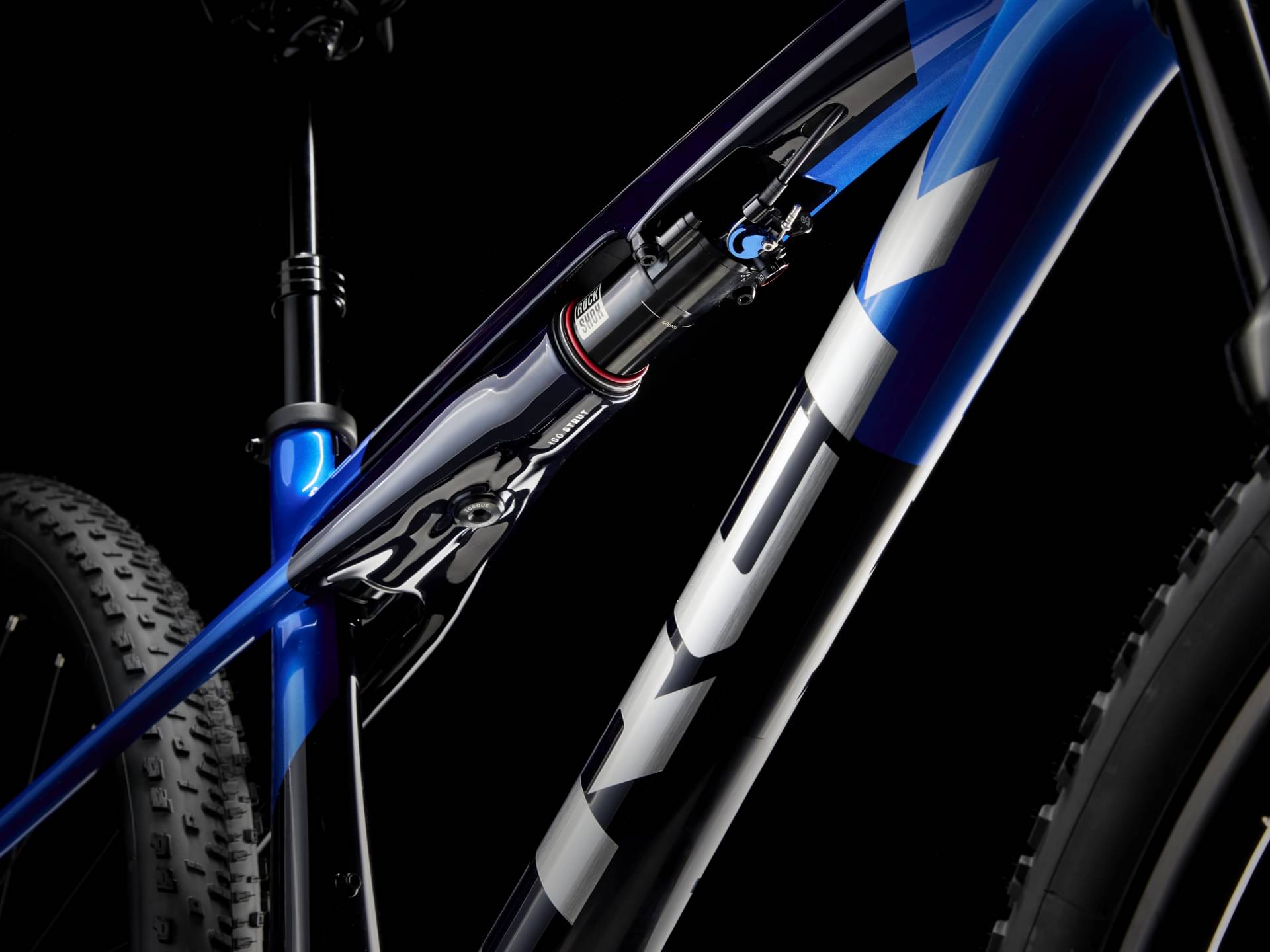

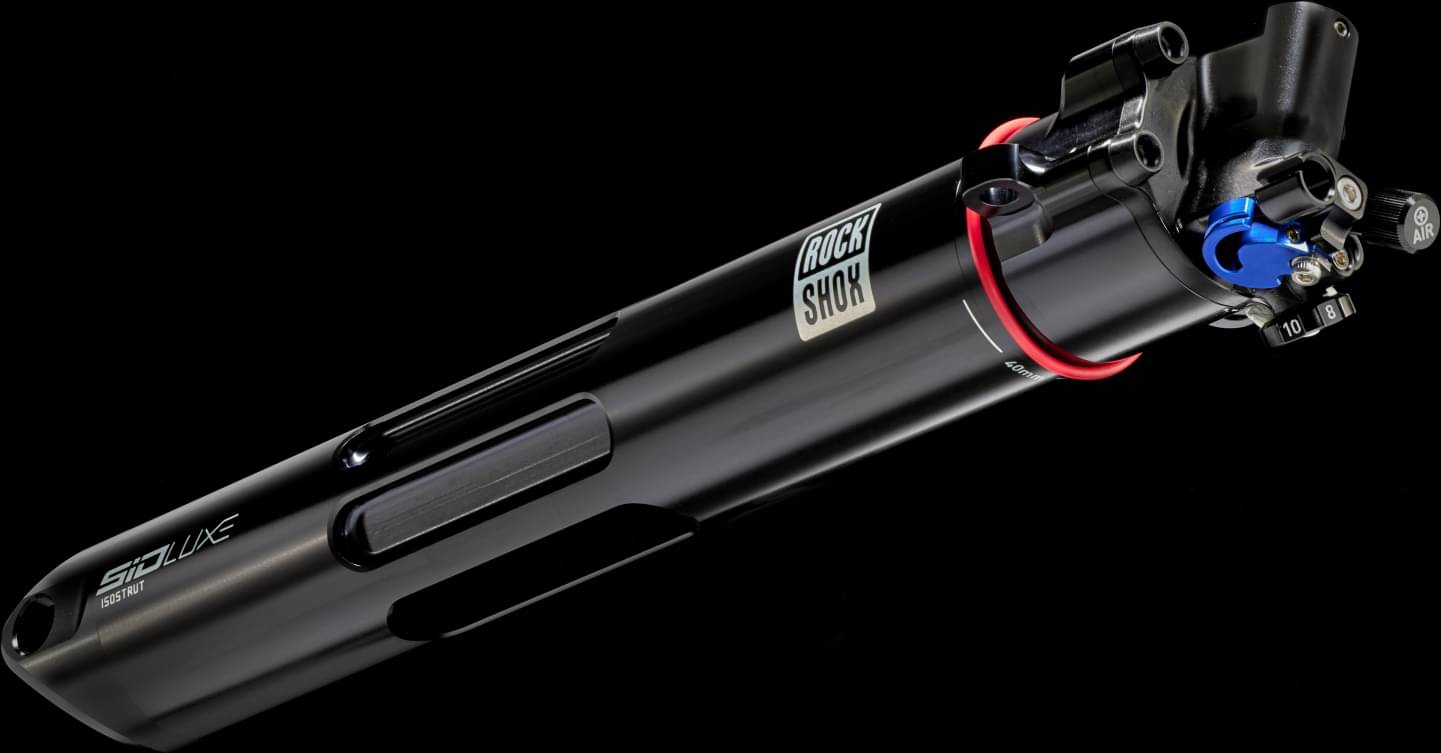

Trek IsoStrut, RockShox SIDLuxe, 2-position remote damper

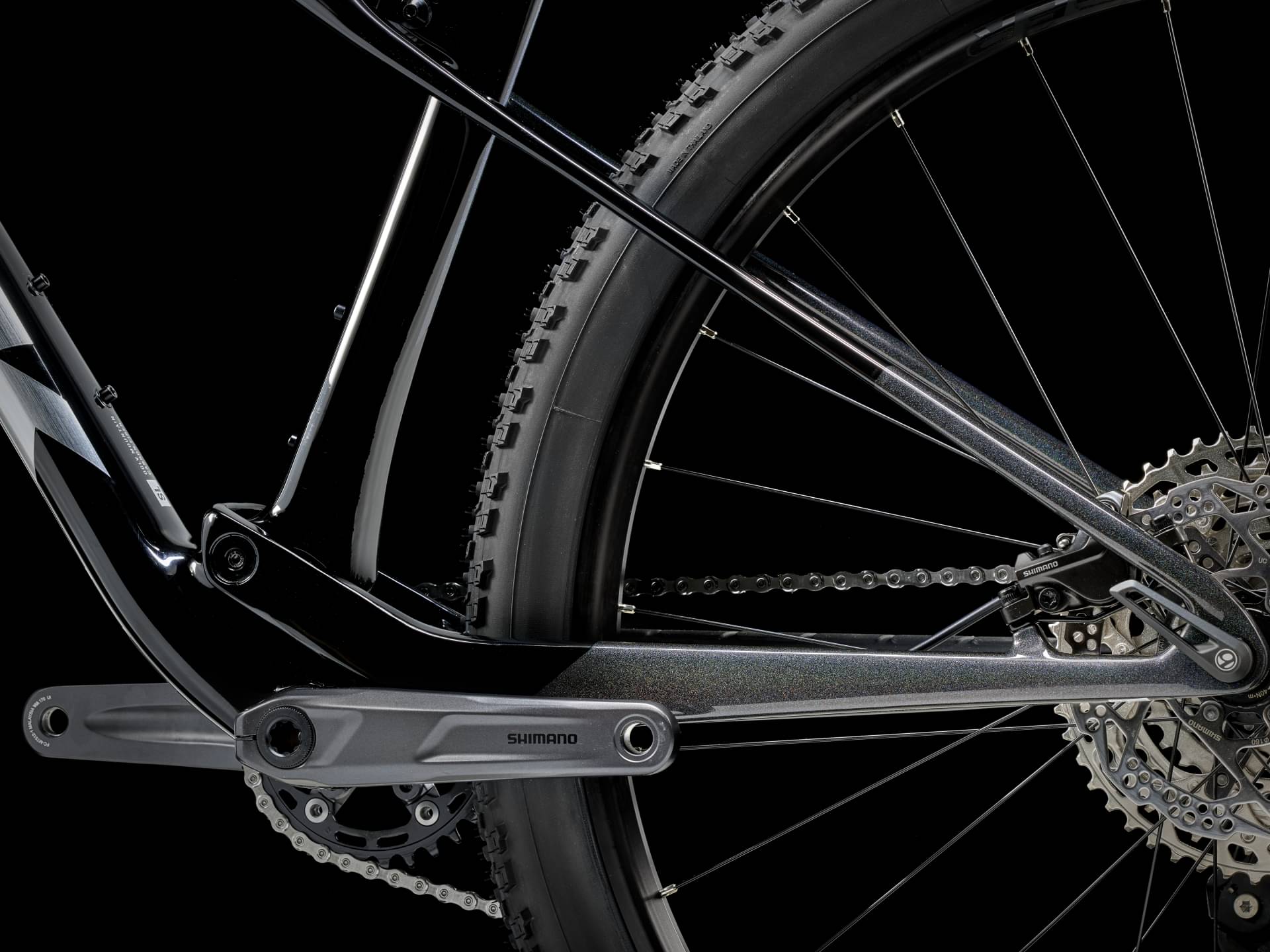

Drivetrain

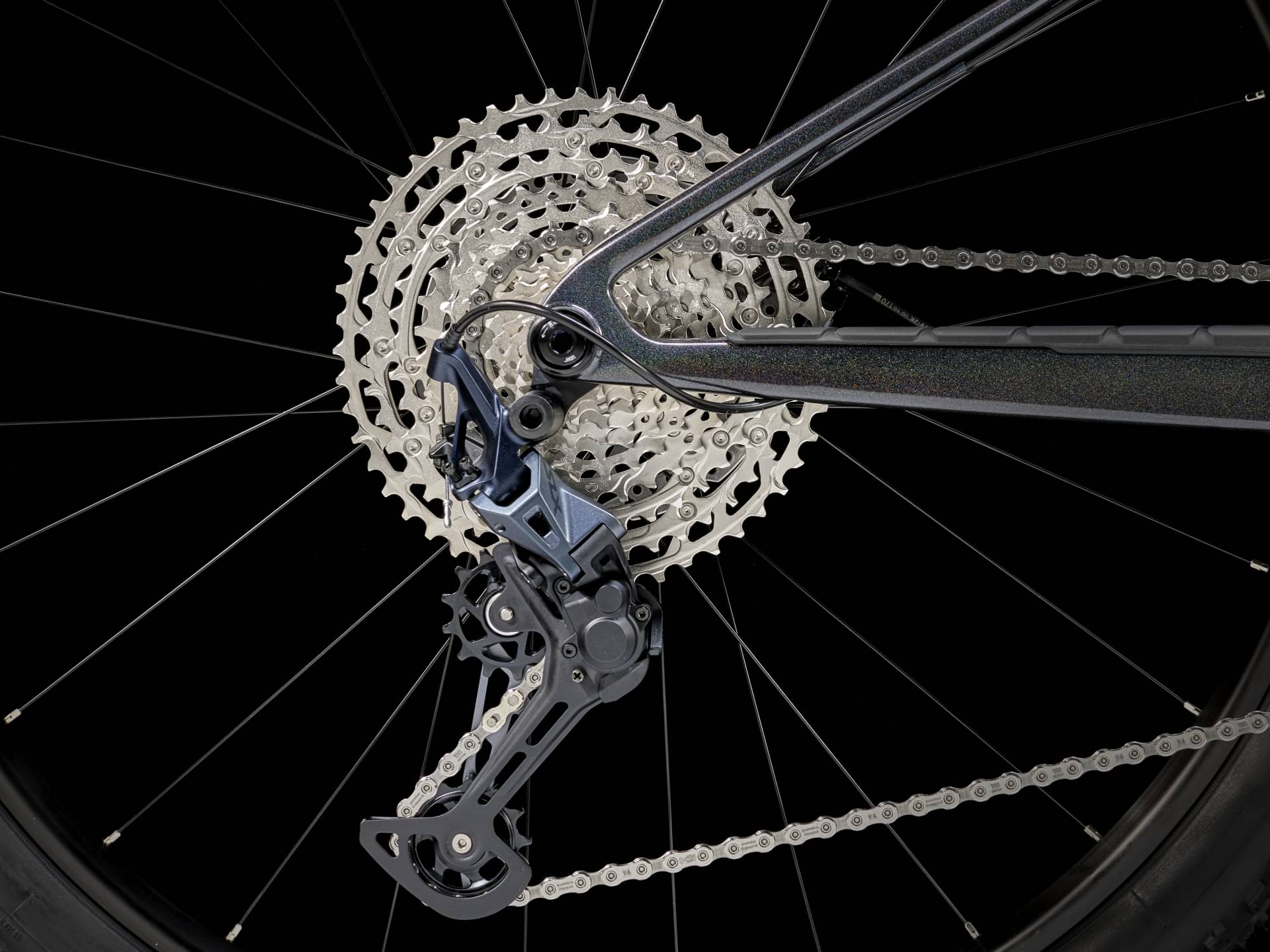

Rear Derailleur

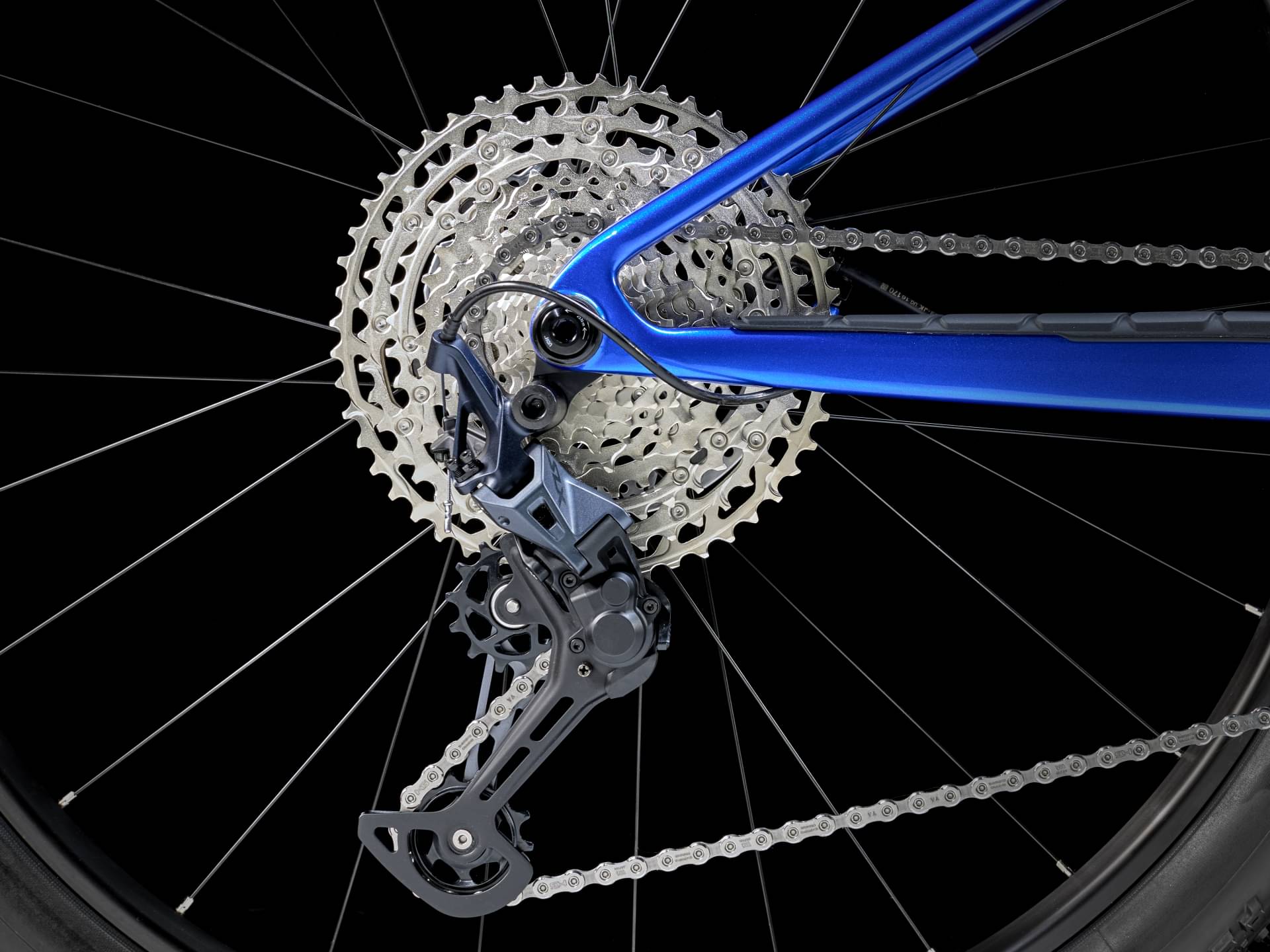

Shimano SLX M7100, long cage
Shift Levers
Shimano Deore M6100, 12 speed
Cassette
Shimano Deore M6100, 10-51, 12 speed

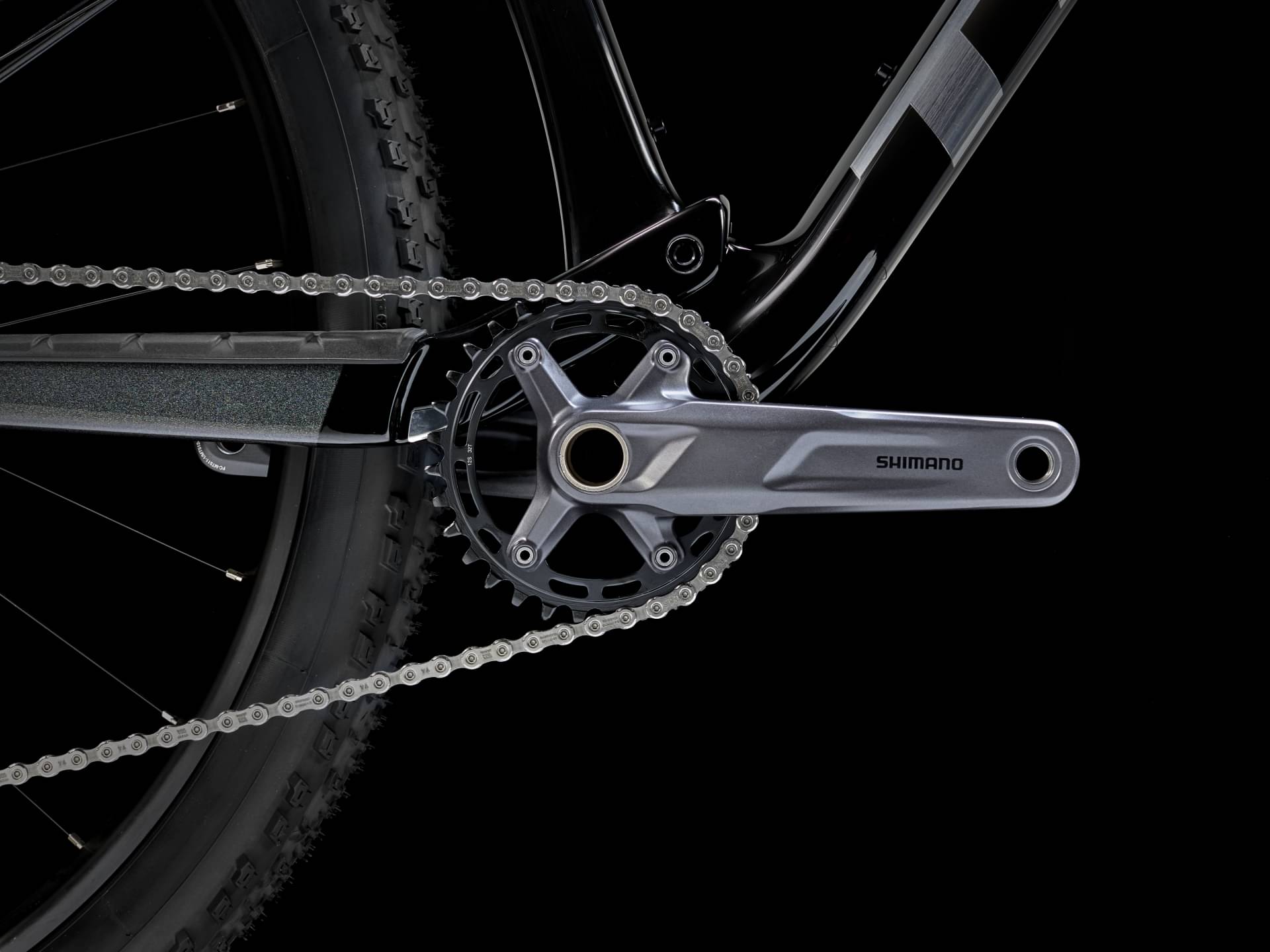

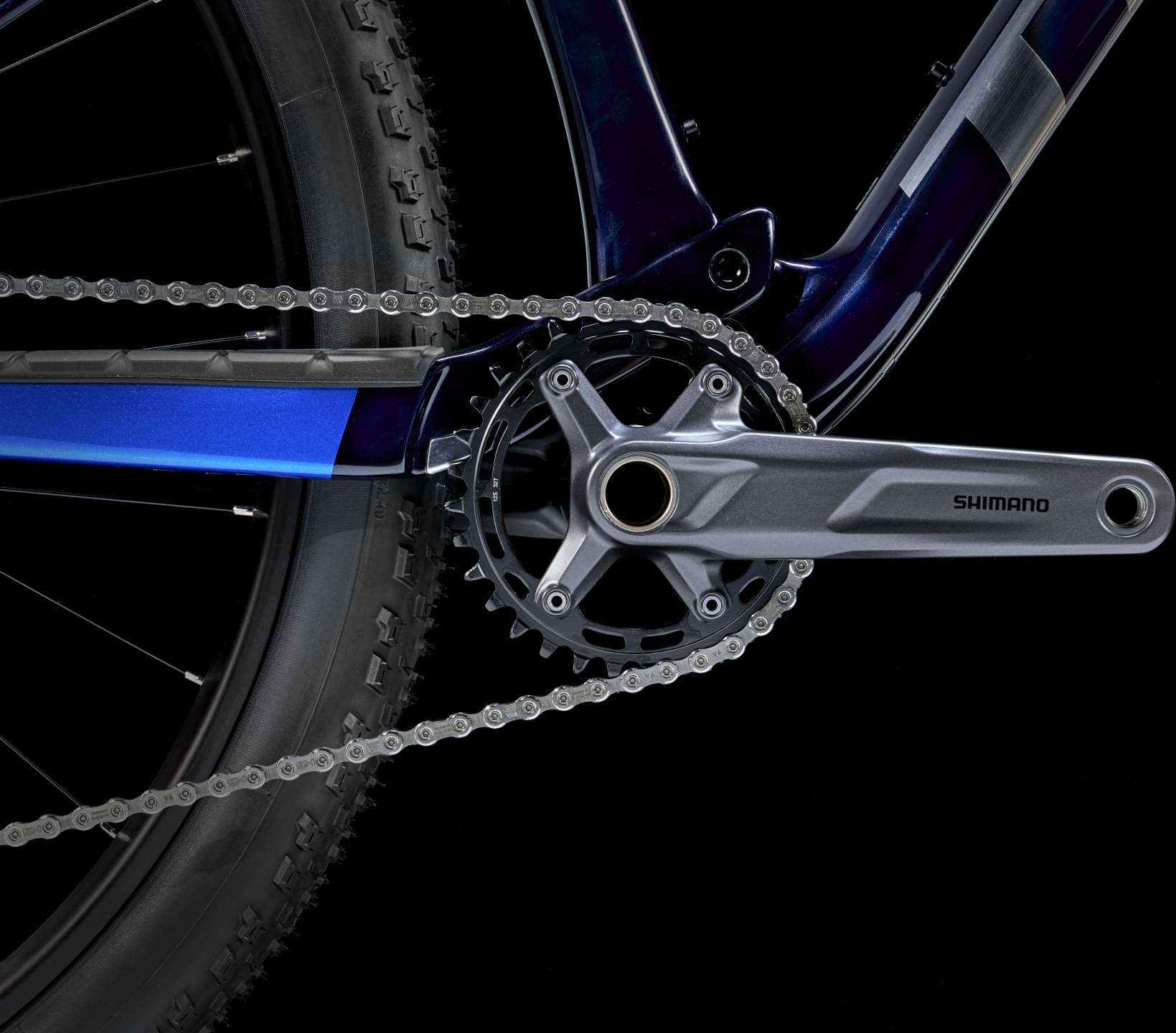

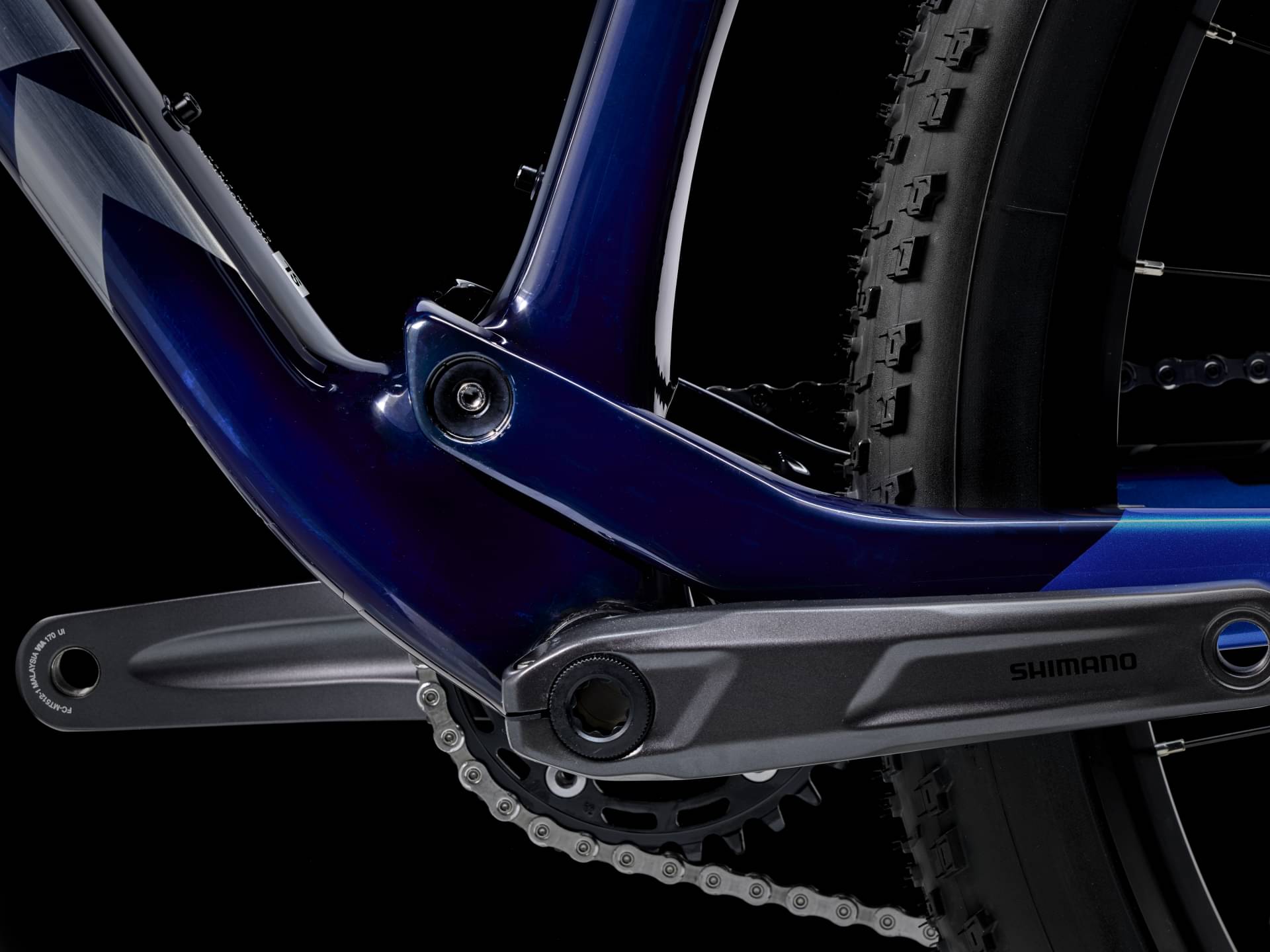

Crank

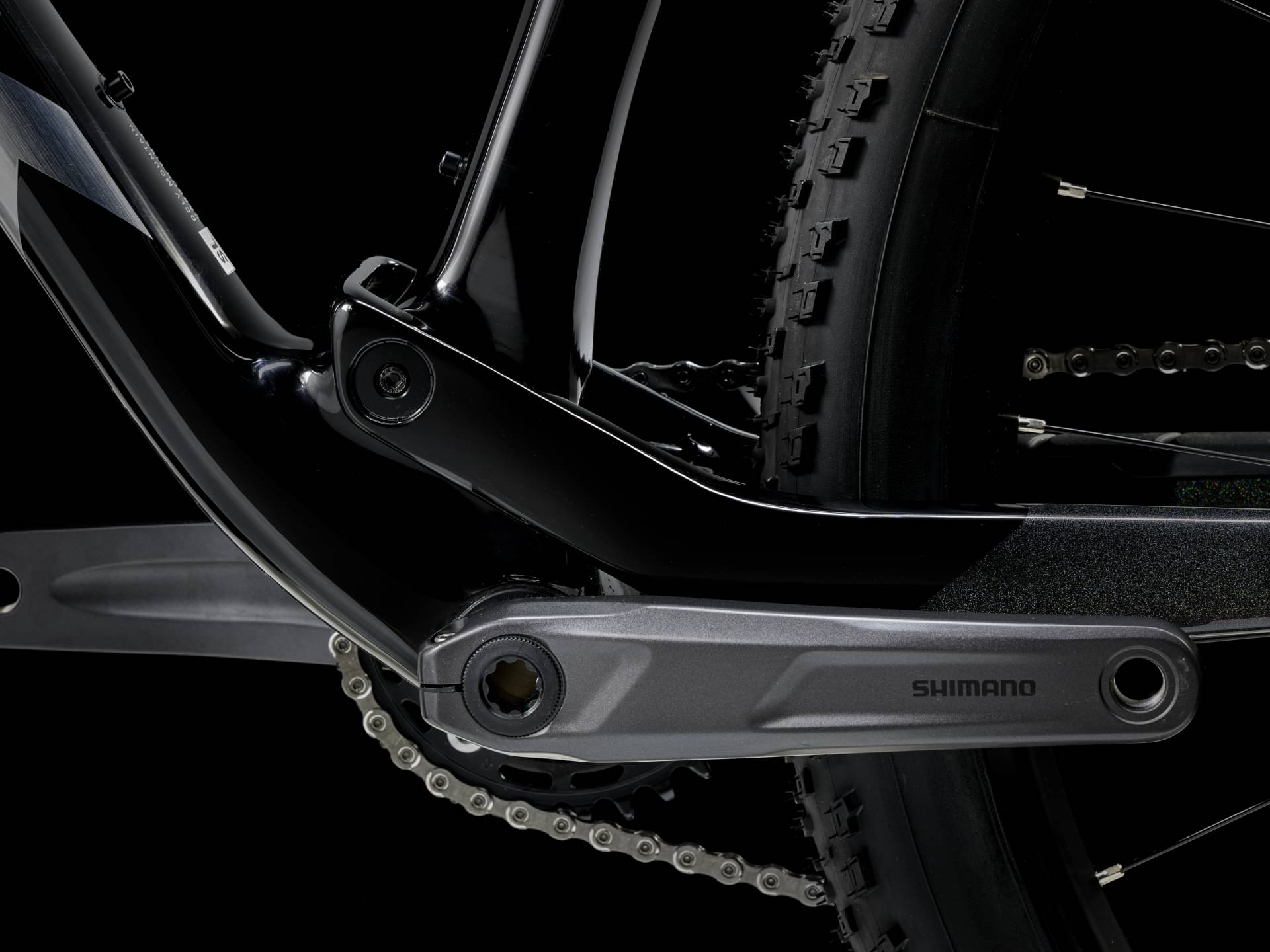

Size: S, M, Shimano MT512, 32T, 55mm chainline, 170mm; Size: M/L, L, XL, Shimano MT512, 32T, 55mm chainline, 175mm
Bottom Bracket
Shimano MT500, 92mm, PressFit
Chain
Shimano Deore M6100, 12 speed
Wheels
Front Hub
Shimano MT400, CenterLock, Boost110, 15 mm thru-axle
Rear Hub
Shimano MT410B, CenterLock, Boost148, 12 mm thru-axle
Rims

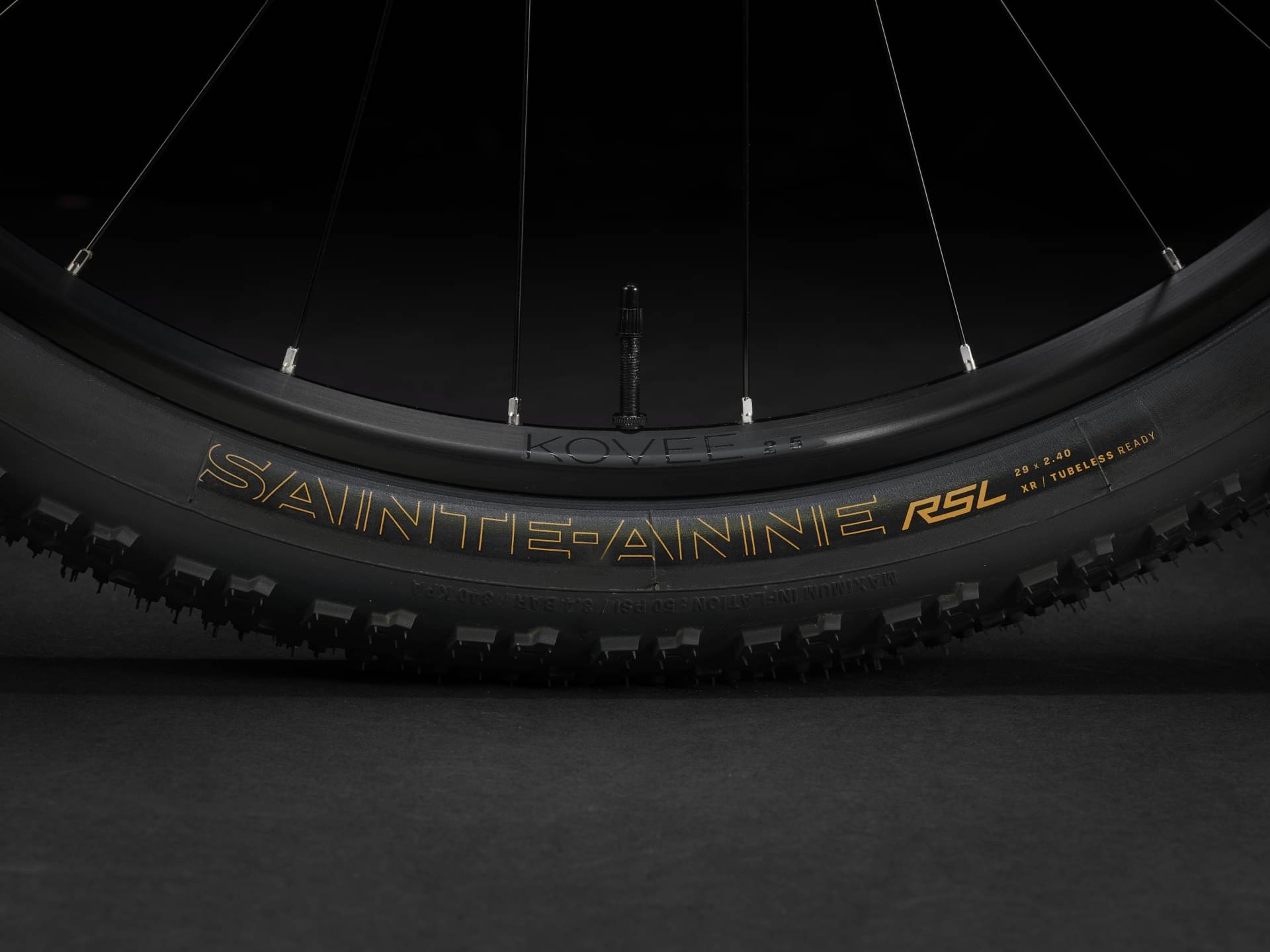

Front: Bontrager Kovee Comp 23, Tubeless Ready, 6-bolt, Boost110, 15mm thru axle, Rear: Bontrager Kovee Comp 23, Tubeless Ready, Shimano Microspline freehub, Rapid Drive 108, Boost148
Brakes
Brakes
Shimano hydraulic disc, MT501 lever, MT500 caliper
Cockpit

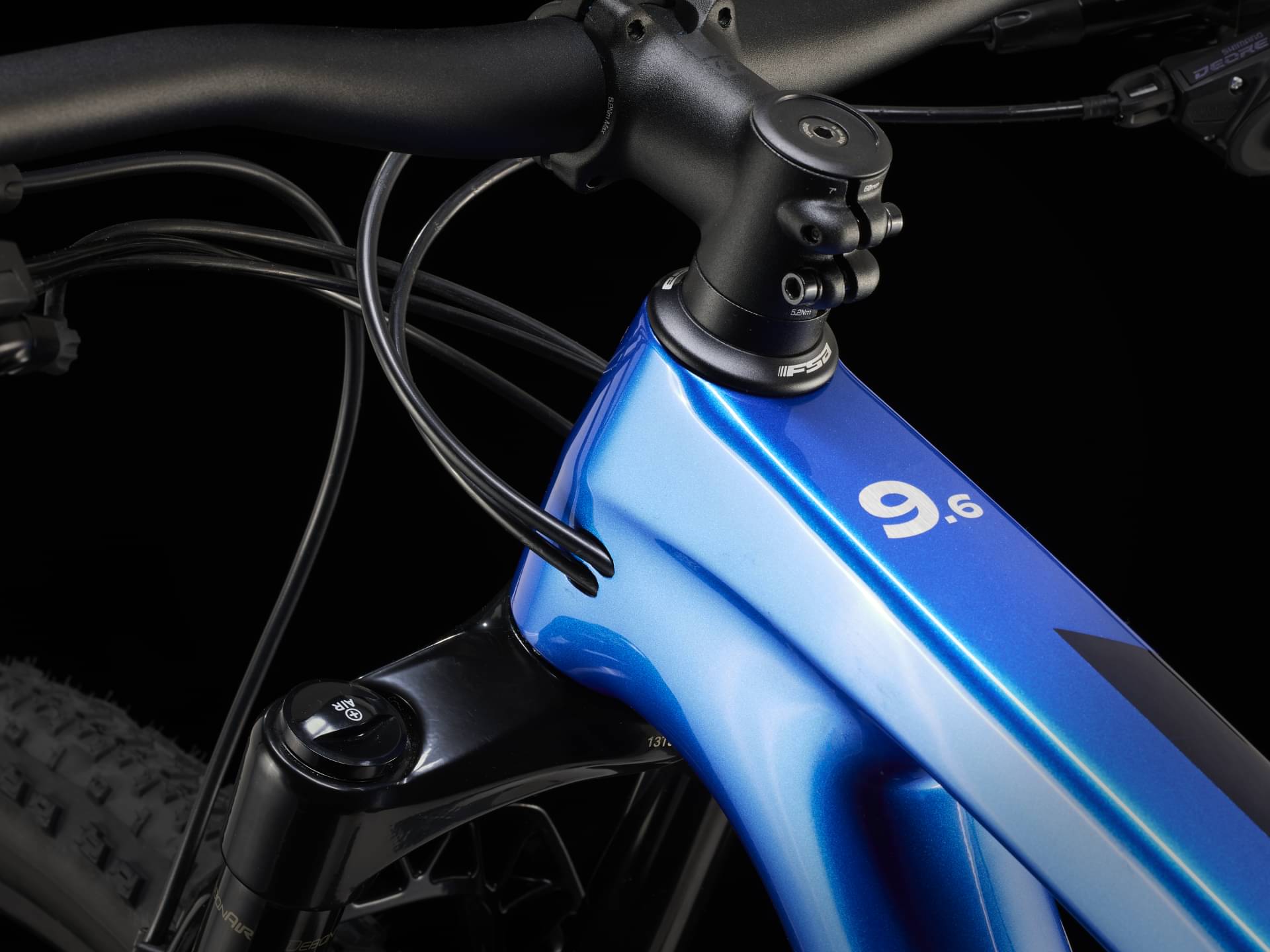

Stem
Size: S, Bontrager alloy, 31.8mm, Blendr compatible, 7 degree, 50mm length; Size: M, M/L, Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 60mm length; Size: L, Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 70mm length; Size: XL, Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 80mm length
Handlebar
Size: S, Bontrager Comp, alloy, 31.8mm, 5mm rise, 720mm width; Size: M, M/L, L, XL, Bontrager Rhythm Comp, alloy, 31.8mm, 15mm rise, 750mm width
Grips
Bontrager XR Trail Comp, nylon lock-on
Headset
FSA IS-2, 1-1/8'' top, 1.5'' bottom
Seat
Saddle
Bontrager Verse Comp, steel rails, 145mm width
Seatpost
Size: S, Bontrager Line Dropper, 100mm travel, MaxFlow, internal routing, 31.6mm, 310mm length; Size: M, M/L, Bontrager Line Dropper, 150mm travel, MaxFlow, internal routing, 31.6mm, 410mm length; Size: L, XL, Bontrager Line Dropper, 170mm travel, MaxFlow, internal routing, 31.6mm, 450mm length
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | MD/LG | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.44 mm | 1.36 mm | 1.31 mm | 1.29 mm | 1.25 mm |
| Bottom Bracket Height | 327 mm | 327 mm | 327 mm | 327 mm | 327 mm |
| Front Center | 682 mm | 707 mm | 722 mm | 741 mm | 786 mm |
| Rake | 42 mm | 42 mm | 42 mm | 42 mm | 42 mm |
| Trail | 109 mm | 109 mm | 109 mm | 109 mm | 109 mm |
| Stack | 585 mm | 585 mm | 585 mm | 594 mm | 617 mm |
| Reach | 405 mm | 430 mm | 445 mm | 460 mm | 495 mm |
| Top Tube Length | 566 mm | 587 mm | 600 mm | 617 mm | 658 mm |
| Seat Tube Angle | 74.5 ° | 74.5 ° | 74.5 ° | 74.5 ° | 74.5 ° |
| Seat Tube Length | 395 mm | 420 mm | 440 mm | 460 mm | 525 mm |
| Head Tube Angle | 67.5 ° | 67.5 ° | 67.5 ° | 67.5 ° | 67.5 ° |
| Head Tube Length | 90 mm | 90 mm | 90 mm | 100 mm | 125 mm |
| Chainstay Length | 430 mm | 430 mm | 430 mm | 430 mm | 430 mm |
| Wheelbase | 1108 mm | 1133 mm | 1148 mm | 1167 mm | 1212 mm |
| Bottom Bracket Drop | 46 mm | 46 mm | 46 mm | 46 mm | 46 mm |
| Standover Height | 755 mm | 767 mm | 767 mm | 767 mm | 767 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
| Rider Min Height | 155 cm | 164 cm | 173 cm | 177 cm | 187 cm |
| Rider Max Height | 166 cm | 176 cm | 180 cm | 189 cm | 195 cm |
About this model
Supercaliber SL 9.6 Gen 2 completes the Trek Supercaliber model. There are 68 bikes that carry this model name. You can get a glimpse at all models from 2024, by clicking on this link.
Model range prices
Trek Supercaliber SL 9.6 Gen 2 2024 is the cheapest bike model and costs 4199$. Trek Supercaliber SLR 9.9 XX AXS Gen 2 2024 is the most expensive one and costs 11699$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Crosscountry bikes
According to our math, the average price for a trustworthy Crosscountry bike is 1905$. However, this doesn’t mean that if you spend less money on a Crosscountry bike, you couldn’t get a decent one. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
At the moment of the release date, Trek Supercaliber SL 9.6 Gen 2 price was 4199$. Doing a quick comparison, we notice that Supercaliber SL 9.6 Gen 2 price is 120.42% more expensive than the average cost of a Crosscountry bike.
Crosscountry bikes average weight
On a deeper look, we notice that the average weight of a Crosscountry bike is 12.31 kg (27.14 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
Trek Supercaliber SL 9.6 Gen 2 it’s weighing 13.1 kg (28.88 lbs). At this weight, is a bit heavier than average. In short, the average Crosscountry bike weight is 6.42% lower than this one.
Overview of components
Fork
This bike has the RockShox Recon Gold RL fork installed. The fork’s travel is 110mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Rear Shock
The shock that’s installed on this bike is Trek IsoStrut, with a travel distance of 80mm. Bike rear shocks are a great way to increase comfort on the bike and give you more control when riding on technical trails. In conclusion, to increase your riding experience, get a bike with a rear shock if possible.
Wheels
When it comes to wheels, the Supercaliber SL 9.6 Gen 2 bike is equipped with the 29″ aluminum model. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, 29″ wheels will make your bike react slower to obstacles you may encounter.
Brakes
For your safety, it is important to have quality breaks on your bike. Trek Supercaliber SL 9.6 Gen 2 has Hydraulic Disc brakes installed. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
Sizes
Supercaliber SL 9.6 Gen 2 comes in 5 sizes, that range from 155 cm – 195 cm (5.09 ft – 6.4 ft). In conclusion, you won’t have a problem finding one that suits you.
Dropper post
Trek Supercaliber SL 9.6 Gen 2 includes a dropper post. Needless to say, a dropper post will come in handy on climbs and descends. You’ll fall in love with it at first sight!
