Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 26" -
Travel Front 100mm -
Fork Manitou
-
Groupset Deore, Bontrager -
Suspension Hardtail -
Drivetrain 3 × 9 -
Brakes Rim
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Gold Series 6061 T6 internally and externally butted aluminum | Genesis Geometry
Suspension Fork
Manitou Axel Platinum Air w/TPC Lock-Out | 100mm travel | Magnesium lowers
Drivetrain
Rear Derailleur
Shimano M-571 LX
Front Derailleur
Shimano M-510 Deore
Shift Levers
Shimano M-511 Deore
Cassette
SRAM PG950 | 11-34 | 9spd
Crank
Bontrager Select 44/32/22
Pedals
Alloy platform
Wheels
Tires
Bontrager Jones XR 26x2.25 / Bontrager Jones XR 26x2.2
Brakes
Brakes
Avid SD3 linear pull w/ Tektro RS360A
Cockpit
Stem
Bontrager Sport | 10d rise
Handlebar
Bontrager Crowbar Sport
Headset
Aheadset | semi-cartridge | sealed
Seat
Saddle
Bontrager Select ATB
Seatpost
Bontrager Sport
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Wheels | 26" | 26" | 26" | 26" | 26" |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
About this model

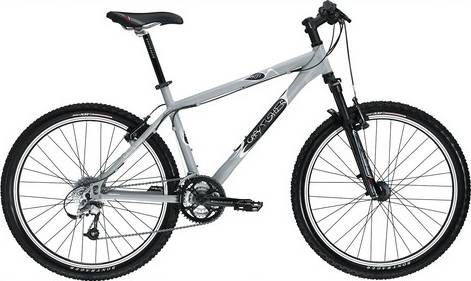

Tassajara completes the Trek Tassajara model. There are 21 bikes that carry this model name. You can easily view all of the Trek Tassajara bikes models from 2006, here.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Crosscountry bikes average price
If you want an acceptable Crosscountry bike you should know that the average price is 1905$. However, even if your budget is less than the average, you might still be able to get a top-quality Crosscountry bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Internal Cable Routing
It’s also important to mention the internal cable routing that this bike has. In short, this will allow you to keep your bike cables in great condition. Say goodbye to hanging cables.
Tassajara components
Fork
The Tassajara comes factory-installed with the Manitou fork. This has a travel range of 100mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Fork material
Tassajara has a magnesium fork, but they are not so popular as steel or carbon forks.
Wheels
When it comes to wheels, the Tassajara bike is equipped with the 26″ model. These wheels give you great handling over your bike. However, they are less forgiving when riding over obstacles such as bumps and roots.
Brakes
For your safety, it is important to have quality breaks on your bike. Trek Tassajara has Rim brakes installed. Slightly lighter than hydraulic brakes, rim brakes are a budget choice. However, they are not nearly as effective as hydraulic brakes are.
Sizes
Tassajara comes in 5 sizes, that range from 156 cm – 195 cm (5.12 ft – 6.4 ft). In conclusion, finding one for you shouldn’t be a problem.
