Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 26" -
Travel Front 100mm -
Fork Manitou
-
Groupset Shimano, Deore -
Suspension Hardtail -
Drivetrain 3 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Gold Series 6061 T6 internally and externally butted aluminum | Genesis Geometry
Suspension Fork
Manitou Axel Elite w/TPC Lock-Out | 100mm travel
Drivetrain
Rear Derailleur
Shimano LX
Front Derailleur
Shimano Deore
Shift Levers
Shimano Deore
Cassette
SRAM PG950 11-34 9spd
Crank
Bontrager Select 44/32/22
Pedals
Shimano M505 clipless
Wheels
Tires
Bontrager Jones XR 26X2.25/2.2 /
Brakes
Brakes
Hayes Sole XC hydraulic disc w/ Alloy
Cockpit
Stem
Bontrager Sport
Handlebar
Bontrager Crowbar Sport
Headset
Aheadset, semi-cartridge, sealed
Seat
Saddle
Bontrager Select
Seatpost
Bontrager Sport , 27.2mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Wheels | 26" | 26" | 26" | 26" | 26" |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
About this model

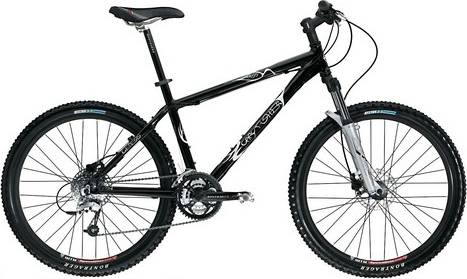

Tassajara Disc belongs to the Trek Tassajara model. Trek launched 21 bikes of this model so far. Check out the entire range from 2005 of this model, by clicking this link.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Crosscountry bikes
If you want to purchase a solid Crosscountry bike, it is important to know that the average cost is 1905$. However, even if your budget is less than the average, you might still be able to get a top-quality Crosscountry bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
Overview of components
Fork
This bike has the Manitou fork installed. The fork’s travel is 100mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels size
The Tassajara Disc 2005 bike is equipped with 26″ wheels when leaving the factory. These wheels give you great handling over your bike. However, you will need increased suspension than in the case of 29″ wheels.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
Sizes
There are 5 sizes available for this model. Rider height can be anywhere between 156 cm – 195 cm (5.12 ft – 6.4 ft). In short, it won’t be difficult to find the right one for you.
