Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 26" -
Travel Front 100mm -
Fork Manitou
-
Groupset Deore, Bontrager -
Suspension Hardtail -
Drivetrain 3 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Gold Series 6061 T6 internally and externally butted aluminum | Genesis Geometry
Suspension Fork
Manitou Axel Platinum Air w/TPC Lock-Out | 100mm travel | Magnesium lowers
Drivetrain
Rear Derailleur
Shimano M-571 LX
Front Derailleur
Shimano M-510 Deore
Shift Levers
Shimano M-511 Deore
Cassette
SRAM PG950 | 11-34 | 9spd
Crank
Bontrager Select 44/32/22
Pedals
Shimano M505 ATB clipless
Wheels
Tires
Bontrager Jones XR 26x2.25 / Bontrager Jones XR 26x2.2
Brakes
Brakes
Hayes Sole XC hydraulic disc | 6" rotor w/ Hayes Sole XC hydraulic disc | Short reach lever
Cockpit
Stem
Bontrager Sport | 10d rise
Handlebar
Bontrager Crowbar Sport
Headset
Aheadset | semi-cartridge | sealed
Seat
Saddle
Bontrager Select FIT
Seatpost
Bontrager Sport
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Wheels | 26" | 26" | 26" |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
About this model

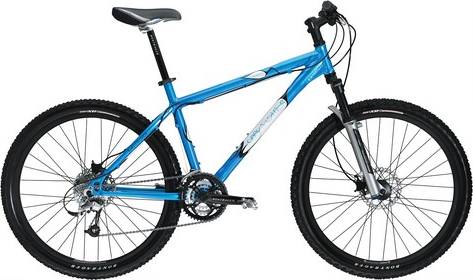

Tassajara Disc GS completes the Trek Tassajara model. Trek released 21 bikes variations of this model so far. You can easily view all of the Trek Tassajara bikes models from 2006, here.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Crosscountry bikes
Our math shows that the average cost of a dependable Crosscountry bike is 1905$. However, this doesn’t mean that if you spend less money on a Crosscountry bike, you couldn’t get a decent one. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
Overview of components
Fork
This bike has the Manitou fork installed. The fork’s travel is 100mm. Bike forks are great for shock absorption and provide you with a smooth ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Fork material
The fork on this bike is made out of magnesium, so, it’s a bit lighter than steel. However, it is not so resistant as a fork steel is.
Wheels size
As for the wheels, Trek Tassajara Disc GS 2006, has a 26″ model. The 26″ wheels are lighter than the 27.5 or 29″ wheels. However, they provide less traction than 29″ wheels do.
Brakes
Nothing is more important on a bike than its ability to brake properly. Trek Tassajara Disc GS is equipped with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
Sizes
Tassajara Disc GS comes in 3 sizes, that range from 158 cm – 187 cm (5.18 ft – 6.14 ft). In conclusion, you won’t have a problem finding one that suits you.
