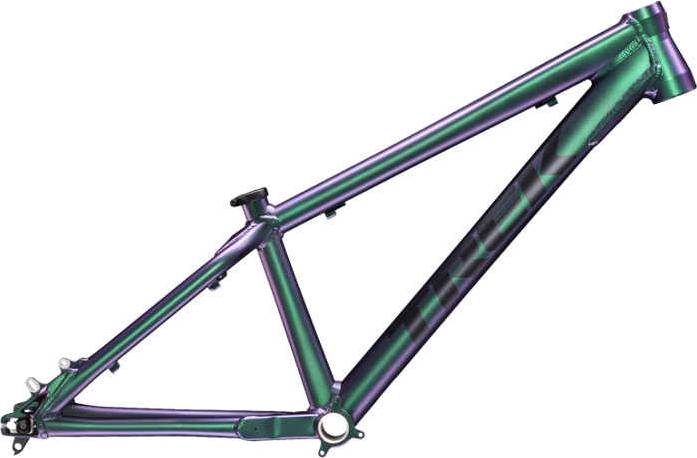

Trek Ticket DJ Frameset 2020
2020 Mountain
Estimate price |
799$
Weight | 2.7 kg
Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Frame Aluminum -
Wheels 26" -
Suspension Rigid
Sizing
Recommended size guide.
LG
175cm - 186cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Alpha Platinum Aluminum, tapered head tube, 73mm threaded BB, ISCG 05, horizontal sliding dropout for geared or singlespeed, 142x12mm thru axle
Drivetrain
Bottom Bracket
BSA, 73mm, threaded
Cockpit
Headset
FSA Orbit, semi-cartridge bearing, 1-1/8'' top, 1.5'' bottom
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | LG |
|---|---|
| Stack Reach Ratio | 1.31 mm |
| Bottom Bracket Height | 320 mm |
| Front Center | 650 |
| Rake | 40 mm |
| Trail | 78 mm |
| Stack | 541 mm |
| Reach | 412 mm |
| Top Tube Length | 599 mm |
| Seat Tube Angle | 71 ° |
| Seat Tube Length | 330 mm |
| Head Tube Angle | 70 ° |
| Head Tube Length | 120 mm |
| Chainstay Length | 398 mm |
| Wheelbase | 1048 mm |
| Bottom Bracket Drop | 10 mm |
| Standover Height | 689 mm |
| Wheels | 26" |
| Rider Min Height | 175 cm |
| Rider Max Height | 186 cm |
Model Overview
Ticket DJ Frameset belongs to the Trek Ticket model. Trek launched 42 frames of this model so far. You can get a glimpse at all models from 2020, by clicking on this link.
Model range prices
Trek Ticket DJ Frameset 2020 is the most economical model, with a starting price of 799$. Trek Ticket S Frameset 2020 on the other hand costs 1599$, and is the most expensive model.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Dirt Jump frames average price
Our math shows that the average cost of a dependable Dirt Jump frame is 491$. However, this doesn’t mean that if you spend less money on a Dirt Jump frame, you couldn’t get a decent one. To make sure you don’t pay a higher amount than normal for your frame, always do some components analysis and read reviews.
At the moment of the release date, Trek Ticket DJ Frameset price was 799$. If we compare this with the average Dirt Jump frame cost we notice that the price is 62.73% higher.
Average weight for Dirt Jump frames
Dirt Jump frames weigh an average of 2.58 kg (5.69 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
slightly heavier than average, Ticket DJ Frameset has a weight of 2.7 kg (5.95 lbs). In conclusion, the average Dirt Jump frame weighs 4.65% less than Ticket DJ Frameset.
Ticket DJ Frameset components
Sizes
Trek Ticket DJ Frameset 2020 is available in one size only. In conclusion, make sure it fits you, or look for another model.
