Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 29" / 26" -
Travel Front 90mm -
Travel Rear 90mm -
Groupset X0, Deore -
Suspension Full -
Drivetrain 3 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
15.5"
153cm - 167cm
17.5"
170cm - 184cm
19.5"
176cm - 189cm
21.5"
186cm - 196cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Alpha Red Aluminum w/hydroformed top tube, bi-axial down tube, R1 Race Tuned Suspension, pivotless rear swingarm, Hi/Lo chainstays, oversized sealed bearings, 90mm rear wheel travel
Drivetrain
Rear Derailleur
SRAM X-0
Front Derailleur
Shimano Deore LX
Shift Levers
SRAM X-7, 9 speed
Cassette
SRAM PG970 11-34, 9 speed
Crank
Shimano Deore LX 44/32/22
Pedals
n/a
Wheels
Rims
Bontrager Race; 29" front, 26" rear
Tires
Bontrager Jones XR, 29x2.25" front, 26x2.2" rear; 120tpi, folding
Brakes
Brakes
Avid Juicy 5, hydraulic disc; 160mm rotors
Cockpit
Stem
Bontrager Race, 7 degree, 31.8mm
Handlebar
Bontrager Race, 40mm rise, 31.8mm
Headset
Cane Creek ZS-2 w/cartridge bearings, sealed
Seat
Saddle
Bontrager Race
Seatpost
Bontrager Race Lite
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 15.5" | 17.5" | 19.5" | 21.5" |
|---|---|---|---|---|
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 153 cm | 170 cm | 176 cm | 186 cm |
| Rider Max Height | 167 cm | 184 cm | 189 cm | 196 cm |
Model Overview

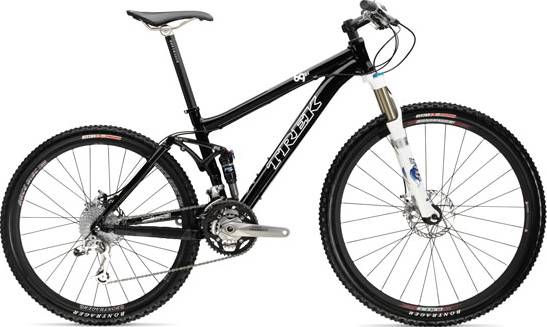

Top Fuel 69er is part of the Trek Top Fuel model. Trek released 123 bikes variations of this model so far. You can get a glimpse at all models from 2008, by clicking on this link.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Crosscountry bikes average price
If you want an acceptable Crosscountry bike you should know that the average price is 1905$. However, you could also get a good Crosscountry bike even if you pay a lower amount than the average price. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Top Fuel 69er components
Rear Shock
Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. In short, a full-suspension bike will give you the smoothest ride possible.
Wheels size
The wheels on Top Fuel 69er are the 29″ aluminum type. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, these wheels are not ideal for smaller people.
Brakes
For your safety, it is important to have quality breaks on your bike. Trek Top Fuel 69er has Hydraulic Disc brakes installed. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
Sizes
Top Fuel 69er comes in 4 sizes, that range from 153 cm – 196 cm (5.02 ft – 6.43 ft). In conclusion, you won’t have a problem finding one that suits you.
