Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 26" -
Travel Front 90mm -
Travel Rear 90mm -
Groupset XT, Deore -
Suspension Full -
Drivetrain 3 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
15.5"
153cm - 167cm
17.5"
170cm - 184cm
19.5"
176cm - 189cm
21.5"
186cm - 196cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
ZR 9000 Alloy main frame; ZR 9000 swingarm w/90mm travel
Drivetrain
Rear Derailleur
Shimano Deore XT
Front Derailleur
Shimano Deore
Shift Levers
Shimano Deore, 9 speed
Cassette
SRAM PG-950 11-34, 9 speed
Crank
Shimano Deore 44/32/22
Pedals
Shimano 505, clipless
Wheels
Rims
Bontrager Select
Tires
Bontrager Jones ACX, 26x2.1", 60 tpi, folding
Brakes
Brakes
Avid Juicy 3, hydraulic disc, 6" rotors
Cockpit
Stem
Bontrager Select, 7 degree, 31.8mm
Handlebar
Bontrager Race, 0mm rise, 31.8mm
Headset
Aheadset Slimstak w/semi-cartridge bearings, sealed
Seat
Saddle
Bontrager Race Basic
Seatpost
Bontrager Select
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 15.5" | 17.5" | 19.5" | 21.5" |
|---|---|---|---|---|
| Wheels | 26" | 26" | 26" | 26" |
| Rider Min Height | 153 cm | 170 cm | 176 cm | 186 cm |
| Rider Max Height | 167 cm | 184 cm | 189 cm | 196 cm |

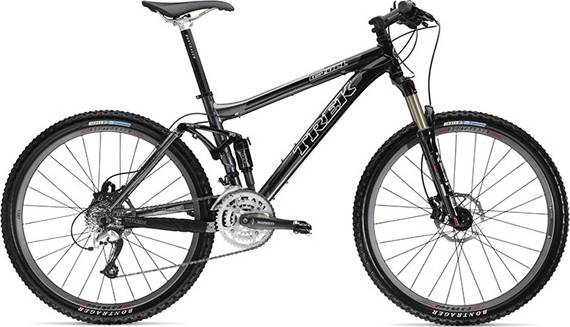

Model Overview
Top Fuel 7 is part of the Trek Top Fuel model. Trek released 123 bikes variations of this model so far. You can get a glimpse at all models from 2007, by clicking on this link.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Crosscountry bikes average price
According to our calculations, the average cost of a Crosscountry bike that is reliable is 1905$. However, even if your budget is less than the average, you might still be able to get a top-quality Crosscountry bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Top Fuel 7 components
Rear Shock
Bike rear shocks increase the riding comfort, and also give you more control over technical trails. In conclusion, to increase your riding experience, get a bike with a rear shock if possible.
Wheels size
When leaving the production line, the Top Fuel 7 model has 26″ aluminum wheels. These wheels give you great handling over your bike. However, they are less forgiving when riding over obstacles such as bumps and roots.
Brakes
When you want to stop the bike in time, the brakes are vital. The Top Fuel 7 has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
Sizes
Trek Top Fuel 7 bike has 4 sizes, in the range of 153 cm – 196 cm (5.02 ft – 6.43 ft). In conclusion, it won’t take much to find one that’s right for you.
