Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 27.5" / 29" -
Travel Front 100mm -
Travel Rear 100mm -
Groupset XT, Deore -
Suspension Full -
Drivetrain 2 × 10 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Alpha Platinum Aluminum, ABP, Full Floater, EVO link, E2 tapered head tube, Mino Link, MicroTruss, internal derailleur and dropper post routing, down tube guard, PF92, ISCG 05, Boost148 & G2 Geometry on 29ers, 100mm travel
Drivetrain
Rear Derailleur
Shimano Deore XT, Shadow Plus
Front Derailleur
Shimano Deore, low direct mount
Shift Levers
Shimano SLX, 10 speed
Cassette
Shimano HG50, 11-36, 10 speed
Crank
Shimano M627, 36/22
Bottom Bracket
BB86/BB92, press-fit
Wheels
Rims
Bontrager Mustang Elite Tubeless Ready, 15mm front, 12mm rear (Boost110 & Boost148 on 29ers)
Tires
Bontrager XR1 Expert, Tubeless Ready, aramid bead, 29x2.20" (Bontrager XR2 Expert, Tubeless Ready, aramid bead, 27.5x2.20")
Brakes
Brakes
Shimano Deore hydraulic disc
Cockpit
Stem
Bontrager Elite, 31.8mm, 7 degree, Blendr compatible
Handlebar
Bontrager Race Lite, 31.8mm, 5mm rise
Headset
FSA IS-2 carbon, E2, sealed alloy cartridge
Seat
Saddle
Bontrager Evoke 2, chromoly rails
Seatpost
Bontrager Rhythm Elite, 2-bolt head, 31.6mm, zero offset
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 15.5" | 18.5" | 19.5" | 21.5" |
|---|---|---|---|---|
| Wheels | 27" | 27" | 27" | 29" |
About this model

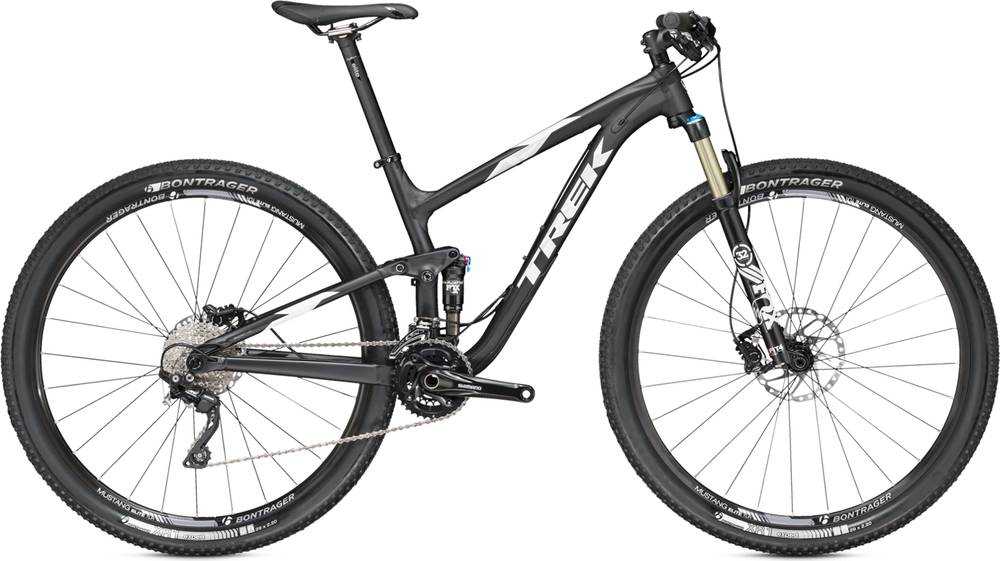

Top Fuel 8 is a Trek Top Fuel model. Trek released 123 bikes variations of this model so far. You can get a glimpse at all models from 2016, by clicking on this link.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Crosscountry bikes average price
Our math shows that the average cost of a dependable Crosscountry bike is 1905$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Crosscountry bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
Overview of components
Rear Shock
Bike rear shocks are a great way to increase comfort on the bike and give you more control when riding on technical trails. In conclusion, to increase your riding experience, get a bike with a rear shock if possible.
Wheels size
The Top Fuel 8 2016 bike is equipped with 27.5″ aluminum wheels when leaving the factory. 27.5″ wheels are a mixture between 29″ wheels and 26″ wheels. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
Nothing is more important on a bike than its ability to brake properly. Trek Top Fuel 8 is equipped with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
