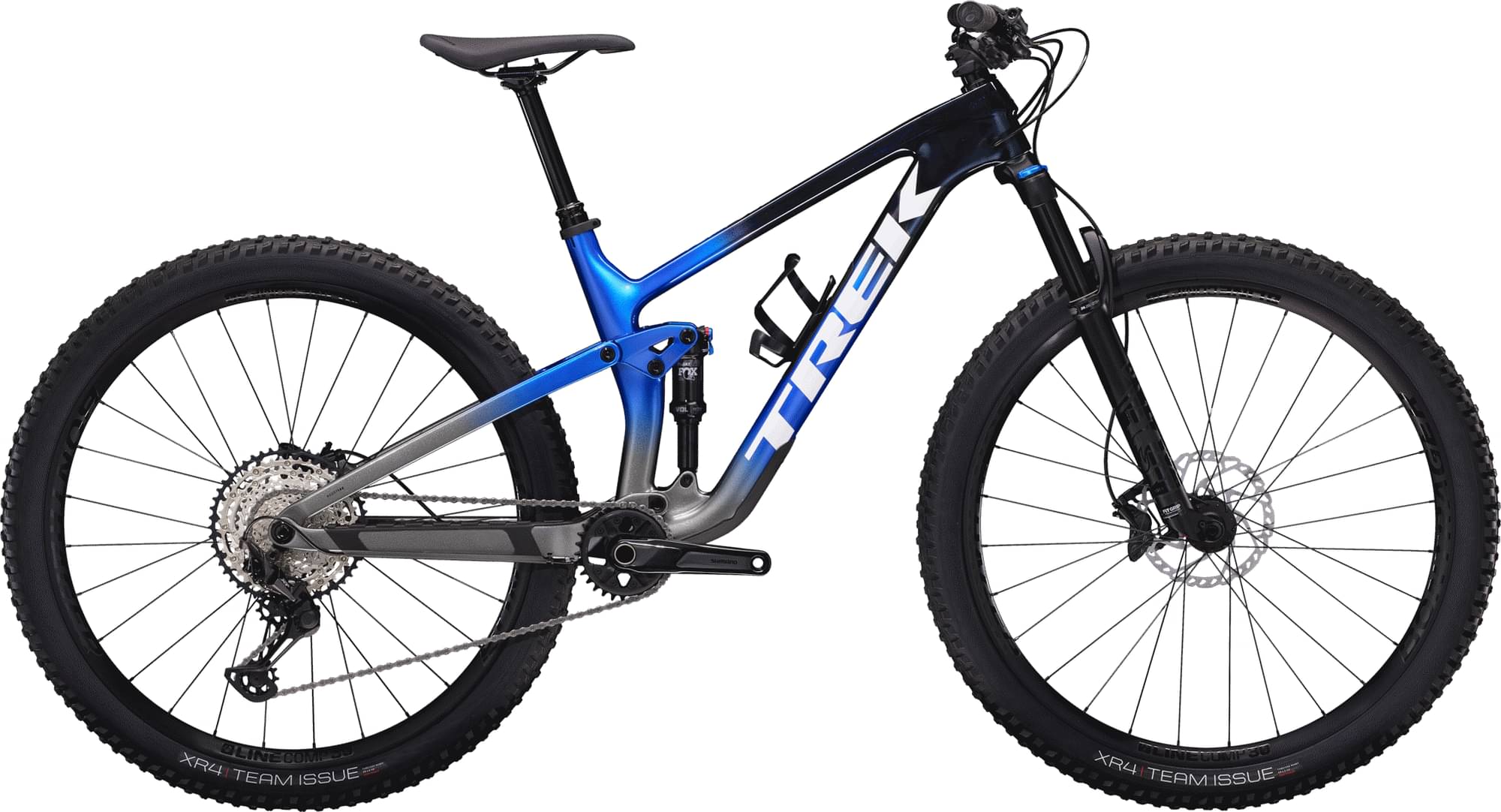

Trek Top Fuel 9.7 SLX/XT 2022
2022 Mountain
Estimate price |
4,499$
Weight | 13.14 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 27.5" -
Travel Front 120mm -
Travel Rear 120mm -
Fork Fox Rhythm Float 34
-
Groupset XT, Deore -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
carbon frame
Suspension Fork
Fox Rhythm 34, Float EVOL air spring, GRIP damper, tapered steerer, 44mm offset, Boost110, 15mm Kabolt axle, 120mm travel
Rear Shock
Fox Performance Float DPS, 3-position damper, 185mm x 50mm
Drivetrain
Rear Derailleur
Shimano XT M8100, long cage
Shift Levers
Shimano XT M8100, 12 speed
Cassette
Shimano SLX M7100, 10-51, 12 speed
Crank
Size: XS, S, M, M/L, L, Shimano Deore M6120, 30T ring, 55mm chainline, 170mm length; Size: XL, Shimano Deore M6120, 30T ring, 55mm chainline, 175mm length
Bottom Bracket
Shimano SM-BB52, 73mm, threaded external bearing
Chain
Shimano SLX M7100, 12 speed
Wheels
Rims
Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15mm thru axle
Tires
Bontrager XR4 Team Issue, Tubeless Ready, Inner Strength sidewalls, aramid bead, 120tpi, 29.x2.40''
Brakes
Brakes
Shimano 4-piston hydraulic disc, M6100 lever, M6120 caliper
Disk Rotors
Size: XS, S, M, M/L, L, XL, Shimano RT66, 6-bolt, 160mm; Size: XS, S, M, M/L, L, XL, Shimano RT66, 6-bolt, 180mm
Cockpit
Stem
Bontrager Elite, 35mm, 0 degree, 45mm length
Handlebar
Size: XS, S, Bontrager Line, alloy, 35mm, 27.5mm rise, 750mm width; Size: M, M/L, L, XL, Bontrager Line, alloy, 35mm, 27.5mm rise, 780mm width
Grips
Bontrager XR Trail Comp, nylon lock-on
Headset
Knock Block 2.0 Integrated, 72-degree radius (includes infinite-radius chip), sealed cartridge bearing, 1-1/8'' top, 1.5'' bottom
Seat
Saddle
Bontrager Arvada, steel rails, 138mm width
Seatpost
Size: XS, S, TranzX JD-YSP39, 100mm travel, internal routing, 34.9mm; Size: M, M/L, TranzX JD-YSP39, 150mm travel, internal routing, 34.9mm; Size: L, XL, TranzX JD-YSP39, 170mm travel, internal routing, 34.9mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS High | XS Low | SM High | SM Low | MD High | MD Low | MD/LG High | MD/LG Low | LG High | LG Low | XL High | XL Low |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.37 mm | 1.39 mm | 1.39 mm | 1.41 mm | 1.3 mm | 1.32 mm | 1.27 mm | 1.29 mm | 1.24 mm | 1.26 mm | 1.22 mm | 1.23 mm |
| Bottom Bracket Height | 340 mm | 336 mm | 343 mm | 338 mm | 343 mm | 338 mm | 343 mm | 338 mm | 343 mm | 338 mm | 343 mm | 338 mm |
| Front Center | 687 mm | 688 mm | 718 mm | 718 mm | 748 mm | 748 mm | 765 mm | 765 mm | 782 mm | 782 mm | 808 mm | 808 mm |
| Rake | 43 mm | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 107 mm | 110 mm | 115 mm | 118 mm | 115 mm | 118 mm | 115 mm | 118 mm | 115 mm | 118 mm | 115 mm | 118 mm |
| Stack | 562 mm | 565 mm | 599 mm | 602 mm | 599 mm | 602 mm | 604 mm | 607 mm | 608 mm | 612 mm | 622 mm | 625 mm |
| Reach | 411 mm | 407 mm | 431 mm | 427 mm | 461 mm | 457 mm | 476 mm | 472 mm | 491 mm | 487 mm | 511 mm | 507 mm |
| Top Tube Length | 545 mm | 546 mm | 574 mm | 575 mm | 604 mm | 605 mm | 621 mm | 622 mm | 637 mm | 638 mm | 660 mm | 661 mm |
| Seat Tube Angle | 76.4 ° | 76 ° | 76.4 ° | 76 ° | 76.4 ° | 76 ° | 76.4 ° | 76 ° | 76.4 ° | 76 ° | 76.4 ° | 76 ° |
| Seat Tube Length | 356 mm | 356 mm | 395 mm | 395 mm | 420 mm | 420 mm | 435 mm | 435 mm | 450 mm | 450 mm | 500 mm | 500 mm |
| Head Tube Angle | 66.4 ° | 66 ° | 66.4 ° | 66 ° | 66.4 ° | 66 ° | 66.4 ° | 66 ° | 66.4 ° | 66 ° | 66.4 ° | 66 ° |
| Head Tube Length | 95 mm | 95 mm | 100 mm | 100 mm | 100 mm | 100 mm | 105 mm | 105 mm | 110 mm | 110 mm | 125 mm | 125 mm |
| Chainstay Length | 441 mm | 442 mm | 441 mm | 442 mm | 441 mm | 442 mm | 441 mm | 442 mm | 441 mm | 442 mm | 441 mm | 442 mm |
| Wheelbase | 1128 mm | 1129 mm | 1157 mm | 1158 mm | 1187 mm | 1188 mm | 1204 mm | 1205 mm | 1221 mm | 1222 mm | 1247 mm | 1248 mm |
| Bottom Bracket Drop | 15 mm | 20 mm | 31 mm | 36 mm | 31 mm | 36 mm | 31 mm | 36 mm | 31 mm | 36 mm | 31 mm | 36 mm |
| Standover Height | 706 mm | 702 mm | 726 mm | 722 mm | 747 mm | 742 mm | 752 mm | 747 mm | 757 mm | 752 mm | 767 mm | 762 mm |
| Wheels | 27" | 27" | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" |
About this model
Top Fuel 9.7 SLX/XT belongs to the Trek Top Fuel model. Trek released 123 bikes variations of this model so far. Take a sneak peek at all Trek Top Fuel bikes models from 2022, by clicking here.
Model range prices
Trek Top Fuel 5 Deore 2022 is the cheapest bike model and costs 2699$. Trek Top Fuel 9.9 XX1 AXS 2022 is the most expensive one and costs 12847$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Trail bikes average price
According to our math, the average price for a trustworthy Trail bike is 2762$. However, even if your budget is less than the average, you might still be able to get a top-quality Trail bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
When Trek released this model in 2022, its price was 4499$. In conclusion, this bike price is 62.89% more expensive than the price of the average Trail bike.
Average weight for Trail bikes
If we make a quick analysis of the average weight of a Trail bike, we get 12.98 kg (28.62 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
Weighing 13.14 kg (28.97 lbs), the Top Fuel 9.7 SLX/XT model is slightly heavier than average. In conclusion, the average Trail bike weighs 1.23% less than Top Fuel 9.7 SLX/XT.
Overview of components
Fork
The Top Fuel 9.7 SLX/XT comes factory-installed with the Fox Rhythm Float 34 fork. This has a travel range of 120mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Rear Shock
The shock that’s installed on this bike is Fox Performance Float DPS, with a travel distance of 120mm. Rear shocks give you increased comfort, control, and traction, which is important when cornering or braking. This allows you to ride faster on bumpy roads. To sum up, get a full-suspension bike if you want the smoothest rides.
Wheels
The wheels on Top Fuel 9.7 SLX/XT are the 27.5″ aluminum type. These wheels will provide you with more control over the bike. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
For your safety, it is important to have quality breaks on your bike. Trek Top Fuel 9.7 SLX/XT has Hydraulic Disc brakes installed. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
Dropper post
A dropper post is included with the Top Fuel 9.7 SLX/XT. Therefore, climbing or descending will be a breeze.
