Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 26" -
Travel Front 90mm -
Travel Rear 90mm -
Groupset X0, X9 -
Suspension Full -
Drivetrain 3 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
15.5"
153cm - 167cm
17.5"
170cm - 184cm
19.5"
176cm - 189cm
21.5"
186cm - 196cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
OCLV 110 Carbon; ZR 9000 swingarm w/90mm travel
Drivetrain
Rear Derailleur
SRAM X-0
Front Derailleur
SRAM X-9
Shift Levers
SRAM X-9, 9 speed
Cassette
SRAM PG970 11-32, 9 speed
Crank
Bontrager Race X Lite carbon 44/32/22
Pedals
n/a
Wheels
Rims
Bontrager Race Lite
Tires
Bontrager Jones ACX, 26x2.1", 120 tpi, folding
Brakes
Brakes
Avid Juicy 7, hydraulic disc, 6" rotors
Cockpit
Stem
Bontrager Race Lite, 7 degree, 31.8mm
Handlebar
Bontrager Race X Lite carbon, 0mm rise, 31.8mm
Headset
Cane Creek S-3 w/cartridge bearings, sealed
Seat
Saddle
Bontrager Race Lite
Seatpost
Bontrager Race X Lite ACC
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 15.5" | 17.5" | 19.5" | 21.5" |
|---|---|---|---|---|
| Wheels | 26" | 26" | 26" | 26" |
| Rider Min Height | 153 cm | 170 cm | 176 cm | 186 cm |
| Rider Max Height | 167 cm | 184 cm | 189 cm | 196 cm |
Model Overview

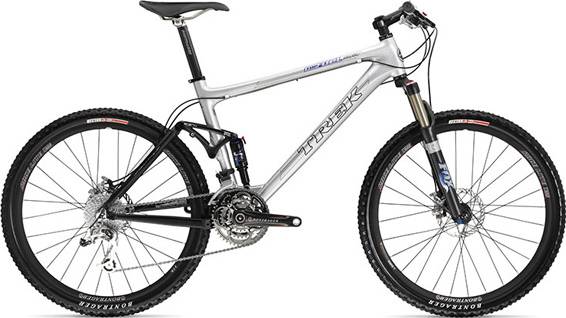

Top Fuel 9.8 is part of the Trek Top Fuel model. There are 123 bikes that carry this model name. Check out the entire range from 2007 of this model, by clicking this link.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Crosscountry bikes average price
According to our math, the average price for a trustworthy Crosscountry bike is 1905$. However, you could also get a good Crosscountry bike even if you pay a lower amount than the average price. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Top Fuel 9.8 components
Rear Shock
Bike rear shocks increase the riding comfort, and also give you more control over technical trails. In short, if you want smooth rides, get a full-suspension bicycle.
Wheels
The wheels on Top Fuel 9.8 are the 26″ aluminum type. Being a little smaller, these wheels will fit both small and tall riders. However, you will need increased suspension than in the case of 29″ wheels.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Top Fuel 9.8 comes with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 153 cm – 196 cm (5.02 ft – 6.43 ft). In conclusion, finding one for you shouldn’t be a problem.
