Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 26" -
Groupset XT -
Suspension Full -
Drivetrain 3 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
15.5"
154cm - 169cm
17.5"
166cm - 180cm
18.5"
176cm - 188cm
19.5"
177cm - 189cm
21.5"
186cm - 196cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
OCLV Mountain Carbon main frame, OCLV Carbon seatstay w/alloy chainstay, Net Molded tapered head tube, BB90 w/Precision Fit sockets, internal control routing, no-cut off-road seatmast, ABP Race, Full Floater, magnesium EVO Link, oversized pivot bearings,
Drivetrain
Rear Derailleur
Shimano Deore XT
Front Derailleur
Shimano Deore XT
Shift Levers
Shimano Deore XT, 10 speed
Cassette
Shimano M77110 11-36, 10 speed
Crank
Shimano Deore XT, 42/32/24
Bottom Bracket
BSA, 73mm, threaded
Pedals
n/a
Wheels
Rims
Bontrager Race Lite Pro Disc wheel system, 28 hole, center lock, tubeless ready
Tires
Bontrager XR1 Expert, 26x2.0"
Brakes
Brakes
Avid XO hydraulic disc brakes
Cockpit
Stem
Bontrager Race X Lite, 31.8mm
Handlebar
Bontrager Race X Lite Carbon Low Riser, 31.8mm, 25mm rise, 9 degree sweep
Headset
Cane Creek IS-3, E2, alloy cartridge
Seat
Saddle
Bontrager Evoke 3, titanium rails
Seatpost
Bontrager Race XXX Lite, 34.0mm, 5mm offset
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 15.5" | 17.5" | 18.5" | 19.5" | 21.5" |
|---|---|---|---|---|---|
| Wheels | 26" | 26" | 26" | 26" | 26" |
| Rider Min Height | 154 cm | 166 cm | 176 cm | 177 cm | 186 cm |
| Rider Max Height | 169 cm | 180 cm | 188 cm | 189 cm | 196 cm |
Model Overview

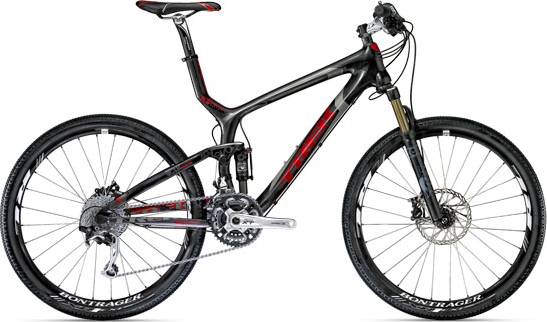

Top Fuel 9.8 belongs to the Trek Top Fuel model. There are 123 bikes that carry this model name. Take a sneak peek at all Trek Top Fuel bikes models from 2011, by clicking here.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Crosscountry bikes average price
According to our math, the average price for a trustworthy Crosscountry bike is 1905$. However, this doesn’t mean that if you spend less money on a Crosscountry bike, you couldn’t get a decent one. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
Overview of components
Wheels size
When leaving the production line, the Top Fuel 9.8 model has 26″ aluminum wheels. These wheels give you great handling over your bike. However, you will need increased suspension than in the case of 29″ wheels.
Brakes
When you want to stop the bike in time, the brakes are vital. The Top Fuel 9.8 has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
Sizes
Top Fuel 9.8 comes in 5 sizes, that range from 154 cm – 196 cm (5.05 ft – 6.43 ft). In conclusion, you won’t have a problem finding one that suits you.
