Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 27.5" / 29" -
Travel Front 100mm -
Travel Rear 100mm -
Groupset X01, X1 -
Suspension Full -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
OCLV Mountain Carbon main frame & seatstay, alloy chainstay, ABP, Full Floater, EVO link, E2 tapered head tube, Mino Link, MicroTruss, Control Freak internal routing, Carbon Armor, PF92, ISCG 05, Boost148 & G2 Geometry on 29ers, 100mm travel
Drivetrain
Rear Derailleur
SRAM X01 Carbon, Type 2
Shift Levers
SRAM X1, 11 speed
Cassette
SRAM XG-1175, 10-42, 11 speed
Crank
SRAM X1 1400, 32T Direct Mount X-Sync
Bottom Bracket
BB86/BB92, press-fit
Wheels
Rims
DT Swiss X1700, tubeless strips & valves, 15mm front, 12mm rear (Boost110 & Boost148 on 29ers)
Tires
Bontrager XR1 Team Issue, Tubeless Ready, 120tpi, aramid bead, 29x2.20" (Bontrager XR2 Team Issue, Tubeless Ready, 120tpi, aramid bead, 27.5x2.20")
Brakes
Brakes
Shimano Deore XT hydraulic disc
Cockpit
Stem
Bontrager Race X Lite, 31.8mm, 7 degree
Handlebar
Bontrager Race X Lite, OCLV Carbon, 31.8mm, 5mm rise
Headset
FSA IS-2 carbon, E2, sealed alloy cartridge
Seat
Saddle
Bontrager Montrose Elite, hollow titanium rails
Seatpost
Bontrager Rhythm Elite, 2-bolt head, 31.6mm, zero offset
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 15.5" | 18.5" | 19.5" | 21.5" |
|---|---|---|---|---|
| Wheels | 27" | 27" | 27" | 29" |
Model Overview

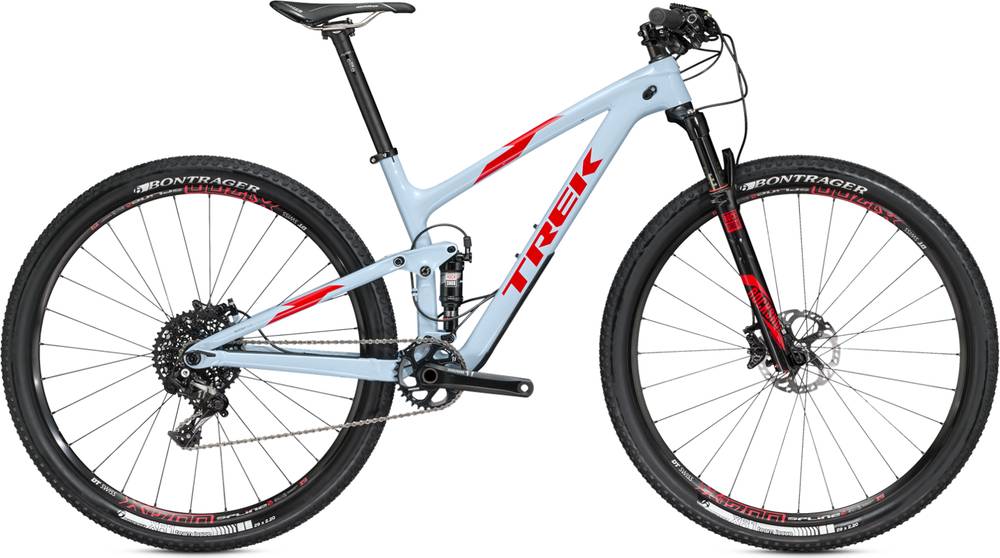

Top Fuel 9.8 SL is a Trek Top Fuel model. 123 bikes variations carry this model name so far. Take a sneak peek at all Trek Top Fuel bikes models from 2016, by clicking here.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Crosscountry bikes average price
According to our calculations, the average cost of a Crosscountry bike that is reliable is 1905$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Crosscountry bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Internal Cable Routing
It’s also important to mention the internal cable routing that this bike has. In short, this will allow you to keep your bike cables in great condition. Say goodbye to hanging cables.
Overview of components
Rear Shock
Bike rear shocks are a great way to increase comfort on the bike and give you more control when riding on technical trails. In conclusion, to increase your riding experience, get a bike with a rear shock if possible.
Wheels size
When leaving the production line, the Top Fuel 9.8 SL model has 27.5″ aluminum wheels. These wheels will provide you with more control over the bike. However, these wheels have a slower top speed if you compare them to 29″ wheels.
Brakes
When you want to stop the bike in time, the brakes are vital. The Top Fuel 9.8 SL has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
