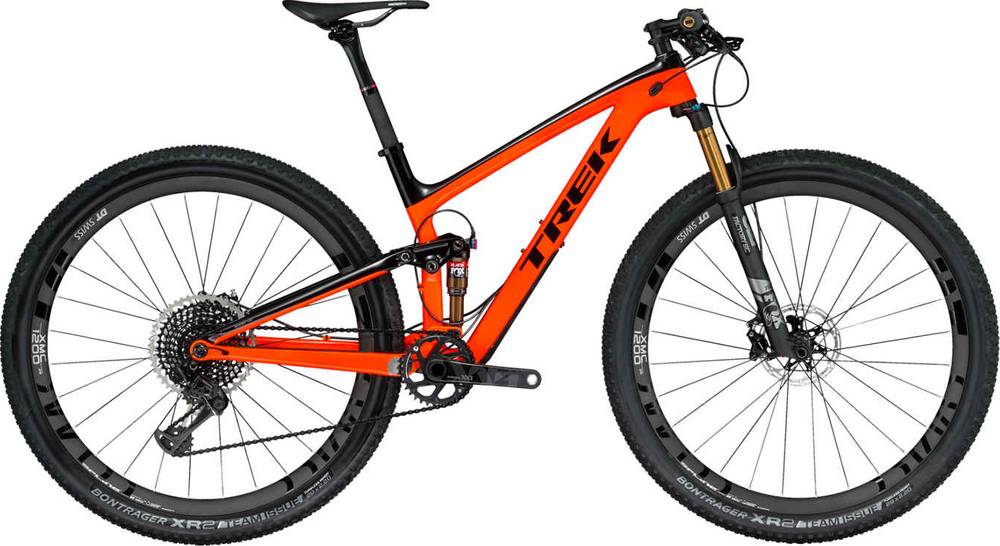

Trek Top Fuel 9.9 Race Shop Limited 2018
2018 Mountain
Estimate price |
8,999$
Weight | 10.02 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 27.5" / 29" -
Travel Front 100mm -
Travel Rear 100mm -
Fork Fox Factory Float 32
-
Groupset XX1 Eagle -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
OCLV Mountain Carbon main frame & stays, ABP, Full Floater, EVO link, E2 tapered head tube, Mino Link, MicroTruss, Control Freak internal routing, Carbon Armor, PF92, Boost148 & G2 Geometry on 29ers, 100mm travel
Suspension Fork
Fox Factory 32 Float, Step Cast, FIT4 2-position damper (with new push-to-unlock remote), E2 tapered steerer, Boost110, G2 Geometry w/51mm offset on 29ers, 100mm travel
Drivetrain
Rear Derailleur
SRAM XX1 Eagle, Roller Bearing Clutch
Shift Levers
SRAM XX1 Eagle, 12 speed
Cassette
SRAM XG-1295, 10-50, 12 speed
Crank
SRAM XX1 Eagle, 34T Direct Mount X-Sync
Bottom Bracket
PF92
Chain
SRAM XX1 Eagle
Pedals
Not included
Wheels
Rims
DT Swiss XMC1200 Carbon, 36T Ratchet System, 24mm inner width, Boost110 front, Boost148 rear (15.5?: 142x12 rear), tubeless strips and valves included
Tires
Bontrager XR2 Team Issue, Tubeless Ready, 120 tpi, aramid bead, 29x2.20? (15.5: 27.5x2.20?)
Brakes
Brakes
SRAM Level Ultimate Carbon hydraulic disc
Cockpit
Stem
Bontrager Pro, 31.8mm, 7 degree, Blendr compatible
Handlebar
Bontrager XXX, OCLV Carbon, 31.8mm, zero rise
Grips
ESI Chunky
Headset
FSA IS-2, 1-1/8? top, 1.5? bottom
Seat
Saddle
Bontrager Montrose Pro, carbon rails
Seatpost
Bontrager XXX, OCLV Carbon, 31.6mm, zero offset
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 15.5" Low | 17.5" Low | 18.5" Low | 19.5" Low | 21.5" Low |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.44 mm | 1.36 mm | 1.31 mm | 1.29 mm | 1.29 mm |
| Bottom Bracket Height | 330 mm | 330 mm | 330 mm | 330 mm | 330 mm |
| Front Center | 638 mm | 679 mm | 695 mm | 712 mm | 734 mm |
| Rake | 48 mm | 52 mm | 52 mm | 51 mm | 51 mm |
| Trail | 80 mm | 80 mm | 80 mm | 80 mm | 80 mm |
| Stack | 555 mm | 571 mm | 571 mm | 581 mm | 600 mm |
| Reach | 386 mm | 421 mm | 437 mm | 451 mm | 466 mm |
| Top Tube Length | 547 mm | 571 mm | 587 mm | 605 mm | 627 mm |
| Seat Tube Angle | 73.5 ° | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 394 mm | 419 mm | 445 mm | 470 mm | 495 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 100 mm | 90 mm | 90 mm | 100 mm | 120 mm |
| Chainstay Length | 421 mm | 429 mm | 429 mm | 429 mm | 429 mm |
| Wheelbase | 1058 mm | 1105 mm | 1121 mm | 1138 mm | 1160 mm |
| Bottom Bracket Drop | 25 mm | 39 mm | 39 mm | 39 mm | 39 mm |
| Standover Height | 741 mm | 724 mm | 718 mm | 724 mm | 732 mm |
| Wheels | 27" | 29" | 29" | 29" | 29" |
Model Overview
Top Fuel 9.9 Race Shop Limited belongs to the Trek Top Fuel model. Trek launched 123 bikes of this model so far. You can get a glimpse at all models from 2018, by clicking on this link.
Model range prices
The most economical model, the Trek Top Fuel 8 2018 has a starting price of 2799$. Trek Top Fuel 9.9 Race Shop Limited 2018 on the other hand is the most expensive at 8999$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Crosscountry bikes
According to our calculations, the average cost of a Crosscountry bike that is reliable is 1905$. However, this doesn’t mean that if you spend less money on a Crosscountry bike, you couldn’t get a decent one. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
At the moment of the release date, Trek Top Fuel 9.9 Race Shop Limited price was 8999$. Doing a quick comparison, we notice that Top Fuel 9.9 Race Shop Limited price is 372.39% more expensive than the average cost of a Crosscountry bike.
Average weight for Crosscountry bikes
Crosscountry bikes have an average weight of 12.4 kg (27.34 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
With a weight of 10.02 kg (22.09 lbs), Trek bike is much lighter than average. In short, the average Crosscountry bike weight is 23.75% higher than this one.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
Overview of components
Fork
Trek Top Fuel 9.9 Race Shop Limited 2018 bike is equipped with the Fox Factory Float 32 fork, and has 100mm travel. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Rear Shock
Bike rear shocks increase the riding comfort, and also give you more control over technical trails. To sum up, get a full-suspension bike if you want the smoothest rides.
Wheels
When leaving the production line, the Top Fuel 9.9 Race Shop Limited model has 27.5″ carbon wheels. The 27.5″ wheels are a great choice for smaller riders. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
When you want to stop the bike in time, the brakes are vital. The Top Fuel 9.9 Race Shop Limited has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
