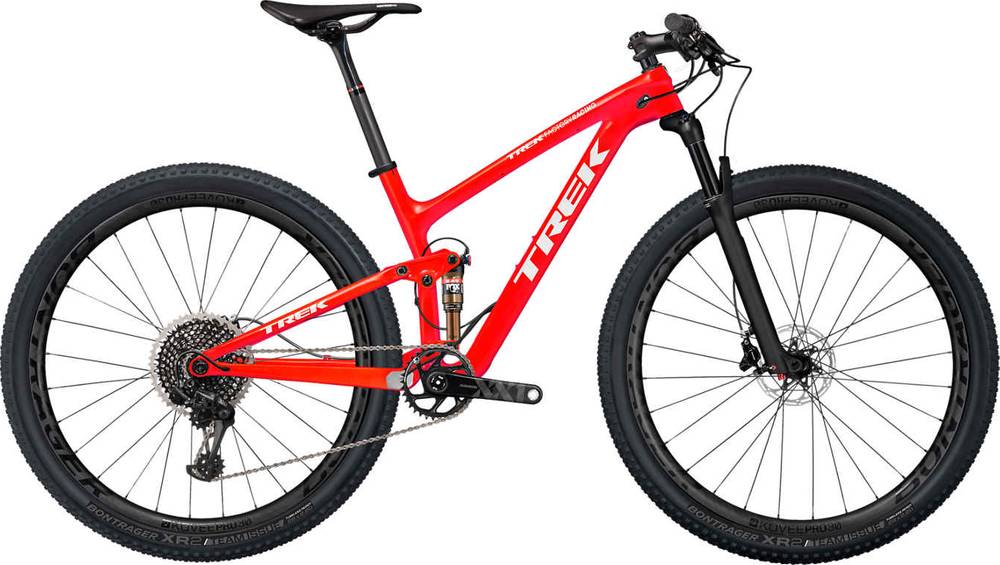

Trek Top Fuel 9.9 SL 2019
2019 Mountain
Estimate price |
8,799$
Weight | 9.98 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 27.5" / 29" -
Travel Front 100mm -
Travel Rear 100mm -
Fork RockShox SID
-
Groupset XX1 Eagle -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
OCLV Mountain Carbon main frame & stays, ABP, Full Floater, EVO link, tapered head tube, Mino Link, MicroTruss, Control Freak internal routing, Carbon Armor, PF92, Boost148 & G2 Geometry on 29ers, 100mm travel
Suspension Fork
RockShox SID SE Carbon, DebonAir, Motion Control damper, TwistLoc remote lockout, tapered steerer, G2 Geometry w/51mm offset on 29ers, Boost110, 100mm travel
Drivetrain
Rear Derailleur
SRAM XX1 Eagle, Roller Bearing Clutch
Shift Levers
SRAM XX1 Eagle, 12 speed
Cassette
SRAM XG-1299, 10-50, 12 speed
Crank
SRAM XX1 Eagle Dub, 34T Direct Mount
Bottom Bracket
SRAM DUB Press Fit, 92mm
Chain
SRAM XX1 Eagle
Pedals
Not included
Wheels
Rims
Bontrager Kovee Pro 30 carbon, Tubeless Ready, 108T Rapid Drive, Boost110 front, Boost148 rear (15.5: 142x12 rear), tubeless strips included, valves sold separately
Tires
Bontrager XR2 Team Issue, Tubeless Ready, 120 tpi, aramid bead, 29x2.20? (13.5 & 15.5: 27.5x2.20?)
Brakes
Brakes
SRAM Level Ultimate carbon hydraulic disc
Cockpit
Stem
Bontrager Pro, 31.8mm, 7 degree
Handlebar
Bontrager XXX, OCLV Carbon, 31.8, zero rise
Headset
FSA IS-2, 1-1/8? top, 1.5? bottom
Seat
Saddle
Bontrager Montrose Pro, carbon rails
Seatpost
Bontrager XXX, OCLV Carbon, 31.6mm, zero offset
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM High | SM Low | MD High | MD Low | MD/LG High | MD/LG Low | LG High | LG Low | XL High | XL Low |
|---|---|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.39 mm | 1.44 mm | 1.31 mm | 1.36 mm | 1.26 mm | 1.31 mm | 1.25 mm | 1.29 mm | 1.25 mm | 1.29 mm |
| Bottom Bracket Height | 341 mm | 330 mm | 341 mm | 330 mm | 341 mm | 330 mm | 341 mm | 330 mm | 341 mm | 330 mm |
| Front Center | 639 mm | 638 mm | 678 mm | 679 mm | 694 mm | 695 mm | 712 mm | 712 mm | 734 mm | 734 mm |
| Rake | 48 mm | 47 mm | 51 mm | 52 mm | 51 mm | 52 mm | 51 mm | 51 mm | 52 mm | 51 mm |
| Trail | 73 mm | 80 mm | 74 mm | 80 mm | 74 mm | 80 mm | 74 mm | 80 mm | 74 mm | 80 mm |
| Stack | 548 mm | 555 mm | 564 mm | 571 mm | 564 mm | 571 mm | 574 mm | 581 mm | 592 mm | 600 mm |
| Reach | 395 mm | 386 mm | 430 mm | 421 mm | 446 mm | 437 mm | 460 mm | 451 mm | 475 mm | 466 mm |
| Top Tube Length | 550 mm | 552 mm | 587 mm | 587 mm | 600 mm | 603 mm | 617 mm | 619 mm | 640 mm | 640 mm |
| Seat Tube Angle | 74.4 ° | 73.5 ° | 74.9 ° | 74 ° | 74.9 ° | 74 ° | 74.9 ° | 74 ° | 74.9 ° | 74 ° |
| Seat Tube Length | 394 mm | 394 mm | 419 mm | 419 mm | 445 mm | 445 mm | 470 mm | 470 mm | 495 mm | 495 mm |
| Head Tube Angle | 70.9 ° | 69.9 ° | 70.9 ° | 70 ° | 70.9 ° | 70 ° | 70.9 ° | 70 ° | 70.9 ° | 70 ° |
| Head Tube Length | 100 mm | 100 mm | 90 mm | 90 mm | 90 mm | 90 mm | 100 mm | 100 mm | 120 mm | 120 mm |
| Chainstay Length | 418 mm | 421 mm | 426 mm | 429 mm | 426 mm | 429 mm | 426 mm | 429 mm | 426 mm | 429 mm |
| Wheelbase | 1057 mm | 1058 mm | 1103 mm | 1105 mm | 1119 mm | 1121 mm | 1137 mm | 1138 mm | 1159 mm | 1160 mm |
| Bottom Bracket Drop | 14 mm | 25 mm | 28 mm | 39 mm | 28 mm | 39 mm | 27 mm | 39 mm | 27 mm | 39 mm |
| Standover Height | 735 mm | 726 mm | 728 mm | 718 mm | 723 mm | 713 mm | 723 mm | 713 mm | 723 mm | 713 mm |
| Wheels | 27" | 27" | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" |
Model Overview
Top Fuel 9.9 SL is part of the Trek Top Fuel model. Trek launched 123 bikes of this model so far. You can easily view all of the Trek Top Fuel bikes models from 2019, here.
Model range prices
Trek Top Fuel 8 2019 is the most economical model, with a starting price of 3149$. Trek Top Fuel 9.9 SL AXS 2019 on the other hand costs 9299$, and is the most expensive model.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Crosscountry bikes average price
Our math shows that the average cost of a dependable Crosscountry bike is 1905$. However, even if your budget is less than the average, you might still be able to get a top-quality Crosscountry bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
At the moment of the release date, Trek Top Fuel 9.9 SL price was 8799$. Comparing this to the average Crosscountry bike price, we see that the price is 361.89% higher.
Crosscountry bikes average weight
Crosscountry bikes weigh an average of 12.4 kg (27.34 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
With a weight of 9.98 kg (22 lbs), Trek bike is much lighter than average. To sum up, it’s 24.25% lighter than the average weight of Crosscountry bikes.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
Overview of components
Fork
The fork installed on this bike is the RockShox SID model. The travel on this model is 100mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Fork material
The fork is made out of carbon, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Rear Shock
Rear shocks give you increased comfort, control, and traction, which is important when cornering or braking. This allows you to ride faster on bumpy roads. In short, a full-suspension bike will give you the smoothest ride possible.
Wheels
The wheels on Top Fuel 9.9 SL are the 27.5″ carbon type. 27.5″ wheels will reach higher speeds than smaller-sized wheels. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
Nothing is more important on a bike than its ability to brake properly. Trek Top Fuel 9.9 SL is equipped with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
