Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 26" -
Groupset XTR -
Suspension Full -
Drivetrain 2 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
15.5"
154cm - 169cm
17.5"
166cm - 180cm
18.5"
176cm - 188cm
19.5"
177cm - 189cm
21.5"
186cm - 196cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
OCLV Mountain Carbon main frame, OCLV Carbon seatstay & chainstay, Net Molded tapered head tube, BB90 w/Precision Fit Sockets, internal control routing, no-cut off-road seatmast, ABP Race, Full Floater, magnesium EVO Link, oversized pivot bearings, replac
Drivetrain
Rear Derailleur
Shimano XTR
Front Derailleur
Shimano XTR
Shift Levers
Shimano XTR, 10 speed
Cassette
Shimano M980 11-36, 10 speed
Crank
Shimano XTR, 42/30
Bottom Bracket
BB90, 90.5mm, press-fit
Pedals
n/a
Wheels
Rims
Bontrager Race XXX Lite Disc wheel system, 28 hole, center lock, tubeless ready
Tires
Bontrager XR0 Team, 26x2.1"
Brakes
Brakes
Shimano XTR hydraulic disc brakes
Cockpit
Stem
Bontrager Race XXX Lite, 31.8mm
Handlebar
Bontrager Race X Lite Carbon Low Riser, 31.8mm, 25mm rise, 9 degree sweep
Headset
Cane Creek IS-3, E2, alloy cartridge
Seat
Saddle
Bontrager Evoke 4, carbon rails
Seatpost
Bontrager Race XXX Lite, 34.0mm, 5mm offset
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 15.5" | 17.5" | 18.5" | 19.5" | 21.5" |
|---|---|---|---|---|---|
| Wheels | 26" | 26" | 26" | 26" | 26" |
| Rider Min Height | 154 cm | 166 cm | 176 cm | 177 cm | 186 cm |
| Rider Max Height | 169 cm | 180 cm | 188 cm | 189 cm | 196 cm |
About this model

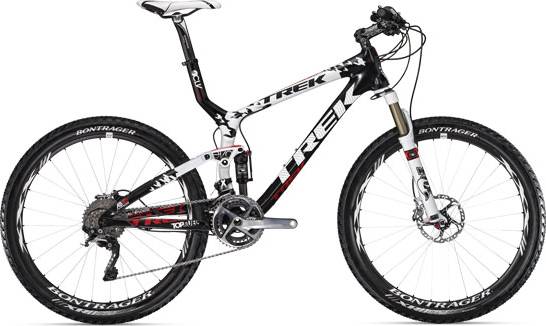

Top Fuel 9.9 SSL is part of the Trek Top Fuel model. Trek launched 123 bikes of this model so far. You can easily view all of the Trek Top Fuel bikes models from 2011, here.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Crosscountry bikes average price
According to our math, the average price for a trustworthy Crosscountry bike is 1905$. However, even if your budget is less than the average, you might still be able to get a top-quality Crosscountry bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
Top Fuel 9.9 SSL components
Wheels
When it comes to wheels, the Top Fuel 9.9 SSL bike is equipped with the 26″ aluminum model. These wheels give you great handling over your bike. However, they are less forgiving when riding over obstacles such as bumps and roots.
Brakes
For your safety, it is important to have quality breaks on your bike. Trek Top Fuel 9.9 SSL has Hydraulic Disc brakes installed. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
Sizes
Top Fuel 9.9 SSL comes in 5 sizes, that range from 154 cm – 196 cm (5.05 ft – 6.43 ft). In conclusion, finding one for you shouldn’t be a problem.
