Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 26" -
Travel Front 100mm -
Travel Rear 100mm -
Groupset XTR -
Suspension Full -
Drivetrain 2 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
15.5"
154cm - 169cm
17.5"
166cm - 180cm
18.5"
176cm - 188cm
19.5"
177cm - 189cm
21.5"
186cm - 196cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
OCLV Mountain Carbon main frame, seatstay & chainstay, Net Molded tapered head tube, BB90 w/Precision Fit Sockets, E2 tapered head tube, internal control routing, no-cut off-road seatmast, ABP Race, Full Floater, magnesium EVO Link, replaceable derailleur hanger, 100mm travel
Drivetrain
Rear Derailleur
Shimano XTR M980 Shadow
Front Derailleur
Shimano XTR
Shift Levers
Shimano XTR M980, 10 speed
Cassette
Shimano XTR M980 11-36, 10 speed
Crank
Shimano XTR M985, 40/28
Bottom Bracket
BB90, 90.5mm, press-fit
Pedals
n/a
Wheels
Rims
Bontrager Race XXX Lite TLR Disc wheel system, 15mm front hub, 5mm rear hub, 28 hole, center lock, Tubeless Ready
Tires
Bontrager XR0 Team, 26x2.1"
Brakes
Brakes
Shimano XTR M985 hydraulic disc brakes
Cockpit
Stem
Bontrager Race XXX Lite, 31.8mm
Handlebar
Bontrager Race X Lite Carbon Low Riser, 31.8mm, 15mm rise, 9 degree sweep
Headset
Cane Creek IS-3, E2, alloy cartridge
Seat
Saddle
Bontrager Evoke RXL, carbon
Seatpost
Bontrager Race XXX Lite, 34.0mm, 5mm offset
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 15.5" | 17.5" | 18.5" | 19.5" | 21.5" |
|---|---|---|---|---|---|
| Wheels | 26" | 26" | 26" | 26" | 26" |
| Rider Min Height | 154 cm | 166 cm | 176 cm | 177 cm | 186 cm |
| Rider Max Height | 169 cm | 180 cm | 188 cm | 189 cm | 196 cm |
Model Overview

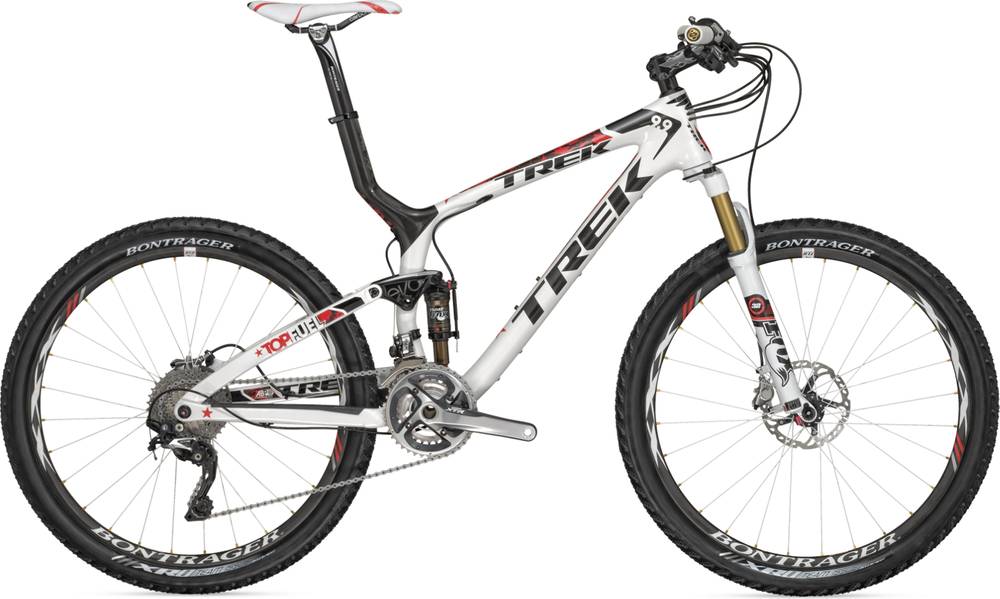

Top Fuel 9.9 SSL belongs to the Trek Top Fuel model. Trek released 123 bikes variations of this model so far. You can get a glimpse at all models from 2012, by clicking on this link.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Crosscountry bikes
According to our calculations, the average cost of a Crosscountry bike that is reliable is 1905$. However, this doesn’t mean that if you spend less money on a Crosscountry bike, you couldn’t get a decent one. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Internal Cable Routing
It’s also important to mention the internal cable routing that this bike has. In short, this will allow you to keep your bike cables in great condition. Say goodbye to hanging cables.
Overview of components
Rear Shock
Bike rear shocks are a great way to increase comfort on the bike and give you more control when riding on technical trails. In short, a full-suspension bike will give you the smoothest ride possible.
Wheels
When it comes to wheels, the Top Fuel 9.9 SSL bike is equipped with the 26″ aluminum model. These wheels give you great handling over your bike. However, they provide less traction than 29″ wheels do.
Brakes
For your safety, it is important to have quality breaks on your bike. Trek Top Fuel 9.9 SSL has Hydraulic Disc brakes installed. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
Sizes
Trek Top Fuel 9.9 SSL bike has 5 sizes, in the range of 154 cm – 196 cm (5.05 ft – 6.43 ft). In short, it won’t be difficult to find the right one for you.
