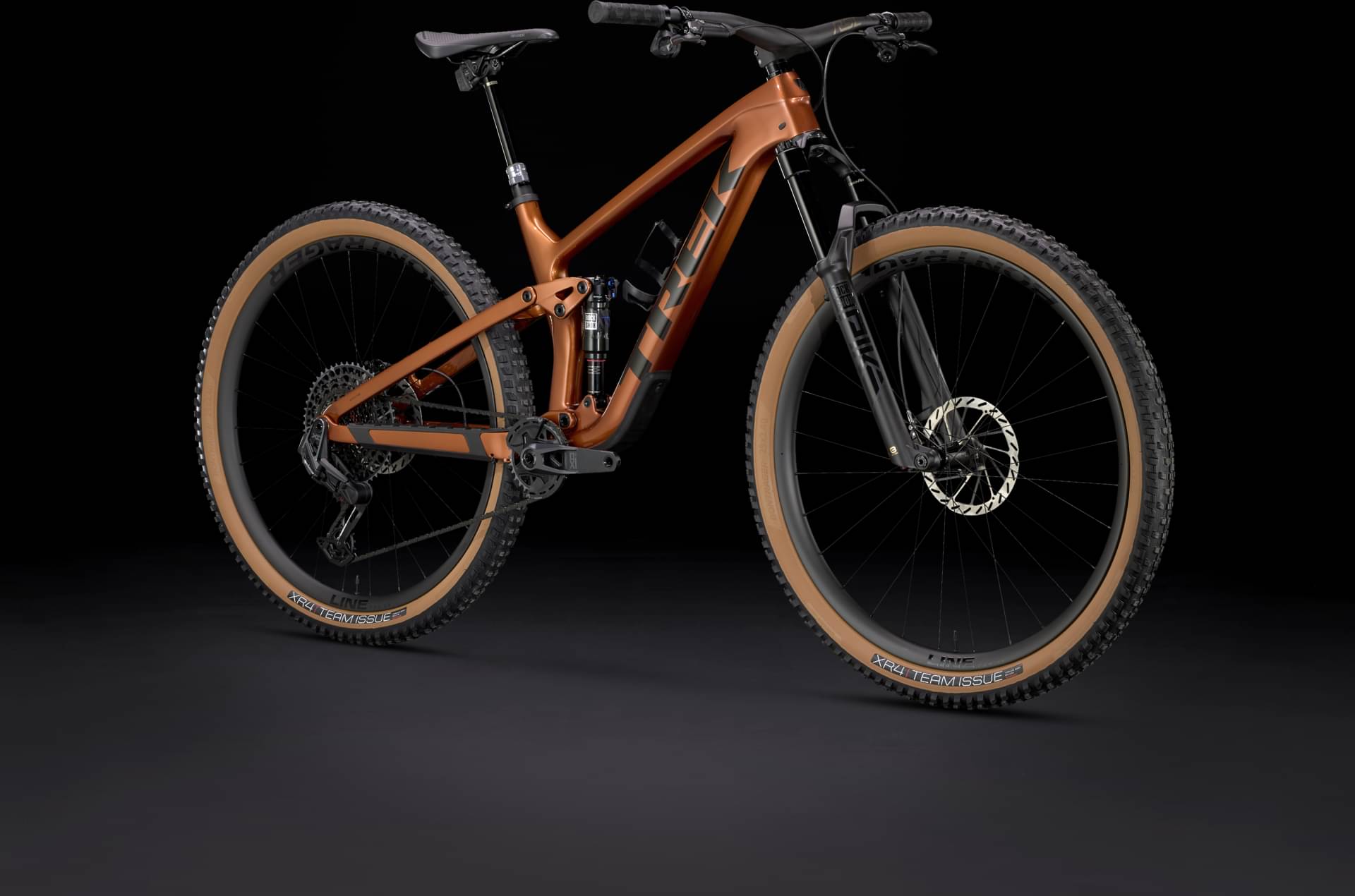

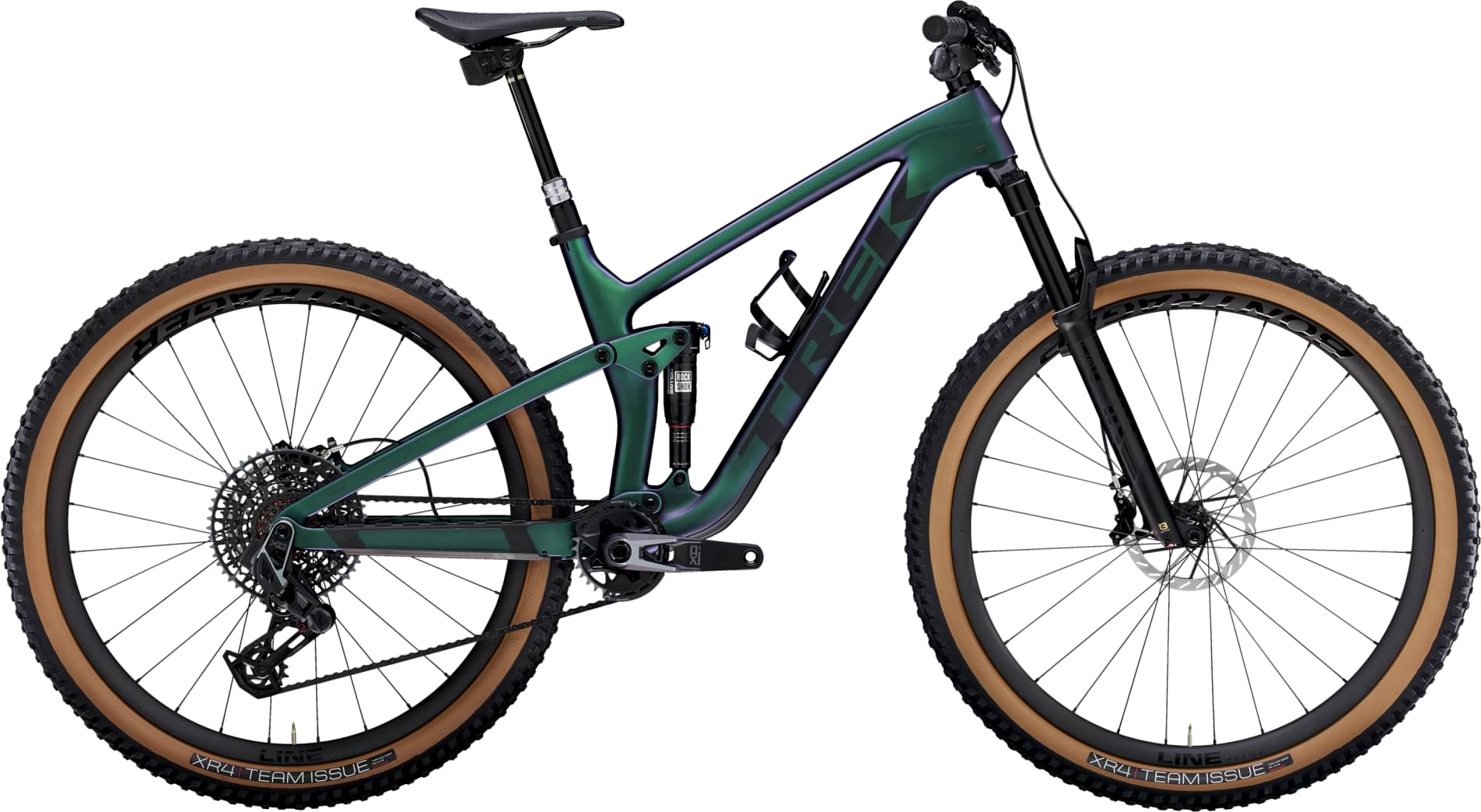

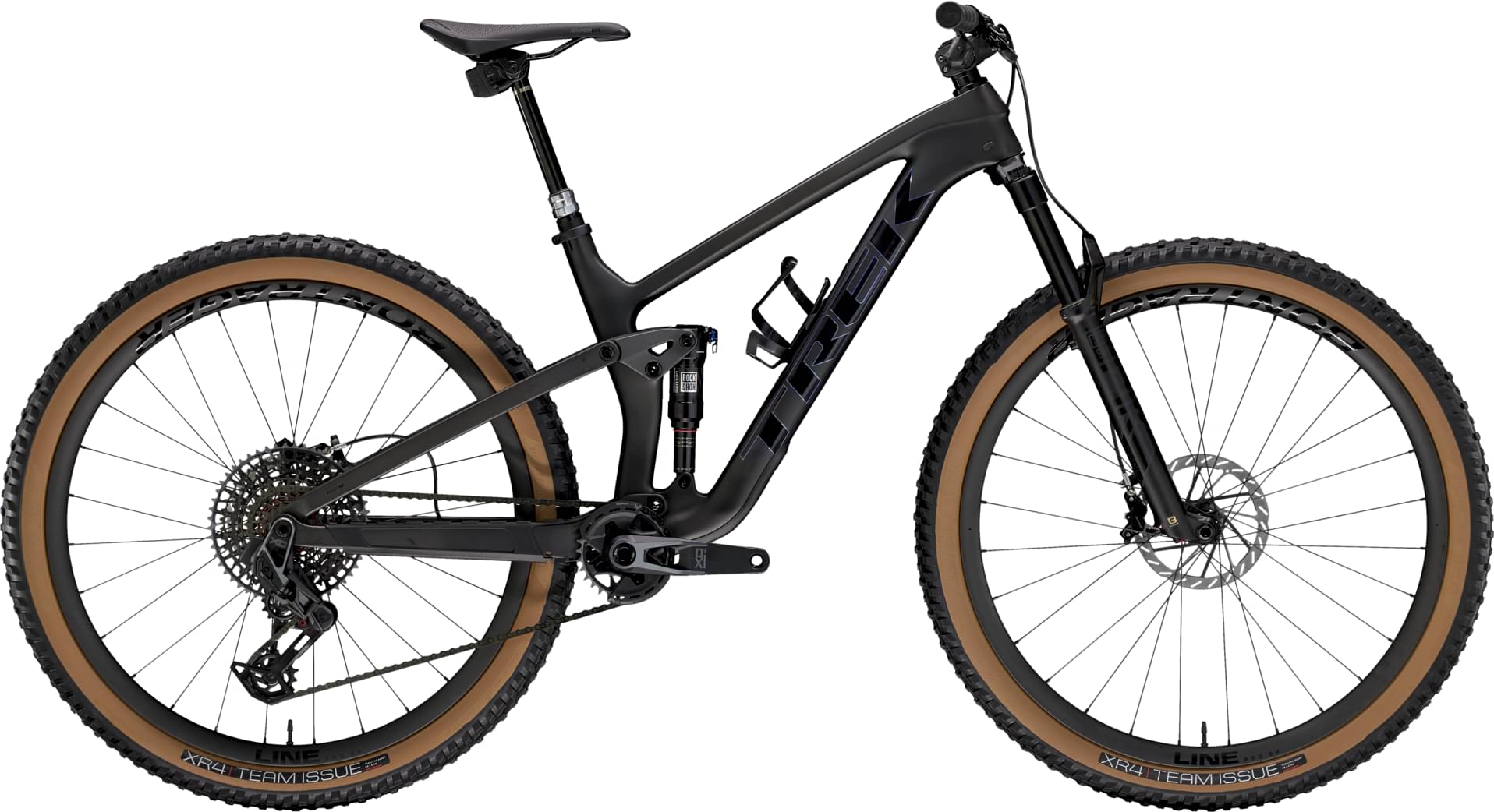

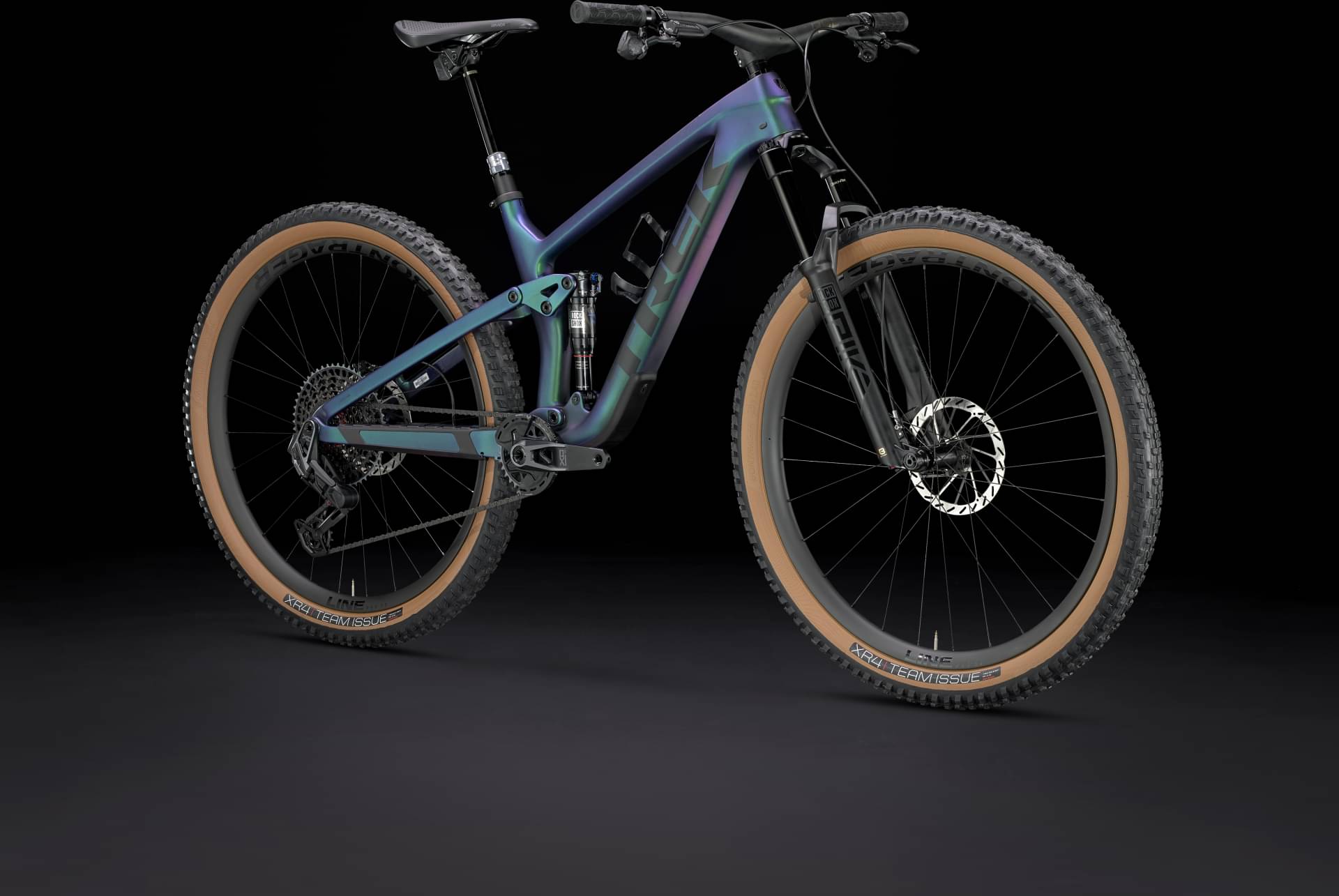

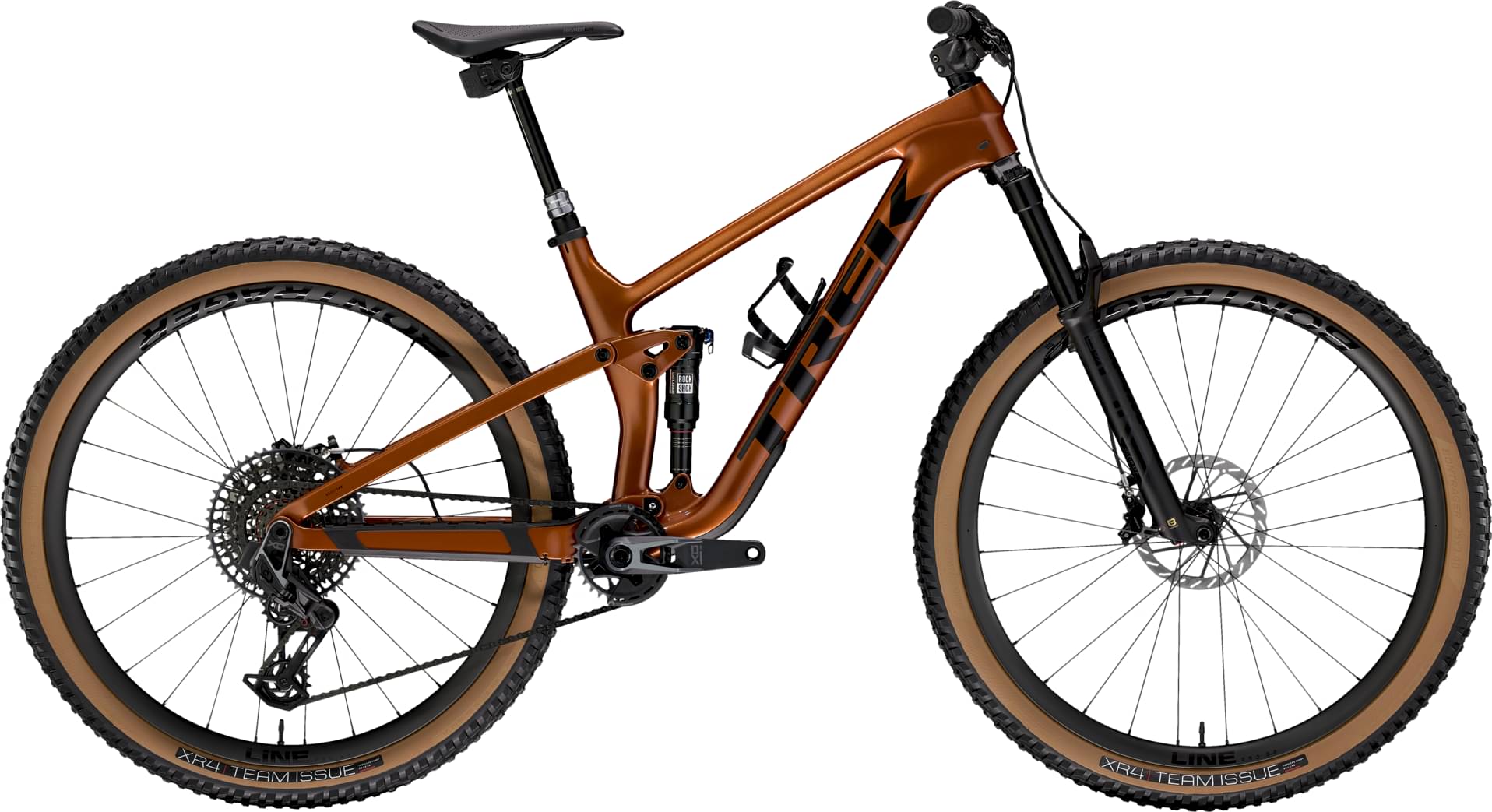

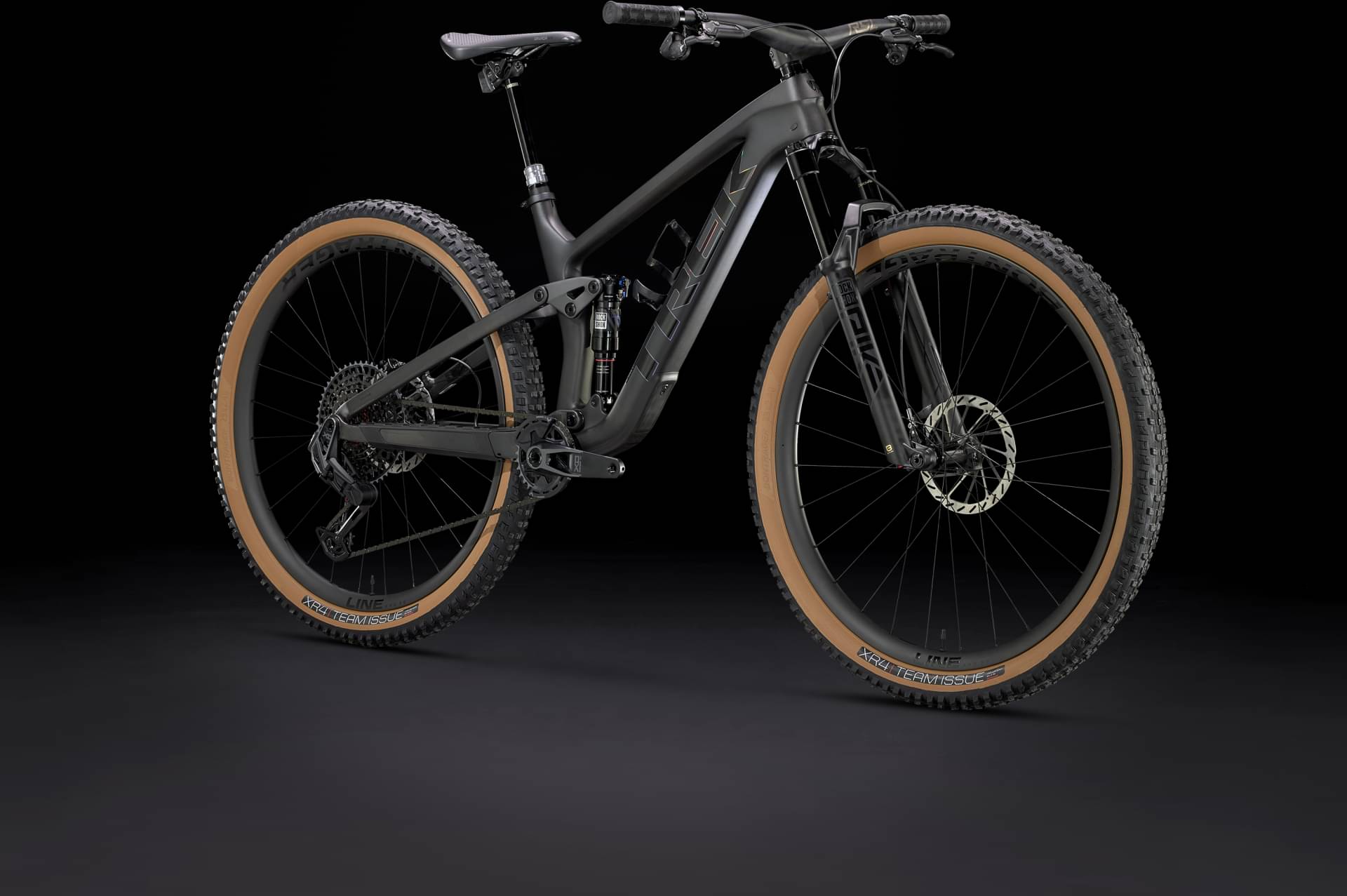

Trek Top Fuel 9.9 X0 AXS T-Type 2024
2024 Mountain
Estimate price |
7,999$
Weight | 12.95 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 130mm -
Travel Rear 120mm -
Fork RockShox Pike Ultimate
-
Groupset X0 Eagle Transmission, X01 Eagle AXS -
Suspension Full -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame

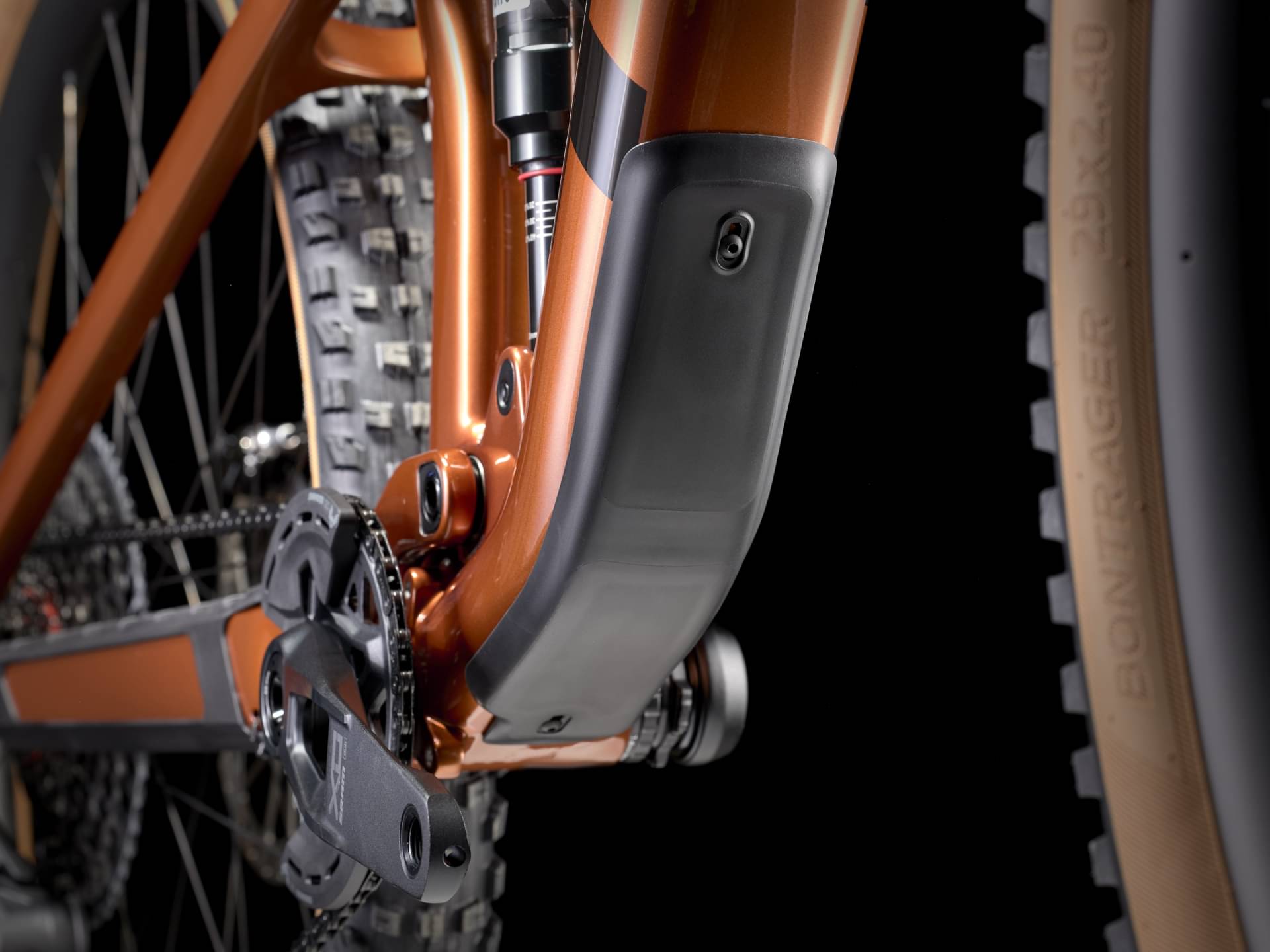

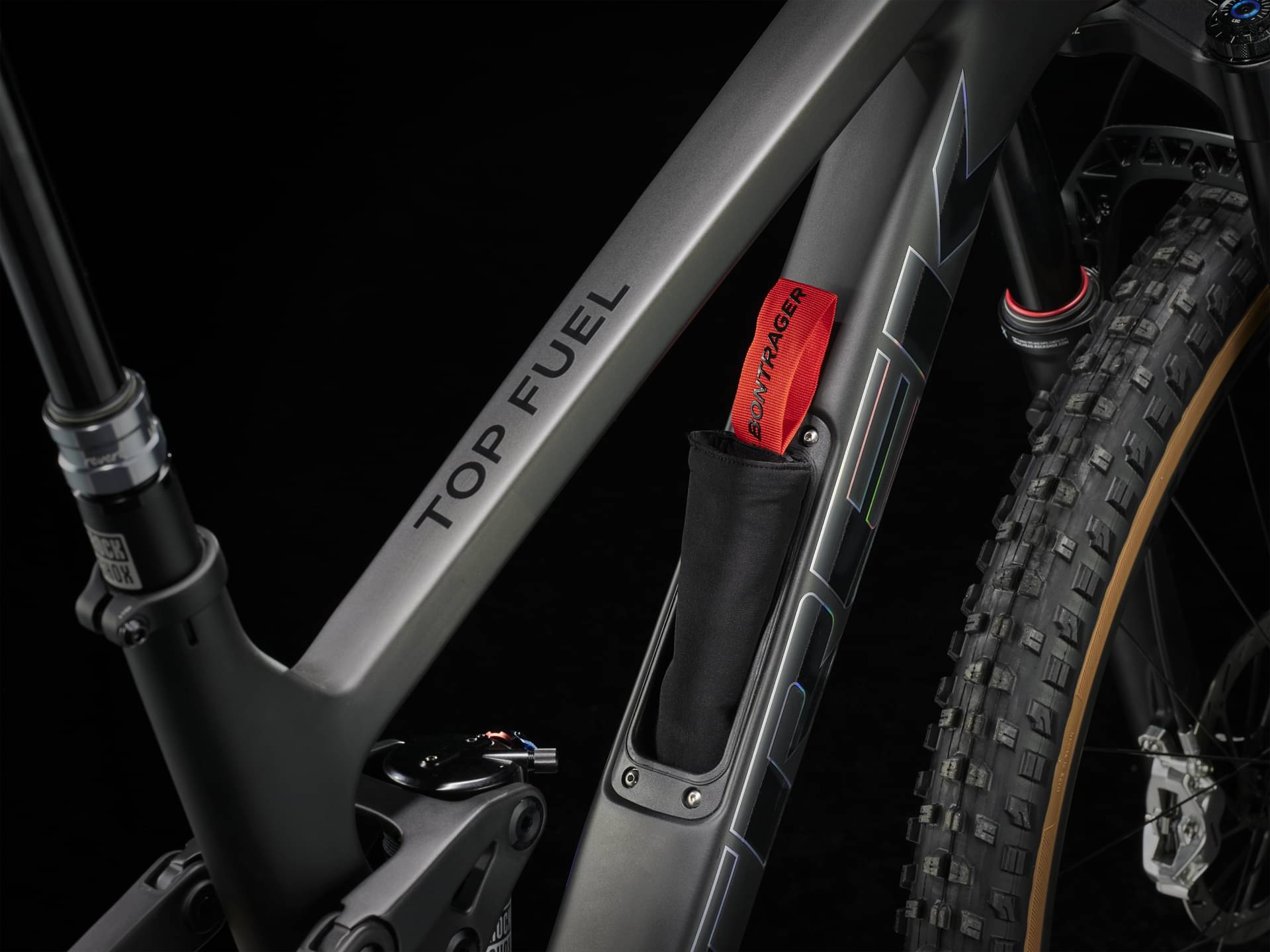

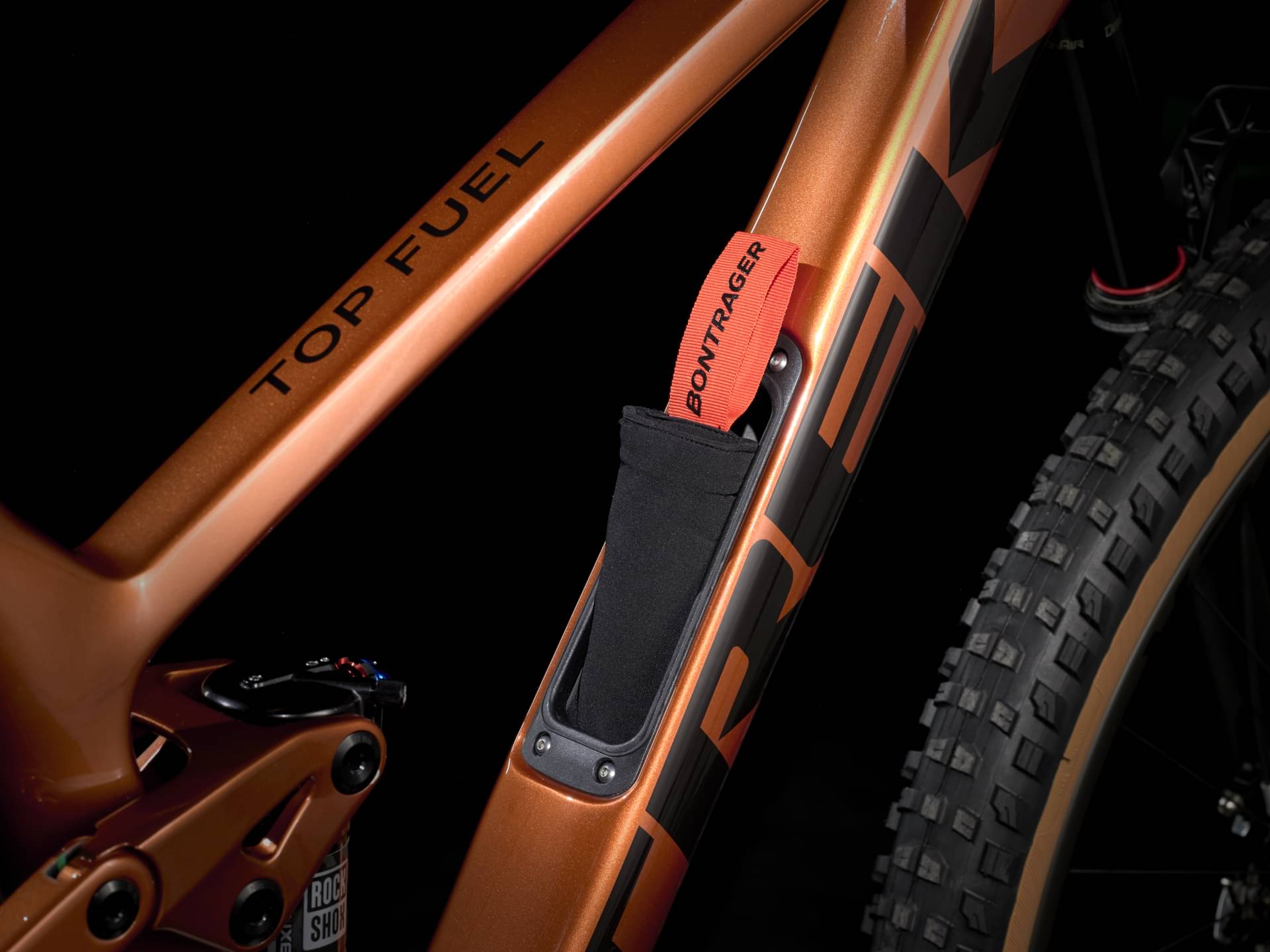

OCLV Mountain Carbon, internal storage, tapered head tube, Knock Block 2.0, internal guided routing, downtube guard, magnesium rocker link, Mino Link, ABP, Boost148, 120mm travel
Suspension Fork
RockShox Pike Ultimate, DebonAir spring, Charger 3 RC2 damper, 44mm offset, Boost110, Maxle Stealth, 130mm travel

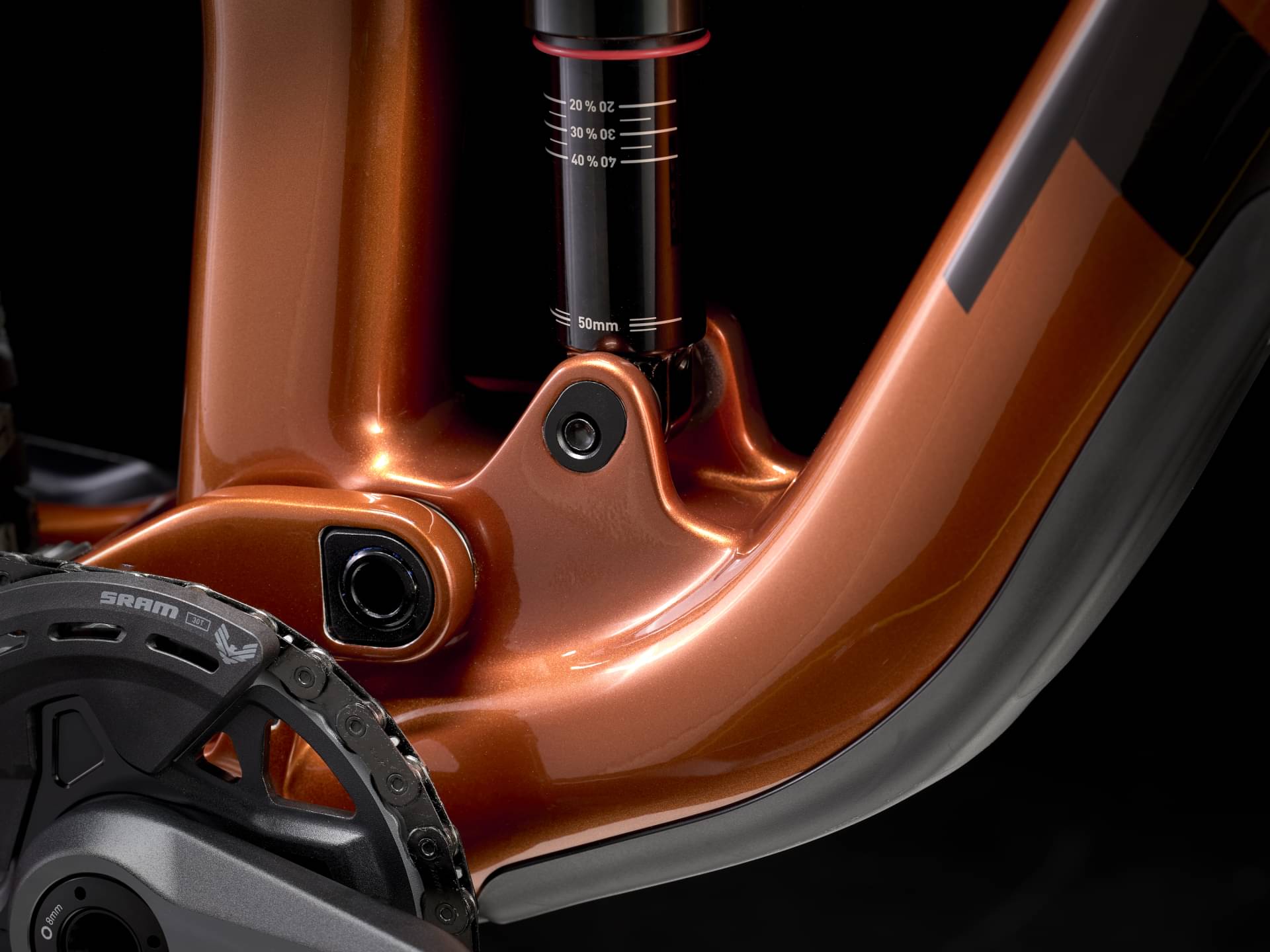

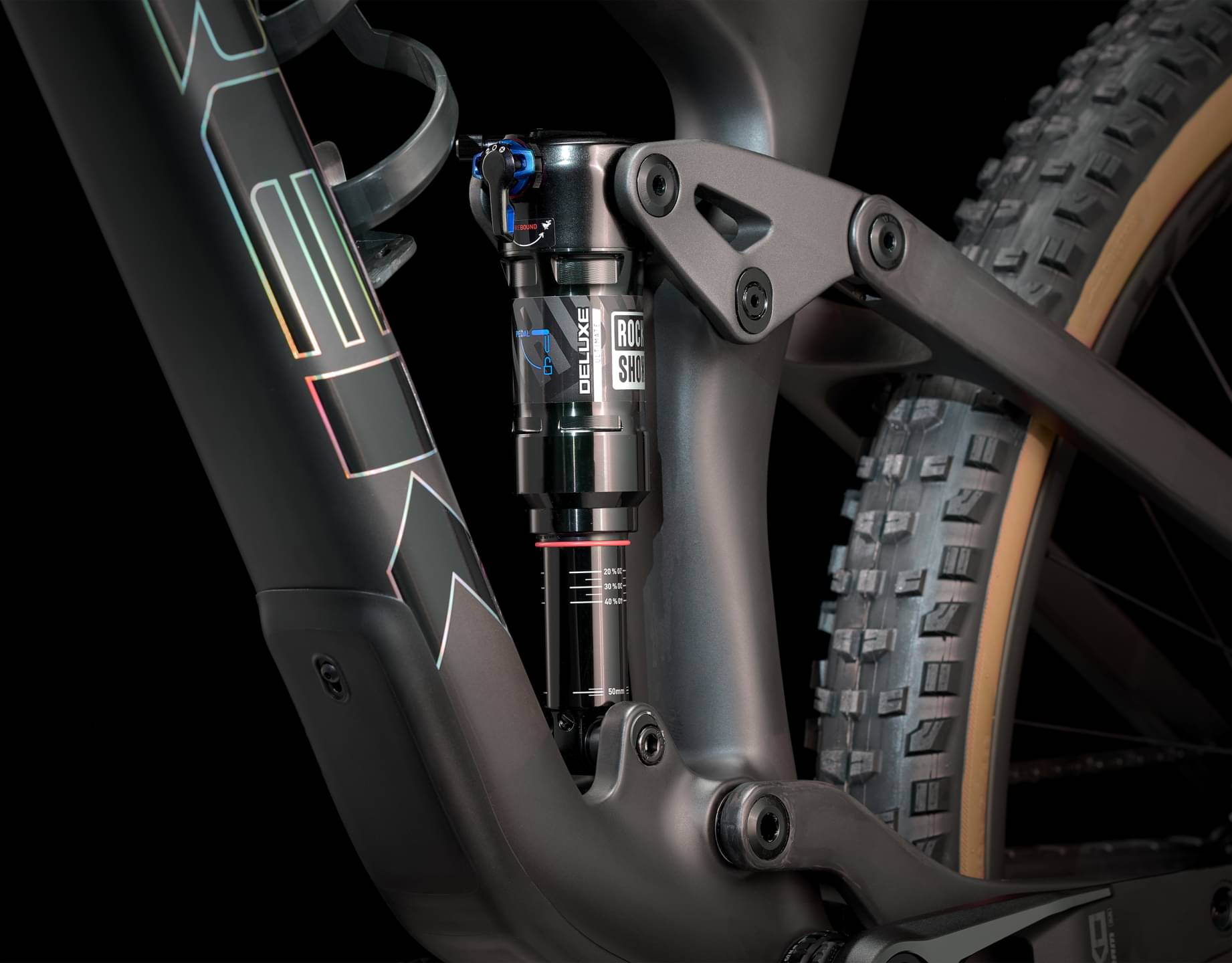

Rear Shock

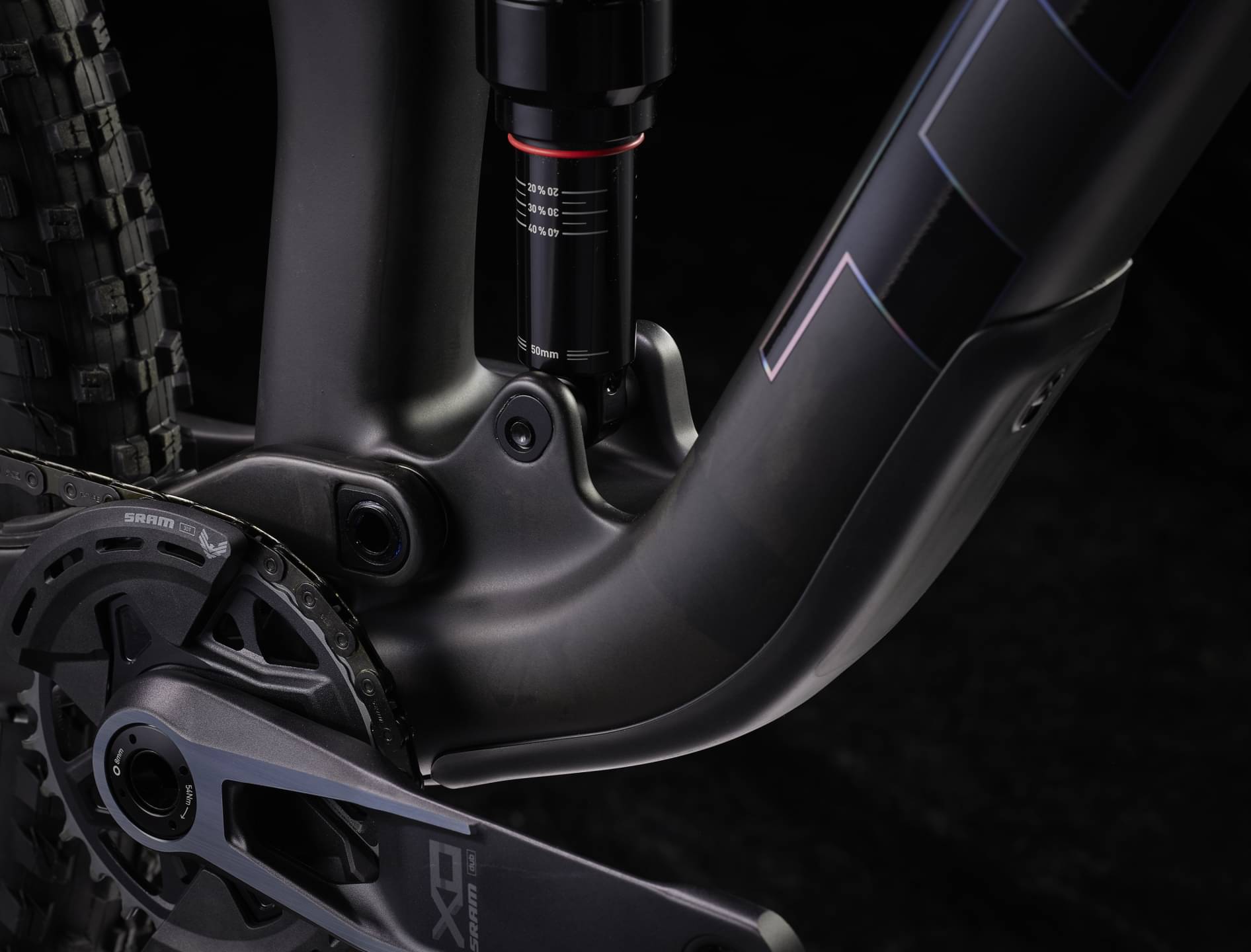

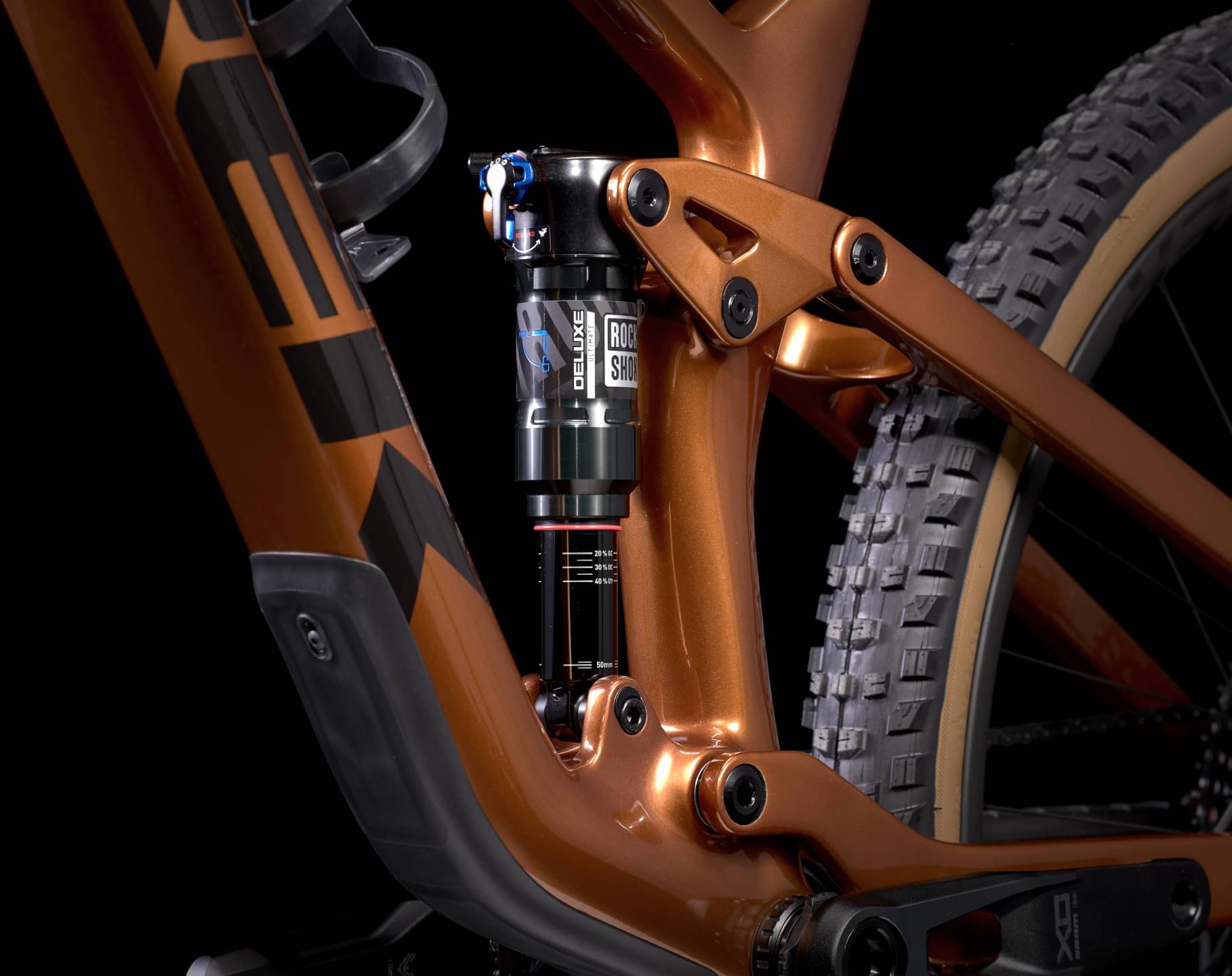

RockShox Deluxe Ultimate RCT, 185mm x 50mm
Drivetrain

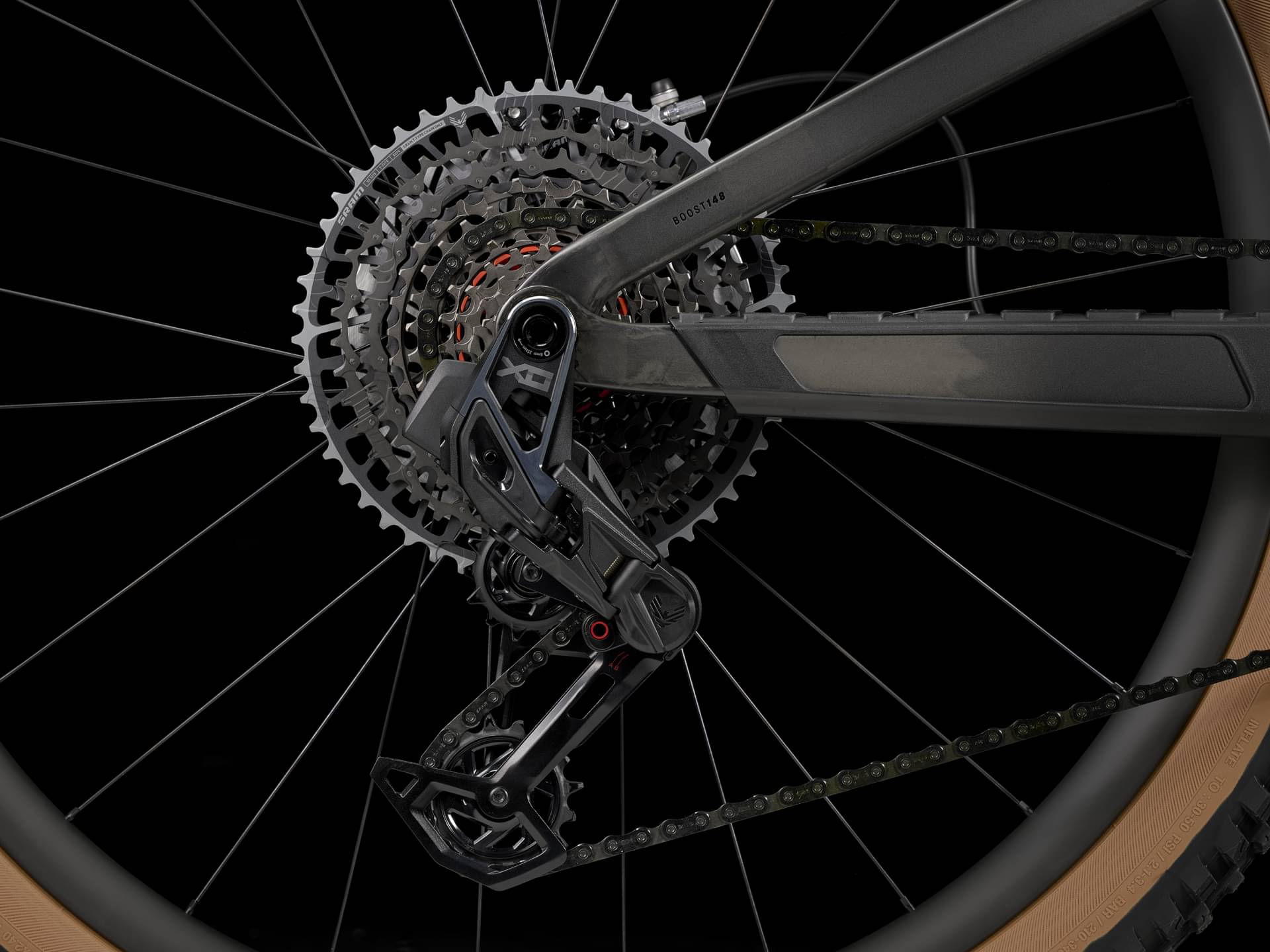

Rear Derailleur

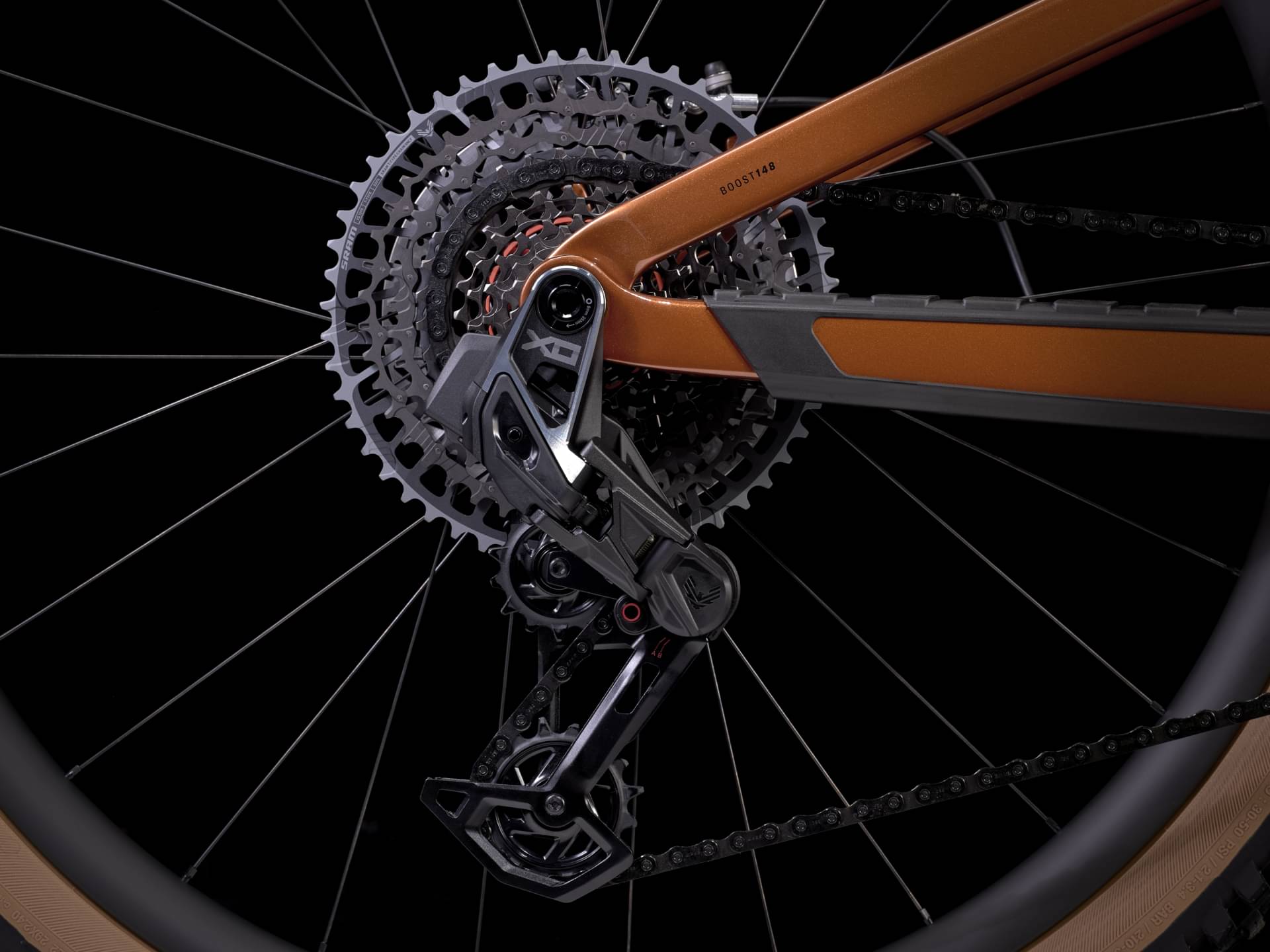

SRAM X0 Eagle AXS, T-Type
Shift Levers
SRAM AXS POD Ultimate
Cassette
SRAM Eagle XS-1295, T-Type, 10-52, 12 speed

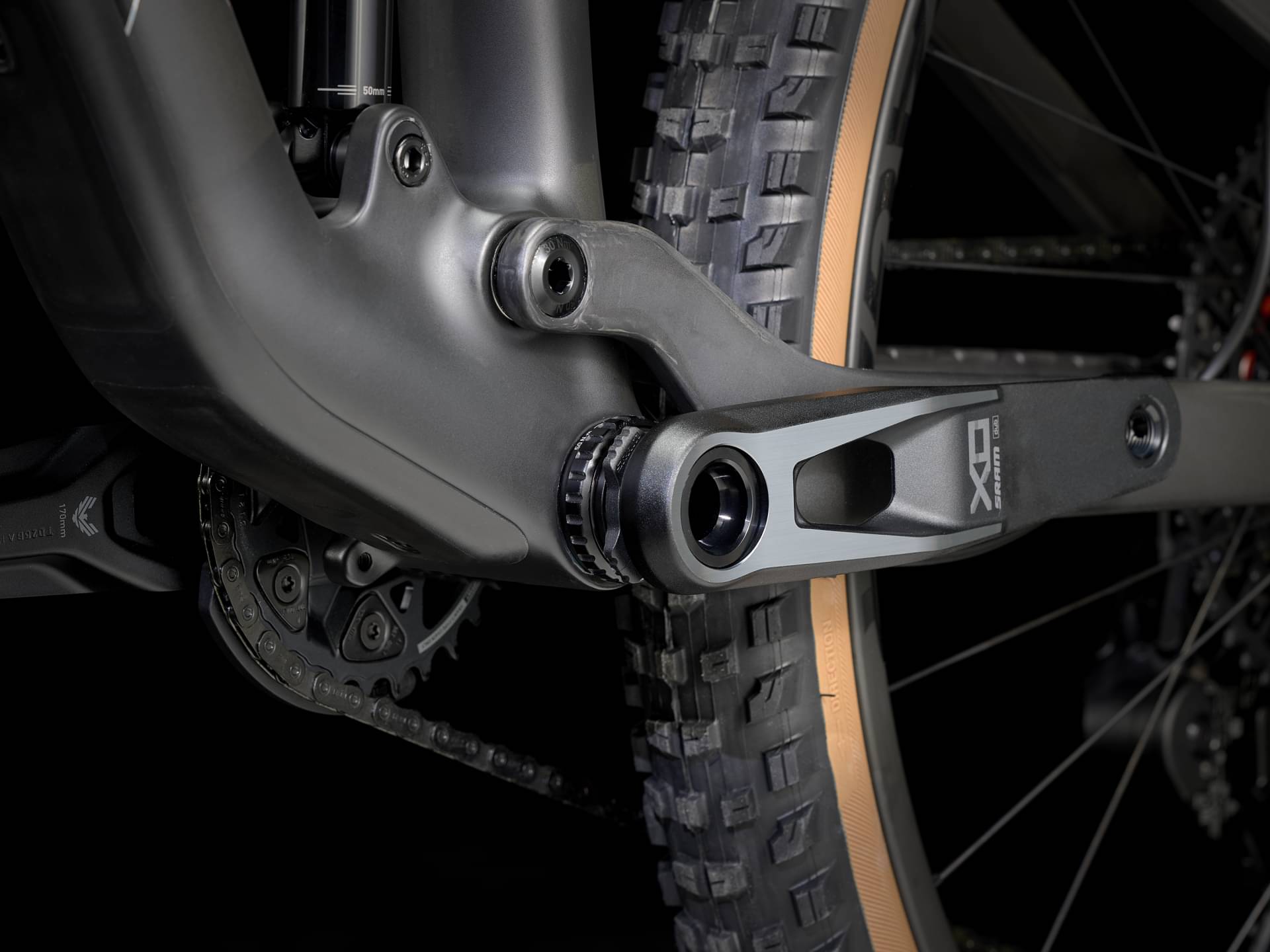

Crank

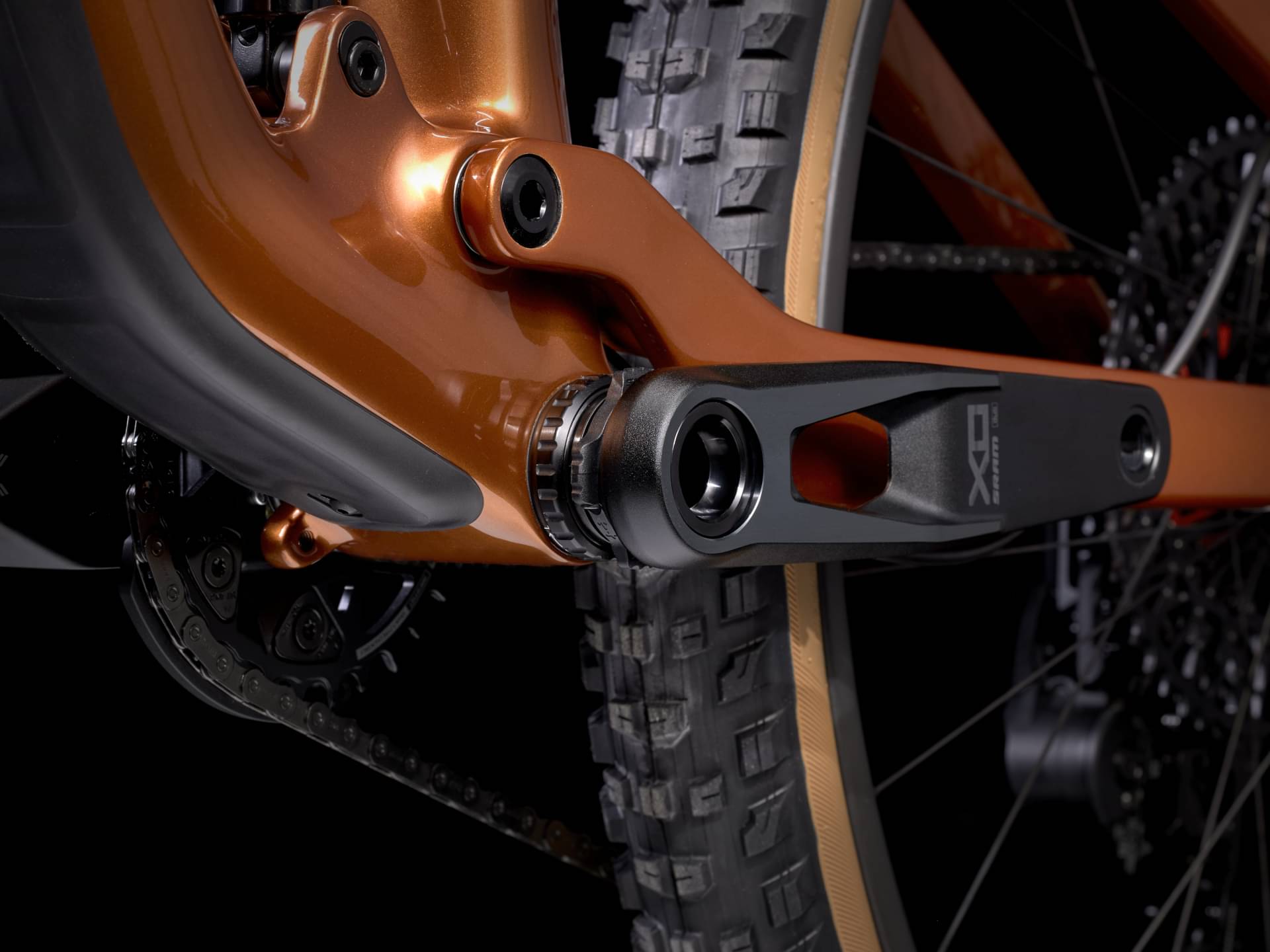

SRAM X0 Eagle, DUB, 30T, T-Type, 55mm chainline, 170mm length
Bottom Bracket
SRAM DUB MTB Wide, 73mm, BSA threaded
Chain
SRAM X0 Eagle, T-Type, 12 speed
Wheels
Rims
Front: Bontrager Line Pro 30, OCLV Mountain Carbon, Tubeless Ready, 6-bolt, Boost110, 15mm thru axle, Rear: Bontrager Line Pro 30, OCLV Mountain Carbon, Tubeless Ready, Rapid Drive 108, 6-bolt, SRAM XD driver, Boost148, 12mm thru axle

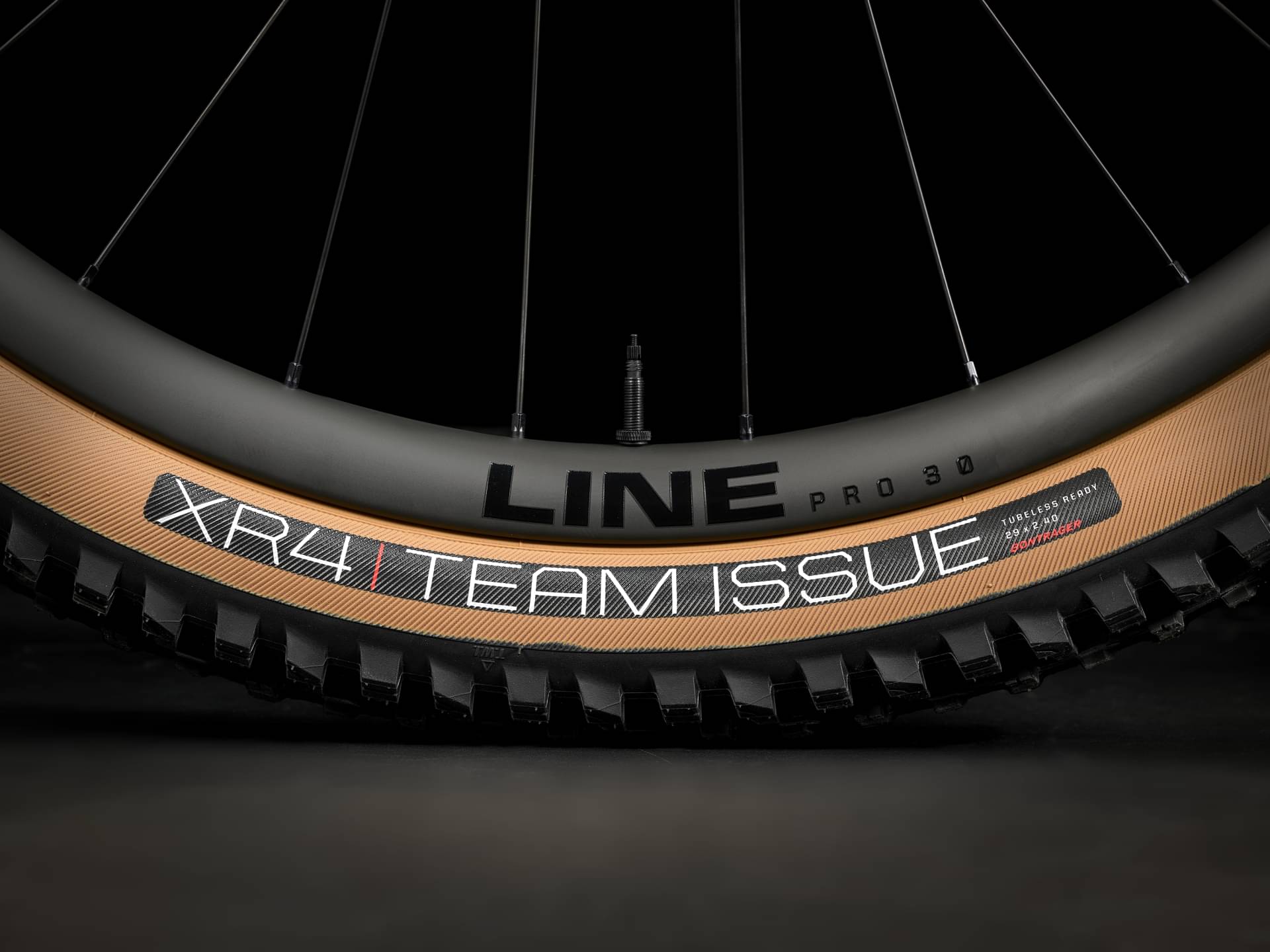

Tires
Bontrager XR4 Team Issue, Tubeless Ready, Inner Strength sidewalls, aramid bead, 120tpi, 29x2.40''

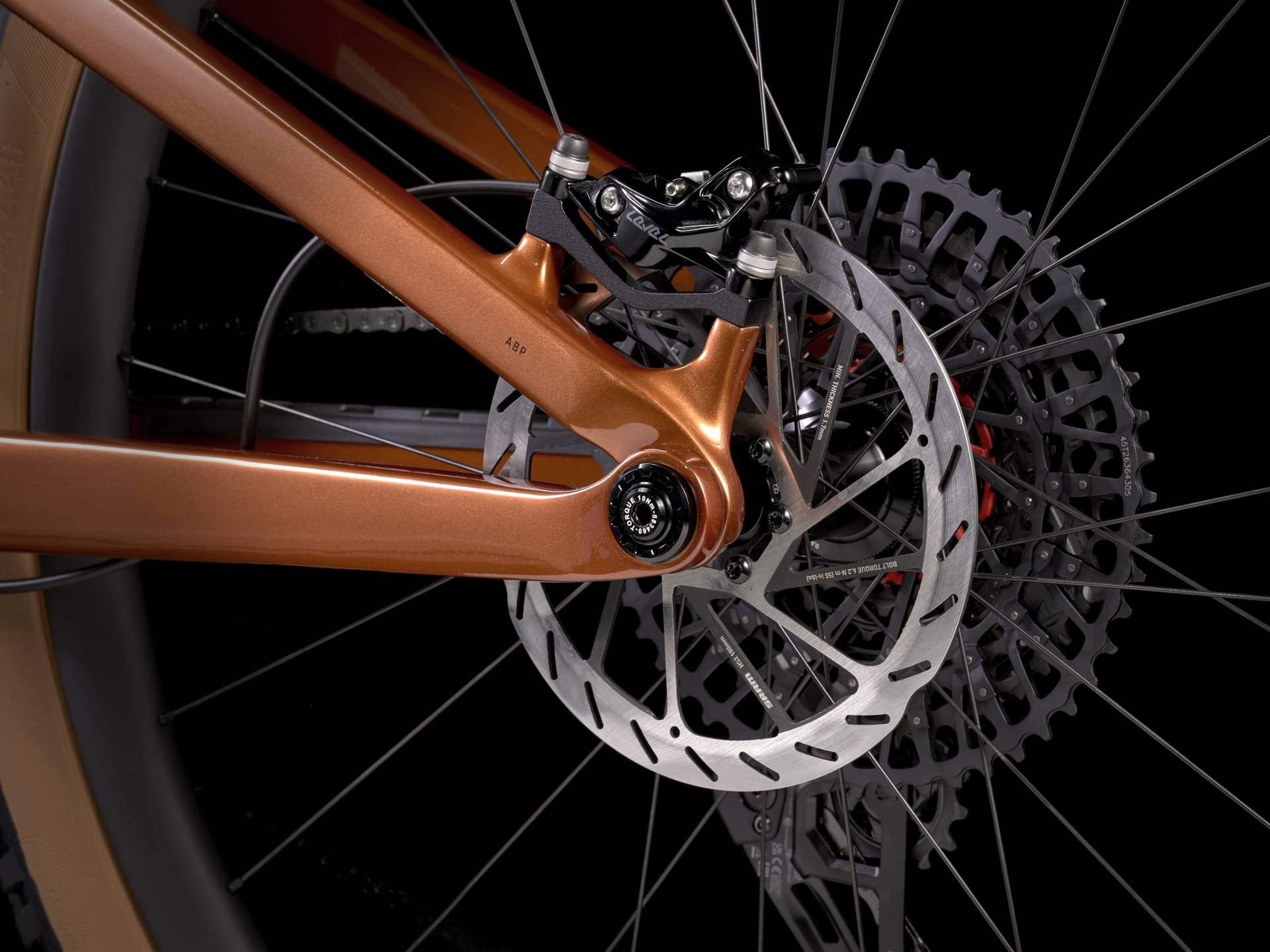

Brakes

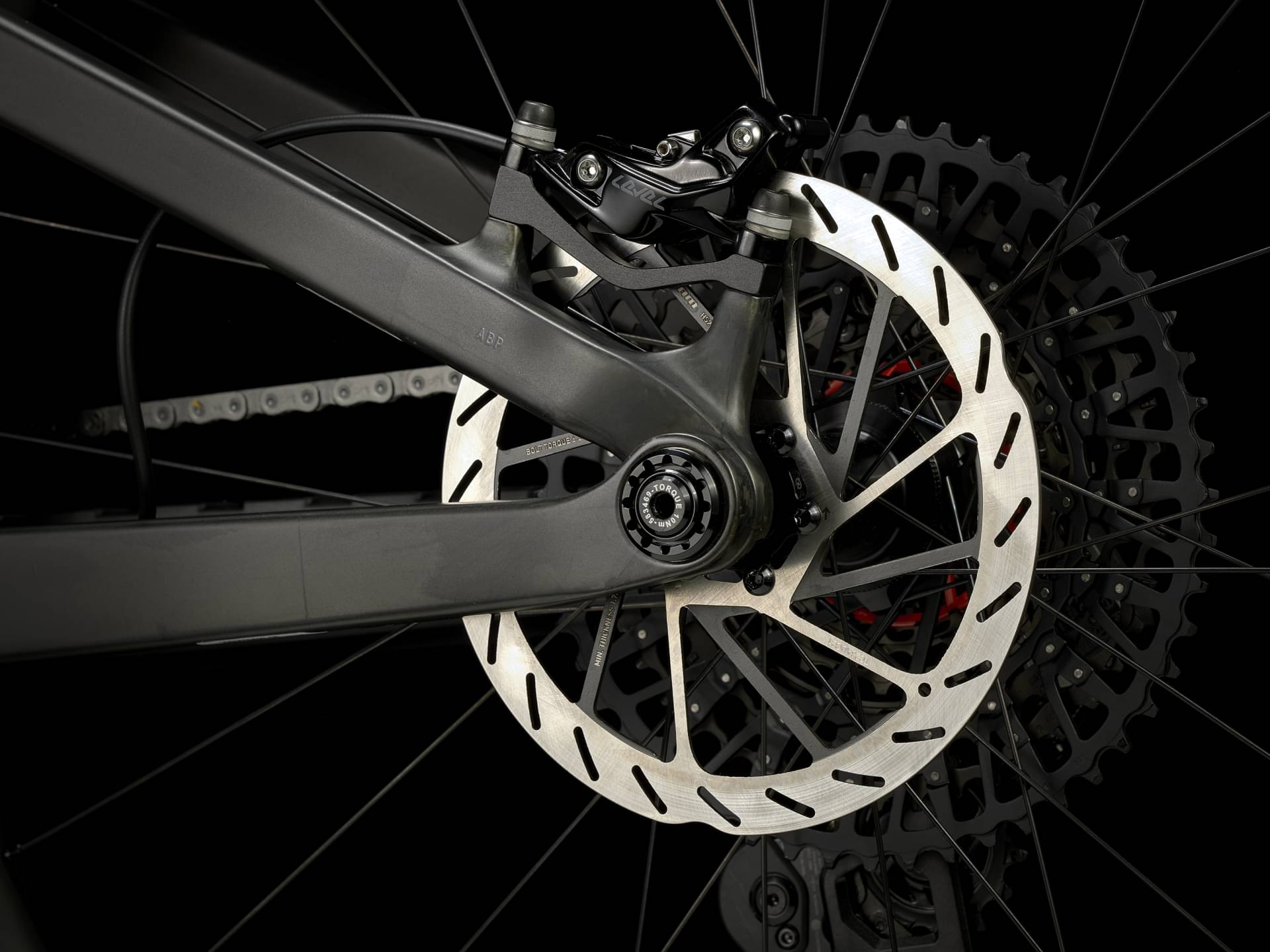

Brakes
SRAM Level Silver 4-piston hydraulic disc
Seat
Saddle
Bontrager Arvada, austenite rails, 138mm width
Seatpost
Size: S, RockShox Reverb AXS, 100mm travel, wireless, 34.9mm, 340mm length; Size: M, M/L, RockShox Reverb AXS, 150mm travel, wireless, 34.9mm, 440mm length; Size: L, XL, RockShox Reverb AXS, 170mm travel, wireless, 34.9mm, 480mm length
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 15.5" High | 15.5" Low | 17.5" High | 17.5" Low | 18.5" High | 18.5" Low | 19.5" High | 19.5" Low | 21.5" High | 21.5" Low |
|---|---|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.43 mm | 1.45 mm | 1.33 mm | 1.35 mm | 1.3 mm | 1.32 mm | 1.27 mm | 1.28 mm | 1.24 mm | 1.26 mm |
| Bottom Bracket Height | 346 mm | 341 mm | 346 mm | 341 mm | 346 mm | 341 mm | 346 mm | 341 mm | 346 mm | 341 mm |
| Front Center | 720 mm | 721 mm | 750 mm | 751 mm | 767 mm | 768 mm | 784 mm | 785 mm | 811 mm | 811 mm |
| Rake | 42 mm | 43 mm | 42 mm | 43 mm | 42 mm | 43 mm | 42 mm | 44 mm | 43 mm | 44 mm |
| Trail | 120 mm | 123 mm | 120 mm | 123 mm | 120 mm | 123 mm | 120 mm | 123 mm | 120 mm | 123 mm |
| Stack | 591 mm | 594 mm | 591 mm | 594 mm | 595 mm | 599 mm | 600 mm | 603 mm | 614 mm | 617 mm |
| Reach | 414 mm | 410 mm | 444 mm | 440 mm | 459 mm | 455 mm | 474 mm | 470 mm | 494 mm | 490 mm |
| Top Tube Length | 564 mm | 565 mm | 594 mm | 595 mm | 610 mm | 611 mm | 626 mm | 627 mm | 649 mm | 650 |
| Seat Tube Angle | 75.9 ° | 75.5 ° | 75.9 ° | 75.5 ° | 75.9 ° | 75.5 ° | 75.9 ° | 75.6 ° | 75.9 ° | 75.6 ° |
| Seat Tube Length | 395 mm | 395 mm | 420 mm | 420 mm | 435 mm | 435 mm | 450 mm | 450 mm | 500 mm | 500 mm |
| Head Tube Angle | 65.9 ° | 65.5 ° | 65.9 ° | 65.5 ° | 65.9 ° | 65.5 ° | 65.9 ° | 65.6 ° | 65.9 ° | 65.6 ° |
| Head Tube Length | 100 mm | 100 mm | 100 mm | 100 mm | 105 mm | 105 mm | 110 mm | 110 mm | 125 mm | 125 mm |
| Chainstay Length | 429 mm | 430 mm | 429 mm | 430 mm | 429 mm | 430 mm | 429 mm | 430 mm | 429 mm | 430 mm |
| Wheelbase | 1148 mm | 1149 mm | 1178 mm | 1179 mm | 1195 mm | 1196 mm | 1212 mm | 1213 mm | 1239 mm | 1239 mm |
| Bottom Bracket Drop | 27 mm | 32 mm | 27 mm | 33 mm | 27 mm | 33 mm | 27 mm | 33 mm | 27 mm | 33 mm |
| Standover Height | 719 mm | 714 mm | 739 mm | 734 mm | 744 mm | 739 mm | 749 mm | 744 mm | 759 mm | 754 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" |
Model Overview
Top Fuel 9.9 X0 AXS T-Type belongs to the Trek Top Fuel model. There are 123 bikes that carry this model name. You can get a glimpse at all models from 2024, by clicking on this link.
Model range prices
Trek Top Fuel 8 2024 is the most economical model, with a starting price of 3715$. Trek Top Fuel 9.9 XX AXS T-Type 2024 on the other hand costs 10999$, and is the most expensive model.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Trail bikes
Our math shows that the average cost of a dependable Trail bike is 2762$. However, even if your budget is less than the average, you might still be able to get a top-quality Trail bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
When Trek released this model in 2024, its price was 7999$. Doing a quick comparison, we notice that Top Fuel 9.9 X0 AXS T-Type price is 189.61% higher than the average cost of a Trail bike.
Trail bikes average weight
The average weight for Trail bikes is 12.88 kg (28.4 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
Weighing 12.95 kg (28.55 lbs), the Top Fuel 9.9 X0 AXS T-Type model is slightly heavier than average. In short, the average Trail bike weight is 0.54% lower than this one.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
Overview of components
Fork
The fork installed on this bike is the RockShox Pike Ultimate model. The travel on this model is 130mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Rear Shock
Trek Top Fuel 9.9 X0 AXS T-Type bike has the RockShox Deluxe Ultimate RCT model installed, and has a travel of 120mm. Rear shocks give you increased comfort, control, and traction, which is important when cornering or braking. This allows you to ride faster on bumpy roads. In short, if you want smooth rides, get a full-suspension bicycle.
Wheels size
The wheels on Top Fuel 9.9 X0 AXS T-Type are the 29″ carbon type. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, the 29″ wheels will add a little more weight to the bike itself.
Brakes
Nothing is more important on a bike than its ability to brake properly. Trek Top Fuel 9.9 X0 AXS T-Type is equipped with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
Dropper post
Trek Top Fuel 9.9 X0 AXS T-Type comes with a dropper post. A dropper post is a must-have these days if you’re riding anything remotely technical. The main benefit of a dropper post is increased safety while riding. As mentioned above, the lever system allows you to quickly move the saddle out of the way when approaching descents or trail obstacles.
