Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 26" -
Travel Front 100mm -
Travel Rear 100mm -
Groupset XT, SLX -
Suspension Full -
Drivetrain 3 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
15.5"
154cm - 169cm
17.5"
166cm - 180cm
18.5"
176cm - 188cm
19.5"
177cm - 189cm
21.5"
186cm - 196cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Alpha Silver Aluminum w/ABP Race, Full Floater, magnesium EVO Link, replaceable derailleur hanger, 100mm travel
Drivetrain
Rear Derailleur
Shimano Deore XT M780 Shadow
Front Derailleur
Shimano SLX
Shift Levers
Shimano SLX M660-10, 10 speed
Cassette
Shimano HG62-10 11-36, 10 speed
Crank
Custom Shimano M772, 42/32/24
Pedals
n/a
Wheels
Rims
Bontrager Race Lite TLR Disc wheel system, 15mm front hub, 135x5mm rear hub, 28 hole, center lock, Tubeless Ready
Tires
Bontrager XR1 Expert, 26x2.2"
Brakes
Brakes
Shimano SLX M666 hydraulic disc brakes
Cockpit
Stem
Bontrager Race Lite, 31.8mm
Handlebar
Bontrager Race Lite Low Riser, 31.8mm, 15mm rise, 9 degree sweep
Headset
FSA Orbit Z, 1-1/8" semi-integrated, sealed
Seat
Saddle
Bontrager Evoke 2, chromoly rails
Seatpost
Bontrager Rhythm Elite, 31.6mm, zero offset
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 15.5" | 17.5" | 18.5" | 19.5" | 21.5" |
|---|---|---|---|---|---|
| Wheels | 26" | 26" | 26" | 26" | 26" |
| Rider Min Height | 154 cm | 166 cm | 176 cm | 177 cm | 186 cm |
| Rider Max Height | 169 cm | 180 cm | 188 cm | 189 cm | 196 cm |
About this model

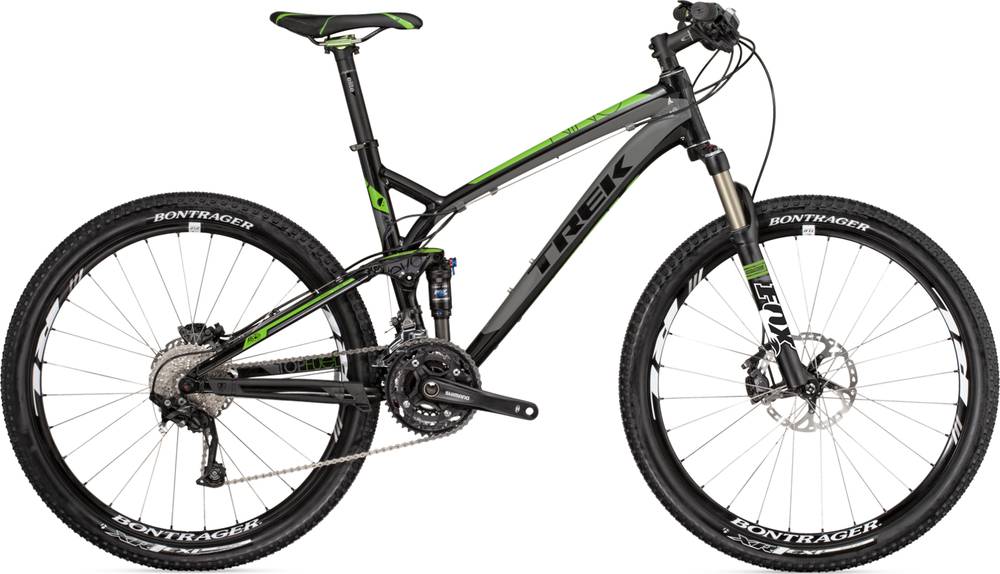

Top Fuel 9 E is a Trek Top Fuel model. There are 123 bikes that carry this model name. You can easily view all of the Trek Top Fuel bikes models from 2012, here.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Crosscountry bikes
If you want an acceptable Crosscountry bike you should know that the average price is 1905$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Crosscountry bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Overview of components
Rear Shock
Rear shocks give you increased comfort, control, and traction, which is important when cornering or braking. This allows you to ride faster on bumpy roads. In short, a full-suspension bike will give you the smoothest ride possible.
Wheels size
The Top Fuel 9 E 2012 bike is equipped with 26″ aluminum wheels when leaving the factory. The 26″ wheels are lighter than the 27.5 or 29″ wheels. However, they provide less traction than 29″ wheels do.
Brakes
For your safety, it is important to have quality breaks on your bike. Trek Top Fuel 9 E has Hydraulic Disc brakes installed. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
Sizes
Top Fuel 9 E comes in 5 sizes, that range from 154 cm – 196 cm (5.05 ft – 6.43 ft). In short, you can easily find one that suits you.
