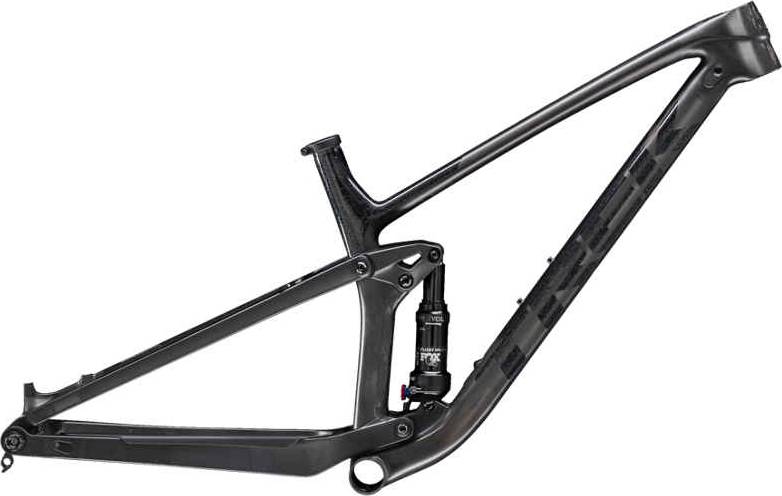

Trek Top Fuel C Frameset 2020
2020 Mountain
Estimate price |
3,299$
Weight | 2.15 kg
Bike details
Overview
Key information split into simple groups.
Frame summary
-
Category -
Frame Carbon -
Wheels 29" -
Travel Rear 115mm -
Suspension Full
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
OCLV Mountain Carbon main frame & stays, tapered head tube, Knock Block, Control Freak internal routing, Carbon Armor, magnesium rocker link, Mino Link, ABP, Boost148, 115mm travel
Cockpit
Stem
Bontrager Kovee Pro, 35mm, Knock Block, Blendr compatible, 13 degree
Headset
Knock Block Integrated, 58-degree radius, cartridge bearing, 1-1/8" top, 1.5" bottom
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM High | SM Low | MD High | MD Low | MD/LG High | MD/LG Low | LG High | LG Low | XL High | XL Low | XXL High | XXL Low |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.45 mm | 1.47 mm | 1.33 mm | 1.35 mm | 1.28 mm | 1.31 mm | 1.26 mm | 1.29 mm | 1.24 mm | 1.26 mm | 1.2 mm | 1.22 mm |
| Bottom Bracket Height | 343 mm | 337 mm | 343 mm | 337 mm | 343 mm | 337 mm | 343 mm | 337 mm | 343 mm | 337 mm | 343 mm | 337 mm |
| Front Center | 685 mm | 684 mm | 720 mm | 719 mm | 736 mm | 735 mm | 753 mm | 753 mm | 774 mm | 774 mm | 800 mm | 801 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm | 43 mm | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 103 mm | 107 mm | 103 mm | 107 mm | 103 mm | 107 mm | 103 mm | 107 mm | 103 mm | 107 mm | 103 mm | 107 mm |
| Stack | 584 mm | 588 mm | 584 mm | 588 mm | 584 mm | 588 mm | 593 mm | 597 mm | 602 mm | 606 mm | 611 mm | 616 mm |
| Reach | 404 mm | 399 mm | 439 mm | 434 mm | 455 mm | 450 mm | 469 mm | 464 mm | 486 mm | 481 mm | 509 mm | 504 mm |
| Top Tube Length | 557 mm | 558 mm | 592 mm | 593 mm | 608 mm | 609 mm | 624 mm | 626 mm | 644 mm | 645 mm | 669 mm | 671 mm |
| Seat Tube Angle | 75.5 ° | 75 ° | 75.5 ° | 75 ° | 75.5 ° | 75 ° | 75.5 ° | 75 ° | 75.5 ° | 75 ° | 75.5 ° | 75 ° |
| Seat Tube Length | 394 mm | 394 mm | 419 mm | 419 mm | 445 mm | 445 mm | 470 mm | 470 mm | 521 mm | 521 mm | 570 mm | 570 mm |
| Head Tube Angle | 68 ° | 67.5 ° | 68 ° | 67.5 ° | 68 ° | 67.5 ° | 68 ° | 67.5 ° | 68 ° | 67.5 ° | 68 ° | 67.5 ° |
| Head Tube Length | 90 mm | 90 mm | 90 mm | 90 mm | 90 mm | 90 mm | 100 mm | 100 mm | 110 mm | 110 mm | 120 mm | 120 mm |
| Chainstay Length | 428 mm | 429 mm | 428 mm | 429 mm | 428 mm | 429 mm | 428 mm | 429 mm | 428 mm | 429 mm | 428 mm | 429 mm |
| Wheelbase | 1111 mm | 1111 mm | 1146 mm | 1146 mm | 1162 mm | 1162 mm | 1179 mm | 1180 mm | 1200 mm | 1201 mm | 1227 mm | 1228 mm |
| Bottom Bracket Drop | 30 mm | 36 mm | 30 mm | 36 mm | 30 mm | 36 mm | 29 mm | 36 mm | 29 mm | 36 mm | 29 mm | 36 mm |
| Standover Height | 725 mm | 719 mm | 720 mm | 714 mm | 735 mm | 729 mm | 745 mm | 739 mm | 765 mm | 759 mm | 780 mm | 774 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" |
Model Overview
Top Fuel C Frameset belongs to the Trek Top Fuel model. 123 frames variations carry this model name so far. Check out the entire range from 2020 of this model, by clicking this link.
Model range prices
Trek Top Fuel AL Frameset 2020 is the cheapest frame model and costs 1999$. Trek Top Fuel C Frameset 2020 is the most expensive one and costs 3299$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Crosscountry frames
If you want to purchase a solid Crosscountry frame, it is important to know that the average cost is 1689$. However, you could also get a good Crosscountry frame even if you pay a lower amount than the average price. To sum up, when you purchase your frame, make sure to check if it has reviews, and also do some components research.
At the moment of the release date, Trek Top Fuel C Frameset price was 3299$. If we compare this with the average Crosscountry frame cost we notice that the price is 95.32% higher.
Crosscountry frames average weight
Crosscountry frames have an average weight of 2.04 kg (4.5 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
With a weight of 2.15 kg (4.74 lbs), Trek frame is a bit heavier than average. In conclusion, the average Crosscountry frame weighs 5.39% less than Top Fuel C Frameset.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
Top Fuel C Frameset components
Rear Shock
Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. In short, a full-suspension bike will give you the smoothest ride possible.
