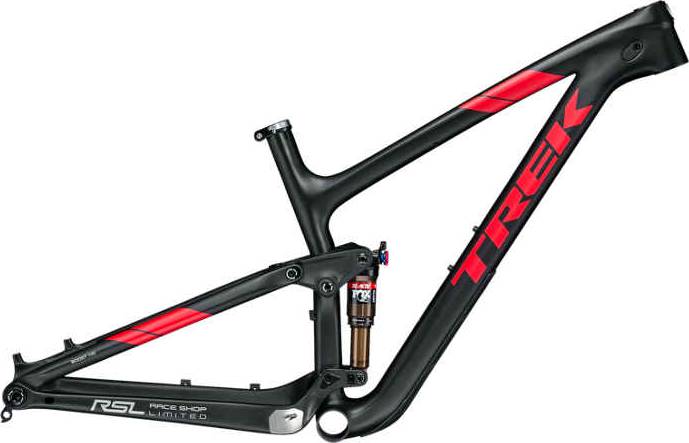

Trek Top Fuel Frameset 2018
2018 Mountain
Estimate price |
2,999$
Weight | 2.09 kg
Bike details
Overview
Key information split into simple groups.
Frame summary
-
Category -
Frame Carbon -
Wheels 29" -
Travel Rear 100mm -
Suspension Full
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
OCLV Mountain Carbon main frame & stays, ABP, Full Floater, EVO link, E2 tapered head tube, Mino Link, MicroTruss, Control Freak internal routing, Carbon Armor, PF92, Boost148 & G2 Geometry on 29ers, 100mm travel
Drivetrain
Bottom Bracket
BB86/BB92, press-fit
Cockpit
Headset
FSA IS-2, 1-1/8? top, 1.5? bottom
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM Low |
|---|---|
| Stack Reach Ratio | 1.44 mm |
| Bottom Bracket Height | 330 mm |
| Front Center | 638 mm |
| Rake | 48 mm |
| Trail | 80 mm |
| Stack | 555 mm |
| Reach | 386 mm |
| Top Tube Length | 547 mm |
| Seat Tube Angle | 73.5 ° |
| Seat Tube Length | 394 mm |
| Head Tube Angle | 70 ° |
| Head Tube Length | 100 mm |
| Chainstay Length | 421 mm |
| Wheelbase | 1058 mm |
| Bottom Bracket Drop | 25 mm |
| Standover Height | 741 mm |
| Wheels | 29" |
About this model
Top Fuel Frameset is a Trek Top Fuel model. 123 frames variations carry this model name so far. Check out the entire range from 2018 of this model, by clicking this link.
Model range prices
Trek Top Fuel AL Frameset 2018 is the most economical model, with a starting price of 1889$. Trek Top Fuel Frameset 2018 on the other hand costs 2999$, and is the most expensive model.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Crosscountry frames
If you want to purchase a solid Crosscountry frame, it is important to know that the average cost is 1689$. However, even if your budget is less than the average, you might still be able to get a top-quality Crosscountry frame. In conclusion, always check frame reviews and their components before making a purchase to make sure you don’t overpay.
At the moment of the release date, Trek Top Fuel Frameset price was 2999$. Comparing the average cost of a Crosscountry frame to this one, you will see that Top Fuel Frameset price is 77.56% higher.
Average weight for Crosscountry frames
If we make a quick analysis of the average weight of a Crosscountry frame, we get 2.04 kg (4.5 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
slightly heavier than average, Top Fuel Frameset has a weight of 2.09 kg (4.61 lbs). To sum up, it’s 2.45% heavier than the average weight of Crosscountry frames.
Internal Cable Routing
Another thing to mention, is the internal cable routing of this bike. In conclusion, this helps you too, keep the bike cables in mint condition, and also it looks better. No more cables, surrounding the bike.
Top Fuel Frameset components
Rear Shock
Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. In conclusion, to increase your riding experience, get a bike with a rear shock if possible.
