Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 26" -
Groupset Deore, Acera -
Suspension Rigid -
Brakes Mechanical Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Gold Series 6061 T6 aluminum, G2 Geometry, butted DT, cold-forged dropouts & BB
Drivetrain
Rear Derailleur
Shimano Deore
Front Derailleur
Shimano Acera FD-M3103
Shift Levers
Shimano Acera ST-EF50-L
Cassette
SRAM PG830 11-32T, 8spd
Pedals
Wellgo ATB, boron axle, steel cage
Wheels
Rims
Shimano M65 CenterLock disc hubs, Bontrager Ranger rims, 32h
Tires
Bontrager Jones XR, 2.2 rear/2.25 front, wire bead
Brakes
Brakes
Shimano M416, mechanical disc, 160mm CenterLock rotors
Cockpit
Stem
Bontrager SSR, 10d rise
Handlebar
Bontrager SSR riser, 25mm rise, 620mm width, 6d backsweep
Headset
1-1/8" threadless, semi-integrated, semi-cartridge bearings
Seat
Saddle
Bontrager Race Lux
Seatpost
Bontrager SSR, micro adjust, 27.2
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Wheels | 26" | 26" | 26" | 26" | 26" |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
Model Overview

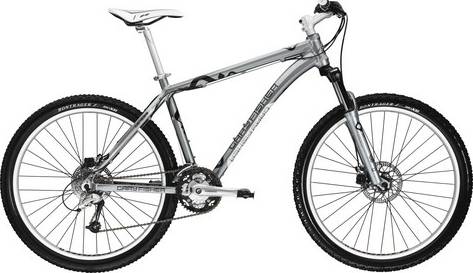

Wahoo Disc is a Trek Wahoo model. Trek launched 37 bikes of this model so far. Check out the entire range from 2009 of this model, by clicking this link.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Crosscountry bikes
Our math shows that the average cost of a dependable Crosscountry bike is 1905$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Crosscountry bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Overview of components
Wheels
As for the wheels, Trek Wahoo Disc 2009, has a 26″ aluminum model. Being a little smaller, these wheels will fit both small and tall riders. However, you will need increased suspension than in the case of 29″ wheels.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Mechanical Disc brakes. They deliver good performance and cost less than hydraulic disk brakes. However, performance-wise there is room for improvement.
Sizes
This bike is available in 5 sizes. They vary from 156 cm – 195 cm (5.12 ft – 6.4 ft). In conclusion, finding one for you shouldn’t be a problem.
