Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 26" -
Groupset X4, Altus -
Suspension Rigid -
Drivetrain 3 × 8 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Gold Series 6061 T6 aluminum, G2 geometry, butted and hydroformed tubing, cold-forged dropouts & bottom bracket
Drivetrain
Rear Derailleur
SRAM X.4
Front Derailleur
Shimano Altus
Shift Levers
SRAM X.4, 8 speed
Cassette
SRAM PG-820 11-32, 8 speed
Crank
Shimano Acera, 42/32/22
Pedals
Wellgo ATB, boron axle, alloy cage
Wheels
Rims
Formula DC20 front hub, Shimano M475 rear hub; Bontrager Ranger Disc 32-hole rims
Tires
Bontrager Jones XR, 26x2.2/2.25"
Brakes
Brakes
Promax 907 hydraulic disc brakes, 6-bolt; 160mm rotors
Cockpit
Stem
Bontrager SSR
Handlebar
Bontrager Low Riser, 25mm rise, 9 degree sweep
Headset
1-1/8" threadless, semi-integrated, semi-cartridge bearings
Seat
Saddle
Bontrager Evoke 1 WSD
Seatpost
Bontrager SSR, 27.2mm, 20mm offset
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 13" | 15.5" | 17.5" |
|---|---|---|---|
| Wheels | 26" | 26" | 26" |
About this model

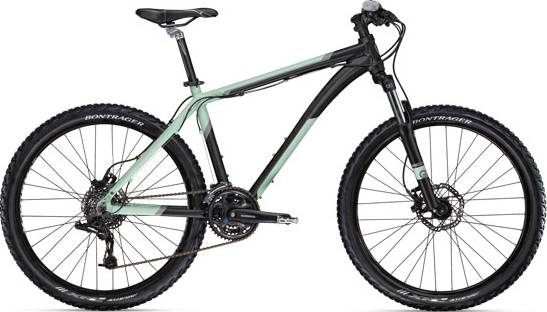

Wahoo WSD is part of the Trek Wahoo model. 37 bikes variations carry this model name so far. You can get a glimpse at all models from 2010, by clicking on this link.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Crosscountry bikes
If you want to purchase a solid Crosscountry bike, it is important to know that the average cost is 1905$. However, you could also get a good Crosscountry bike even if you pay a lower amount than the average price. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Wahoo WSD components
Wheels size
When leaving the production line, the Wahoo WSD model has 26″ aluminum wheels. The 26″ wheels are lighter than the 27.5 or 29″ wheels. However, they provide less traction than 29″ wheels do.
Brakes
Nothing is more important on a bike than its ability to brake properly. Trek Wahoo WSD is equipped with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
