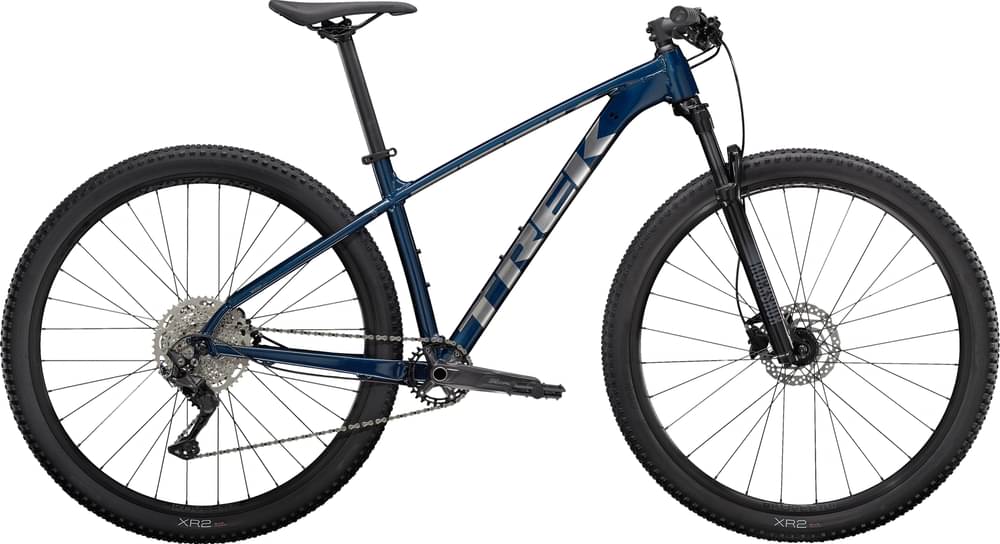

Trek X-Caliber 7 2021
2021 Mountain
Estimate price |
1,099$
Weight | 13.39 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 27.5" / 29" -
Travel Front 100mm -
Fork RockShox Judy
-
Groupset Deore -
Suspension Hardtail -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
153cm - 166cm
MD
161cm - 172cm
MD/LG
165cm - 179cm
LG
177cm - 188cm
XL
186cm - 197cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Alpha Gold Aluminum, tapered head tube, internal derailleur & dropper post routing, rack & kickstand mount, Boost141, 5mm QR
Suspension Fork
Size: S, RockShox Judy SL, Solo Air spring, TurnKey lockout, tapered steerer, 42mm offset, 100x5mm QR, 100mm travel; Size: M, M/L, L, XL, RockShox Judy SL, Solo Air spring, TurnKey lockout, tapered steerer, 46mm offset, 100x5mm QR, 100mm travel
Drivetrain
Rear Derailleur
Shimano Deore M5120, long cage
Shift Levers
Shimano Deore M4100, 10 speed
Cassette
Shimano Deore M4100, 11-46, 10 speed
Crank
Size: S, M, Shimano Deore M5100, 30T steel ring, Boost (52mm chainline), 170mm length; Size: M/L, L, XL, Shimano Deore M5100, 30T steel ring, Boost (52mm chainline), 175mm length
Chain
KMC X10, 10 speed
Wheels
Front Hub
Formula DC-20, alloy, 6-bolt, 100mm ThruSkew
Rear Hub
Formula DC-2241, alloy, 6-bolt, Shimano 8/9/10 freehub, Boost141, 5mm QR
Rims
Size: S, M, M/L, L, XL, Bontrager Kovee, double-wall, Tubeless Ready, 28-hole, 23mm width, presta valve; Size: S, M, M/L, L, XL, Bontrager Kovee, double-wall, Tubeless Ready, 32-hole, 23mm width, presta valve
Spokes
14g stainless steel
Tires
Size: S, Bontrager XR2 Comp, wire bead, 30 tpi, 27.5x2.20''; Size: M, M/L, L, XL, Bontrager XR2 Comp, wire bead, 30 tpi, 29x2.20''
Brakes
Brakes
Shimano MT200 hydraulic disc
Disk Rotors
Size: S, M, M/L, L, XL, Shimano RT26, 6-bolt,160mm; Size: L, XL, Shimano RT26, 6-bolt,180mm
Cockpit
Stem
Size: S, Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 60mm length; Size: M, Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 70mm length; Size: M/L, L, Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 80mm length; Size: XL, Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 90mm length
Handlebar
Bontrager alloy, 31.8mm, 5mm rise, 720mm width
Grips
Bontrager XR Trail Comp, nylon lock-on
Headset
Semi-integrated, loose ball bearing, 1-1/8'' top, 1.5'' bottom
Seat
Saddle
Bontrager Arvada, steel rails, 138mm width
Seatpost
Size: S, Bontrager alloy, 31.6mm, 12mm offset, 330mm length; Size: M, Bontrager alloy, 31.6mm, 12mm offset, 360mm length; Size: M/L, L, XL, Bontrager alloy, 31.6mm, 12mm offset, 400mm length
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | MD/LG | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.49 mm | 1.43 mm | 1.38 mm | 1.35 mm | 1.34 mm |
| Bottom Bracket Height | 302 mm | 311 mm | 310 mm | 310 mm | 310 mm |
| Front Center | 633 mm | 677 mm | 693 mm | 713 mm | 735 mm |
| Rake | 44 mm | 51 mm | 51 mm | 51 mm | 51 mm |
| Trail | 88 mm | 94 mm | 94 mm | 94 mm | 94 mm |
| Stack | 576 mm | 600 mm | 600 mm | 610 mm | 629 mm |
| Reach | 387 mm | 420 mm | 436 mm | 453 mm | 468 mm |
| Top Tube Length | 557 mm | 603 mm | 619 mm | 639 mm | 660 mm |
| Seat Tube Angle | 73.5 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 368 mm | 419 mm | 444 mm | 470 mm | 521 mm |
| Head Tube Angle | 69.3 ° | 69.5 ° | 69.5 ° | 69.5 ° | 69.5 ° |
| Head Tube Length | 90 mm | 90 mm | 90 mm | 100 mm | 120 mm |
| Chainstay Length | 427 mm | 440 mm | 440 mm | 440 mm | 440 mm |
| Wheelbase | 1055 mm | 1111 mm | 1127 mm | 1147 mm | 1169 mm |
| Bottom Bracket Drop | 48 mm | 58 mm | 58 mm | 58 mm | 58 mm |
| Standover Height | 726 mm | 750 mm | 759 mm | 759 mm | 770 mm |
| Wheels | 27" | 29" | 29" | 29" | 29" |
| Rider Min Height | 153 cm | 161 cm | 165 cm | 177 cm | 186 cm |
| Rider Max Height | 166 cm | 172 cm | 179 cm | 188 cm | 197 cm |
About this model
X-Caliber 7 belongs to the Trek X Caliber model. 60 bikes variations carry this model name so far. Take a sneak peek at all Trek X Caliber bikes models from 2021, by clicking here.
Model range prices
Trek X-Caliber 7 2021 is the most affordable bike of this model and has a price of 1099$. On the other hand, Trek X-Caliber 9 2021, is the most expensive and costs 1649$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Crosscountry bikes
If you want to purchase a solid Crosscountry bike, it is important to know that the average cost is 1905$. However, this doesn’t mean that if you spend less money on a Crosscountry bike, you couldn’t get a decent one. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
At the moment of the release date, Trek X-Caliber 7 price was 1099$. Comparing this to the average Crosscountry bike price, we see that the price is 73.34% smaller.
Crosscountry bikes average weight
On a deeper look, we notice that the average weight of a Crosscountry bike is 12.4 kg (27.34 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
Weighing 13.39 kg (29.52 lbs), the X-Caliber 7 model is a bit heavier than average. In short, the average Crosscountry bike weight is 7.98% lower than this one.
Internal Cable Routing
It’s also important to mention the internal cable routing that this bike has. In short, this will allow you to keep your bike cables in great condition. Say goodbye to hanging cables.
Overview of components
Fork
The fork installed on this bike is the RockShox Judy model. The travel on this model is 100mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Wheels
The wheels on X-Caliber 7 are the 27.5″ aluminum type. These wheels will provide you with more control over the bike. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
Sizes
There are 5 sizes available for this model. Rider height can be anywhere between 153 cm – 197 cm (5.02 ft – 6.46 ft). In conclusion, finding one for you shouldn’t be a problem.
