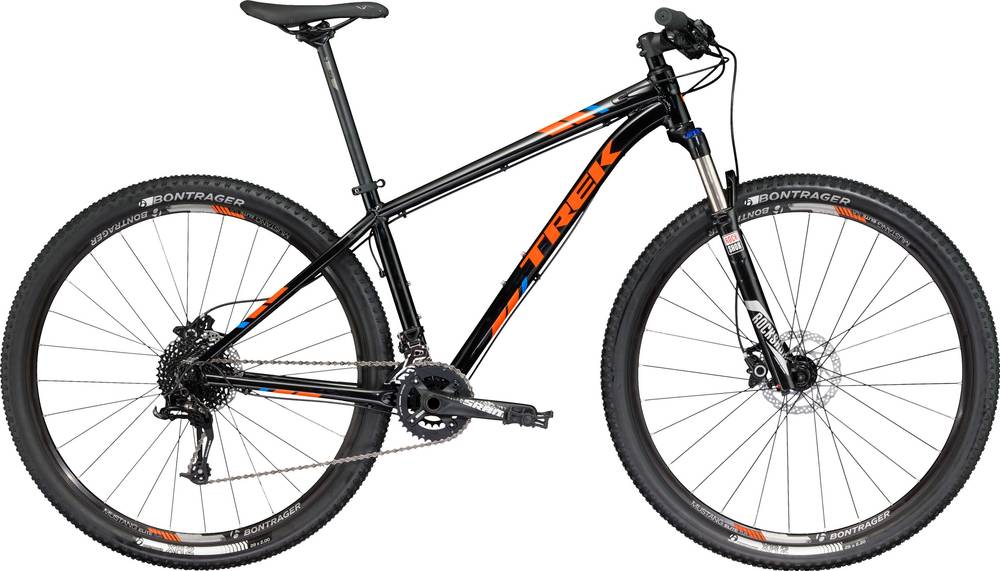

Trek X-Caliber 8 2017
2017 Mountain
Estimate price |
1,099$
Weight | 13.06 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 27.5" / 29" -
Travel Front 100mm -
Fork RockShox Recon Silver RL
-
Groupset GX, X7 -
Suspension Hardtail -
Drivetrain 2 × 10 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Alpha Gold Aluminum w/semi-integrated head tube, mechanically formed & butted tubing, race geometry, internal front derailleur routing, rack & fender mounts, G2 Geometry on 29ers
Suspension Fork
RockShox Recon Silver, coil spring, preload, rebound, TurnKey lockout, G2 Geometry w/51mm offset on 29ers, 100mm travel (13.5: 80mm travel)
Drivetrain
Rear Derailleur
SRAM GX
Front Derailleur
SRAM X7
Shift Levers
SRAM X5, 10 speed
Cassette
SRAM PG-1020, 11-36, 10 speed
Crank
SRAM S1000, 36/22
Bottom Bracket
Sealed cartridge
Chain
KMC X10
Pedals
Wellgo nylon platform
Wheels
Front Hub
Formula DC20 LW alloy
Rear Hub
Formula DC22 LW alloy
Rims
Bontrager Mustang Elite Tubeless Ready 28-hole
Tires
Bontrager XR2, 29x2.20" front, 29x2.00" rear (13.5 & 15.5: 27.5x2.20")
Brakes
Brakes
Shimano M315 hydraulic disc
Cockpit
Stem
Bontrager Elite, 31.8mm, 7 degree, Blendr compatible
Handlebar
Bontrager alloy, 31.8mm, 15mm rise
Grips
Bontrager Race
Headset
1-1/8" threadless, semi-integrated, semi-cartridge bearings
Seat
Saddle
Bontrager Evoke 1.5
Seatpost
Bontrager SSR, 2-bolt head, 27.2mm, 12mm offset
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 15.5" | 17.5" | 18.5" | 19.5" | 21.5" | 23" |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.54 mm | 1.46 mm | 1.41 mm | 1.36 mm | 1.36 mm | 1.32 mm |
| Bottom Bracket Height | 306 mm | 316 mm | 316 mm | 316 mm | 316 mm | 316 mm |
| Front Center | 632 mm | 676 mm | 688 mm | 704 mm | 725 mm | 739 mm |
| Rake | 44 mm | 51 mm | 51 mm | 51 mm | 51 mm | 51 mm |
| Trail | 87 mm | 85 mm | 83 mm | 83 mm | 83 mm | 83 mm |
| Stack | 579 mm | 594 mm | 595 mm | 595 mm | 614 mm | 614 mm |
| Reach | 375 mm | 407 mm | 422 mm | 438 mm | 452 mm | 466 mm |
| Top Tube Length | 554 mm | 596 mm | 614 mm | 633 mm | 653 mm | 667 mm |
| Seat Tube Angle | 73 ° | 72.5 ° | 72.3 ° | 72 ° | 72 ° | 72 ° |
| Seat Tube Length | 394 mm | 419 mm | 444 mm | 470 mm | 521 mm | 559 mm |
| Head Tube Angle | 69.3 ° | 69.3 ° | 69.6 ° | 69.6 ° | 69.6 ° | 69.6 ° |
| Head Tube Length | 100 mm | 100 mm | 100 mm | 100 mm | 120 mm | 120 mm |
| Chainstay Length | 432 mm | 439 mm | 439 mm | 439 mm | 439 mm | 439 mm |
| Wheelbase | 1060 mm | 1110 mm | 1122 mm | 1138 mm | 1159 mm | 1173 mm |
| Bottom Bracket Drop | 48 mm | 53 mm | 53 mm | 53 mm | 53 mm | 53 mm |
| Standover Height | 739 mm | 759 mm | 771 mm | 783 mm | 819 mm | 842 mm |
| Wheels | 27" | 29" | 29" | 29" | 29" | 29" |
About this model
X-Caliber 8 is part of the Trek X Caliber model. There are 60 bikes that carry this model name. Check out the entire range from 2017 of this model, by clicking this link.
Model range prices
Trek X-Caliber 7 2017 is the most affordable bike of this model and has a price of 929$. On the other hand, Trek X-Caliber 9 2017, is the most expensive and costs 1279$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Crosscountry bikes average price
According to our math, the average price for a trustworthy Crosscountry bike is 1905$. However, even though the average price of a Crosscountry bike is lower, you might still be able to get a top-quality bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
At the moment of the release date, Trek X-Caliber 8 price was 1099$. If we compare this with the average Crosscountry bike cost we notice that the price is 73.34% lower.
Crosscountry bikes average weight
Crosscountry bikes weigh an average of 12.4 kg (27.34 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
With a weight of 13.06 kg (28.79 lbs), Trek bike is a bit heavier than average. In conclusion, the average Crosscountry bike weighs 5.32% less than X-Caliber 8.
Internal Cable Routing
It’s also important to mention the internal cable routing that this bike has. In short, this will allow you to keep your bike cables in great condition. Say goodbye to hanging cables.
X-Caliber 8 components
Fork
The X-Caliber 8 comes factory-installed with the RockShox Recon Silver RL fork. This has a travel range of 100mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels
When it comes to wheels, the X-Caliber 8 bike is equipped with the 27.5″ aluminum model. 27.5″ wheels are a mixture between 29″ wheels and 26″ wheels. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The X-Caliber 8 comes with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
