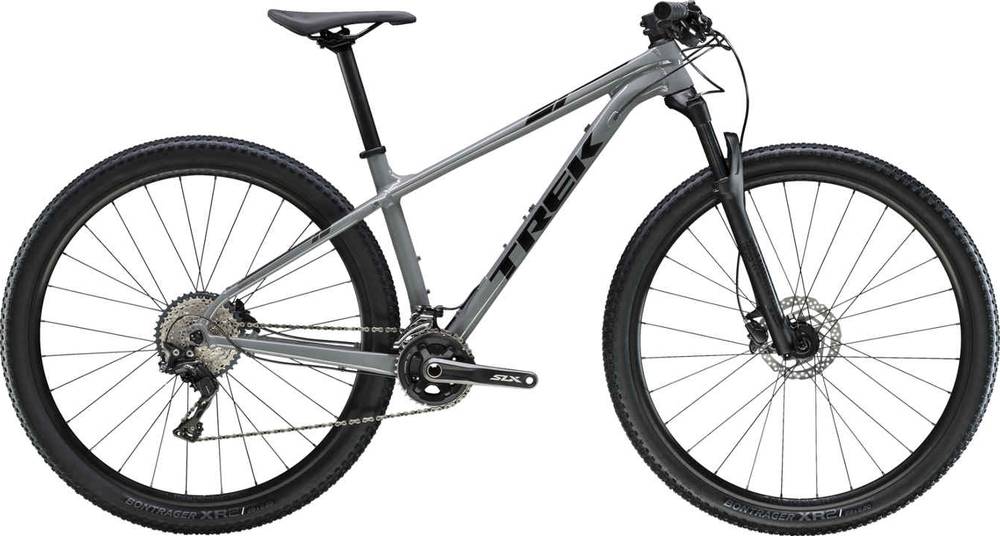

Trek X-Caliber 9 2019
2019 Mountain
Estimate price |
1,659$
Weight | 13.15 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 27.5" / 29" -
Travel Front 100mm -
Fork RockShox Judy Silver TK
-
Groupset XT, SLX -
Suspension Hardtail -
Drivetrain 2 × 11 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Alpha Gold Aluminum, tapered head tube, internal derailleur & dropper post routing, rack & kickstand mount, Boost141, G2 Geometry
Suspension Fork
RockShox Judy Silver TK, Solo Air spring, rebound adjust, Turnkey damper with remote lockout, tapered steerer, G2 Geometry w/51mm offset, Boost110, 100mm travel (13.5: 80mm travel)
Drivetrain
Rear Derailleur
Shimano Deore XT M8000, Shadow Plus
Front Derailleur
Shimano SLX M7020
Shift Levers
Shimano SLX M7000, 11 speed
Cassette
Shimano SLX M7000, 11-42, 11 speed
Crank
Shimano SLX M7000, 36/26
Bottom Bracket
Shimano BB52, 73mm
Chain
KMC X11-1
Wheels
Front Hub
Bontrager sealed bearing, alloy axle, Boost110
Rear Hub
Formula DC2641 sealed bearing, Boost141
Rims
Bontrager Kovee 28-hole Tubeless Ready, tubeless rim strips and valves sold separately
Tires
Bontrager XR2, 29x2.20? (13.5 & 15.5: 27.5x2.20?)
Brakes
Brakes
Shimano MT400 hydraulic disc
Cockpit
Stem
Bontrager Elite, 31.8mm, 7 degree, Blendr compatible
Handlebar
Bontrager alloy, 31.8mm, 5mm rise, 720mm width (13.5: 690mm width)
Grips
Bontrager XR Trail Comp, nylon lock-on
Headset
Sealed cartridge, 1-1/8? top, 1.5? bottom
Seat
Saddle
Bontrager Arvada
Seatpost
Bontrager alloy, 2-bolt head, 31.6mm, 12mm offset
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | MD/LG | LG | XL | XXL |
|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.52 mm | 1.51 mm | 1.45 mm | 1.39 mm | 1.36 mm | 1.36 mm | 1.32 mm |
| Bottom Bracket Height | 296 mm | 306 mm | 316 mm | 316 mm | 316 mm | 316 mm | 316 mm |
| Front Center | 618 mm | 634 mm | 678 mm | 694 mm | 715 mm | 737 mm | 751 mm |
| Rake | 44 mm | 44 mm | 51 mm | 51 mm | 52 mm | 52 mm | 52 mm |
| Trail | 87 mm | 87 mm | 86 mm | 86 mm | 86 mm | 86 mm | 86 mm |
| Stack | 560 mm | 569 mm | 594 mm | 594 mm | 603 mm | 622 mm | 622 mm |
| Reach | 369 mm | 378 mm | 410 mm | 426 mm | 443 mm | 458 mm | 472 mm |
| Top Tube Length | 532 mm | 558 mm | 592 mm | 608 mm | 628 mm | 649 mm | 663 mm |
| Seat Tube Angle | 73 ° | 71.7 ° | 72 ° | 72 ° | 72 ° | 72 ° | 72 ° |
| Seat Tube Length | 343 mm | 368 mm | 419 mm | 444 mm | 470 mm | 521 mm | 559 mm |
| Head Tube Angle | 69.2 ° | 69.2 ° | 69.3 ° | 69.3 ° | 69.3 ° | 69.3 ° | 69.3 ° |
| Head Tube Length | 90 mm | 90 mm | 90 mm | 90 mm | 100 mm | 120 mm | 120 mm |
| Chainstay Length | 419 mm | 419 mm | 432 mm | 432 mm | 432 mm | 432 mm | 432 mm |
| Wheelbase | 1030 mm | 1048 mm | 1104 mm | 1120 mm | 1141 mm | 1163 mm | 1177 mm |
| Bottom Bracket Drop | 58 mm | 48 mm | 58 mm | 58 mm | 58 mm | 58 mm | 58 mm |
| Standover Height | 702 mm | 722 mm | 737 mm | 731 mm | 747 mm | 745 mm | 767 mm |
| Wheels | 27" | 27" | 29" | 29" | 29" | 29" | 29" |
About this model
X-Caliber 9 is a Trek X Caliber model. 60 bikes variations carry this model name so far. You can get a glimpse at all models from 2019, by clicking on this link.
Model range prices
Trek X-Caliber 7 2019 is the most economical model, with a starting price of 1019$. Trek X-Caliber 9 2019 on the other hand costs 1659$, and is the most expensive model.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Crosscountry bikes average price
According to our calculations, the average cost of a Crosscountry bike that is reliable is 1905$. However, even though the average price of a Crosscountry bike is lower, you might still be able to get a top-quality bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
This bike was released in 2019 and its price was 1659$. Comparing this to the average Crosscountry bike price, we see that the price is 14.83% smaller.
Crosscountry bikes average weight
On a deeper look, we notice that the average weight of a Crosscountry bike is 12.4 kg (27.34 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
Weighing 13.15 kg (28.99 lbs), the X-Caliber 9 model is a bit heavier than average. In short, the average Crosscountry bike weight is 6.05% lower than this one.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
X-Caliber 9 components
Fork
Trek X-Caliber 9 2019 bike is equipped with the RockShox Judy Silver TK fork, and has 100mm travel. Bike forks are great for shock absorption and provide you with a smooth ride. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels
When leaving the production line, the X-Caliber 9 model has 27.5″ aluminum wheels. The 27.5″ wheels are a great choice for smaller riders. However, these wheels have a slower top speed if you compare them to 29″ wheels.
Brakes
For your safety, it is important to have quality breaks on your bike. Trek X-Caliber 9 has Hydraulic Disc brakes installed. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
