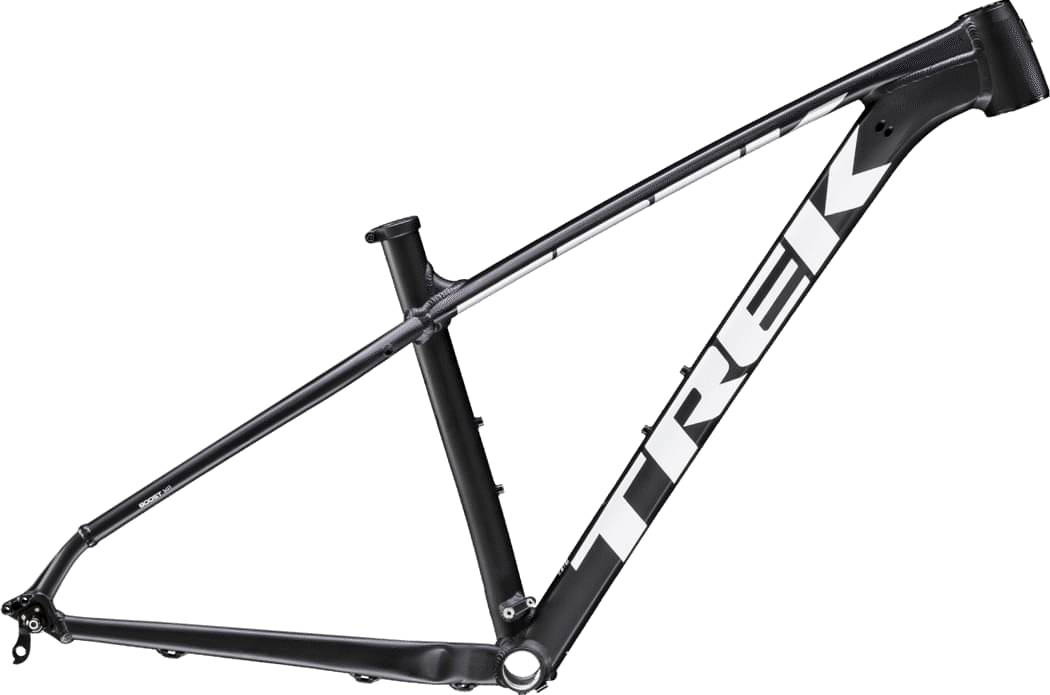

Trek X-Caliber Frameset 2021
2021 Mountain
Estimate price |
522$
Weight | 2.17 kg
Bike details
Overview
Key information split into simple groups.
Frame summary
-
Category -
Frame Aluminum -
Wheels 29"
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Alpha Gold Aluminium, tapered head tube, internal derailleur and dropper post routing, rack and kickstand mount, Boost141, 5 mm QR
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 13.5" | 15.5" | 17.5" |
|---|---|---|---|
| Stack Reach Ratio | 1.51 mm | 1.5 mm | 1.44 mm |
| Bottom Bracket Height | 292 mm | 302 mm | 311 mm |
| Front Center | 618 mm | 633 mm | 677 mm |
| Rake | 44 mm | 44 mm | 51 mm |
| Trail | 88 mm | 88 mm | 94 mm |
| Stack | 559 mm | 568 mm | 592 mm |
| Reach | 370 mm | 379 mm | 412 mm |
| Top Tube Length | 538 mm | 549 mm | 595 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73 ° |
| Seat Tube Length | 343 mm | 368 mm | 419 mm |
| Head Tube Angle | 69.3 ° | 69.3 ° | 69.5 ° |
| Head Tube Length | 90 mm | 90 mm | 90 mm |
| Chainstay Length | 419 mm | 419 mm | 432 mm |
| Wheelbase | 1030 mm | 1047 mm | 1103 mm |
| Bottom Bracket Drop | 58 mm | 48 mm | 58 mm |
| Standover Height | 692 mm | 718 mm | 742 mm |
| Wheels | 29" | 29" | 29" |
Model Overview
X-Caliber Frameset is a Trek X Caliber model. Trek released 60 frames variations of this model so far. You can get a glimpse at all models from 2021, by clicking on this link.
Model range prices
Trek X-Caliber Frameset 2021 is the most economical model, with a starting price of 477$. Trek X-Caliber Frame Set 2021 on the other hand costs 498$, and is the most expensive model.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Crosscountry frames average price
According to our math, the average price for a trustworthy Crosscountry frame is 1689$. However, this doesn’t mean that if you spend less money on a Crosscountry frame, you couldn’t get a decent one. In conclusion, always check frame reviews and their components before making a purchase to make sure you don’t overpay.
Furthermore, this bike was made available in 2021 for 477$. In conclusion, this frame price is 254.09% lower than the price of the average Crosscountry frame.
Crosscountry frames average weight
Crosscountry frames weigh an average of 2.04 kg (4.5 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
X-Caliber Frameset weighs 2.17 kg (4.78 lbs) and is a bit heavier than the average. In short, the average Crosscountry frame weight is 6.37% lower than this one.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
