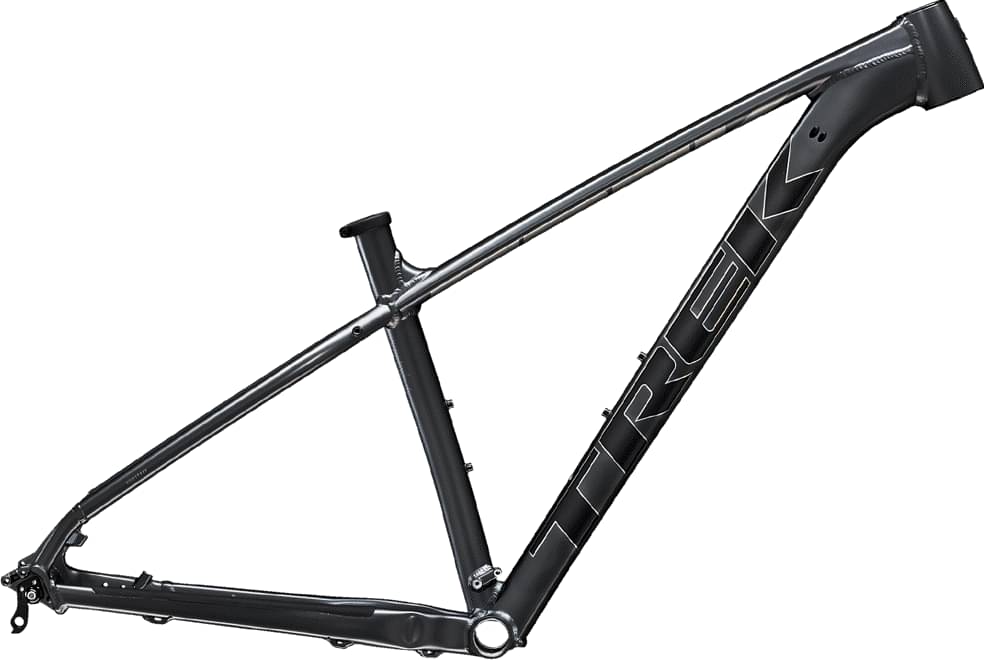

Trek X-Caliber Frameset 2022
2022 Mountain
Estimate price |
679$
Weight | 2.17 kg
Bike details
Overview
Key information split into simple groups.
Frame summary
-
Category -
Frame aluminium -
Wheels 29" -
Suspension Rigid
Sizing
Recommended size guide.
XS
137cm - 155cm
SM
153cm - 166cm
MD
161cm - 172cm
MD/LG
165cm - 179cm
LG
177cm - 188cm
XL
186cm - 197cm
XXL
194cm - 203cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminum frame
Cockpit
Headset
Semi-integrated, loose ball bearing, 1-1/8'' top, 1.5'' bottom
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | MD/LG | LG | XL | XXL |
|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.51 mm | 1.5 mm | 1.44 mm | 1.38 mm | 1.35 mm | 1.35 mm | 1.31 mm |
| Bottom Bracket Height | 292 mm | 302 mm | 311 mm | 310 mm | 310 mm | 310 mm | 311 mm |
| Front Center | 618 mm | 633 mm | 677 mm | 693 mm | 713 mm | 735 mm | 749 mm |
| Rake | 44 mm | 44 mm | 51 mm | 51 mm | 51 mm | 51 mm | 51 mm |
| Trail | 88 mm | 88 mm | 94 mm | 94 mm | 94 mm | 94 mm | 94 mm |
| Stack | 559 mm | 568 mm | 592 mm | 592 mm | 602 mm | 621 mm | 621 mm |
| Reach | 370 mm | 379 mm | 412 mm | 428 mm | 445 mm | 460 mm | 474 mm |
| Top Tube Length | 538 mm | 549 mm | 595 mm | 611 mm | 631 mm | 652 mm | 666 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 343 mm | 368 mm | 419 mm | 444 mm | 470 mm | 521 mm | 559 mm |
| Head Tube Angle | 69.3 ° | 69.3 ° | 69.5 ° | 69.5 ° | 69.5 ° | 69.5 ° | 69.5 ° |
| Head Tube Length | 90 mm | 90 mm | 90 mm | 90 mm | 100 mm | 120 mm | 120 mm |
| Chainstay Length | 419 mm | 419 mm | 432 mm | 432 mm | 432 mm | 432 mm | 432 mm |
| Wheelbase | 1030 mm | 1047 mm | 1103 mm | 1119 mm | 1139 mm | 1161 mm | 1175 mm |
| Bottom Bracket Drop | 58 mm | 48 mm | 58 mm | 58 mm | 58 mm | 58 mm | 58 mm |
| Standover Height | 692 mm | 718 mm | 742 mm | 751 mm | 751 mm | 762 mm | 798 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" | 29" | 29" |
| Rider Min Height | 137 cm | 153 cm | 161 cm | 165 cm | 177 cm | 186 cm | 194 cm |
| Rider Max Height | 155 cm | 166 cm | 172 cm | 179 cm | 188 cm | 197 cm | 203 cm |
Model Overview
X-Caliber Frameset belongs to the Trek X Caliber model. Trek launched 60 frames of this model so far. Take a sneak peek at all Trek X Caliber frames models from 2022, by clicking here.
Model range prices
Trek X-Caliber Frameset 2022 is the cheapest frame model and costs 679$. Trek X-Caliber Frame Set 2022 is the most expensive one and costs 851$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Crosscountry frames average price
Our math shows that the average cost of a dependable Crosscountry frame is 1689$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Crosscountry frame. As a general rule of thumb, you should always read reviews about the frame and its components before buying it to ensure you don’t pay too much.
At the moment of the release date, Trek X-Caliber Frameset price was 679$. In conclusion, this frame price is 148.75% lower than the price of the average Crosscountry frame.
Crosscountry frames average weight
If we make a quick analysis of the average weight of a Crosscountry frame, we get 2.04 kg (4.5 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
With a weight of 2.17 kg (4.78 lbs), Trek frame is a bit heavier than average. In conclusion, the average Crosscountry frame weighs 6.37% less than X-Caliber Frameset.
Overview of components
Sizes
This frame is available in 7 sizes. They vary from 137 cm – 203 cm (4.49 ft – 6.66 ft). In conclusion, it won’t take much to find one that’s right for you.
