Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 700c -
Groupset 105, Bontrager -
Suspension Rigid -
Drivetrain 2 × 10 -
Brakes Rim
Sizing
Recommended size guide.
47cm
151cm - 159cm
50cm
156cm - 164cm
52cm
161cm - 169cm
54cm
166cm - 175cm
56cm
172cm - 181cm
58cm
178cm - 186cm
60cm
183cm - 191cm
62cm
188cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Alpha Black Aluminum
Suspension Fork
Bontrager Satellite Plus, carbon
Drivetrain
Rear Derailleur
Shimano 105
Front Derailleur
Shimano 105
Shift Levers
Shimano 105 STI, 10 speed
Cassette
Shimano 105 12-27, 10 speed
Crank
Bontrager Race CX 46/38
Pedals
Shimano 505, clipless
Wheels
Rims
Bontrager Race
Tires
Bontrager Jones CXR, 700x34c, folding
Brakes
Brakes
Avid Shorty 4 cantilevers w/Shimano 105 STI levers
Cockpit
Stem
Bontrager Select, 7 degree, 31.8mm
Handlebar
Bontrager Select VR, 31.8mm
Headset
Aheadset w/cartridge bearings, integrated, sealed, alloy
Seat
Saddle
Bontrager Race Basic
Seatpost
Bontrager Carbon
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 47cm | 50cm | 52cm | 54cm | 56cm | 58cm | 60cm | 62cm |
|---|---|---|---|---|---|---|---|---|
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 151 cm | 156 cm | 161 cm | 166 cm | 172 cm | 178 cm | 183 cm | 188 cm |
| Rider Max Height | 159 cm | 164 cm | 169 cm | 175 cm | 181 cm | 186 cm | 191 cm | 195 cm |

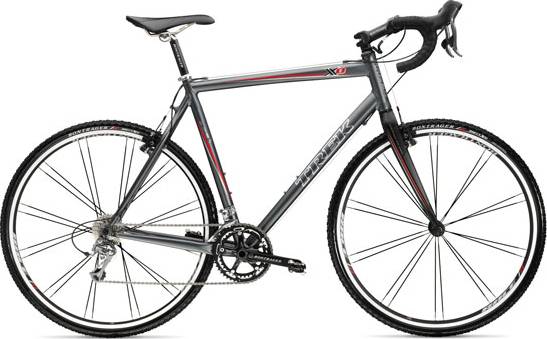

About this model
XO 1 is a Trek Xo model. Trek released 14 bikes variations of this model so far. You can easily view all of the Trek Xo bikes models from 2008, here.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
General Road bikes average price
According to our calculations, the average cost of a General Road bike that is reliable is 1915$. However, even if your budget is less than the average, you might still be able to get a top-quality General Road bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Overview of components
Fork material
The fork is made out of carbon, so, it won’t add up to much weight to your bike. However, the price you have to pay for a carbon fork is considerably higher.
Wheels
The wheels on XO 1 are the 700c aluminum type. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Rim brakes. Rim brakes are cheaper than hydraulic brakes, and also easier to maintain. However, you could spend a little extra and get a bike that has hydraulic brakes.
Sizes
There are 8 sizes available for this model. Rider height can be anywhere between 151 cm – 195 cm (4.95 ft – 6.4 ft). In short, it won’t be difficult to find the right one for you.
