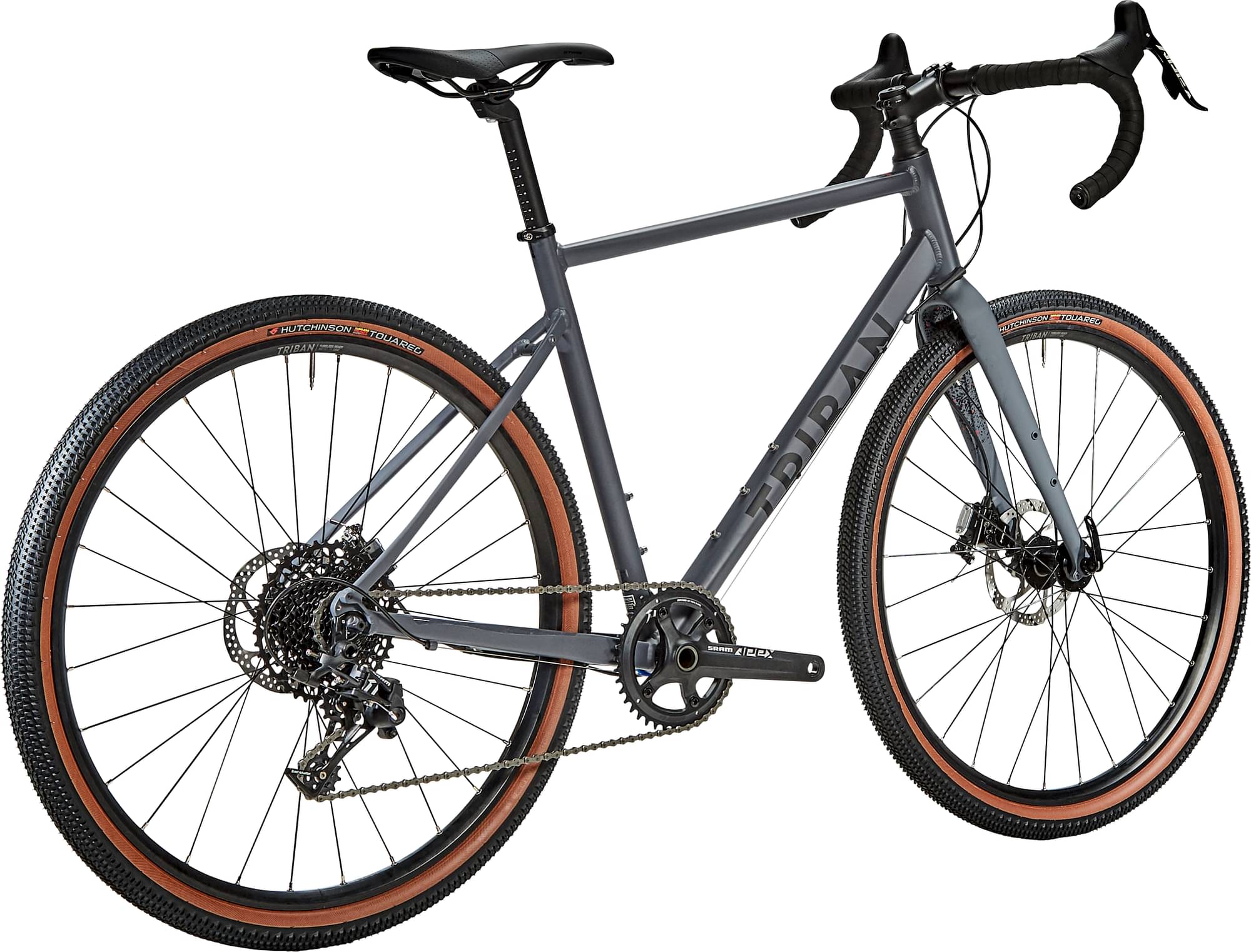

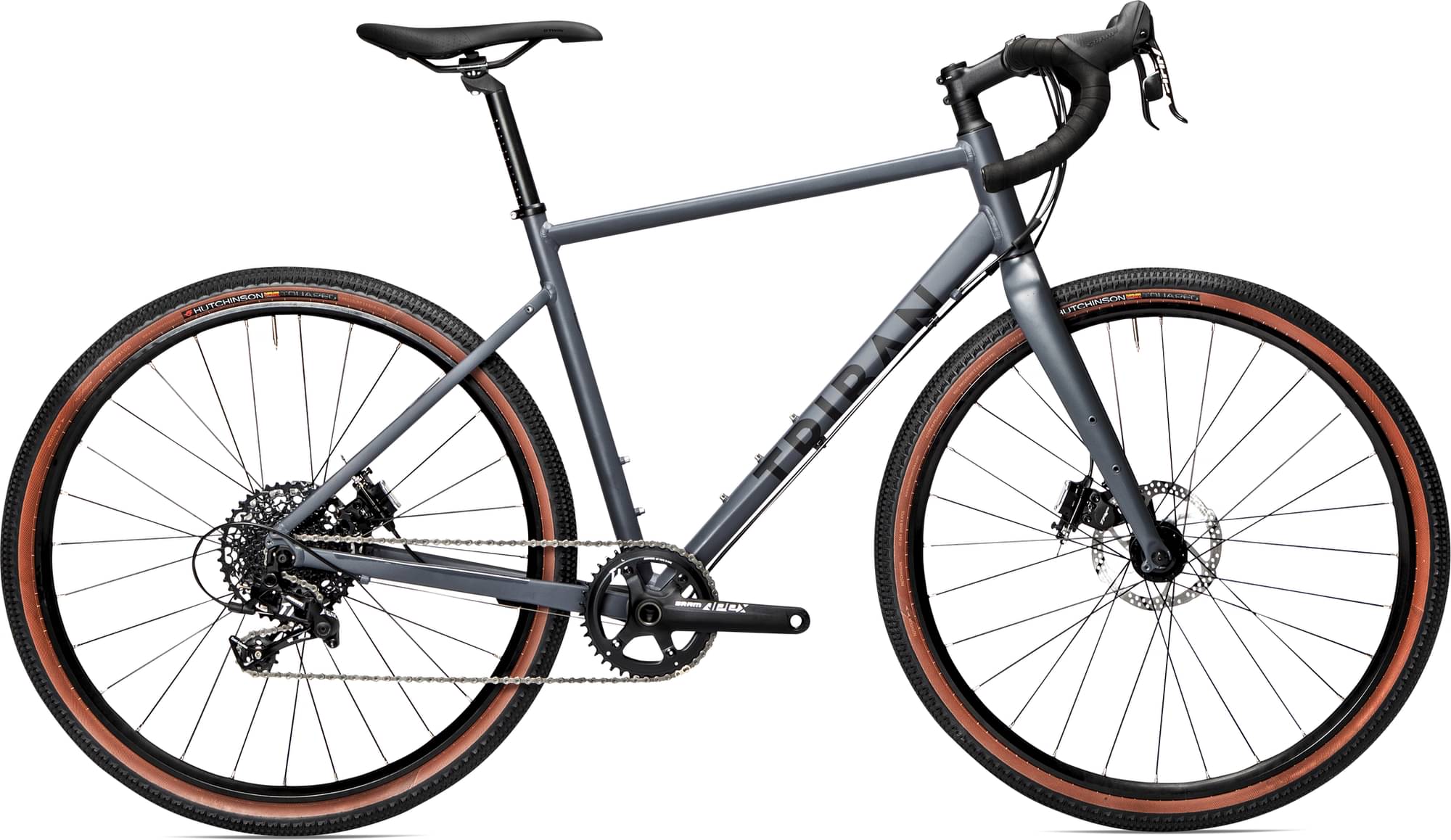

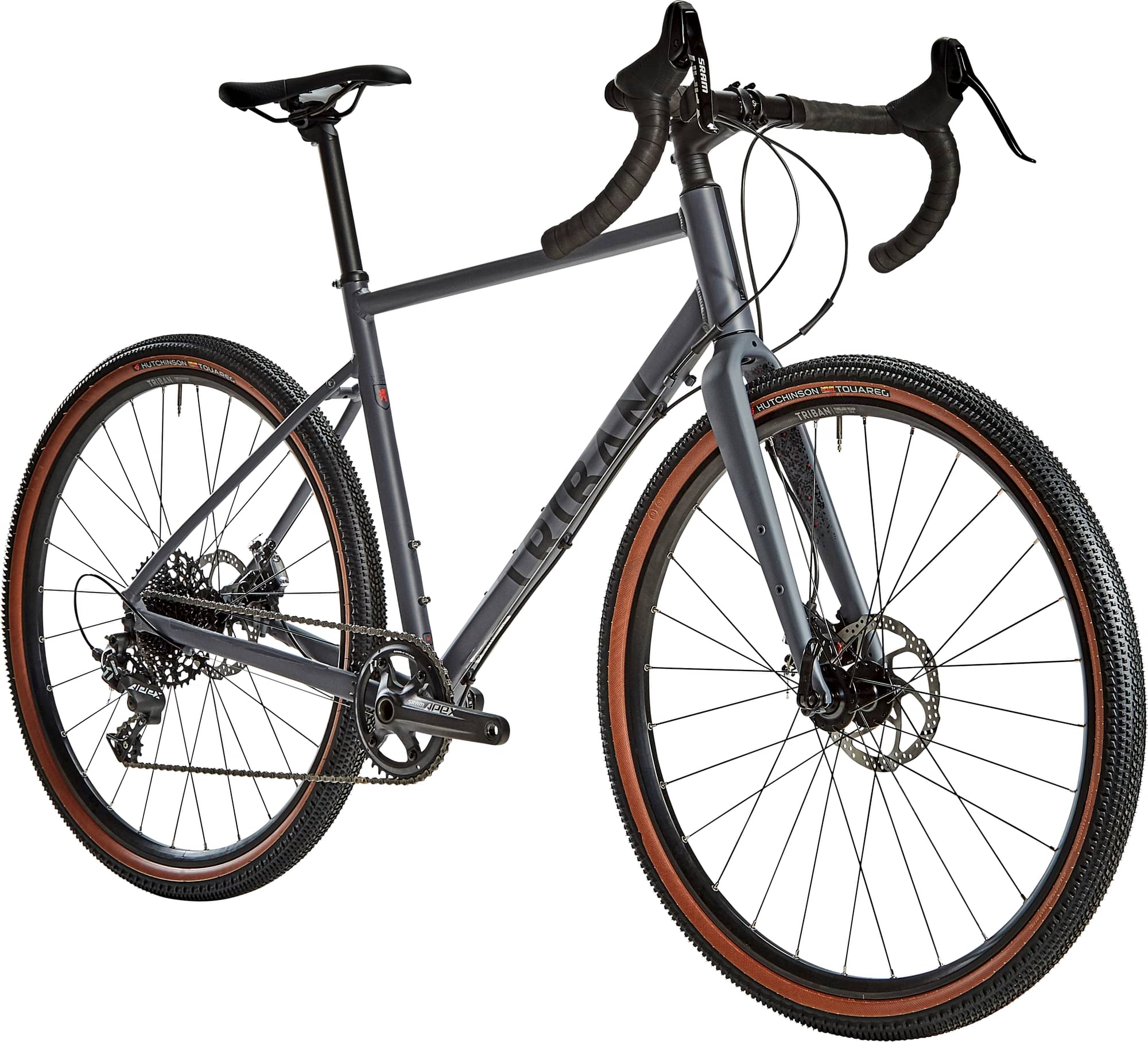

Triban Gravel Bike GRVL 520 Sram Apex 2023
2023 Road
Estimate price |
1,471$
Weight | 10.9 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Groupset Apex -
Suspension Rigid -
Drivetrain 1 × 11 -
Brakes Mechanical Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame

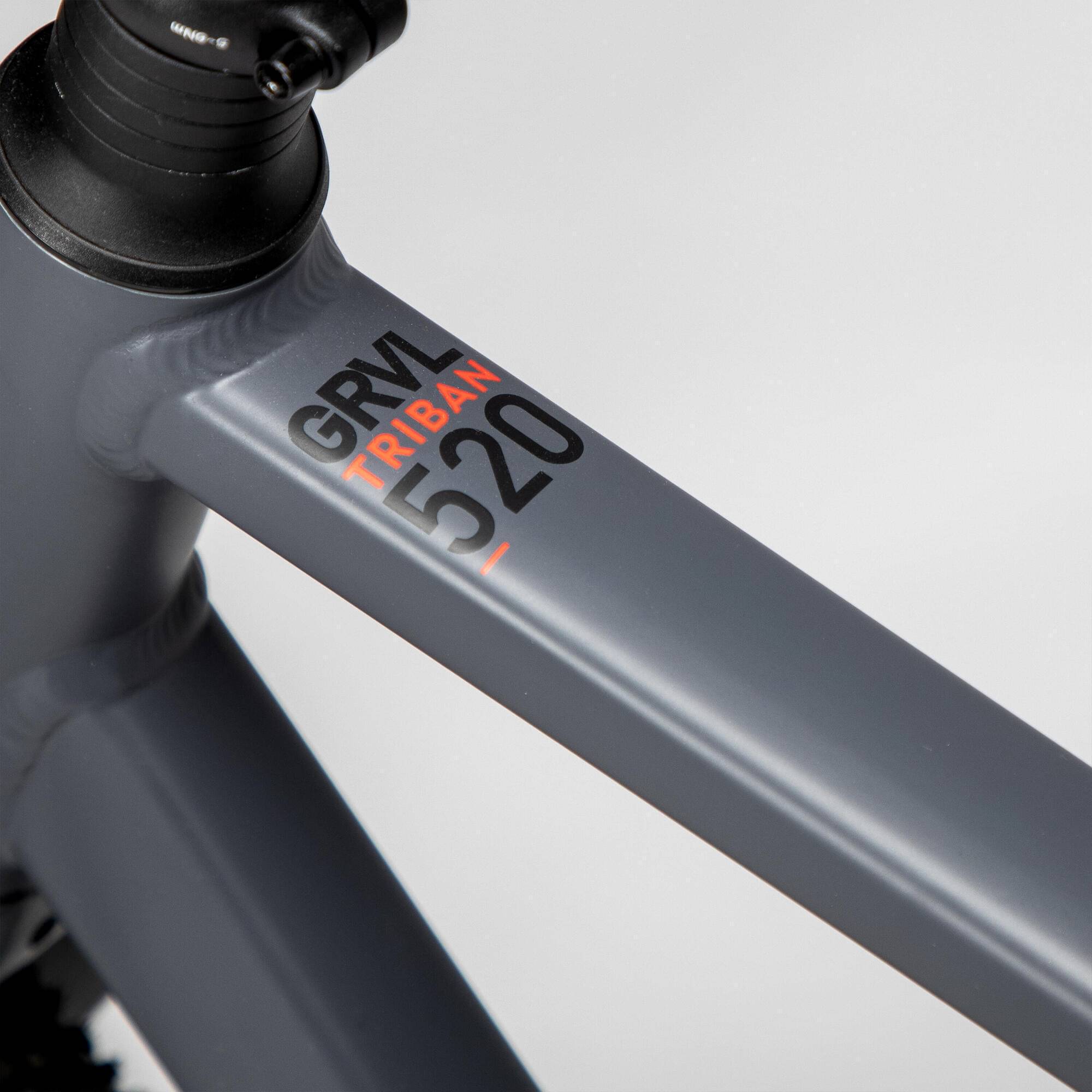

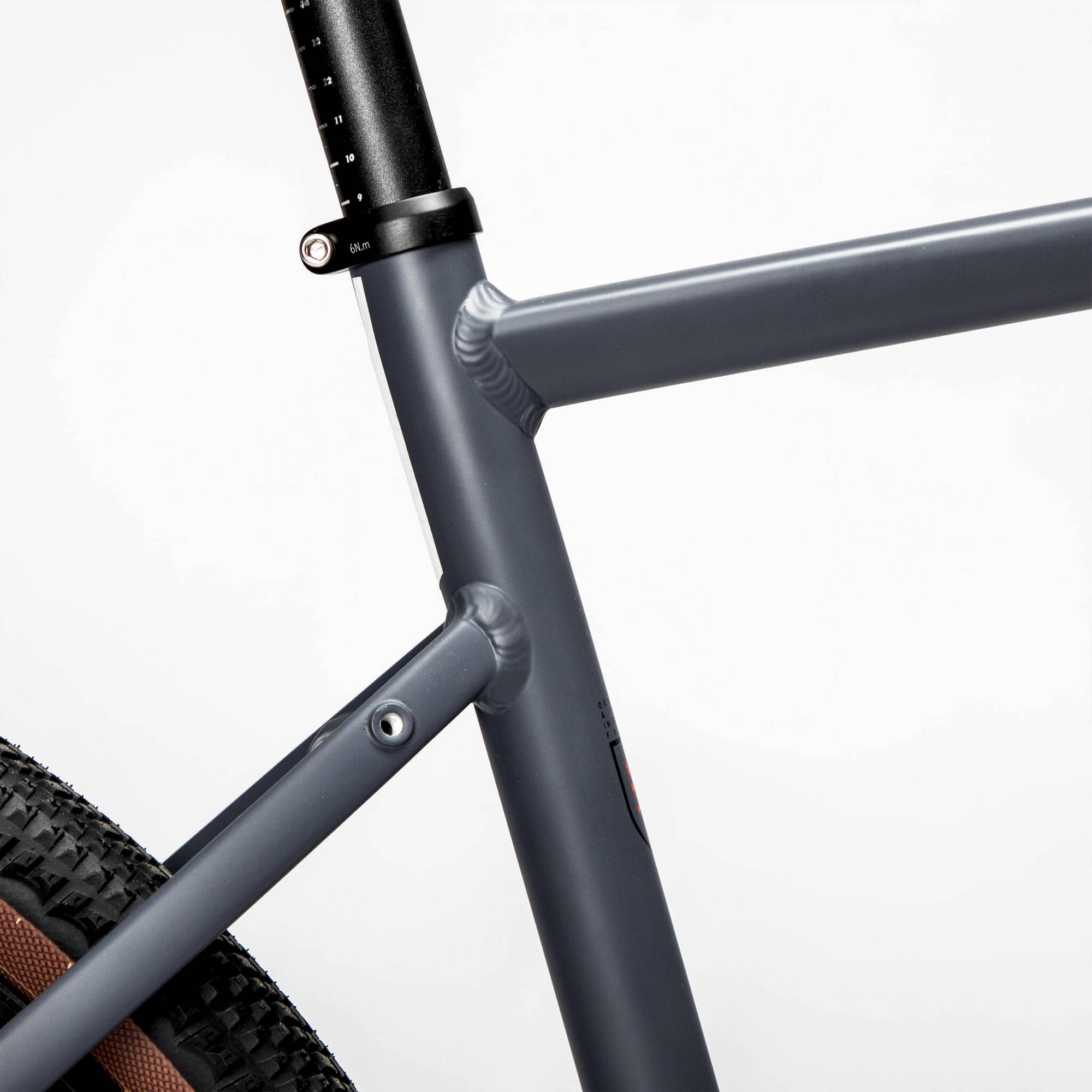

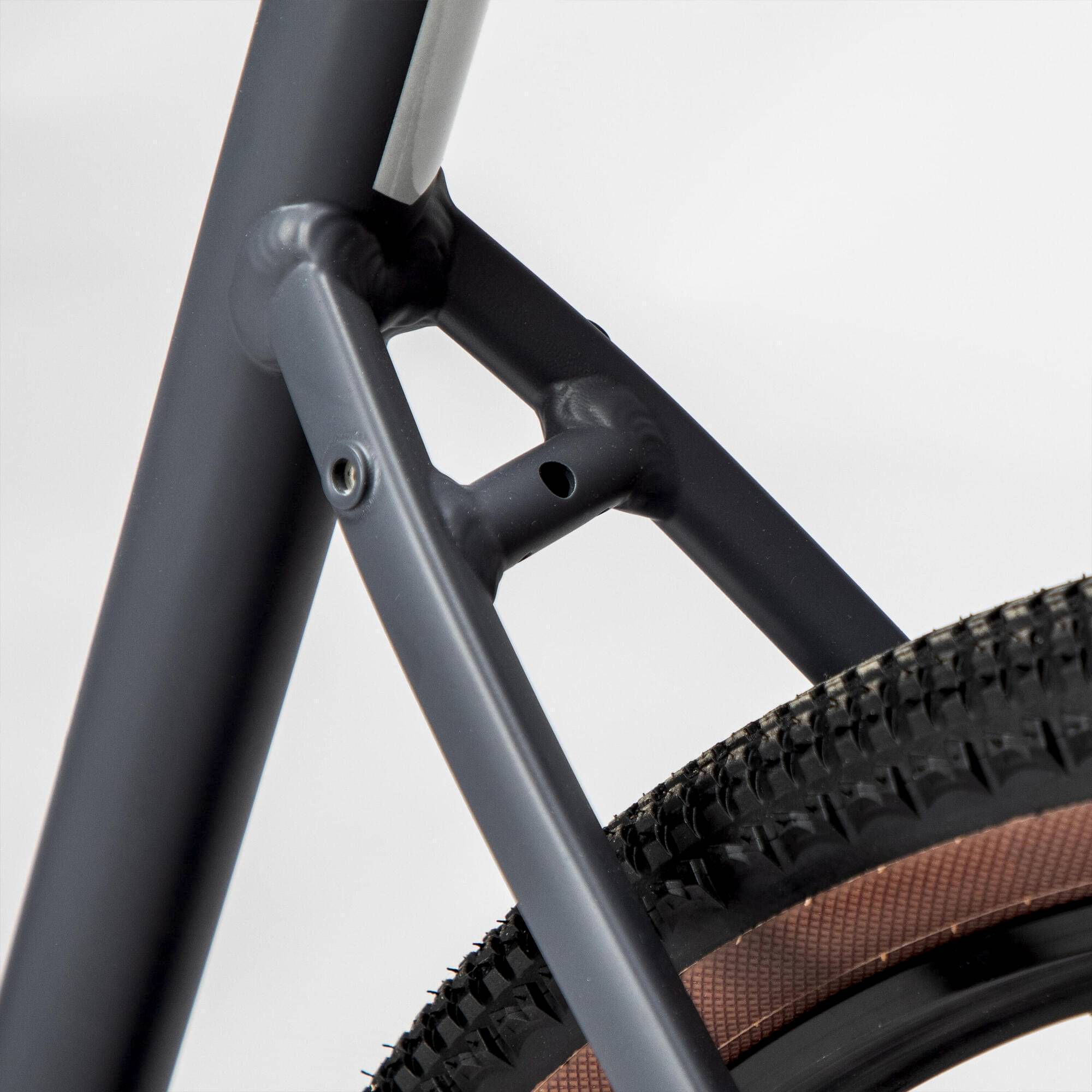

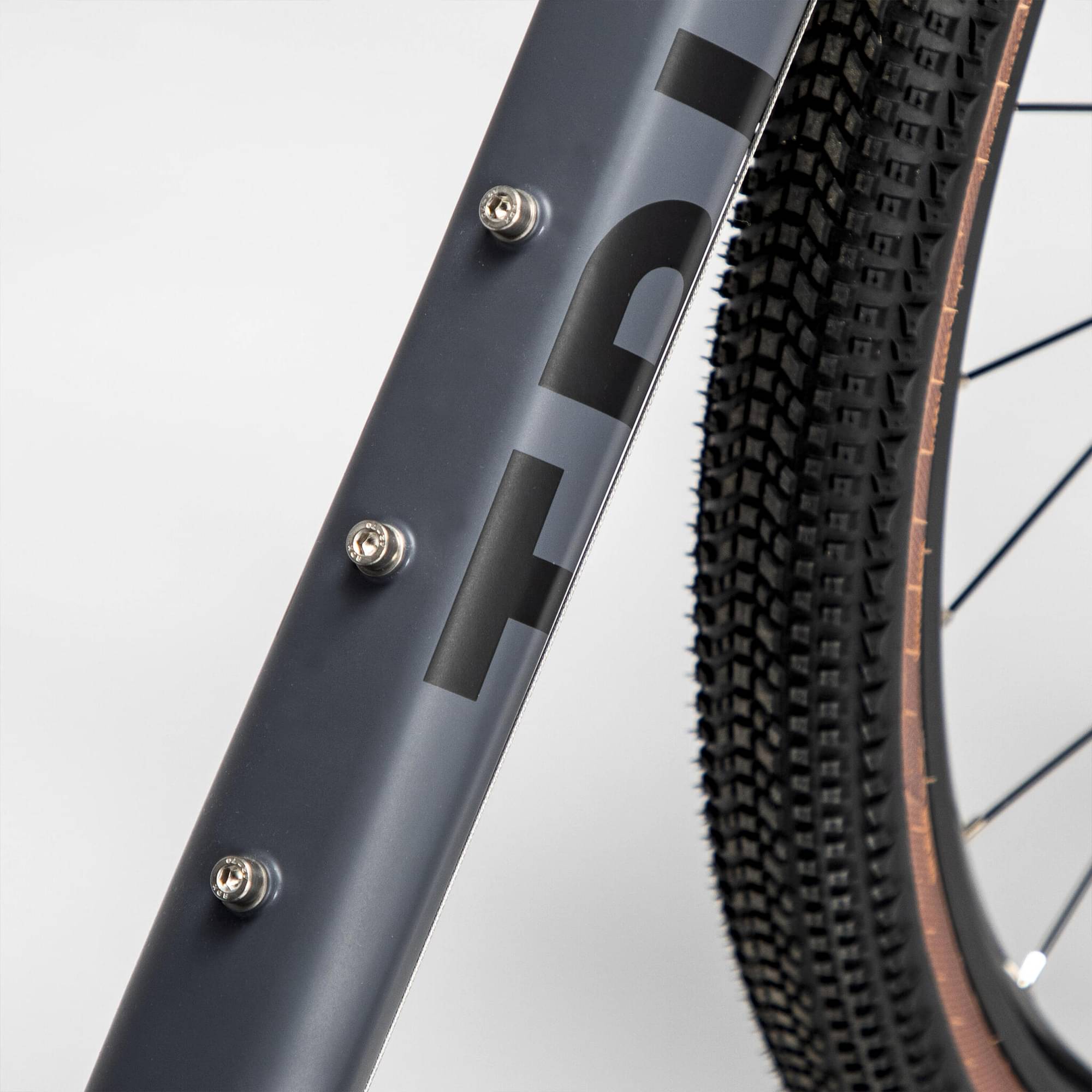

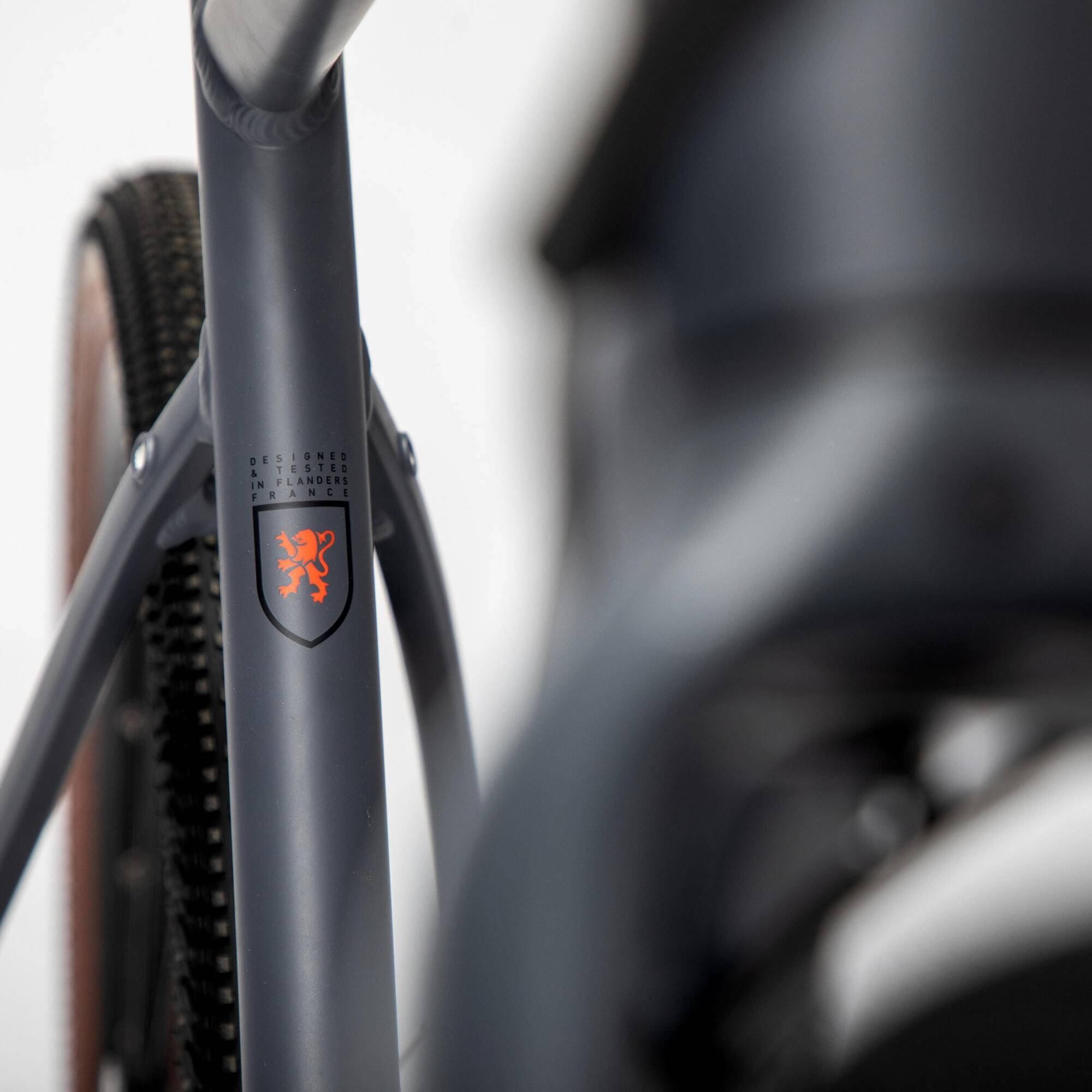

New Triban EvoG frame made of aluminium 6061 T6, with its new Triban GRVL gravel-specific geometry for a better balance between comfort and steering. Strong, versatile frame: can install a mudguard and pannier rack Weight: 1750 g in size M.9x135 axle spacing for a Quick Release QR axle / Flat mount brake calliper Normative compatibility with tyre cross-sections up to 700.42 and 650.47
Suspension Fork

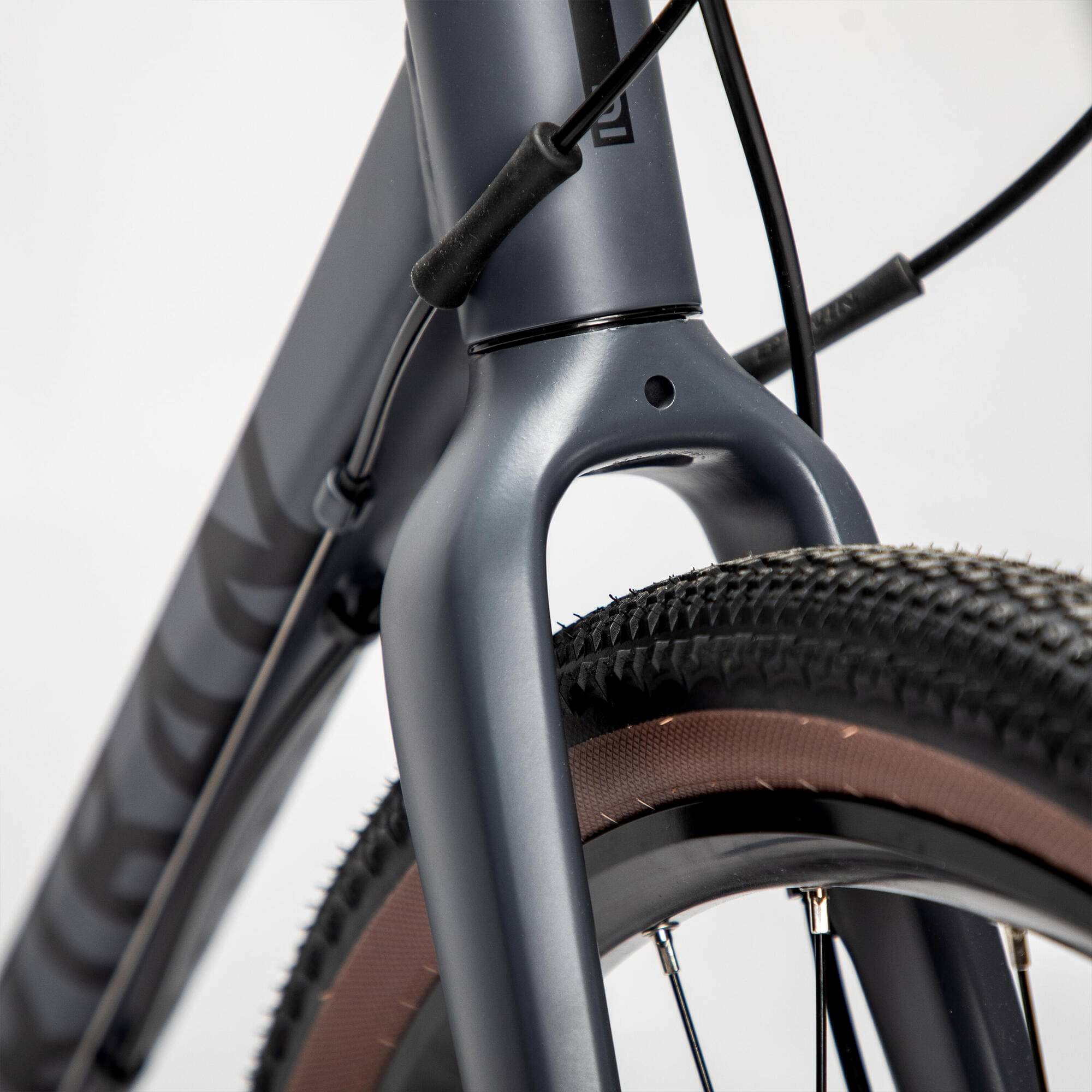

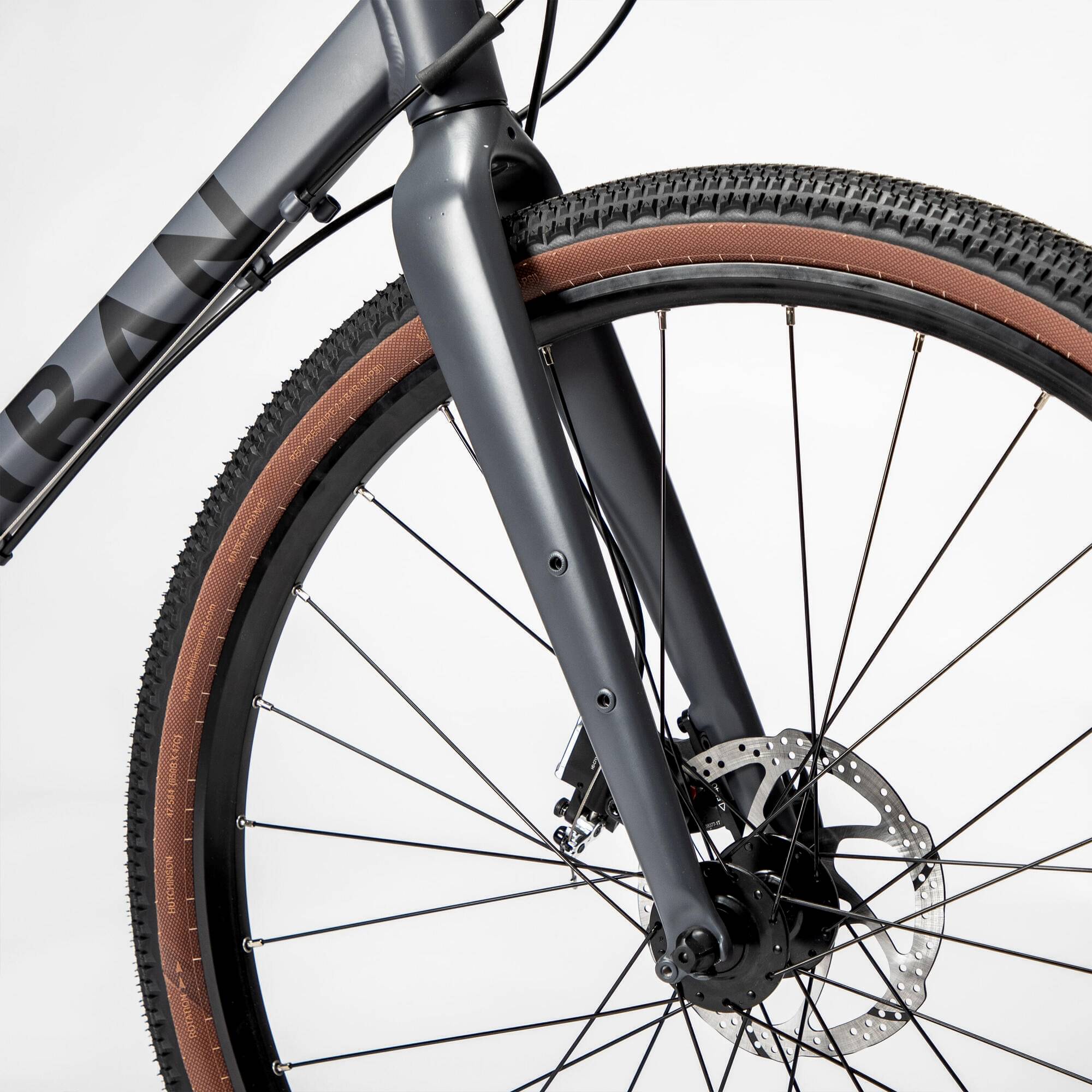

New Triban EvoG fork with carbon blades and aluminium 1"1/8 Aheadset steerer tube. This fork combines comfort, low weight, and precision. The carbon has been designed for good lateral rigidity and good filtering of frontal vibrations. Flat mount calliper. 2 inserts on each blade for installing a front pannier rack or a bottle cage. Maximum load on the fork: 10 kg Compatible with tyres up to 700.42 / 650.47
Drivetrain
Cassette

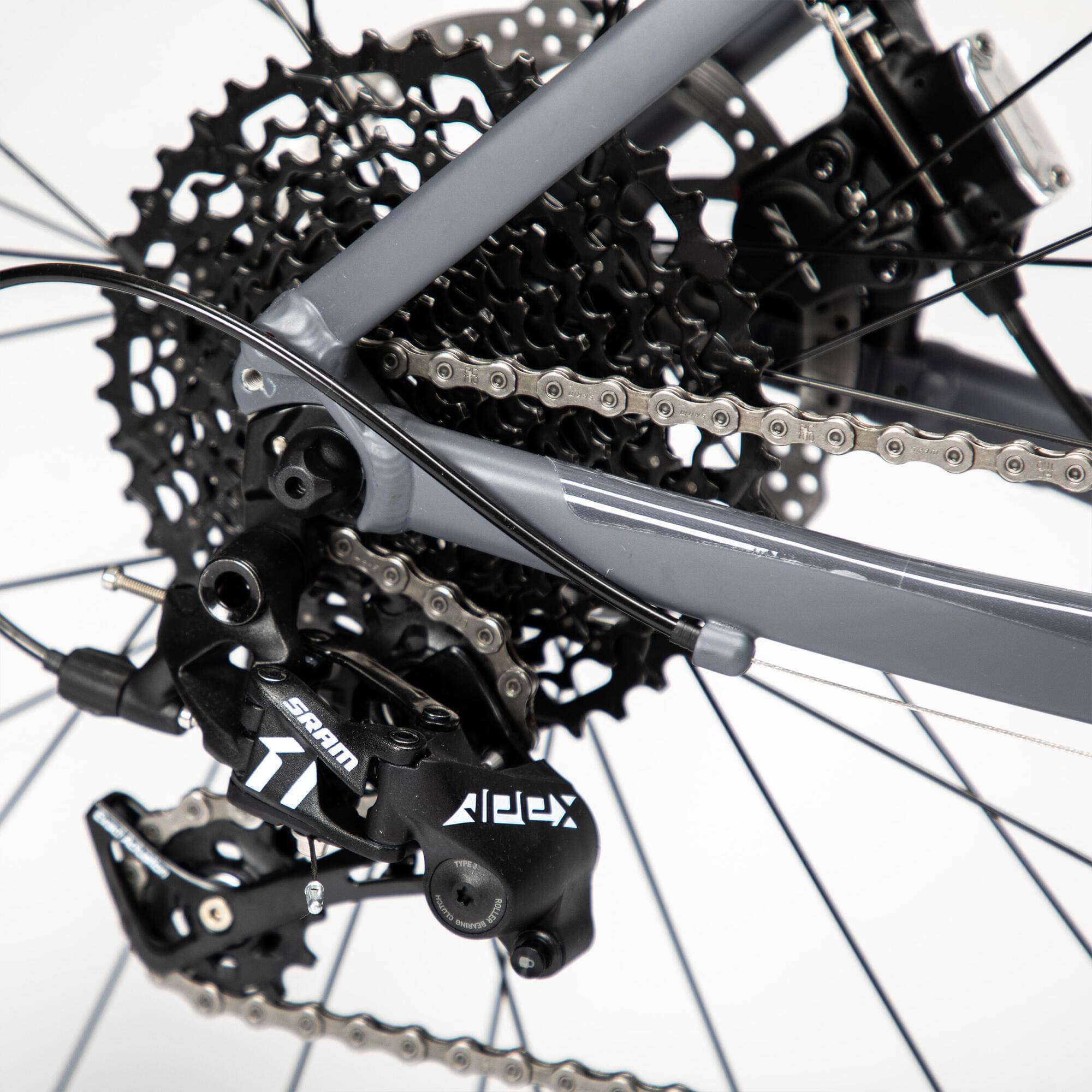

SRAM APEX 1 PG1130 11-42 cassette (11/13/15/17/19/22/25/28/32/36/42) Cassette weight: 528 g SRAM S350-1 APEX 1 40 chainset Different crank lengths depending on the bike size: XS, S: 170mm.M: 172.5mm.L, XL: 175mm. Bottom bracket weight in 172.5: 790 g
Crank

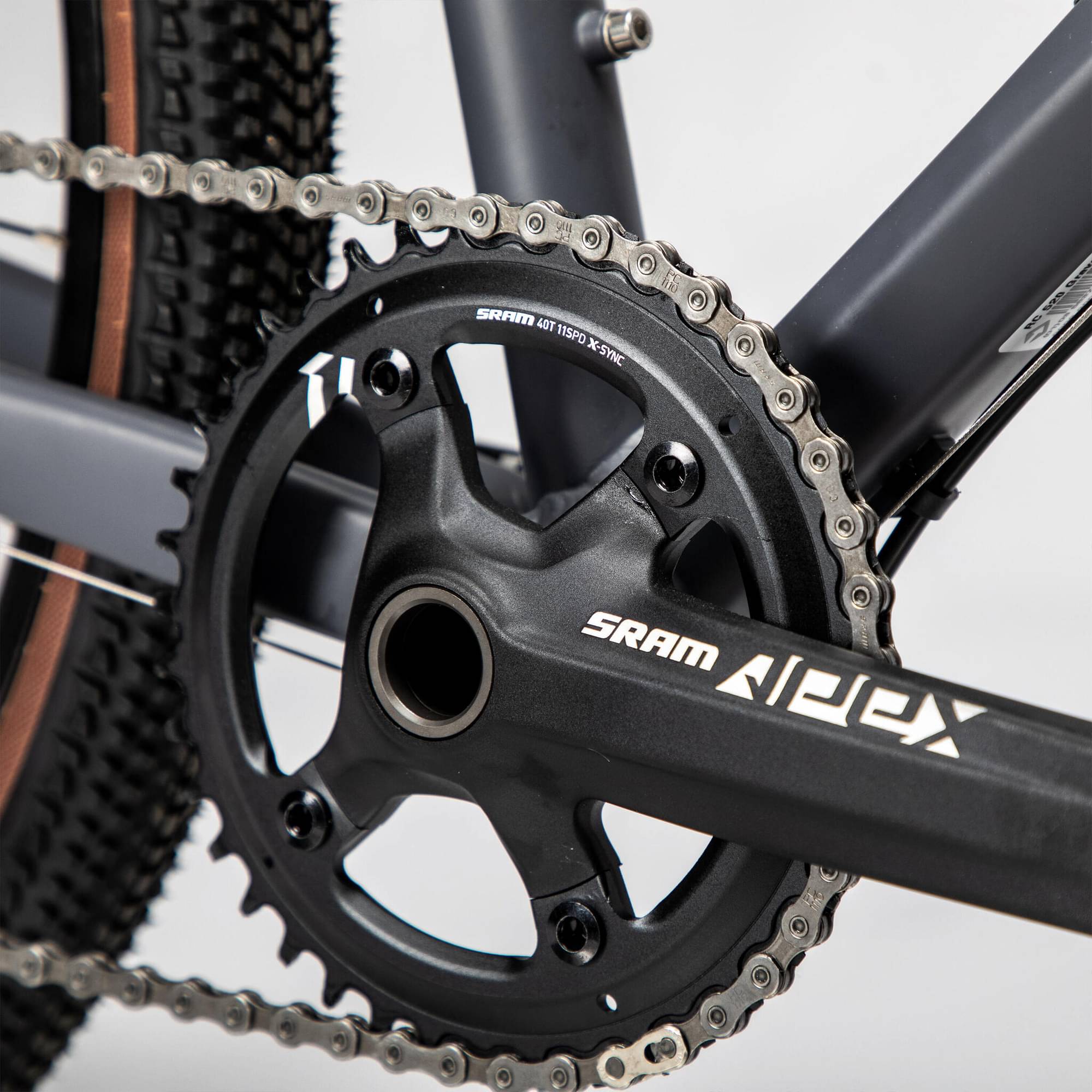

SRAM APEX 1 PG1130 11-42 cassette (11/13/15/17/19/22/25/28/32/36/42) Cassette weight: 528 g SRAM S350-1 APEX 1 40 chainset Different crank lengths depending on the bike size: XS, S: 170mm.M: 172.5mm.L, XL: 175mm. Bottom bracket weight in 172.5: 790 g
Pedals
Platform pedals included with the bike.We recommend either flat or SPD pedals
Wheels
Rims
Triban Gravel 650x23c Tubeless Ready wheels for effective steering and comfort on winding and uneven trails 6063 T66 aluminium. ETRTO dimensions: 584" x 23"Height: 19 mm Crossed steel spokes (28 front and 28 rear). Sealed cartridge bearings.9x100 front, 9x135 rear QR axle Weight per pair (without cassette and QR): 2.15 kg TESA TLR* rim strip *For converting to tubeless, add 2 tubeless valves (product ref: 8551979) + tubeless anti-puncture liquid sealant (product ref: 8363393)
Tires
Hutchinson Touareg 650x47, Tubeless Ready tyres with hardskin puncture protection 585 g per tyre Skinwall dual-rubber flex bead 127 TPI carcass Dimensions: ETRTO 47-584 / 650x47c Min inner tube pressure: 2.5 bar / 38psi Max inner tube pressure: 3.5 bar / 51 psi Tubeless pressure: 2.5 to 3 bar (85 kg rider)
Brakes
Brakes

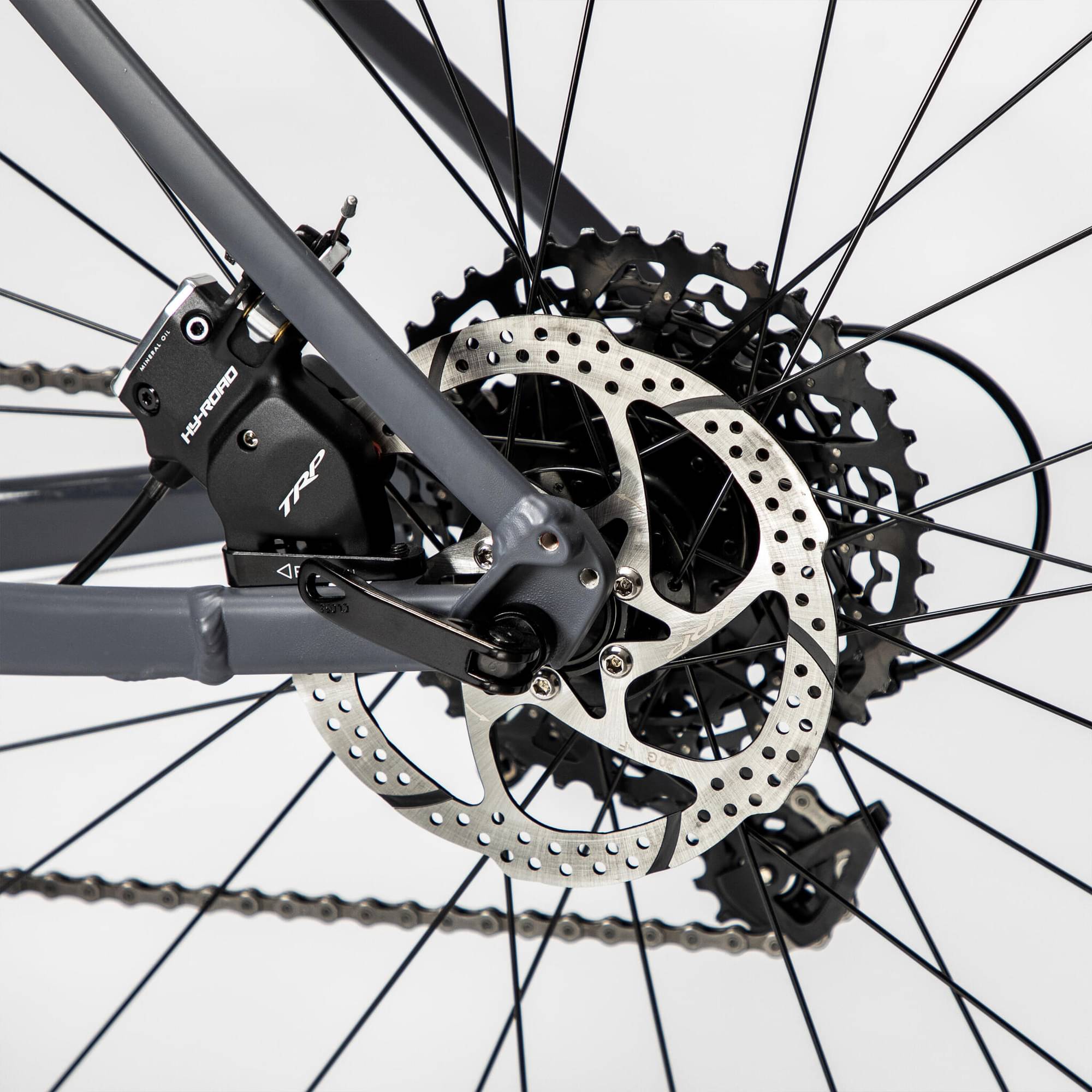

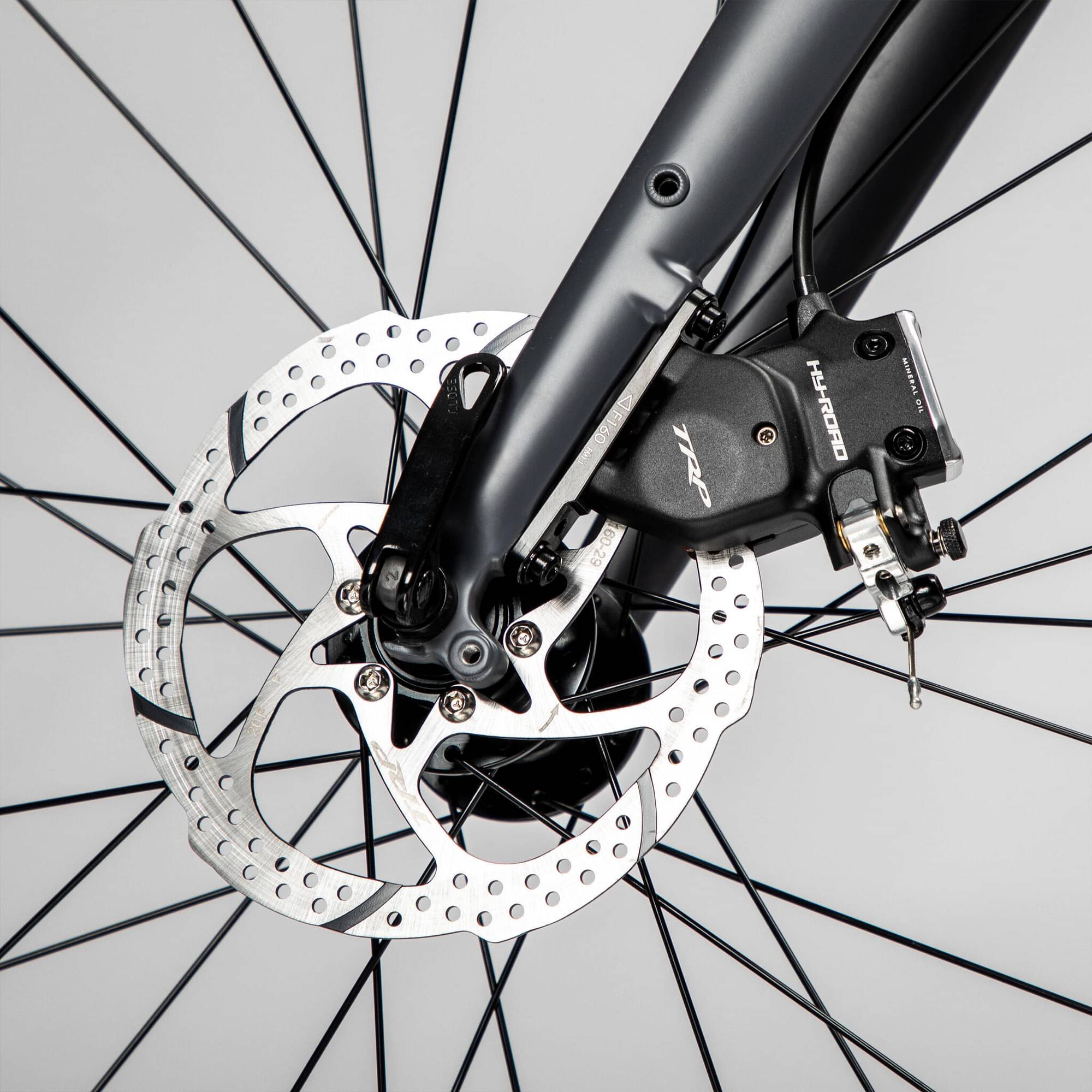

TRP HY/RD disc brakes. Cable-operated hydraulic pistons, ensuring reliability and efficiency 160mm disc at the front and rear. Flat Mount assembly. JAGWIRE anti-compression housing to ensure braking precision and efficacy TRP semi-metallic plate (version M515/M525)
Brake Levers

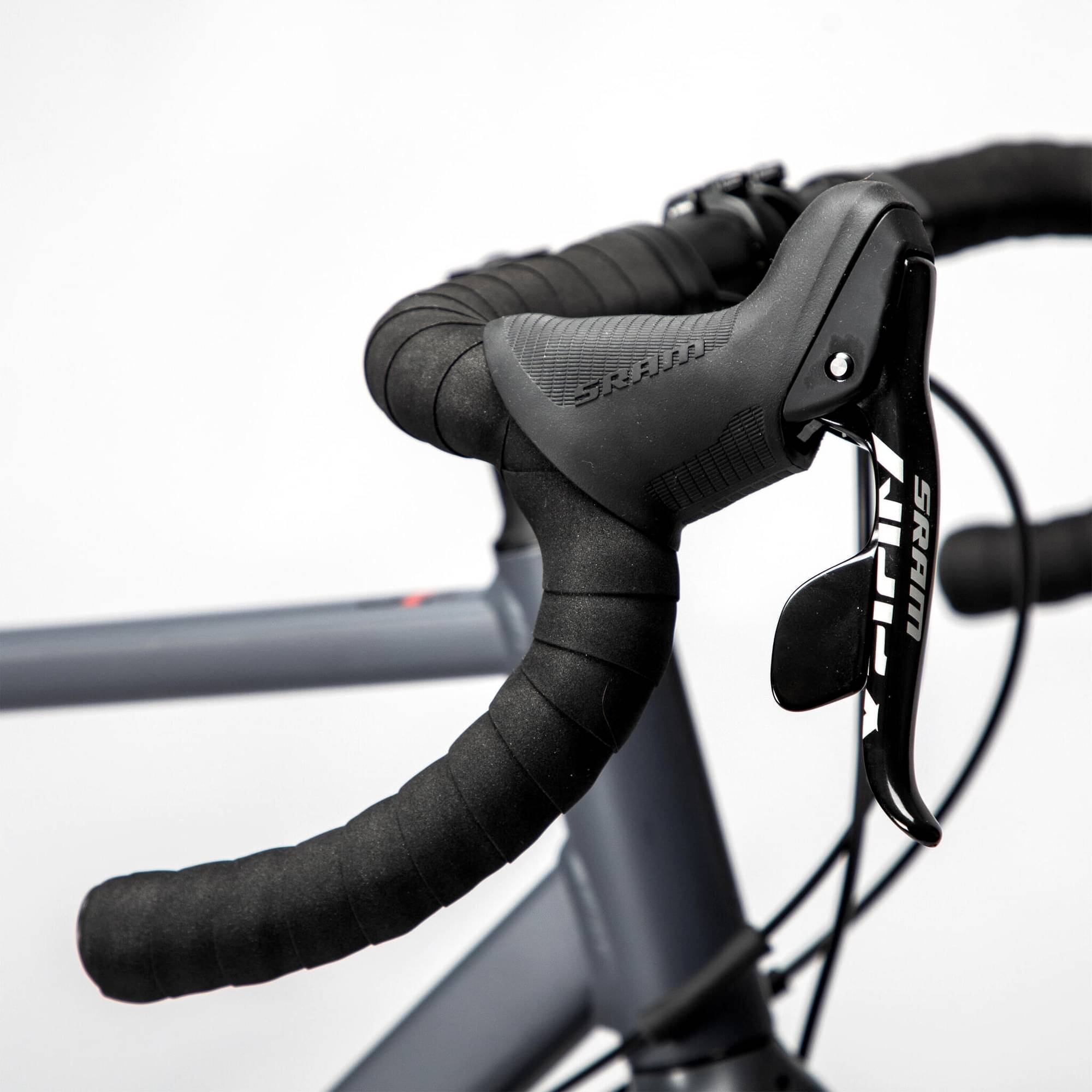

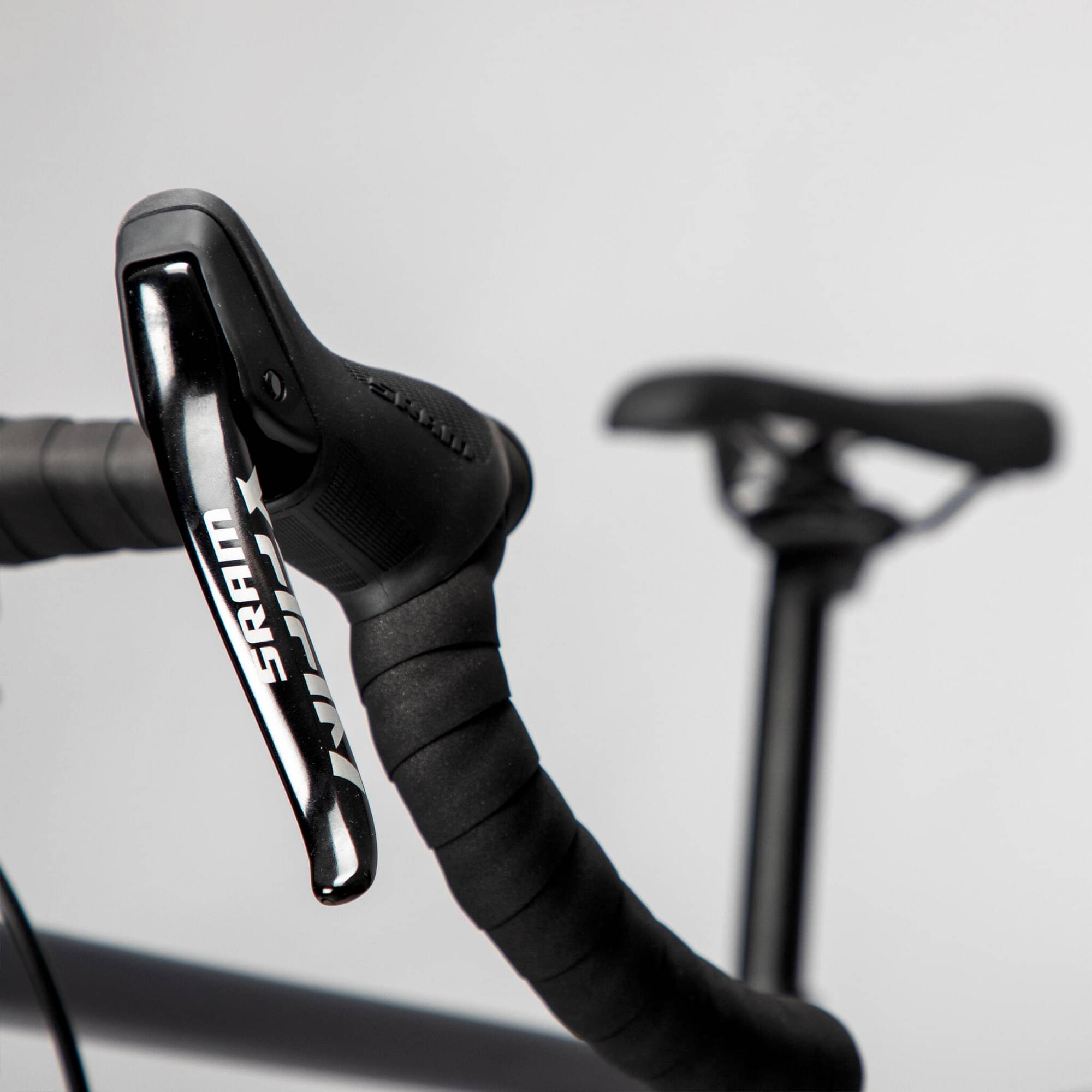

TRP HY/RD disc brakes with cable-operated hydraulic pistons
Seat
Saddle
Triban ErgoFit saddle with hammock design
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Wheels | 650 | 650 | 650 | 650 | 650 |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
About this model
Gravel Bike GRVL 520 Sram Apex completes the Triban Gravel model. TRIBAN launched 15 bikes of this model so far. Check out the entire range from 2023 of this model, by clicking this link.
Model range prices
The most economical model, the TRIBAN Gravel Bike RC 120 Disc Brake 2023 has a starting price of 729$. TRIBAN Gravel Bike GRVL 520 Subcompact 2023 on the other hand is the most expensive at 1458$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Gravel bikes average price
According to our math, the average price for a trustworthy Gravel bike is 2462$. However, this doesn’t mean that if you spend less money on a Gravel bike, you couldn’t get a decent one. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
This bike was released in 2023 and its price was 1337$. In conclusion, this bike price is 84.14% smaller than the price of the average Gravel bike.
Average weight for Gravel bikes
Gravel bikes have an average weight of 8.13 kg (17.92 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
Weighing 10.9 kg (24.03 lbs), the Gravel Bike GRVL 520 Sram Apex model is much heavier than average. To sum up, it’s 34.07% heavier than the average weight of Gravel bikes.
Overview of components
Fork material
The fork is made out of carbon, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels size
When it comes to wheels, the Gravel Bike GRVL 520 Sram Apex bike is equipped with the aluminum model. 650b wheels make a great choice if you want to sacrifice speed for comfort. However, they don’t perform so well when you go over bumps and obstacles.
Brakes
Nothing is more important on a bike than its ability to brake properly. TRIBAN Gravel Bike GRVL 520 Sram Apex is equipped with Mechanical Disc brakes. They are much easier to maintain than hydraulic disk brakes. However, with hydraulic disk brakes, you have the ultimate braking power!
Sizes
Gravel Bike GRVL 520 Sram Apex comes in 5 sizes, that range from 156 cm – 195 cm (5.12 ft – 6.4 ft). In conclusion, it won’t take much to find one that’s right for you.
