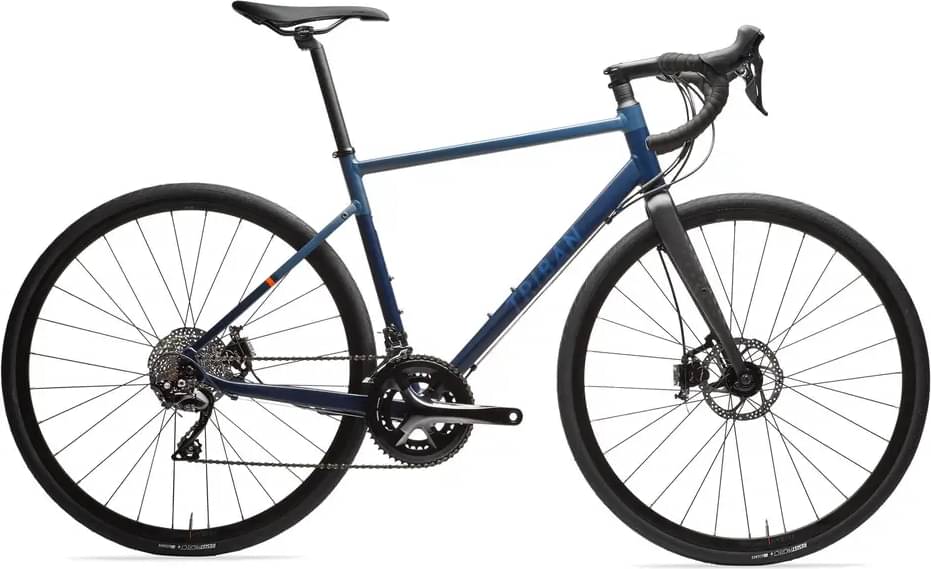

Triban Road bike RC 520 Disc Brake 2022
2022 Road
Estimate price |
1,136$
Weight | 10.4 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame aluminium -
Wheels 700c -
Suspension Rigid -
Brakes Mechanical Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
New Triban Evo frame in 6061 T6 aluminium, comfort-oriented geometry with adapted sloping Weight: 1780 g in size M.Strong, versatile frame: can be fitted with a mudguard and pannier rack Compatible with tyres up to 700x36 or 650x40
Suspension Fork
New Triban Evo fork with carbon blades and aluminium 1"1/8 Aheadset steerer tube. This fork combines comfort, low weight (680g), and precision. The carbon has been machined to provide good lateral rigidity and good filtering of frontal vibrations. Inserts on blades for mounting a front pannier rack. Maximum load on the fork: 9kg, Holes on the wheel axle for attaching a mudguard Compatible with tyres up to 700x36 or 650x40
Drivetrain
Cassette
Microshift CS-H110 11S 11/32 cassette (11/12/13/14/15/17/19/21/24/28/32). Shimano RS 510 compact crankset 50/34. Crank length varies according to size of bike: XS, S: 170mm.M: 172.5mm.L, XL: 175mm.
Pedals
Platform pedals included with the bike.
Wheels
Rims
New Triban Tubeless Ready* wheels 6063T6 aluminium ETRTO dimensions: 622 x 19 C 25mm high for greater lateral rigidity Crossed steel spokes for improved rigidity (28 front and 28 rear) Sealed bearings Weight per pair (without cassette and QR): 2300 g * To switch to Tubeless, you'll need a pair of Tubeless Ready tyres and a conversion kit including 2 tubeless valves + 2 rim strips + bottle of anti-puncture liquid.
Tires
Triban Resist+ tyres 410 g Skinwall stiff bead 1 mm nylon anti-puncture protection Durable carcass: 55 TPI. Dimensions: 28c-622 / 700 x 28c for greater comfort. Max. pressure: 8 bar / 116 psi.These tyres are NOT Tubeless Ready
Brakes
Brakes
TRP HY/RD disc brakes. Cable-operated hydraulic pistons, ensuring reliability and efficiency 160mm disc at the front and rear Anti-compression Jagwire housing to ensure braking precision and efficiency Semi-metallic TRP pad (M515/M525 version)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
About this model
Road bike RC 520 Disc Brake is a Triban Road model. TRIBAN launched 27 bikes of this model so far. Take a sneak peek at all Triban Road bikes models from 2022, by clicking here.
Model range prices
TRIBAN Road bike RC 100 2022 is the cheapest bike model and costs 364$. TRIBAN Road Bike RC 520 Limited Edition 2022 is the most expensive one and costs 1094$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Endurance bikes average price
Our math shows that the average cost of a dependable Endurance bike is 2346$. However, this doesn’t mean that if you spend less money on an Endurance bike, you couldn’t get a decent one. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
This bike was released in 2022 and its price was 1033$. In conclusion, this bike price is 127.11% smaller than the price of the average Endurance bike.
Average weight for Endurance bikes
On a deeper look, we notice that the average weight of an Endurance bike is 8.2 kg (18.08 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
much heavier than average, Road bike RC 520 Disc Brake has a weight of 10.4 kg (22.93 lbs). In conclusion, the average Endurance bike weighs 26.83% less than Road bike RC 520 Disc Brake.
Road bike RC 520 Disc Brake components
Fork material
The fork on this bike is made out of carbon, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Wheels
As for the wheels, TRIBAN Road bike RC 520 Disc Brake 2022, has a 700c aluminum model. There is no doubt, that 700c wheels are very popular on all road bike models. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
When you want to stop the bike in time, the brakes are vital. The Road bike RC 520 Disc Brake has Mechanical Disc brakes. They deliver good performance and cost less than hydraulic disk brakes. However, they don’t have the stopping power of hydraulic brakes.
Sizes
Road bike RC 520 Disc Brake comes in 5 sizes, that range from 156 cm – 195 cm (5.12 ft – 6.4 ft). In conclusion, it won’t take much to find one that’s right for you.
