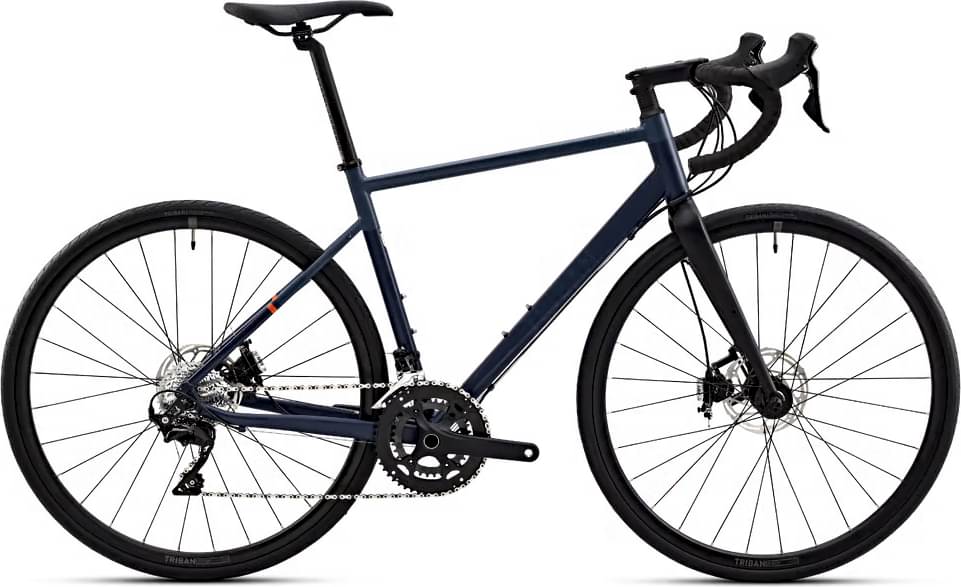

Triban Road Bike RC 520 Disc Brake – Shimano 105/Prowheel 2022
2022 Road
Estimate price |
1,136$
Weight | 10.4 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset microSHIFT -
Suspension Rigid -
Drivetrain 2 × 11 -
Brakes Mechanical Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
New Triban Evo frame in 6061 T6 aluminium, comfort-oriented geometry with adapted sloping Weight: 1780 g in size M.Strong, versatile frame: can be fitted with a mudguard and pannier rack Compatible with tyres up to 700x36 or 650x40
Suspension Fork
Triban Evo fork with carbon blades and aluminium 1"1/8 Aheadset steerer tube. This fork combines comfort, low weight (680g), and precision. The carbon has been machined to provide good lateral rigidity and good filtering of frontal vibrations. Inserts on blades for mounting a front pannier rack. Maximum load on the fork: 9kg, Holes on the wheel axle for attaching a mudguard Compatible with tyres up to 700x36 or 650x40
Drivetrain
Cassette
Microshift CS-H110 11S 11/32 cassette (11/12/13/14/15/17/19/21/24/28/32). Prowheel bottom bracket 10/11S 50/34 Prowheel crankset. Lengths differ based on the size of the bike: XS, S, M : 170mm. L,XL: 175mm.This is the only modification made to the classic RC 520 model. We needed to make this component choice in order to ensure better product availability.
Crank
Microshift CS-H110 11S 11/32 cassette (11/12/13/14/15/17/19/21/24/28/32). Prowheel bottom bracket 10/11S 50/34 Prowheel crankset. Lengths differ based on the size of the bike: XS, S, M : 170mm. L,XL: 175mm.This is the only modification made to the classic RC 520 model. We needed to make this component choice in order to ensure better product availability.
Pedals
Platform pedals included with the bike.The mentioned bike weight doesn't include the weight of the pedals.
Wheels
Rims
Triban Tubeless ready* wheels 6063T6 aluminium ETRTO dimensions: 622 x 19 C 25mm high for greater lateral rigidity Crossed steel spokes for improved rigidity (28 front and 28 rear) Sealed bearings Weight per pair (without cassette and QR): 2300 g * To switch to Tubeless, you'll need a pair of Tubeless Ready tyres and a conversion kit including 2 tubeless valves + 2 rim strips + bottle of anti-puncture liquid.
Tires
Triban Resist+ tyres 410 g Skinwall stiff bead 1 mm nylon anti-puncture protection Durable carcass: 55 TPI. Dimensions: 28c-622 / 700 x 28c for greater comfort. Max. pressure: 8 bar / 116 psi. These tyres are NOT Tubeless Ready
Brakes
Brakes
TRP HY/RD disc brakes. Cable-operated hydraulic pistons, ensuring reliability and efficiency 160mm disc at the front and rear Anti-compression Jagwire housing to ensure braking precision and efficiency Semi-metallic TRP pad (M515/M525 version)
Brake Levers
TRP HY/RD disc brakes with cable-operated hydraulic pistons
Seat
Saddle
New Triban ErgoFit saddle with hammock design for greater comfort
Seatpost
Aluminium Triban seat post with easy seat adjustment, diameter: 27.2 mm, length: 350mm in M / L / XL, 300mm in S, 250mm in XS
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
Road Bike RC 520 Disc Brake – Shimano 105/Prowheel is part of the Triban Road model. TRIBAN released 27 bikes variations of this model so far. You can easily view all of the Triban Road bikes models from 2022, here.
Model range prices
TRIBAN Road bike RC 100 2022 is the cheapest bike model and costs 364$. TRIBAN Road Bike RC 520 Limited Edition 2022 is the most expensive one and costs 1094$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Endurance bikes
Our math shows that the average cost of a dependable Endurance bike is 2346$. However, even if your budget is less than the average, you might still be able to get a top-quality Endurance bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
When TRIBAN released this model in 2022, its price was 1033$. Comparing this to the average Endurance bike price, we see that the price is 127.11% lower.
Endurance bikes average weight
Endurance bikes weigh an average of 8.2 kg (18.08 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
much heavier than average, Road Bike RC 520 Disc Brake – Shimano 105/Prowheel has a weight of 10.4 kg (22.93 lbs). In conclusion, the average Endurance bike weighs 26.83% less than Road Bike RC 520 Disc Brake – Shimano 105/Prowheel.
Overview of components
Fork material
When it comes to the fork, this bike has a carbon one, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Wheels size
The wheels on Road Bike RC 520 Disc Brake – Shimano 105/Prowheel are the 700c aluminum type. These wheels are the most used kind for road bikes in general. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
When you want to stop the bike in time, the brakes are vital. The Road Bike RC 520 Disc Brake – Shimano 105/Prowheel has Mechanical Disc brakes. They deliver good performance and cost less than hydraulic disk brakes. However, they don’t have the stopping power of hydraulic brakes.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, it won’t take much to find one that’s right for you.
