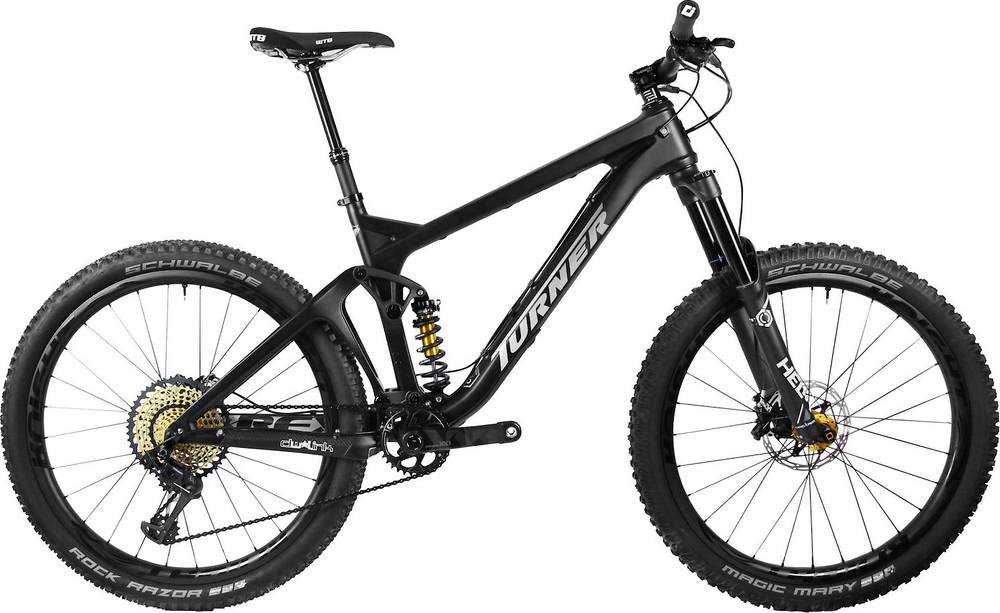

Turner RFX v4.0 Limited X01 Eagle 2018
2018 Mountain
Estimate price |
5,578$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 27.5" -
Travel Front 160mm -
Travel Rear 160mm -
Fork Cane Creek HELM
-
Groupset X01, X01 Eagle -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon Fiber
Suspension Fork
Cane Creek Helm Air, high/low speed compression adjustment, low speed rebound adjustment, 110mm boost spacing
Rear Shock
Cane Creek DB Coil IL, high/low compression and rebound adjustment, on/off climb switch
Drivetrain
Rear Derailleur
SRAM Eagle X01, 12-speed
Front Derailleur
N/A
Shift Levers
SRAM X01, 12-speed
Cassette
SRAM Eagle X01, 10-50 tooth
Crank
SRAM X01 Eagle
Bottom Bracket
SRAM BB30, pressfit
Chain Guide
N/A
Pedals
N/A
Wheels
Front Hub
Knight Composites, 15mm x 110mm front, 12mm x 142mm rear
Rear Hub
Knight Composites, 15mm x 110mm front, 12mm x 142mm rear
Rims
Knight Composites wheelset
Spokes
28 count front and rear
Tires
Front: Schwalbe Magic Mary 2.35", Rear: Schwalbe Rock Razor 2.35"
Brakes
Brakes
SRAM Guide RS, 180mm front / 160mm rear rotors
Brake Levers
SRAM Guide RS
Cockpit
Stem
Thomson X4, 50mm length
Handlebar
Level 9 Carbon, 785mm width, 12mm rise
Grips
ODI Elite Motion, lock-on
Headset
FSA Orbit Extreme Pro, zero-stack, 1 1/8" top, 1 1/2" bottom
Seat
Saddle
WTB Volt Pro
Seatpost
KS Lev SI Integra, 150mm travel
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.53 mm | 1.45 mm | 1.43 mm | 1.39 mm |
| Bottom Bracket Height | 340 mm | 340 mm | 340 mm | 340 mm |
| Stack | 592 mm | 592 mm | 612 mm | 629 mm |
| Reach | 386 mm | 409 mm | 429 mm | 452 mm |
| Top Tube Length | 569 mm | 591 mm | 617 mm | 645 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 380 mm | 406 mm | 457 mm | 508 mm |
| Head Tube Angle | 66 ° | 66 ° | 66 ° | 66 ° |
| Head Tube Length | 100 mm | 110 mm | 125 mm | 140 mm |
| Chainstay Length | 435 mm | 435 mm | 435 mm | 435 mm |
| Bottom Bracket Drop | 15 mm | 15 mm | 15 mm | 15 mm |
| Standover Height | 729 mm | 759 mm | 797 mm | 826 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
RFX v4.0 Limited X01 Eagle is a Turner Rfx model. Turner released 3 bikes variations of this model so far. Check out the entire range from 2018 of this model, by clicking this link.
Model range prices
Turner RFX v4.0 Limited GX Eagle 2018 is the cheapest bike model and costs 4525$. Turner RFX v4.0 Limited XX1 Eagle 2018 is the most expensive one and costs 6028$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Enduro bikes average price
If you want to purchase a solid Enduro bike, it is important to know that the average cost is 3599$. However, you could also get a good Enduro bike even if you pay a lower amount than the average price. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 5578$. Comparing the average cost of an Enduro bike to this one, you will see that RFX v4.0 Limited X01 Eagle price is 54.99% higher.
Overview of components
Fork
The fork installed on this bike is the Cane Creek HELM model. The travel on this model is 160mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In conclusion, always look for a fork with decent travel when you buy a bike.
Rear Shock
From the factory, it comes with the Cane Creek DB Coil IL rear shock model, which has a travel of 160mm. Bike rear shocks are a great way to increase comfort on the bike and give you more control when riding on technical trails. In short, if you want smooth rides, get a full-suspension bicycle.
Wheels size
The wheels on RFX v4.0 Limited X01 Eagle are the 27.5″ carbon type. 27.5″ wheels will reach higher speeds than smaller-sized wheels. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
Nothing is more important on a bike than its ability to brake properly. Turner RFX v4.0 Limited X01 Eagle is equipped with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
Sizes
This bike is available in 4 sizes. They vary from 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, it won’t be difficult to find the right one for you.
Dropper post
The Turner model is also equipped with a dropper post. If used correctly, a dropper post gives you more faith, maneuverability, and greater control over your bike.
