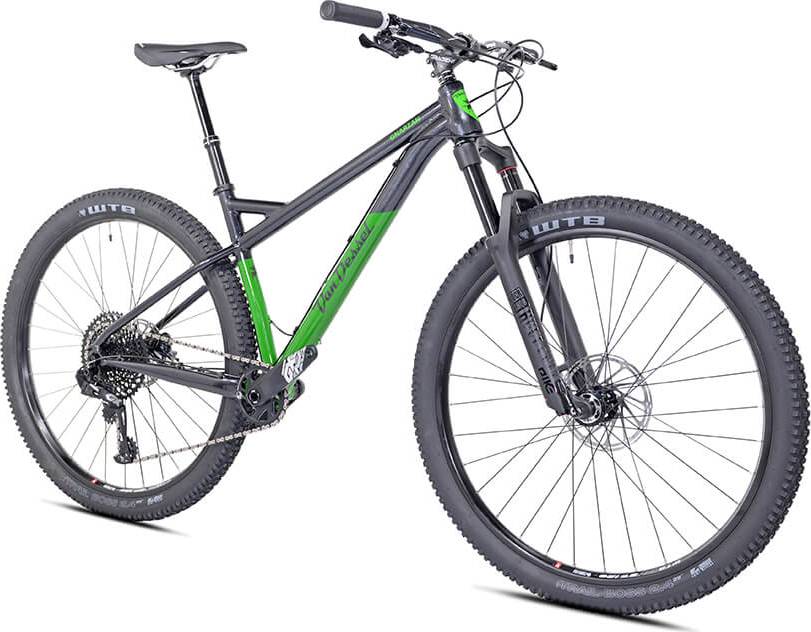

Van Dessel Gnarzan Frameset 2020

Bike details

Overview

Key information split into simple groups.

Frame summary

Category
Frame Aluminum
Wheels 27.5"
Suspension Rigid

Fit data

Geometry

Numbers for sizing and ride feel.

Size	15"	17.5"	19"	21"
Stack Reach Ratio	1.45 mm	1.39 mm	1.43 mm	1.39 mm
Bottom Bracket Height	295 mm	295 mm	295 mm	295 mm
Front Center	661 mm	691 mm	719 mm	745 mm
Rake	44 mm	44 mm	44 mm	44 mm
Trail	94 mm	90 mm	93 mm	97 mm
Stack	583 mm	588 mm	613 mm	626 mm
Reach	403 mm	422 mm	430 mm	449 mm
Top Tube Length	563 mm	593 mm	618 mm	643 mm
Seat Tube Angle	74 °	74 °	74 °	74 °
Seat Tube Length	410 mm	445 mm	480 mm	540 mm
Head Tube Angle	68 °	68 °	68 °	68 °
Head Tube Length	90 mm	100 mm	120 mm	140 mm
Chainstay Length	423 mm	423 mm	423 mm	423 mm
Wheelbase	1093 mm	1118 mm	1133 mm	1153 mm
Bottom Bracket Drop	60 mm	60 mm	60 mm	60 mm
Standover Height	735 mm	461 mm	787 mm	823 mm
Wheels	27"	27"	27"	27"

Model Overview

Gnarzan Frameset is part of the Vandessel Gnarzan model. Van Dessel launched 3 frames of this model so far. You can get a glimpse at all models from 2020, by clicking on this link.

Safety

Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.

Crosscountry frames average price

If you want an acceptable Crosscountry frame you should know that the average price is 1689$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Crosscountry frame. To make sure you don’t pay a higher amount than normal for your frame, always do some components analysis and read reviews.

At the moment of the release date, Van Dessel Gnarzan Frameset price was 699$. Comparing the average cost of a Crosscountry frame to this one, you will see that Gnarzan Frameset price is 141.63% smaller.
