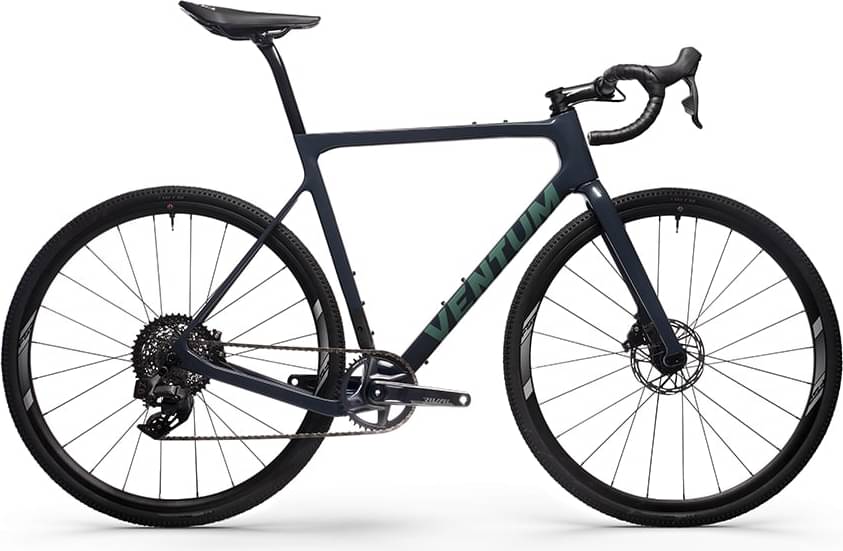

ventum GS1 SRAM RIVAL XPLR AXS 2022
2022 Road
Estimate price |
4,199$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Rival -
Suspension Rigid -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
162cm - 173cm
MD
169cm - 180cm
MD/LG
175cm - 186cm
LG
180cm - 192cm
XL
188cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Ventum GS1 Disc, Material: Carbon, 12x142mm, Flat Mount Brake
Suspension Fork
Ventum GS1 Fork, Material: Carbon, 12x100mm, Flat Mount Brake, Flip Chip
Drivetrain
Rear Derailleur
SRAM Rival RD-RIV1-E-D1
Front Derailleur
N/A
Shift Levers
SRAM Rival ED-RIV-D1
Cassette
SRAM CS-XG-1251-D1
Wheels
Rims
FSA NS Alloy, Enve AG25, Enve 3.4, or Enve G23, Zipp 303 S, Zipp 303 Firecrest
Brakes
Brakes
Hydraulic Disc
Cockpit
Handlebar
FSA A Wing AGX
Seat
Seatpost
Ventum Seatpost, Material: Carbon, 400mm Length, 25mm offset
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | MD/LG | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.44 mm | 1.46 mm | 1.5 mm | 1.51 mm | 1.51 mm |
| Bottom Bracket Height | 279 mm | 279 mm | 279 mm | 279 mm | 279 mm |
| Front Center | 592 mm | 604 mm | 612 mm | 617 mm | 626 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 79 mm | 76 mm | 69 mm | 63 mm | 60 mm |
| Stack | 516 mm | 539 mm | 564 mm | 583 mm | 598 mm |
| Reach | 359 mm | 368 mm | 377 mm | 386 mm | 395 mm |
| Top Tube Length | 524 mm | 540 mm | 557 mm | 572 mm | 585 mm |
| Seat Tube Angle | 72.5 ° | 72.5 ° | 72.5 ° | 72.5 ° | 72.5 ° |
| Seat Tube Length | 547 mm | 571 mm | 598 mm | 618 mm | 633 mm |
| Head Tube Angle | 69.5 ° | 70 ° | 71 ° | 72 ° | 72.5 ° |
| Head Tube Length | 105 mm | 128 mm | 150 mm | 166 mm | 180 mm |
| Chainstay Length | 414 mm | 414 mm | 414 mm | 414 mm | 414 mm |
| Wheelbase | 996 mm | 1008 mm | 1016 mm | 1021 mm | 1030 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 162 cm | 169 cm | 175 cm | 180 cm | 188 cm |
| Rider Max Height | 173 cm | 180 cm | 186 cm | 192 cm | 199 cm |
Model Overview
GS1 SRAM RIVAL XPLR AXS belongs to the Ventum Gs1 model. 15 bikes variations carry this model name so far. Check out the entire range from 2022 of this model, by clicking this link.
Model range prices
Ventum GS1 SRAM RIVAL XPLR AXS 2022 is the most economical model, with a starting price of 4199$. Ventum GS1 SRAM RED AXS MULLET 2022 on the other hand costs 7499$, and is the most expensive model.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Gravel bikes average price
Our math shows that the average cost of a dependable Gravel bike is 2462$. However, you could also get a good Gravel bike even if you pay a lower amount than the average price. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
At the moment of the release date, Ventum GS1 SRAM RIVAL XPLR AXS price was 4199$. Comparing the average cost of a Gravel bike to this one, you will see that GS1 SRAM RIVAL XPLR AXS price is 70.55% more expensive.
Overview of components
Fork material
GS1 SRAM RIVAL XPLR AXS has a carbon fork, so, it won’t add up to much weight to your bike. However, the price you have to pay for a carbon fork is considerably higher.
Wheels
The wheels on GS1 SRAM RIVAL XPLR AXS are the 700c aluminum type. These wheels are the most used kind for road bikes in general. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The GS1 SRAM RIVAL XPLR AXS comes with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
Sizes
This bike is available in 5 sizes. They vary from 162 cm – 199 cm (5.31 ft – 6.53 ft). In conclusion, you won’t have a problem finding one that suits you.
